Optional Rear View Camera

Optional Rear View Recording

Connect KCA-R100 to connectable DRV-A501W or DRV-A700W to record in front and behind of your vehicle, all at the same time.  KCA-R100 includes a 8m cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield or anywhere else in the vehicle where you would like to record.

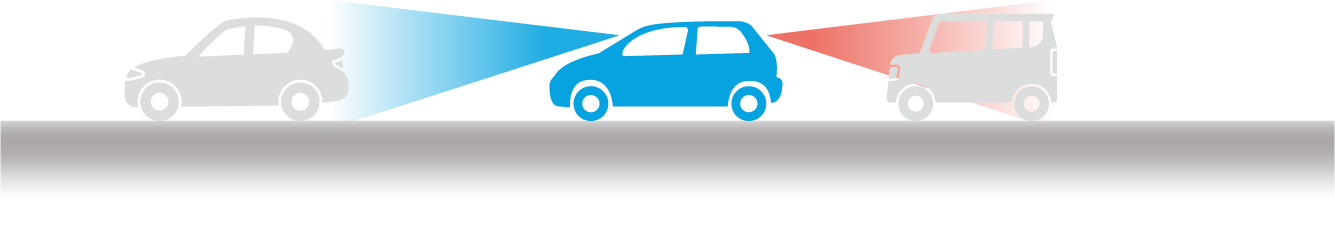

 Front & Rear View Recording

8m Rear Camera Cable

8m power & video cable enable you to install the rear camera inside your car, truck, or RV.

Do not install the camera outside of your vehicle.

Adjustable Mounting Holder

Adjustable Rear Camera mounting holder enables viewing position change by up to 180 degrees .

page top


« scroll
Hard Specification Operating voltage DC 5V
Current Consumption 110mA
Image sensor 1/2.8 CMOS sensor
Valid Pixel 2.12M Pixels (1936x1097)
Number of Pixel 2M Pixels (1920x1080)
Angles of view Horizontal : 129° Vertical : 66° Diagonal :161°
Lens rotation yes(180°)
Lens F2.0
Polarization Filter no
Operating temperature -10℃ to +60℃
Noise Protection yes
Recording Specification Recording resolution 1920 x 1080 Full HD
Frame rate 30FPS
Video format H.264 / MOV
Audio format Linear PCM
Size Dimensions WxHxD (Main unit) 63mm*66mm*36mm
Dimensions WxHxD (Bracket attached) 63mm*66mm*36mm
Weight (Main unit) 334g
DC/Rear cam Cable Length 8m
Bundled Accessory Car Mount Bracket 3M Tape
Manual /Warranty card Yes
Spare 3M Adhesive Pad yes/2pcs
