Speaker

KFC-PS170C

17cm Component Speaker

KFC-PS170C KFC-PS170C
(1)
(2)
(3)
(4)

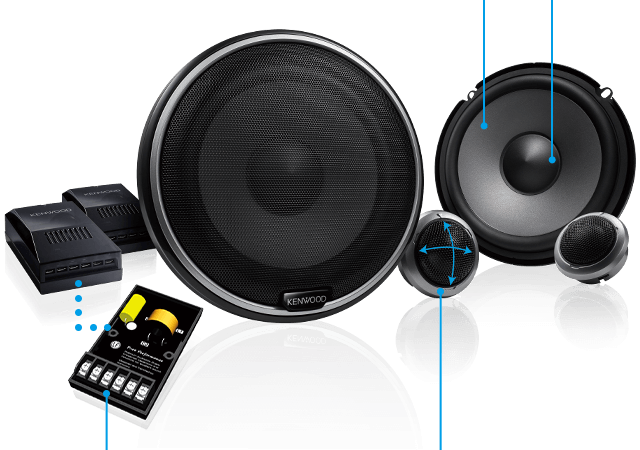

(1) 170mm Wide Etched PP Woofer Cone creates solid bass sound by avoiding deformation of diaphragm

(2) Convex Shape PP+Mica+Carbon Cap enhances mid-range performance.

(3) Audiophile grade External Network Box
using hi-quality crossover film capacitors and inductors Tweeter High Pass Filter : -12dB/oct.

(4) Swivel Type 25mm soft dome Tweeter Able to adjust the direction after installation

Speaker Tech-Spec KFC-PS170C
Peak Input Power 400W
RMS Input Power 80W
Size 17cm
Tweeter Design Soft Dome
Tweeter Magnet Composition Neodymium
Woofer Magnet Composition Ferrite
Nominal Impedance 4ohms
Frequency Response 58Hz - 22kHz
Sensitivity (dB/W at 1m) 86dB
Mounting Depth 56mm

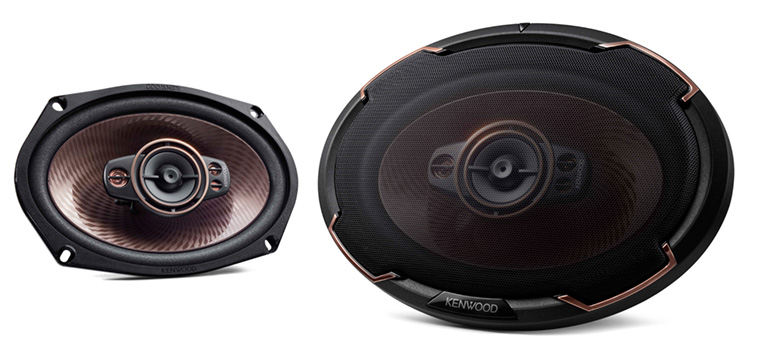

KFC-PS6996EX / 6986/ 6976

6 x 9 inch 5Way / 4Way / 3Way Speaker

KFC-PS6996EX / 6986/ 6976

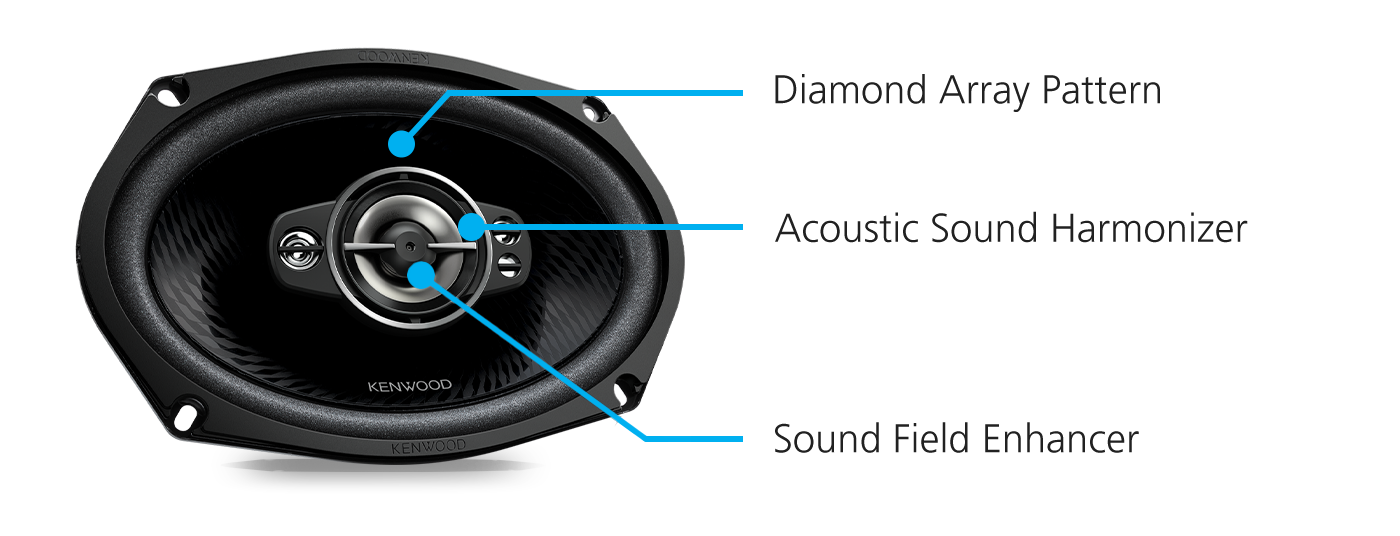

Diamond Array Patttern Woofer Cone

enhances sound and reduces distortion.

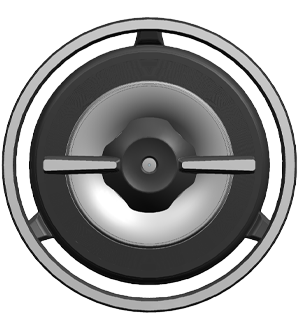

Sound Field Enhancer

The unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and upper frequencies.

Acoustic Sound Harmonizer

harmonizes different sounds from the woofer and tweeter and reproduces a natural sound.

Factory Location Fit

The tweeter height is designed as low as possible, and the speaker units can fit within most of the spaces for factory speakers.

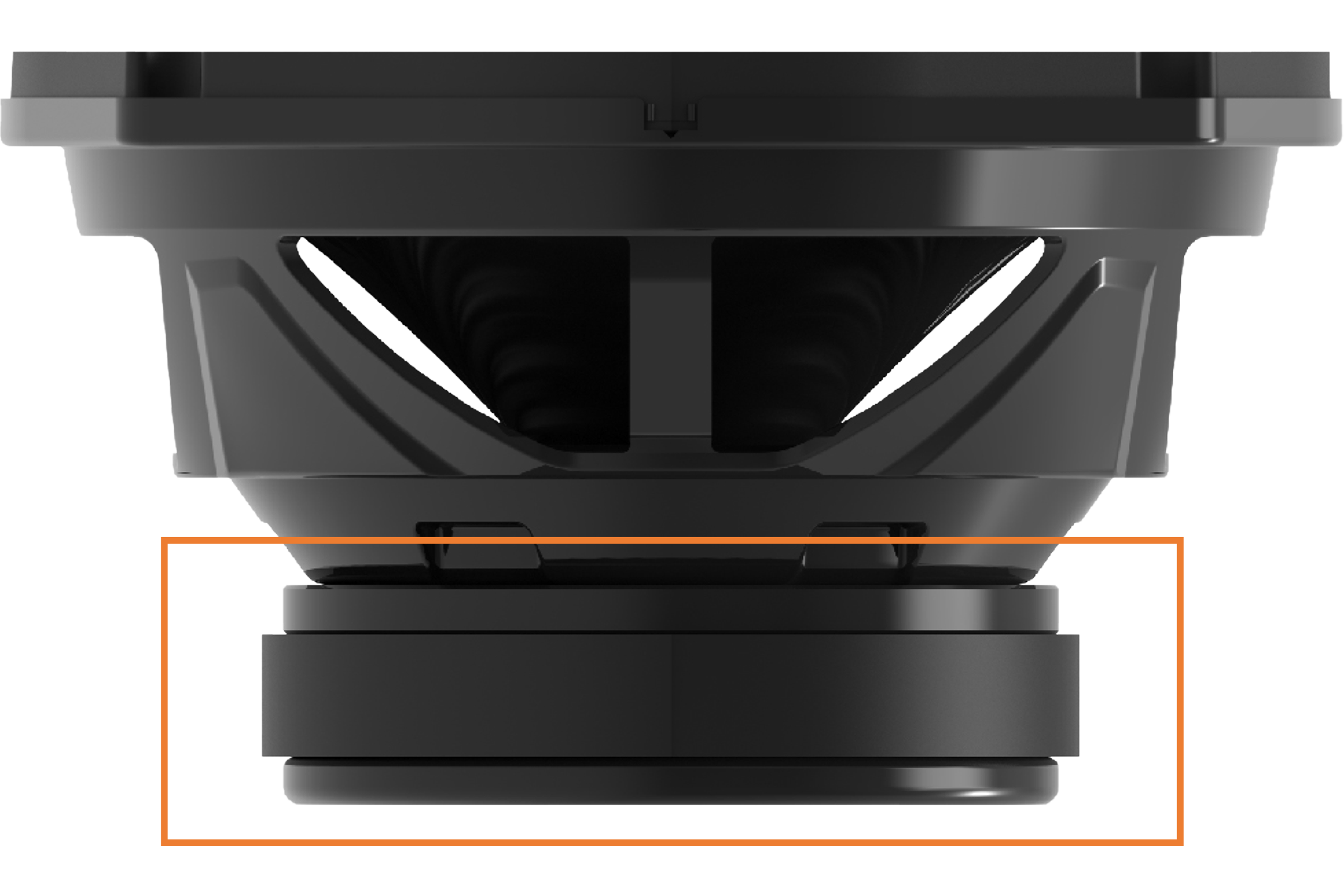

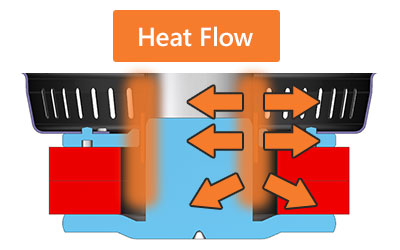

1. Black-painted Woofer Yoke Plate

efficiently releases heat inside the magneticcircuit and prevents the temperature of the voice coil from rising, resulting in improved durability.

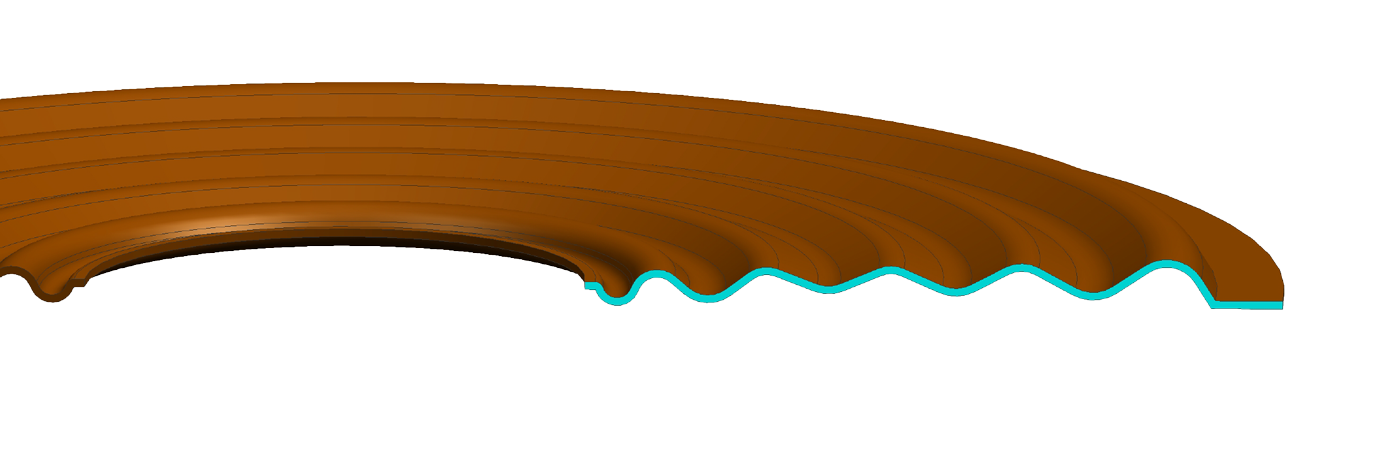

2. New Shape of Woofer Damper

minimizes mechanical stress and makes the sound response smoother.

Speaker Tech-Spec KFC-PS6996EX KFC-PS6986 KFC-PS6976
Peak Input Power 700W 600W 550W
RMS Input Power 160W 140W 130W
Size 6 x 9 inch 5Way 6 x 9 inch 4Way 6 x 9 inch 3Way
Tweeter Design Balanced Dome Balanced Dome Balanced Dome
Tweeter Magnet Composition Ferrite Ferrite Ferrite
Woofer Magnet Composition Ferrite Ferrite Ferrite
Nominal Impedance 4ohms 4ohms 4ohms
Frequency Response 55Hz-22kHz 60Hz–22kHz 63Hz–22kHz
Sensitivity (dB/W at 1m) 88dB 88dB 88dB
Mounting Depth 81.5mm 80.5mm 80.5mm

KFC-PS5796C

5 x 7 inch 2Way Speaker

KFC-PS5796C
Speaker Tech-Spec KFC-PS5796C
Peak Input Power 320W
RMS Input Power 80W
Size 5 x 7inch 2Way
Tweeter Design Balanced Dome
Tweeter Magnet Composition Neodynium
Woofer Magnet Composition Ferrite
Nominal Impedance 4ohms
Frequency Response 64Hz-24kHz
Sensitivity (dB/W at 1m) 88dB
Mounting Depth 52mm

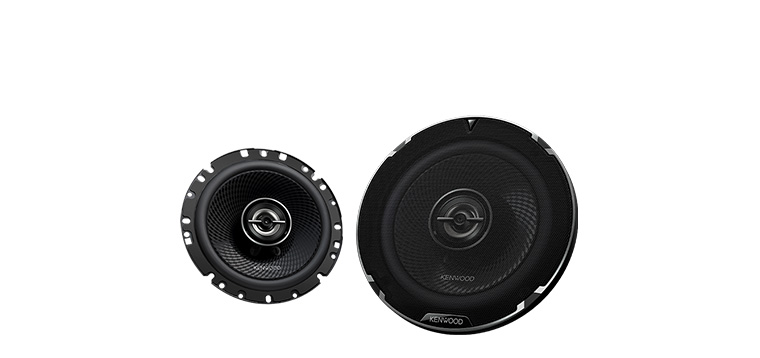

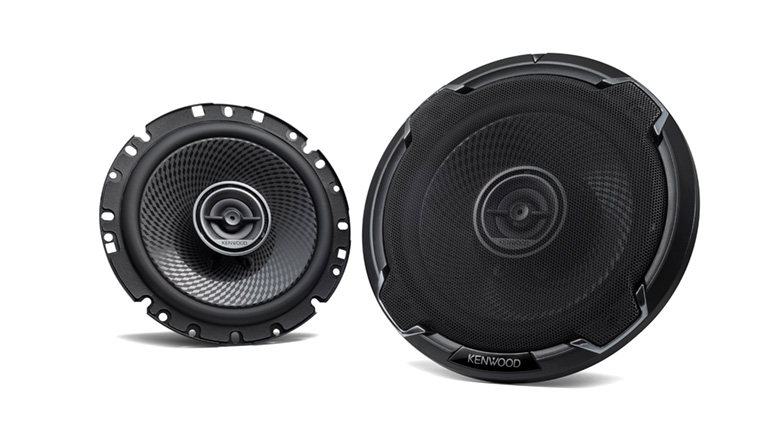

KFC-PS1796 / 1696 / 1396 / 1096

17cm / 16cm / 13cm / 10cm 2Way Speaker

KFC-PS1796 / 1696 / 1396 / 1096
Speaker Tech-Spec KFC-PS1796 KFC-PS1696 KFC-PS1396 KFC-PS1096
Peak Input Power 330W 320W 320W 220W
RMS Input Power 100W 100W 75W 50W
Size 17cm 2Way 16cm 2Way 13cm 2Way 10cm 2Way
Tweeter Design Balanced Dome Balanced Dome Balanced Dome Balanced Dome
Tweeter Magnet Composition Neodynium Neodynium Neodynium Neodynium
Woofer Magnet Composition Ferrite Ferrite Ferrite Ferrite
Nominal Impedance 4ohms 4ohms 4ohms 4ohms
Frequency Response 72Hz-24kHz 75Hz-24kHz 80Hz-25kHz 114Hz-25kHz
Sensitivity (dB/W at 1m) 88dB 88dB 85dB 85dB
Mounting Depth 48mm 48mm 46mm 43.4mm

KFC-PS6995EX/6985/6975

6 x 9 inch 5way / 4way / 3way Speaker

KFC-PS6995EX/6995/6985/6975 KFC-PS6995EX/6995/6985/6975
(1)
(2)

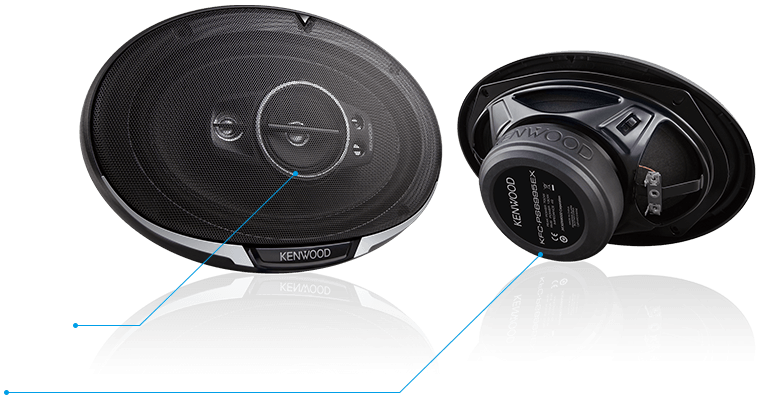

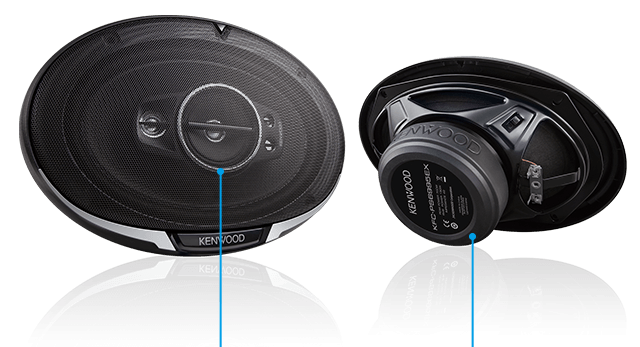

(1) Acoustic Sound Harmonizer
a special shape of tweeter-mount smooths the sound wave

(2) 4-layerd voice coil
outputs outstanding sound pressure

Speaker Tech-Spec KFC-PS6995EX KFC-PS6985 KFC-PS6975
Peak Input Power 700W 600W 550W
RMS Input Power 130W 115W 105W
Size 6 x 9 inch 5Way 6 x 9 inch 4Way 6 x 9 inch 3Way
Tweeter Design PET Balanced Dome PET Balanced Dome PET Balanced Dome
Tweeter Magnet Composition Ferrite Ferrite Ferrite
Woofer Magnet Composition Ferrite Ferrite Ferrite
Nominal Impedance 4ohms 4ohms 4ohms
Frequency Response 58Hz–20kHz 63Hz–20kHz 63Hz–20kHz
Sensitivity (dB/W at 1m) 88dB 88dB 88dB
Mounting Depth 83.5mm 78mm 78mm

KFC-PS5795C

5 x 7inch 3Way

KFC-PS5795C
Speaker Tech-Spec KFC-PS5795C
Peak Input Power 320W
RMS Input Power 80W
Size 5 x 7inch 3Way
Tweeter Design Water Resistant Cone
Tweeter Magnet Composition Ferrite
Woofer Magnet Composition Ferrite
Nominal Impedance 4ohms
Frequency Response 80Hz - 20kHz
Sensitivity (dB/W at 1m) 88dB
Mounting Depth 52mm

KFC-PS1695/1395/1095

16cm / 13cm / 10cm 3Way Speaker

KFC-PS1695/1395/1095
Speaker Tech-Spec KFC-PS1695 KFC-PS1395 KFC-PS1095
Peak Input Power 320W 320W 220W
RMS Input Power 75W 40W 40W
Size 16cm 13cm 10cm – 3Way
Tweeter Design Water Resistant Cone Water Resistant Cone Water Resistant Cone
Tweeter Magnet Composition Ferrite Ferrite Ferrite
Woofer Magnet Composition Ferrite Ferrite Ferrite
Nominal Impedance 4ohms 4ohms 4ohms
Frequency Response 75Hz–20kHz 110Hz–20kHz 110Hz–20kHz
Sensitivity (dB/W at 1m) 88dB 85dB 85dB
Mounting Depth 46.5mm 46mm 43mm

Subwoofer

KFC-PS3016W

30cm Subwoofer

KFC-PS3016W
Subwoofer Tech-Spec KFC-PS3016W
Peak Input Power 2000W
RMS Input Power 400W
Size 30cm
Tweeter Design
Tweeter Magnet Composition
Woofer Magnet Composition Ferrite
Nominal Impedance 4ohms
Frequency Response 32Hz–300Hz
Sensitivity (dB/W at 1m) 84dB
Mounting Depth 131.6mm

3016BOX

Recommended Subwoofer Box

3016BOX
Recommended Subwoofer Box 3016BOX
Dedicated for KFC-PS3016W
Box Type Slot-Ported
Dimensions W x D x H (mm) 560 x 340 x 400
Weight 16Kg
