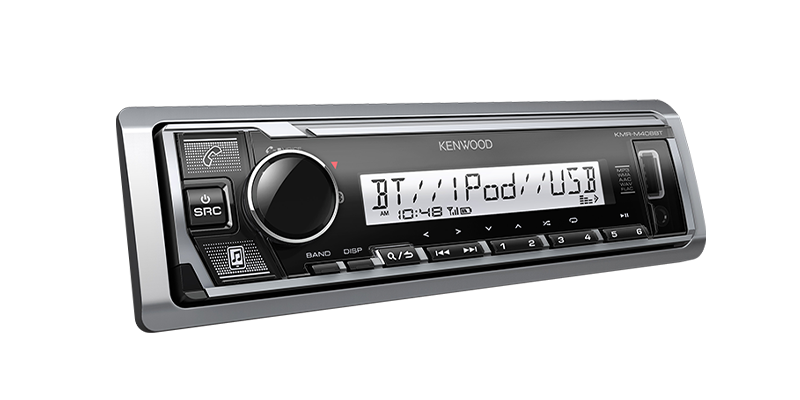

KMR-M408BTDigital Media Receiver
Listen to popular music applications and music stored on your device with basic audio controls.
Up to 5 Bluetooth® devices can be paired to the head unit at the same time. You can enjoy audio streaming just by switching the devices among your friends.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Download the free app “KENWOOD Remote“. You can change audio sources or adjust audio settings like “Time Alignment” or “13-Band EQ” from your smartphone.
Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.
|Music Codec||Playable up to|
|FLAC||～96kHz / ～24bit|
|WAV||～44.1kHz / ～16bit|
|MP3||～48kHz / ～320kbps|
|WMA||～48kHz / ～192kbps|
|AAC||～48kHz / ～320kbps|
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.
Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.
Bright variable color LED's can be adjusted to match your environment.
With audio receivers shorter in depth, installation is made easier in a wider range of cars.

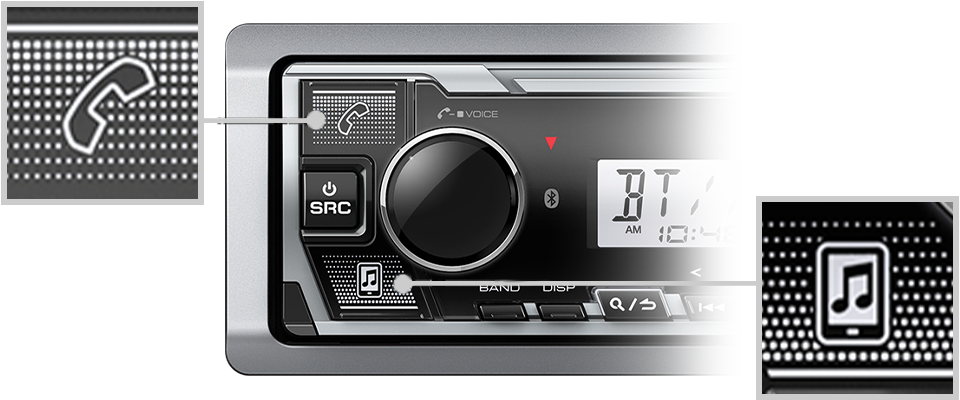

Direct Bluetooth keys allow you to access quickly to answering to and making a call, and entering Bluetooth Audio source.
The Vertical Alignment LCD display secures higher visibility during day-time drive.
Improved moisture resistance of the circuit boards to prevent corrosion.
|Key Illumination / LCD - LED Backlight||/|
|Built-in Bluetooth||2-Phone Hands Free / Music Mix / KENWOOD Remote App|
|Audio Decoder||FLAC / WAV / AAC / MP3 / WMA|
|Equalizer / Digital Time Alignment / 3-Way X'Over||13 Band / Yes / Yes|
|Audio Preout||4.0V / 3Preouts|
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
|FM||Frequency Range(MHz)||87.5MHz to 108.0MHz|
|Frequency Response||30Hz to 15kHz|
|Frequency Range||531kHz to 1701kHz|
|Channel Space Selection|
|Preout Level(mV)/Load -Unbalanced||4000mV/10kΩ|
|Speaker Impedance(Ω)||4 to 8Ω|
|USB I/F||USB||USB 1.1 / 2.0 High Speed|
|File System||FAT12 / 16 / 32|
|Maximum Supply current||DC5V(DC logo) 1.5A|
|Frequency Response||20Hz to 20kHz(±1dB)|
|S/N Ratio (dB)||98dB(1kHz)|
|MP3 Decode||Compliant with MPEG-1/2 Audio Layer-3|
|WMA Decode||Compliant with Windows Media Audio|
|AAC Decode||AAC-LC ".aac", ".m4a" files|
|FLAC Decode||FLAC file (Up to 96kHz/24bit)|
|Frequency Response||20Hz to 20kHz ±3dB|
|Input Maximum Voltage||1000mV|
|Full Bandwidth Power||22Wx4|
|(at less than 1%THD)|
|Frequency Range||2.402 to 2.480GHz|
|RF Output Power (E.I.R.P.)||+4dBm (MAX), Power Class 2|
|Maximum Communication range||Line of sight approx.10m(32.8ft)|
|Profile||HFP 1.7.1 (Hands Free Profile)|
|SPP(Serial Port Profile)|
|PBAP(Phonebook Access Profile)|
|A2DP(Advanced Audio Distribution Profile)|
|AVRCP 1.6.1 (Audio/Video Remote Control Profile)|
|GENE||Operating voltage||12V DC car battery|
|Installation Size (W)||182mm|
(Trim plate and Mounting sleeve: Included)
