KMR-M508DABDigital Media Receiver
with Bluetooth & DAB Tuner

  • 255 Segment 1.5 Line Text Display
  • Built-in DAB+ also includes DAB+ Antenna
  • Amazon Alexa Ready
  • Multi-Color Illumination
  • Conformal Coating
  • Short Chassis
  • 2 Preouts 2.5V

Smartphone Connectivity

Amazon Alexa Compatible

With Alexa on your KENWOOD Receivers, you can use your voice to control your music and much more. Using Alexa is as easy as asking a question. Just ask and Alexa can play your favorite song, skip to the next track, change the volume, read you the news and more.

Using Alexa on the Kenwood Receiver is simple and hands-free, just ask and Alexa will respond instantly.

*For more information, visit https://www.kenwood.com/car/app/amazon_alexa/eng/

Microphone Key
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

Music Mix - High Quality Music streaming x 5 devices

Up to 5 Bluetooth® devices can be paired to the head unit at the same time. You can enjoy audio streaming just by switching the devices among your friends.

Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

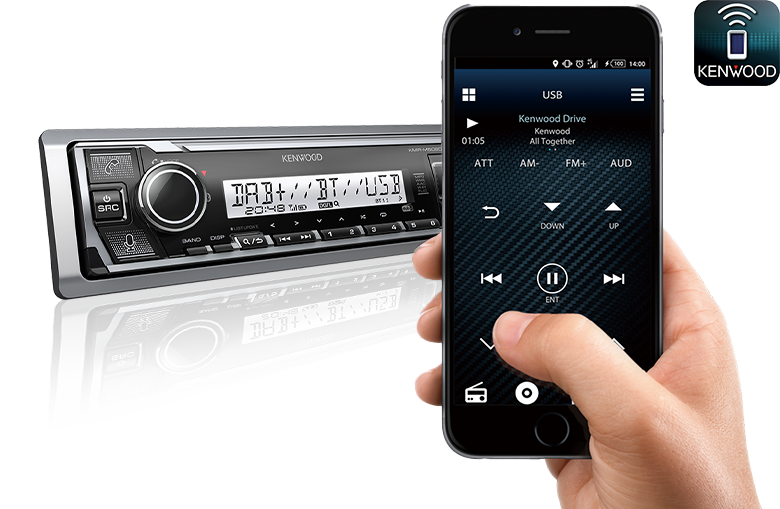

KENWOOD Remote App Compatible

Download the free app “KENWOOD Remote“. You can change audio sources or adjust audio settings like “Time Alignment” or “13-Band EQ” from your smartphone.

The Best Audio Experience

Playable USB Files

Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.

Music Codec Playable up to
FLAC ~96kHz / ~24bit
WAV ~44.1kHz / ~16bit
MP3 ~48kHz / ~320kbps
WMA ~48kHz / ~192kbps
AAC ~48kHz / ~320kbps

13-Band EQ / Digital Time Alignment

13-Band equalizer and DTA gives optimal tuning enhancements for the listener.

Digital Time Alignment

Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.

Drive Equalizer

Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.

Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices

Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.

Additional Features

Variable Color Display

Bright variable color LED's can be adjusted to match your environment.

Built-in DAB+ Digital radio Tuner

Short Chassis Design

With audio receivers shorter in depth, installation is made easier in a wider range of cars.

Conformal Coating

Improved moisture resistance of the circuit boards to prevent corrosion.

CD Player No
Key Illumination / LCD - LED Backlight /
Built-in Bluetooth 2-Phone Hands Free / Music Mix / KENWOOD Remote App
USB Terminal x1
Audio Decoder FLAC / WAV / AAC / MP3 / WMA
Equalizer / Digital Time Alignment / 3-Way X'Over 13 Band / Yes / Yes
Audio Preout 2.5V / 2Preouts
Remote Controller -

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Electronics System

left
right
« scroll
FM Frequency Range(MHz) 87.5MHz to 108.0MHz
(Frequency step) (50kHz)
Usable Sensitivity 6.2 dBf
S/N:30dB (0.56μV/75Ω)
Quieting Sensitivity 15.2 dBf
DIN S/N:46dB (1.58μV / 75Ω )
Frequency Response 30Hz to 15kHz
(±3.0dB)
S/N(dB) 68.0dB(MONO)
Stereo Separation 40dB(1kHz)
MW
(AM)
Frequency Range 531kHz to 1611kHz
(Frequency step) (9kHz)
Channel Space Selection
Usable Sensitivity 28.5μV
S/N:20dB
LW Frequency Range(kHz) 153kHz to 279kHz
(Frequency step) (9kHz)
Usable Sensitivity 45μV
(S/N 20dB)
DAB Frequency Range BAND III= 174.928MHz to 239.200MHz
Sensitivity -100dBm
S/N 90dB
DAB
Antenna
Connector
Connector type SMB
Output Voltage DC 12V
Maximum Current <100mA
Preout Level(mV)/Load -Unbalanced 2,500mV/10kΩ
Preout Impedance(Ω) =<600Ω
Speaker Impedance(Ω) 4 to 8Ω
USB I/F USB USB 1.1 / 2.0 High Speed
File System FAT12 / 16 / 32
Maximum Supply current DC5V(DC logo) 1.5A
Frequency Response 20Hz to 20kHz(±1dB)
S/N Ratio (dB) 98dB(1kHz)
Dynamic Range 93dB
Channel Separation 90dB
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
AAC Decode AAC-LC ".aac", ".m4a" files
WAV Decode Linear-PCM
FLAC Decode FLAC file (Up to 96kHz/24bit)
AUX
Input
Frequency Response 20Hz to 20kHz ±3dB
Input Maximum Voltage 1,000mV
Input Impedance 30kΩ
AMP Maximum Power 50Wx4
Full Bandwidth Power 22Wx4
(at less than 1%THD)
TONE Band1 62.5Hz ±9dB
Band2 100Hz ±9dB
Band3 160Hz ±9dB
Band4 250Hz ±9dB
Band5 400Hz ±9dB
Band6 630Hz ±9dB
Band7 1kHz ±9dB
Band8 1.6kHz ±9dB
Band9 2.5kHz ±9dB
Band10 4kHz ±9dB
Band11 6.3kHz ±9dB
Band12 10kHz ±9dB
Band13 16kHz ±9dB
Bluetooth Version Bluetooth 4.2
Frequency Range 2.402 to 2.480GHz
RF Output Power (E.I.R.P.) +4dBm (MAX), Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Profile HFP 1.7.1 (Hands Free Profile)
SPP(Serial Port Profile)
PBAP(Phonebook Access Profile)
A2DP(Advanced Audio Distribution Profile)
AVRCP 1.6.1 (Audio/Video Remote Control Profile)
GENE Operating voltage 12V DC car battery
Installation Size  (W) 182(mm)
  (H) 53(mm)
  (D) 100(mm)
Net Weight 0.7(kg)
(Trim plate and Mounting sleeve: Included)
