Catch ALL of the ACTION
Introducing a motorsports-grade Dual Camera recording system with hide-a-way control box for stealth installations in motorcycles, side-by-sides/UTV's, ATV's, watercraft & more.
*Operating temperature rated at -20℃ to 60℃

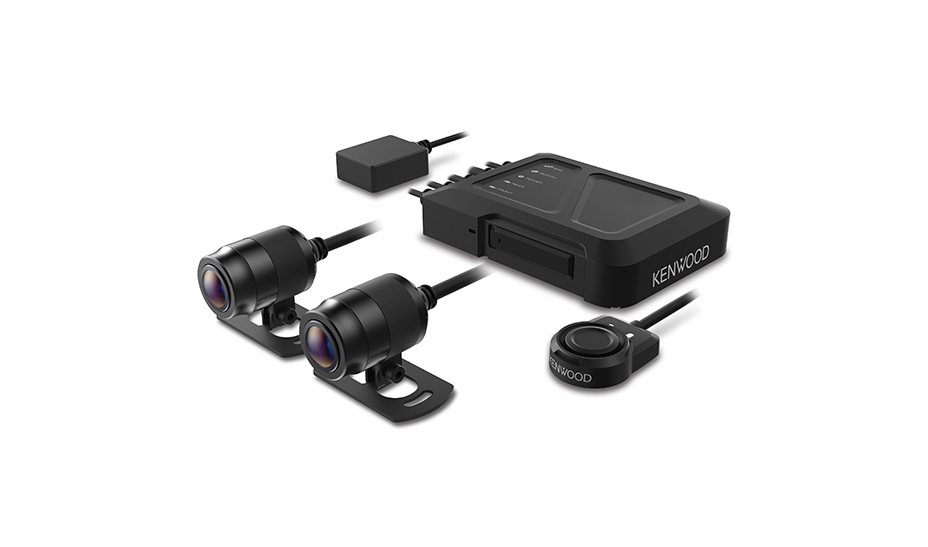

Motorsports Dual CAM Recording SystemSTZ-RF200WD
2 Megapixel HIGH DEFINITION Recording
Captures clear video from both directions.
FRONT & REAR View Recording
The STZ-RF200WD includes 2 cameras: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time.
EXTRA WIDE VIEW Camera Coverage
Both cameras cover a 195° (diagonal) extra wide range field of view.
HDR (High Dynamic Range) for Backlighting
Built-in HDR easily records clear images in dark or well lit environments without underexposing or overexposing the image, ensuring superior night vision recording.
EIS (Electronic Image Stabilisation)
Bumpy roads and surfaces have met their match! Count on smooth and steady images with effective compensation for camera shakes with its Built-in image stabilisation.
3-axis G-sensor & GPS
The STZ-RF200WD is equipped with a 3-axis G-Sensor designed to detect a collision and GPS that records speed, latitude, and longitude.
Waterproof & Dustproof
The cameras, GPS, and switch all carry an IP66/67, meaning that they can resist high-pressure, heavy sprays of water. They are also fully sealed against dust entry. The main unit carries an IP55 rating, meaning that it is protected against dust ingress and low pressure water jets.
A 32GB microSD card is included so that you can be ready to catch all of the action right out of the box. The system supports up to a 256GB microSD card (sold separately).
If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.
Enables video playback, file transfer, and easy setup via the KENWOOD Motorsports CAM smartphone app (*Device Requirement OS: Android 7.0 or later, OS: iOS 11.0 or later).
Once files are transferred to device, you can easily share recorded videos.
Review the ACTION
KENWOOD Motorsports CAM Viewer is a desktop software for displaying video recorded with this system. Simply download the installer from https://www.kenwood.com/car/app/kenwood_motorsports_cam_viewer/eng/index.html, then install according to the on-screen instructions.
Microsoft Windows 10 (32-Bit / 64-Bit). Mac OS-X 10.14 or later.

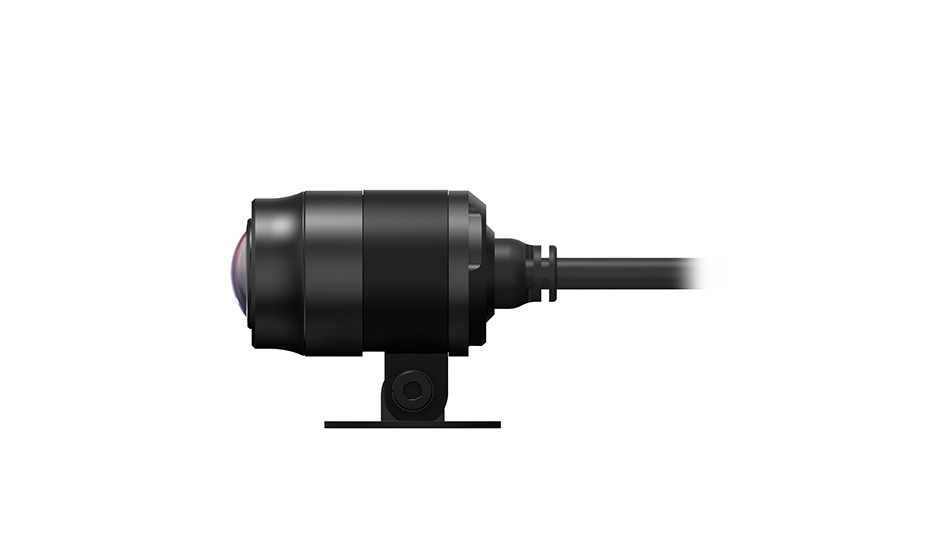

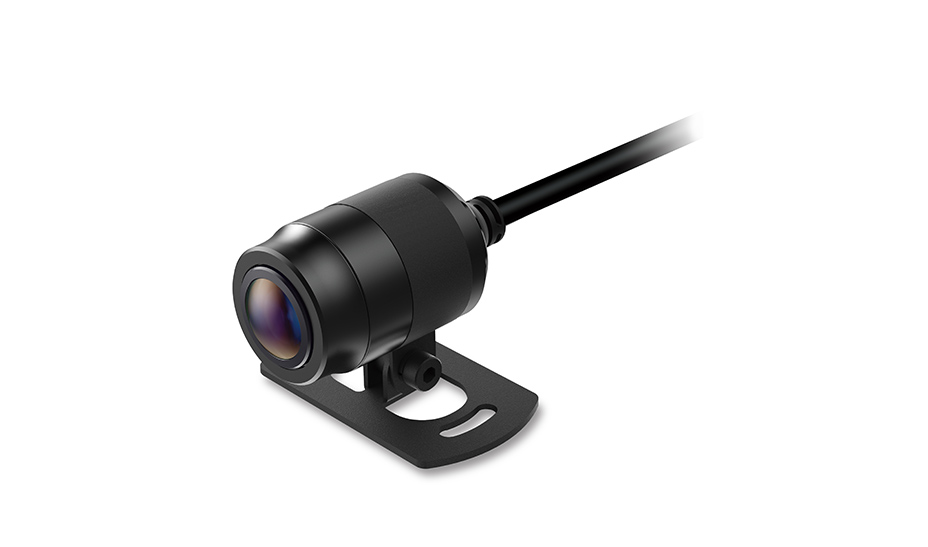

Compact Front & Rear Cameras
Small camera size provides for a stealthy look and easier installation in various locations.

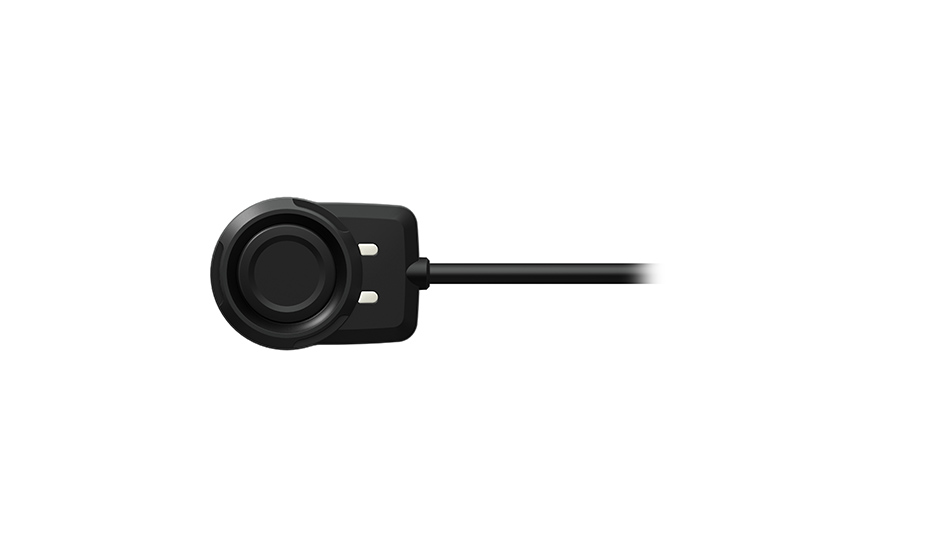

YOU are in CONTROL
Multi-function control switch for simplified system control.
System Installation Example
(Total connected length from main unit)

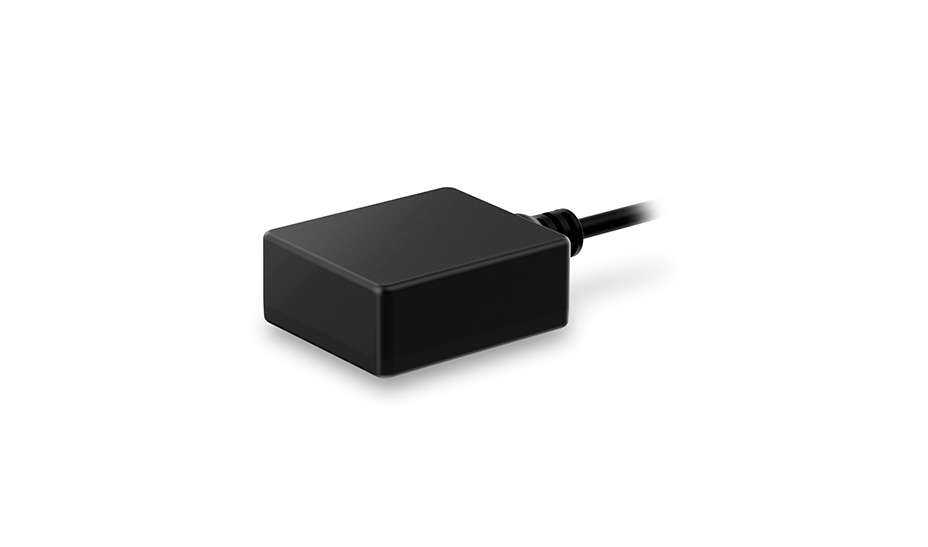

- GPS Antenna : 2m
- Switch : 2m
- Front Camera : 2m
- Rear Camera : 2m
- Power Cable : 1m
EXPAND Your Options
Optional camera extension cables to enable installation in a larger variety of vehicle types.
5m Extension Cable
3m Extension Cable
1m Extension Cable
|Recording Resolution||1920 x 1080 (2M)|
|Recording Format||H.264 (MP4)|
|Image Sensor||1/2.7" CMOS Sensor|
|Lens||F=2.2 Fixed Focus Lens|
|Lens Viewing Angle||195° Diagonal (effective angle : 181°)|
|Recording Mode||Continuous, Event, Manual|
|Operating Temperature||-20℃ to 60℃|
|External Storage||32GB microSD Included (Supports max 256GB)|
|High Dynamic Range (HDR)||Yes|
|Electronic Image Stabilisation（EIS)||Yes|
|Size (W x D x H)|
|Main Unit||79 × 104 × 22.5 mm|
|Cameras||23.5 (Φ) × 34.4 mm|
|GPS/GLONASS Antenna||27.4 × 33 × 13 mm|
|Control Switch||25.8 × 36.9 × 9.5 mm|
