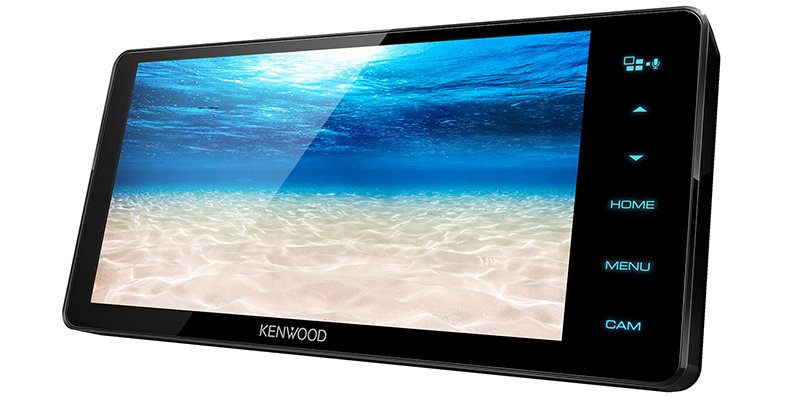

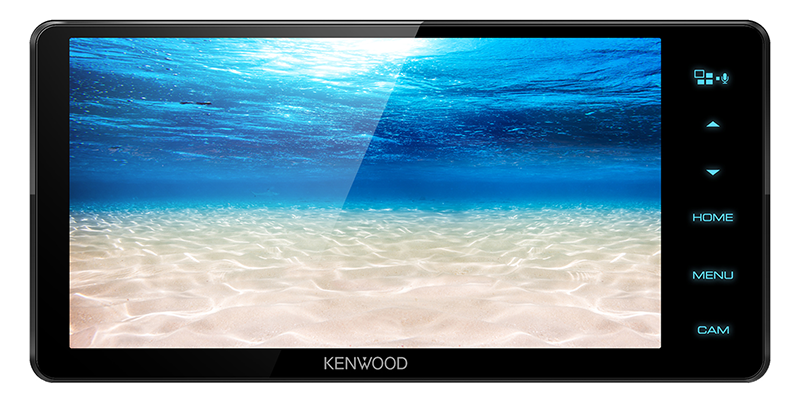

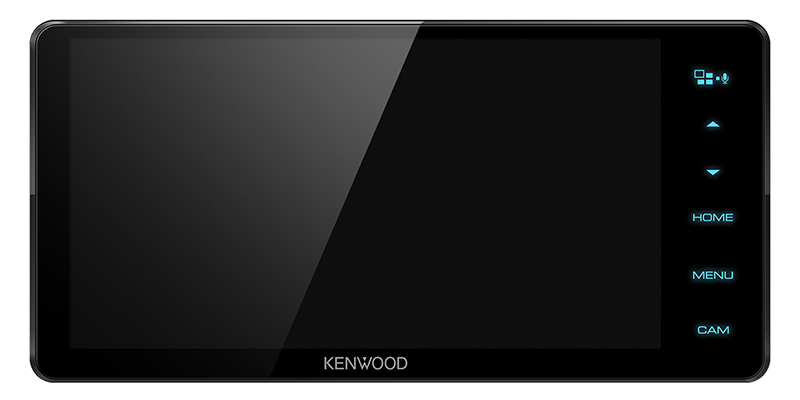

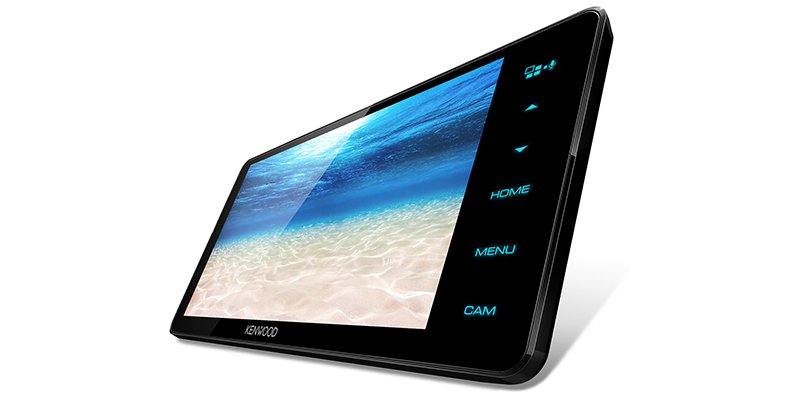

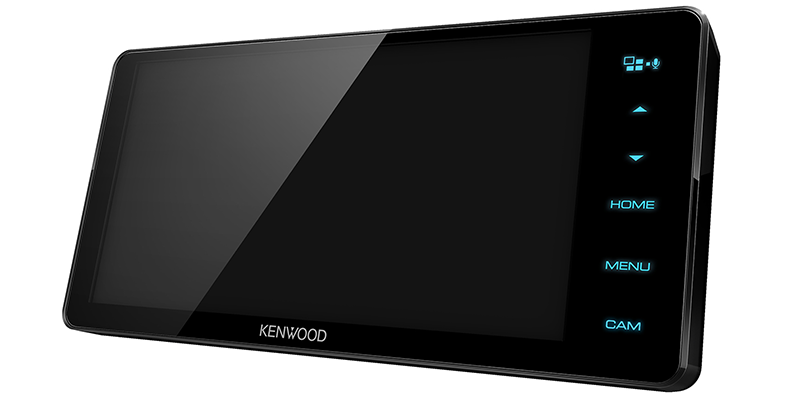

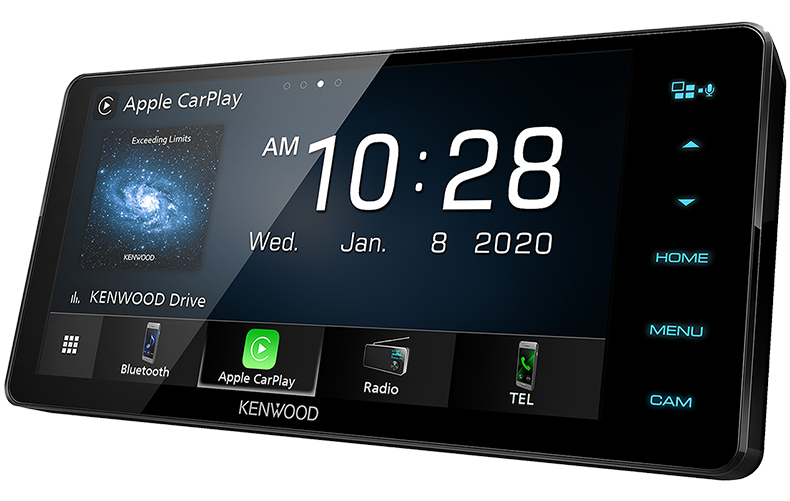

DDX820WSAV Receiver with 7.0 inch WVGA Display
By connecting your smartphone and receiver wirelessly,
your driving time will be more fun and convenient.

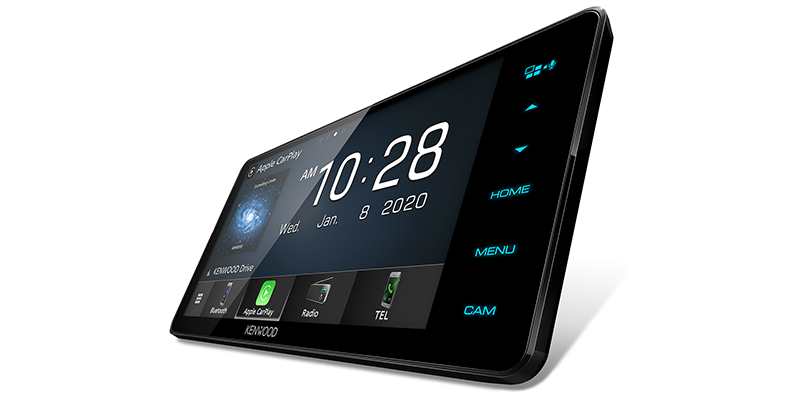

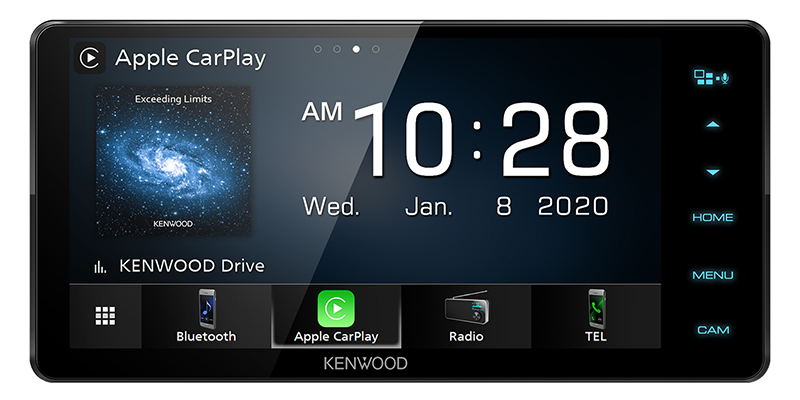

Apple CarPlay gives iPhone users an intuitive way to make calls,
use Maps,listen to music and access messages with just a word or a touch.
Additionally, Google Maps™ and Waze™ support has been added with
the latest iOS version (iOS 12.0 and higher).
*Some features, applications and services are not available in every region.
For details, see : www.apple.com/ios/feature-availability/#applecarplay-applecarplay

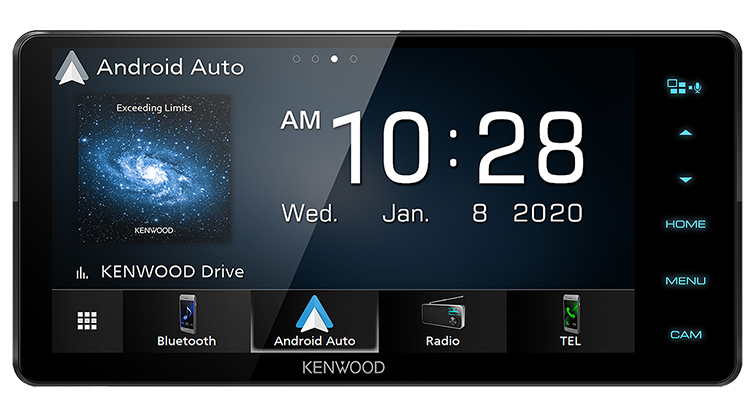

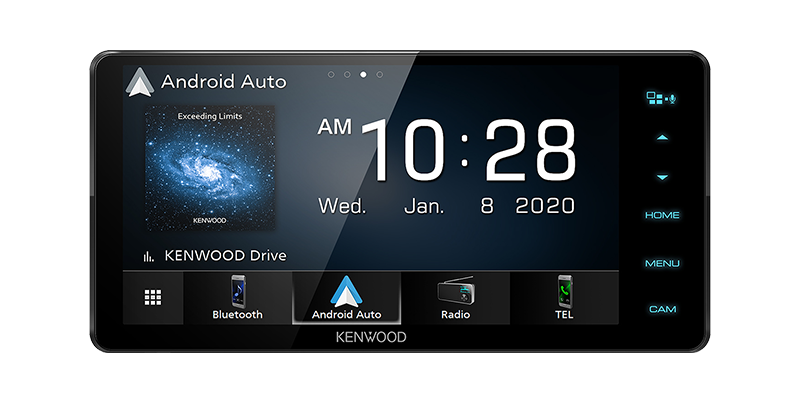

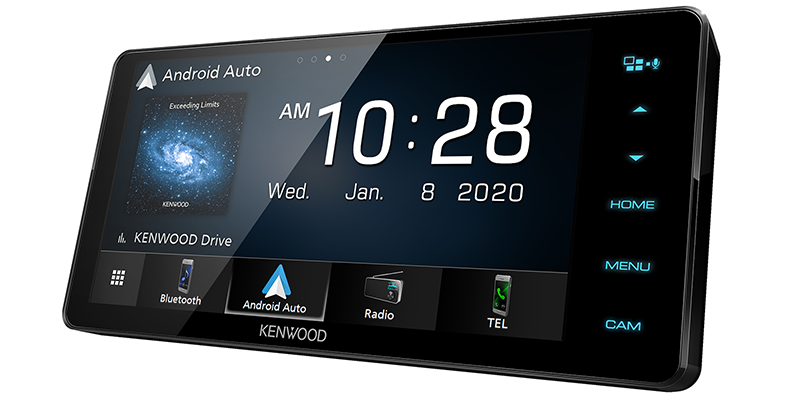

Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming service like Spotify. Navigate to where you need to with Google Maps or Waze.(compatible phone required).
For details, see: www.android.com/auto
To use Android Auto on your car display, you’ll need an Android phone running Android 5.0 or higher, an active data plan, and the Android Auto app.
True Mirroring allows you to display and control your smartphone on a KENWOOD receiver screen via USB. You can enjoy your favorite apps on a large display with impressive sound quality. Before starting True Mirroring, just install the free app “Mirroring for KENWOOD” on your smartphone and connect it to the receiver via Bluetooth as well as a USB cable.
USB Mirroring with iPhone have following restrictions:
1) During USB mirroring on iOS device, when a call is received, USB mirroring disconnects and needs to be manually reconnected.
2) USB Mirroring is not compatible with original Music application on the iPhone.
3) USB Mirroring is disconnected when the iPhone goes to the sleep mode.
Up to 5 Bluetooth devices can be paired to the head unit at the same time. You can enjoy audio streaming just by switching the devices among your friends and family.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
High-Resolution Audio is high-quality sound that far exceeds CD standards, and can play 192kHz / 24bit sampling DSP. It captures and beautifully expresses details and nuances from the ultra-high to low frequencies.
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
To meet your high expectations.
You can play back from USB devices audio and video files compressed in various formats.
|Video Codec||Playable up to|
|MPEG4||1920 × 1080p|
|H.264||1920 × 1080p|
|MKV||1920 × 1080p|
|WMV||1920 × 1080p|
|Music Codec||Playable up to|
|FLAC||～192kHz / ～24bit|
|WAV||～192kHz / ～24bit|
USB sources are available on rear monitor via video output.
Keeping you safe on the road ahead is our top priority.
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
To enable a smarter driving experience, receivers featuring 3 camera inputs allow for the utmost in convenience, flexibility, and safety. With 3 camera inputs, you can connect a front camera, a rear camera and a third camera slot that can be used for trailers or caravans.
Alternatively, 3 camera inputs support several other configurations, including the connection of 2 blind spot cameras and a reverse camera. Camera switching is available using on screen controls and manual switchers.
A KENWOOD CA-C3AV Video AV Input cable (sold separately) is required to use the 3rd camera input.
Learn about exciting product features and highlights.
Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe.
You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, and more.
The receivers can be installed in most Japanese and Korean vehicles easily.
Click here to learn more
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
|Monitor Section||Picture size||6.95 inches(diagonal) wide|
|W x H||156.6 mm x 81.6 mm|
|Display system||TN LCD panel|
|Drive system||TFT active matrix system|
|Number of pixels||1,152,000|
|800H x 480V x RGB|
|Pixel arrangement||RGB striped arrangement|
|DVD Section||D/A Converter||24 / 32Bit|
|Audio Decoder||Linear PCM|
|MP3 / WMA / AAC / WAV / FLAC / Vorbis|
|Video Decoder||MPEG1/2,MPEG4 / WMV / H.264 / MKV|
|Wow & Flutter||Below Measurable Limit|
|Frequency response 96k Sampling||20 - 44,000 Hz|
|48k Sampling||20 - 22,000 Hz|
|44.1k Sampling||20 - 20,000 Hz|
|Total harmonic distortion 1kHz||0.010%|
|Signal to Noise ratio||90.5dB (DVD-Video 96k)|
|Dynamic range||89dB (DVD-Video 96k)|
|DISC Format||DVD-Video / VIDEO-CD / CD-DA|
|Quantifying bit number||16 / 20 / 24bit|
|USB I/F Section||USB Standard||USB2.0 High Speed|
|File System||FAT 16/32, exFAT, NTFS|
|Maximum Power Supply Current||DC5V=1.5A|
|Audio Decoder||MP3 / WMA / AAC / WAV / FLAC / Vorbis|
|Video Decoder||MPEG1/2,MPEG4 / WMV / H.264 / MKV|
|Bluetooth Section||Technology||Bluetooth Ver5.0|
|Frequency||2.402 – 2.480 GHz|
|RF Output Power (E.I.R.P.)||+4dBm (MAX), Power Class 2|
|Maximum Communication range||Line of sight approx.10m(32.8ft)|
|Audio Codec||SBC / AAC|
|Multi Profile Support||Multi Profile|
|Profile||HFP (V1.7) (Hands Free Profile)|
|SPP (Serial Port Profile)|
|A2DP (Advanced Audio Distribution Profile)|
|AVRCP (V1.6) (Audio/Video Remote Control Profile)|
|PBAP (Phonebook Access Profile)|
|DSP Section||Graphics equalizer|
|frequency (Hz) (BAND1-13)||62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k|
|HIGH PASS FILTER frequency||Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]|
|LOW PASS FILTER frequency||30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]|
|HIGH PASS FILTER frequency||250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k|
|Band PASS FILTER frequency||Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz]|
|LOW PASS FILTER frequency||30/40/50/60/70/80/90/100/120/150/Through[Hz]|
|Front / Rear /Subwoofer Delay||0 - 6.1m (0.01m Step)|
|Gain||-8 to 0dB|
|Subwoofer Level||-50 to +10dB|
|FM||Frequency Range||87.5MHz - 108.0MHz|
|DIN S/N 46dB||1.6μV / 75Ohms|
|Frequency response||30Hz - 15kHz|
|S/N (dB)||65dB (MONO)|
|Selectivity||Over 80dB (±400kHz)|
|Stereo separation||45dB (1kHz)|
|AM||Frequency Range||531kHz - 1611kHz|
|Video||Color system of external video input||NTSC/PAL|
|External video input level (Mini jacks)||1 Vp-p / 75 Ohms|
|External audio max input level (Mini jacks)||2 V / 25 kOhms|
|Video Input level (RCA jacks)||1 Vp-p / 75 Ohms|
|Video Output level (RCA jacks)||1 Vp-p / 75 Ohms|
|Audio Output level (Mini jacks)||0.9 V / 10 kOhms|
|Analog RGB input||-|
|Audio||Maximum Power Output (Front&Rear)||50Wx4|
|Typical Power Output (Front&Rear)||Full Bandwidth Power|
|(at less than 1%THD)|
|Output frequency band||20 - 88,000Hz|
|Preout level (V)||5V / 10kOhms|
|Preout impedance (Ω)||=< 300 Ohms|
|Speaker Impedance (Ω)||4-8 Ohms|
|General||Operating voltage||12V DC Car Battery|
|Installation Dimensions WxHxD||178mm x 100mm x 160mm|
|Weight Main unit||2.4 kg|
