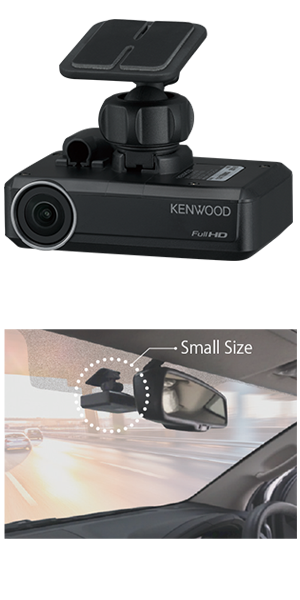

DRV-N520

DRV-N520

Dash Camera with Simplified ADAS Solution
2-way communication with compatible KENWOOD high-end models.

A dash-camera with Simplified ADAS, Advanced Driver Assistance System.

  • Camera Dimensions : W:79mm x H:21.5mm x D:48mm
  • Angle of field : Horizontal ; 117º Vertical : 63º

  • *ADAS function uses the image processing technology commonly used in a digital camera, and its operating accuracy is realized only within the limits of the technology. It may not work as intended in some situations.

DRV-430

DRV-430(Discontinued)

Dash Camera with Simplified ADAS Solution

  • 1.5-inch full-Color TFT Screen
  • 3.0 Megapixels CMOS Image Sensor
  • F2.0 Bright & Wide Viewing Angle Lens
  • 3M HD recording (2304 x 1296 px)
  • Normal/incident record & store
  • Parking surveillance mode with optional hardwired kit
  • Built-in 3 Axis G-Sensor
  • Integrated GP¨S
  • High Dynamic Range Technology
  • Selectable Video Clip length
  • Recording on Micro SDHC card Class 6 or higher (max.32GB)
  • Camera Dimensions W: 77 x H: 56 x D :35 mm
  • Angle of Field : Horizontal: 117°/ Vertical 63°

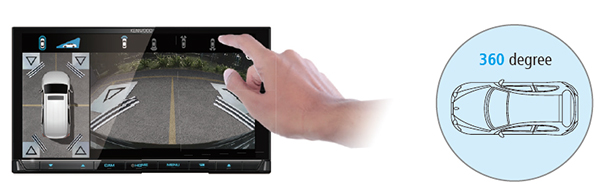

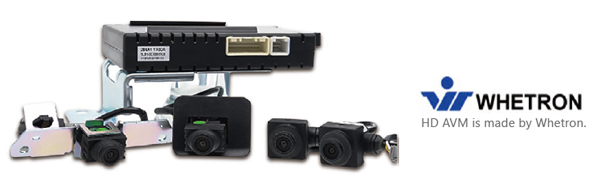

Whetron HD 2D / 3D AVM System

High Definition Around View Monitoring System
2-way communication with compatible KENWOOD high-end models.

Effective Picture Quality: 1280 x 720 HD Quality
Mounting bracket, dedicated connection cable and ECU are included.


Whetron was established in 1982 with a vision to become the leading supplier of automobile electronic parts for major car manufacturers around the world.

CMOS-320

CMOS-320

  • ・Normal, Wide, Corner & Overhead View.
  • ・View-Mode Switch Unit Included
  • ・1/3.6" Colour CMOS Sensor with Effective 330,000 Pixels.
  • ・Angle of Field : Horizontal Approx : 195°/ Vertical Approx : 145°
  • ・Water Proof Design.
  • ・Includes Flexible Mounting Bracket.
  • ・Cable Length: 7.5m
  • Dimensions (WxHxD) : 23.4 x 23.4 x 26.1mm
  • Weight : 23g (Camera Only)

CMOS-320

CMOS-230

CMOS-230

CMOS-230

  • ・1/3.6" Colour CMOS Sensor with Effective 330,000 Pixels.
  • ・Angle of Field : Horizontal Approx : 128°/ Vertical Approx : 103°
  • ・Water Proof Design.
  • ・Includes Flexible Mounting Bracket.
  • ・Cable Length:7.5m
  • Dimensions (WxHxD) : 23.4 x 23.4 x 23.9mm
  • Weight : 21g (Camera Only)
CMOS-230

CMOS-130

  • ・1/4" Colour CMOS Sensor with Effective 380,000 Pixels.
  • ・Angle of Field : Horizontal Approx : 129°/ Vertical Approx : 104°
  • ・Water Proof Design.
  • ・Includes Flexible Mounting Bracket.
  • ・Cable Length:75㎝
  • Dimensions (WxHxD) : 23.4 x 23.4 x 23.9mm
  • Weight : 21g (Camera Only)
