KCA-2020AVMAround View Monitoring System

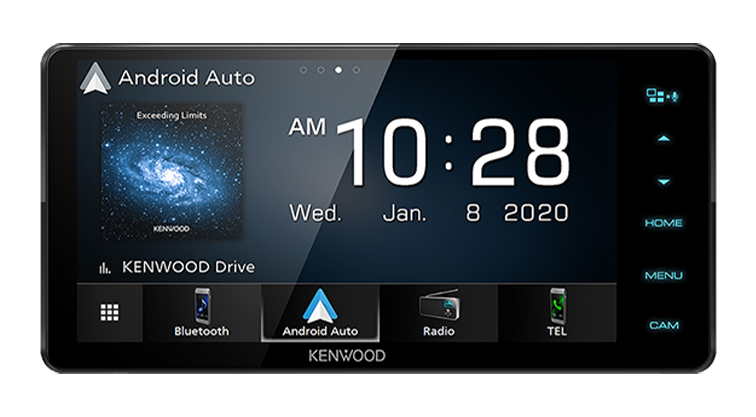

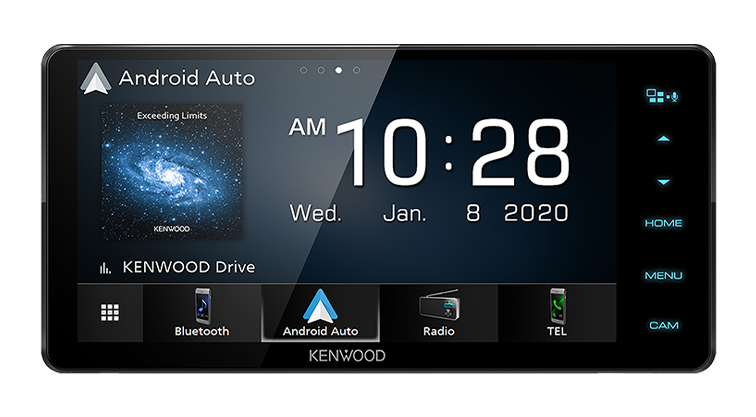

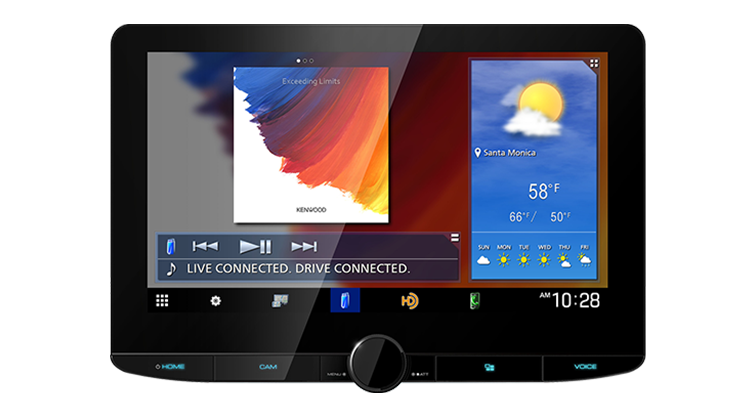

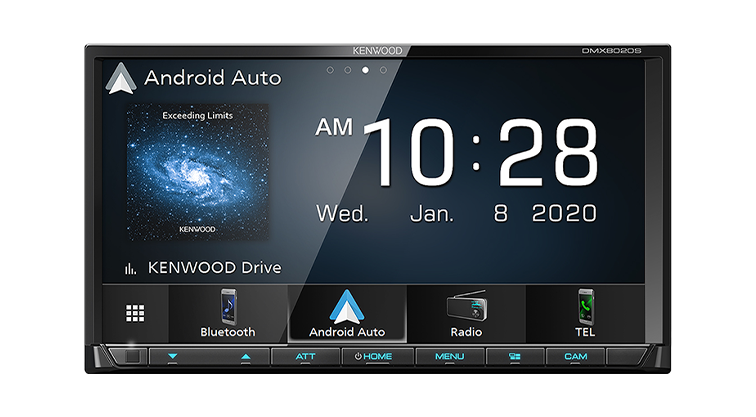

Compatible Models

Around View Monitoring System

Designed and manufactured by


The optional Around View Monitoring System KCA-2020AVM consists of 4 cameras which provides a range of virtual 360-degree viewing angles.

  • Normal Mode

  • Reverse Mode

  • Turn Signal Mode

KCA-2020AVM has Normal Mode, Reverse Mode and Turn Signal Mode all in 3D view and assists the driver to check obstructions around the vehicle and park more easily. KCA-2020AVM is designed for supporting KENWOOD receivers and all functions can be operated from the receivers’ touch screen.

General Features

Video Resolution 1280 x 720 @30fps
Horizontal Angle 192°
Vertical Angle 115°
Working Temperature -30℃ to 80℃
Waterproof (Camera) IP69K
Operating Current 0.8A@C12V
Dark Current 0.1mA
Dimension (ECU) D135mm x W92mm x H24mm
Dimension (F/R Camera) D20mm x W20mm x H43mm
Dimension (Side) DΦ24mm x H34mm
