Compact Powered Subwoofer

  • MAX Power 160W
  • Wired Remote Controller
  • Class D Amplifier
  • (W)280mm x (H)70mm x (D)200mm

Product Overview

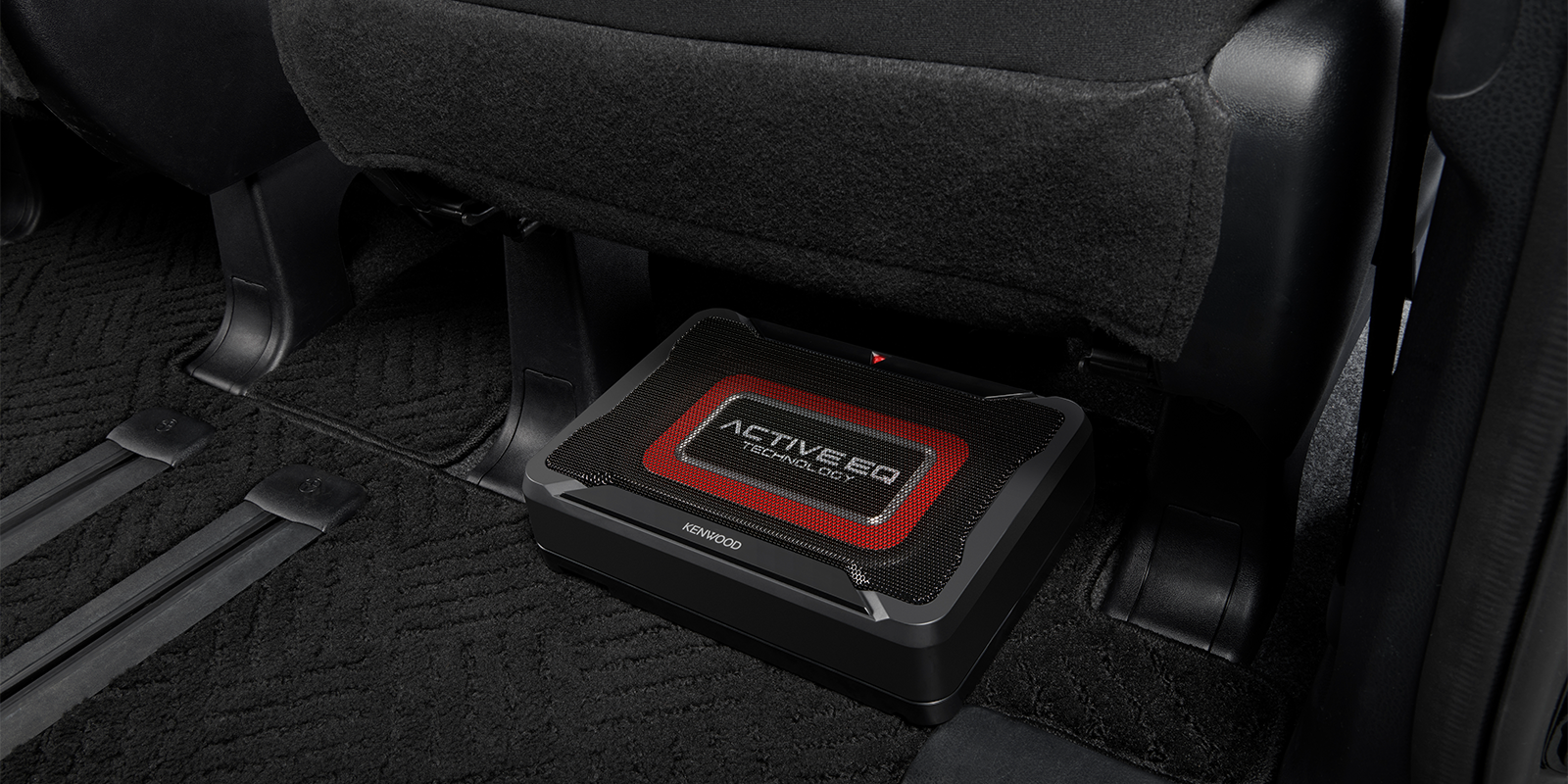

Compact Design

Allows for installation almost anywhere, including tight spaces such as under a seat or panel.

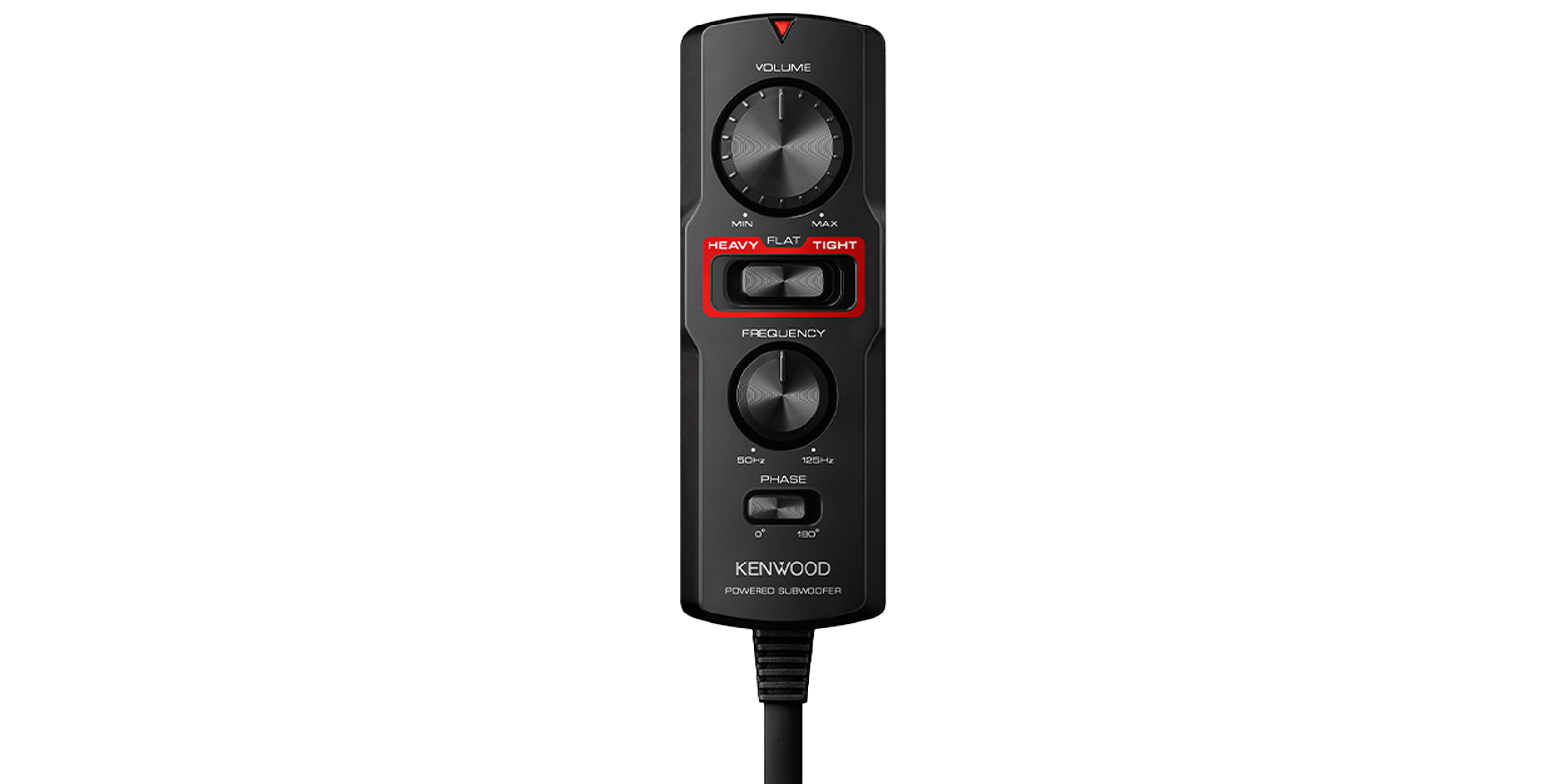

Remote Control Sound Adjustment

Volume : Input sensitivity control knob

ACTIVE EQ : Equalizer selector switch

Frequency : Cut-off freqeuncy control knob

Phase : Phase select switch

Three types of bass to match the music of various genres equipped with ACTIVE EQ TECHNOLOGY.

New Diaphragm Speaker

The KSC-PSW7EQ is equipped with a micro-step shape on the long edge of the diaphragm surrounding the diaphragm.
This suppresses the unwanted movement of the diaphragm, which vibrates like a seesaw in the longitudinal direction during operation, thereby supporting accurate vibration and reproducing accurate bass sound to the music.

Flexible Connectivity and Installation

Supports speaker level input to connect OEM receiver without RCA outputs.
Power turns on from either speaker level or RCA signal.

Tech Spec KSC-PSW7EQ
Woofer Size 200mm x 130mm
Max Power (W) 160W
Current Consumption 5.9A
Sensitivity (dB at 1m) 89dB
Frequency Response (Hz) 40Hz - 200Hz (-15dB)
Speaker Level Input Yes (Speaker Level Input)
Signal Sensing Turn-on Yes (Speaker Level or RCA)
Dimension (W x H x D) 280mm x 70mm x 200mm
Weight 2.6kg
Remote Control Cable Length 5m

page top



« scroll
Class D
Maximum Output Power (W) 160W
Signal to Noise Ratio (1ohm at 14.4V) 90dB
Input Impedance RCA 22k ohm
Speaker 10k ohm
Sensitivity RCA Voltage 20mV
Speaker Voltage 0.4V
Signal Sensing Turn On(Speaker Level Input)
Automatic input swiching (Speaker Level or RCA)
Fuse(Battery Cord) 10A
Operating Voltage DC 14.4V (11V~16V)
Maximum Current Consumption 5.9A
Woofer Size 20 x 13cm
Cap Material Aluminum
Surround Material Urethane
Frequency Response 40Hz-200Hz(-15dB)
Sensitivity 89dB
Audio Section(Wired Remote Controller)
Gain Control (VOLUME) Variable -∞ - 0dB
Low-Pass Filter (FREQUENCY) Variable 50Hz - 125Hz, -18dB/oct
Phase Control (PHASE) Switched 0° - 180°
FLAT(w/o HEAVY/TIGHT effect mode.)
Width 280mm
Height 70mm
Depth 200mm
WEIGHT 2.6kg
・Cables w/ Connector
Battery Cord 5.0m 18AWG
Battery Fuse 10A
GND 1.5m 18AWG
RCAInput (Female) 0.7m
P-CON 5.0m 20AWG
・Cables w/ Connector
Speaker Level Input (SP) with RCA (Male) 4.3m 18AWG
・Remote Controller (Wired) 5.0m
・Mounting Bracket 2pcs
・Cord Crump 1pc
Tapping Screw for Bracket 2pcs Φ5 x 16mm
Tapping Screw between Under Case and Bracket 2pcs Φ5 x 12mm
Tapping Screw for Cord Cramp 2pcs Φ3 x 10mm
・Double-faced tape for Wired Remote Controller 1pc
・Warranty Card 1pc
・Instruction Manual 4pcs
