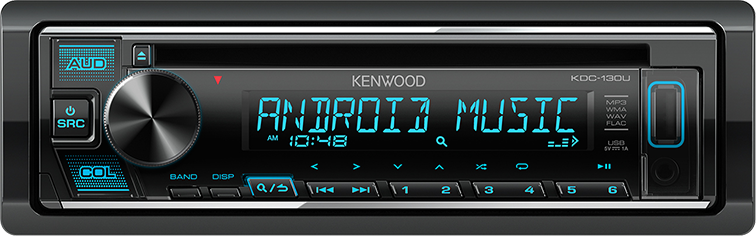

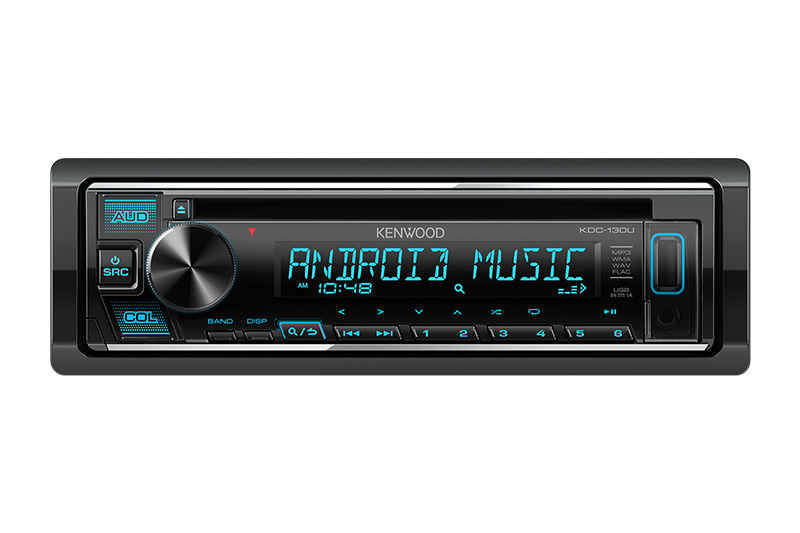

KDC-130U
KDC-130U

KDC-130UUSB / CD Receiver(Discontinued)

  • Detachable Faceplate
  • Direct Audio Control Key
  • Multi-Color Illumination
  • Front USB and AUX IN
  • 2 Preouts 2.5V

Specialized USB Function

USB Connectivity for smart devices and compatible USB mass storage devices.

Learn More

Learn More

Other Useful Features

Learn about exciting product features and highlights.

Learn More

Learn More

CD Player Yes
Key Illumination / LCD - LED Backlight /
USB Terminal x 1
Audio Decoder FLAC / WAV / MP3 / WMA
Equalizer 3 Band
Audio Preout 2.5V / 2 Preouts
Remote Controller Optional

KENWOOD Car Electronics System

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

« scroll
FM Frequency Range
(Frequency step)
87.5MHz to 108.0MHz
(50kHz)
Usable Sensitivity
S/N 30dB
8.2dBf
(0.71μV/75Ω)
Quieting Sensitivity
DIN S/N 46dB
17.2dBf
(2.0μV/75Ω)
Frequency Response
(±3.0dB)
30Hz to 15kHz
S/N 64.0dB(MONO)
Stereo Separation 40dB(1kHz)
AM Frequency Range
(Frequency step)
Band 1(MW) / 531kHz to 1602kHz(9kHz)
Band 2(SW1) / 2940kHz to 7735kHz(5kHz)
Band 3(SW2) / 9500kHz to 10135kHz / 11580kHz to 18135kHz (5kHz)
Channel Space Selection Band 1 / 9kHz
Band 2/3 / 5kHz
Usable Sensitivity
S/N:20dB
29dBμ(28.2μV) : MW
30dBμ (32μV) : SW
CD Laser Diode GaAlAs
Digital Filter(D/A) 8 Times OverSampling
Spindle Speed 500 to 200rpm (CLV)
Wow & Flutter Below Measurable Limit
Frequency Response 20Hz to 20kHz(±1dB)
Total Harmonic Distortion 0.01%(1kHz)
S/N Ratio (dB) 92dB(1kHz)
Dynamic Range 88dB
Channel Separation 83dB
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with WINDOWS MEDIA AUDIO
Preout Level(mV)/Load -Unbalanced 2500mV/10kΩ(CD)
Preout Impedance(Ω) =<600Ω
Speaker Impedance(Ω) 4 to 8Ω
USB I/F USB USB 1.1 / 2.0 Full Speed
File System FAT12 / 16 / 32
Maximum Supply current DC5V(DC logo) 1A
MP3 decode Compliant with MPEG-1/2 Audio Layer-3
WMA decode Compliant with Windows Media Audio
WAV Decode Linear-PCM
FLAC Decode FLAC file (Up to 48kHz/16bit)
AUX
Input
Frequency Response 20 to 20kHz ±3dB
Input Maximum Voltage 1000mV
Input Impedance 30kΩ
AMP Maximum Power 50Wx4
Full Bandwidth Power
(at less than 1%THD)
22Wx4
TONE Bass 100Hz ±8dB
Middle 1kHz ±8dB
Treble 12.5kHz ±8dB
GENE Operating voltage 12V DC car battery
Installation Size
(W)
(H)
(D)
182mm
53mm
158mm
Net Weight
(Trim plate and Mounting sleeve: Included)
1.2(kg)
