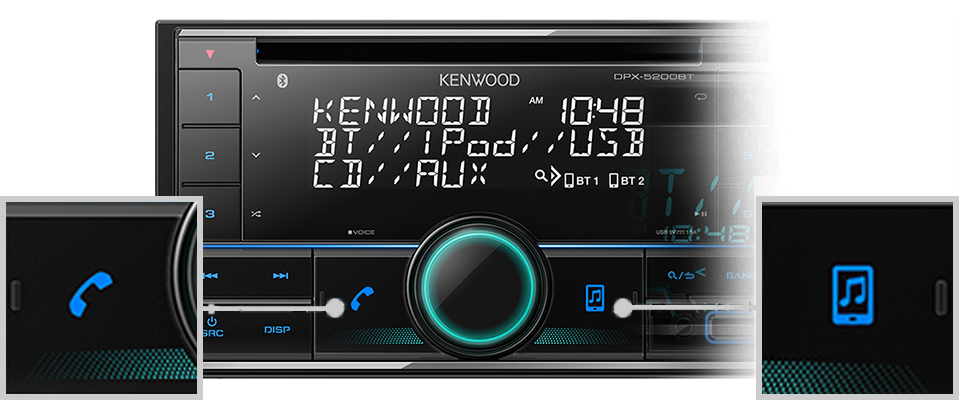

DPX-5200BTDual Din USB / CD Reveiver

  • 420 Segment 3 Line Text Display
  • Built-in Bluetooth
  • Direct Bluetooth Control Key
  • Multi-Color Illumination
  • 13 Band EQ & DTA
  • Front USB & AUX IN
  • 3 Preouts 3.5V

Smartphone Connectivity

By connecting your smartphone and receiver wirelessly, your driving time will be more fun and convenient.

Learn More

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats,including compatibility with FLAC files.
Simple sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Learn More

Additional Features

Learn about exciting product features and highlights.

Learn More

CD Player Yes
Key Illumination / Volume knob Illumination/ LCD・LED Backlight //
Built-in Bluetooth 2-Phone Hands Free / Music Mix / KENWOOD Remote App
USB Terminal x 1
Audio Decoder FLAC / WAV / AAC / MP3 / WMA
Equalizer / Digital Time Alignment / 3-Way X'Over 13 Band / Yes / Yes
Audio Preout 3.5V / 3Preouts
Remote Controller Included

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

« scroll
FM Frequency Range 87.5MHz to 108.0MHz(50kHz)
(Frequency step)
Usable Sensitivity 8.2dBf
S/N 30dB (0.71μV/75Ω)
Quieting Sensitivity 17.2dBf
DIN S/N 46dB (2.0μV/75Ω)
Frequency Response 30Hz to 15kHz
(±3.0dB)
S/N 64.0dB(MONO)
Stereo Separation 40dB(1kHz)
AM Frequency Range Band 1(MW) / 531kHz to 1602kHz(9kHz)
Band 2(SW1) / 2940kHz to 7735kHz(5kHz)
(Frequency step) Band 3(SW2) / 9500kHz to 10135kHz / 11580kHz to 18135kHz (5kHz)
Channel Space Selection Band 1 / 9kHz
Band 2/3 / 5kHz
Usable Sensitivity 29.0dBμ(28.2μV) : MW
S/N:20dB 30dBμ (32μV) : SW
CD Laser Diode GaAlAs
Digital Filter(D/A) 8 Times OverSampling
Spindle Speed 500 to 200rpm (CLV)
Wow & Flutter Below Measurable Limit
Frequency Response 20Hz to 20kHz(±1dB)
Total Harmonic Distortion 0.01%(1kHz)
S/N Ratio (dB) 97dB(1kHz)
Dynamic Range 92dB
Channel Separation 90dB
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with WINDOWS MEDIA AUDIO
AAC Decode AAC-LC ".aac" files
WAV Decode -
Preout Level(mV)/Load -Unbalanced 3500mV/10kΩ
Preout Impedance(Ω) =<600Ω
Speaker Impedance(Ω) 4 to 8Ω
USB I/F USB USB 1.1 / 2.0 High speed
File System FAT12 / 16 / 32
Maximum Supply current DC5V(DC logo) 1.5A
MP3 decode Compliant with MPEG-1/2 Audio Layer-3
WMA decode Compliant with Windows Media Audio
AAC Decode AAC-LC ".aac", "m4a" files
WAV Decode Linear-PCM
FLAC Decode FLAC file (Up to 24bit/96kHz)
AUX Frequency Response 20Hz to 20kHz ±3dB
Input Input Maximum Voltage 1000mV
Input Impedance 30kΩ
AMP Maximum Power 50Wx4
Full Bandwidth Power 22Wx4
(at less than 1%THD)
TONE Band1 62.5Hz ±9dB
Band2 100Hz ±9dB
Band3 160Hz ±9dB
Band4 250Hz ±9dB
Band5 400Hz ±9dB
Band6 630Hz ±9dB
Band7 1kHz ±9dB
Band8 1.6kHz ±9dB
Band9 2.5kHz ±9dB
Band10 4kHz ±9dB
Band11 6.3kHz ±9dB
Band12 10kHz ±9dB
Band13 16kHz ±9dB
Bluetooth Version Bluetooth 4.2
Frequency Range 2.402 to 2.480GHz
RF Output Power (E.I.R.P.) +4dBm (MAX), Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Profile HFP 1.7.1 (Hands Free Profile)
SPP(Serial Port Profile)
PBAP(Phonebook Access Profile)
A2DP(Advanced Audio Distribution Profile)
AVRCP 1.6.1 (Audio/Video Remote Control Profile)
GENE Operating voltage 12V DC car battery
Installation Size (W) 178(mm)
(H) 100(mm)
(D) 156(mm)
Net Weight (Trim plate and Mounting sleeve: Included) 1.3(kg)
