Hi-Resolution Audio Certified
17cm Component Speaker

KFC-XS1703 Hi-Resolution Audio

(1) 170mm Glass Fiber Cone

(2) Harmonic Equalizer

(3) Rigid Aluminum Die-cast Frame reduces needless vibration

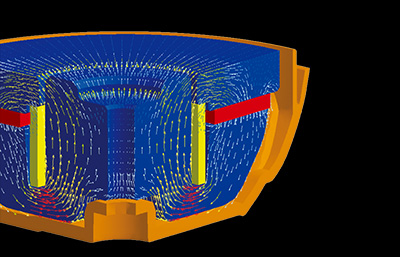

(4) Neodymium Magnet with Cavity Architecture enhances mid-bass performance

(5) 25mm Soft Dome Type Tweeter Swivel Application

  • Optimized magnetic circuit

    Optimized magnetic circuit
    with Aluminum short-ring

    Optimized magnetic circuit
  • High Density Square Voice Coil

    High Density Square Voice Coil

    High Density Square Voice Coil
  • Hi-Grade Film Condenser

    Hi-Grade Film Condenser
    improves higher frequency performance

    Hi-Grade Film Condenser
Speaker Tech-Spec KFC-XS1703
Peak Input Power 180W
RMS Input Power 45W
Size 17cm
Tweeter Design Soft Dome
Tweeter Magnet Composition Neodymium
Woofer Magnet Composition Neodymium
Nominal Impedance 4ohms
Frequency Response 25Hz – 48kHz (-10dB)
Sensitivity (dB/W at 1m) 83dB
Mounting Depth 57.7mm
