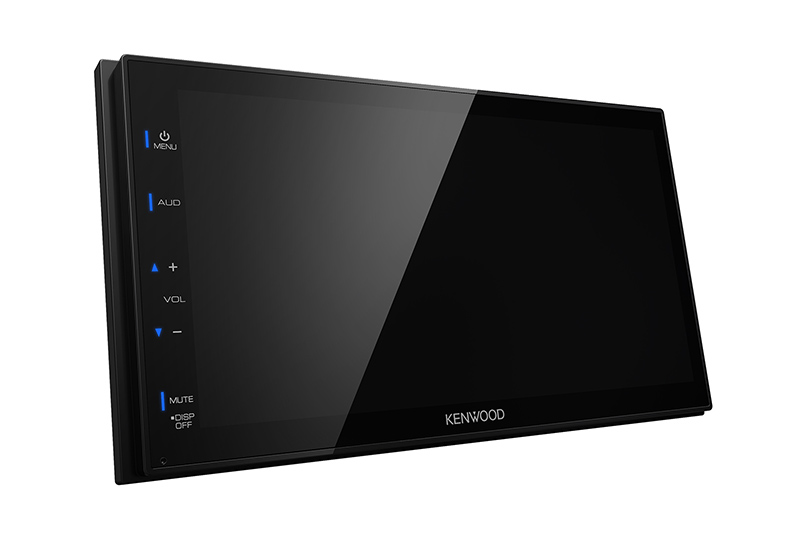

DMX120BTDigital Multimedia Receiver with 6.8"
WVGA Display（Discontinued）
By connecting your smartphone and receiver wirelessly, your driving time will be more fun and convenient.
It allows you to display and control your Android smartphone on the screen of the head unit. You can enjoy your favorite apps on a large display and with impressive sound quality.
Before starting, just install the free app “Mirroring OA for KENWOOD” on your smartphone and connect it to DMX120BT via a USB cable and Bluetooth.
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 7-Band EQ.
To meet your high expectations.

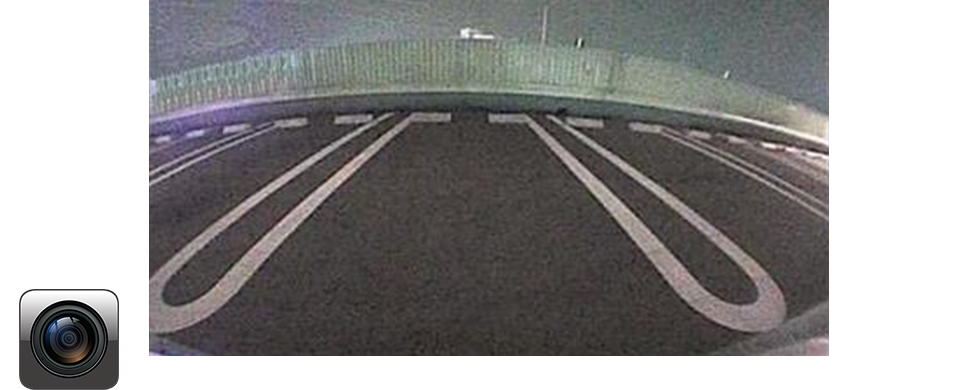

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle.
Only 75mm of depth for more flexible installation
Remote control (RC-DV331) is optionally available.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
| Model Name | DMX120BT | ||
| Monitor | Picture size | 6.75inches(diagonal) wide | |
| Section | W x H | 151.8mm x 79.7mm | |
| Display system | Transparent TN LCD panel | ||
| Drive system | TFT active matrix system | ||
| Number of pixels | 1,152,000 | ||
| 800H x 480V x RGB | |||
| Effective pixels | 99.99% | ||
| Pixel arrangement | RGB striped arrangement | ||
| Back lighting | LED | ||
| USB I/F | USB Standard | USB2.0 High Speed | |
| Section | File System | FAT 16 / 32 | |
| Maximum Power Supply Current | DC 5V = 1.0A | ||
| D/A Converter | 24Bit | ||
| Audio Decoder | MP3/ WMA/ WAV/ AAC/ FLAC | ||
| Video Decoder | MPEG1/ MPEG2/ MPEG4/ H.264/ MKV/ WMV | ||
| Frequency response | 192k Sampling | 20 - 20,000 Hz | |
| Frequency response | 96k Sampling | 20 - 20,000 Hz | |
| 48k Sampling | 20 - 20,000 Hz | ||
| 44.1k Sampling | 20 - 20,000 Hz | ||
| Bluetooth | Technology | Bluetooth V2.1+EDR | |
| Section | Frequency | 2.402 – 2.480 GHz | |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | ||
| Maximum Communication range | Line of sight approx.10m(32.8ft) | ||
| Audio Codec | SBC | ||
| Profile | HFP(Hands Free Profile) 1.6 | ||
| A2DP(Advanced Audio Distribution Profile) 1.2 | |||
| AVRCP(Audio/Video Remote Control Profile) 1.3 | |||
| PBAP(Phonebook Access Profile) 1.1.1 | |||
| DSP | Graphics equalizer | ||
| Section | BAND | 7Band | |
| frequency(Hz) (BAND1-13) | 62.5/160/400/1k/2.5k/6.3k/16k Hz | ||
| Gain | '-7 to +7 (-7dB to +7dB) | ||
| LOW PASS FILTER frequency | 80/ 120/ 160 Hz/ Off | ||
| FM | Frequency range | 87.5 MHz - 108.0 MHz | |
| (Frequency step) | (50 kHz) | ||
| Usable sensitivity | 12.2 dBf | ||
| 'S/N30dB | 1.1 μV / 75 Ohms | ||
| Quieting sensitivity | 19.2dBf | ||
| 'DIN S/N 46dB | 2.5 μV / 75 Ohms | ||
| Frequency response(±3.0 dB) | 30 Hz - 14 kHz | ||
| S/N( dB) | 55 dB(MONO) | ||
| Selectivity | Over 70 dB(±400 kHz) | ||
| Stereo separation | 37 dB(1 kHz) | ||
| AM | Frequency range | 531 - 1611 kHz | |
| (Frequency step) | (9 kHz) | ||
| Usable sensitivity | 29uV | ||
| Video | Color system of external video input | NTSC / PAL | |
| External video input level (RCA jacks) | 1.0Vp-p / 75 Ohms | ||
| External audio max input level(RCA jacks) | 1.8V / 10k Ohms | ||
| Video Input level (RCA jacks) | 1.0Vp-p / 75 Ohms | ||
| Video Output level (RCA jacks) | 1.0Vp-p / 75 Ohms | ||
| Audio | Maximum Power (Front&Rear) | 50Wx4 | |
| Full Bandwidth Power (Front&Rear) | 21Wx4 | ||
| (at less than 1%THD) | |||
| Output frequency band | 20 - 20,000Hz | ||
| Preout level(V) | 2V / 10k Ohms | ||
| Preout impedance(Ω) | =< 600 Ohms | ||
| Speaker Impedance(Ω) | 4-8 Ohms | ||
| General | Operating voltage | 12V DC Car Battery | |
| Installation Dimensions WxHxD | 182mm x 112mm x 75mm | ||
| Main Unit Installation size W x H x D(w/o sleeve) | 178mm x 100mm x 75mm | ||
| Operational temperature range | |||
| Weight | Main unit | 1.1 kg | |
| (Including Sleeve and Trim plate) | |||
