Amplifier

KAC-HQR1004

AB-Class, 100W x 4ch
Ultra Hi-Performance Amplifier

KAC-HQR1004
  • High density construction & Cooling Fan

    High density construction & Cooling Fan

    Allows the amplifier to operate at comfortable temperature levels even under stressful conditions.

    High density construction & Cooling Fan
  • Custom made capacitor

    Custom made capacitor

    Provides enhanced stability and reproduce accurate low frequency sound.

    Custom made capacitor
  • Gold-plate Terminals

    Gold-plate Terminals

    Lower contact resistance resulting in wider frequency response,with improved dynamic range and signal-to-noise ratio.

    Gold-plate Terminals
Amplifier Tech-Spec KAC-HQR1004
Maximum Output Power 1200W
RMS Power at 4ohms 100W x 4ch
RMS Power at 2ohms 130W x 4ch
Bridged at 4ohms 270W x 2ch
Frequency Respons 20Hz - 20kHz
High Pass Filter 50Hz - 200Hz, -12dB/oct
Low Pass Filter 50Hz - 200Hz, -12dB/oct
Speaker Level Input Yes
Signal to Noise Ratio 100dB
Dimensions W x D x H (mm) 324 x 187 x 55

KAC-HQR9500

AB-Class, 40W x 4ch + 300W
Ultra Hi-Performance Amplifier

KAC-HQR9500
Amplifier Tech-Spec KAC-HQR9500
Maximum Output Power 1200W
RMS Power at 4ohms 40W x 4ch + 300W
RMS Power at 2ohms 50W x 4ch + 500W
Bridged at 4ohms 100W x 2ch + 300W
Frequency Respons 5Hz - 50kHz
High Pass Filter 50Hz - 200Hz, -12dB/oct
Low Pass Filter 50Hz - 200Hz, -24dB/oct
Speaker Level Input No
Signal to Noise Ratio 100dB
Dimensions W x D x H (mm) 324 x 187 x 55

KAC-HQR9400

60W x 2ch + 100W x 2ch
Ultra Hi-Performance Amplifier

KAC-HQR9400
Amplifier Tech-Spec KAC-HQR9400
Maximum Output Power 900W
RMS Power at 4ohms 60W x 2ch + 100W x 2ch
RMS Power at 2ohms 75W x 2ch + 150W x 2ch
Bridged at 4ohms 300W x 2ch
Frequency Respons 5Hz - 50kHz
High Pass Filter 50Hz - 200Hz, -12dB/oct
Low Pass Filter 50Hz - 200Hz, -24dB/oct
Speaker Level Input No
Signal to Noise Ratio 100dB
Dimensions W x D x H (mm) 324 x 187 x 55

KAC-HQR8400

60W x 4ch
Ultra Hi-Performance Amplifier

KAC-HQR8400
Amplifier Tech-Spec KAC-HQR8400
Maximum Output Power 720W
RMS Power at 4ohms 60W x 4ch
RMS Power at 2ohms 90W x 4ch
Bridged at 4ohms 180W x 2ch
Frequency Respons 5Hz - 50kHz
High Pass Filter 50Hz - 200Hz, -12dB/oct
Low Pass Filter 50Hz - 200Hz, -24dB/oct
Speaker Level Input Yes
Signal to Noise Ratio 95dB
Dimensions W x D x H (mm) 330 x 215 x 55

Speaker

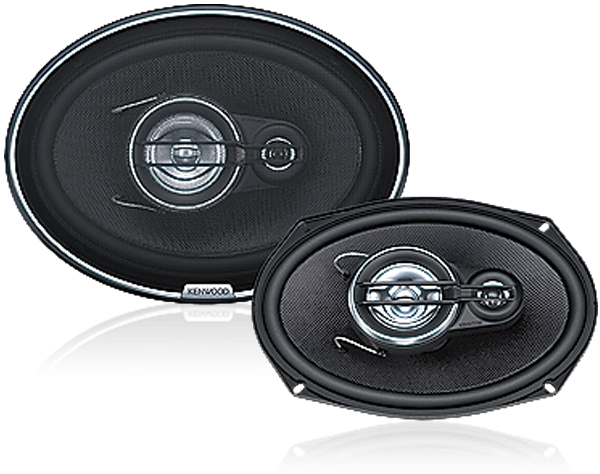

KFC-HQR710EX

7 x 10 inch
Ultra Hi-Performance Speaker

KFC-HQR710EX
  • Horn Tweeter with Neodymium Magnet

    Horn Tweeter with Neodymium Magnet

    maximizes the efficiency of titanium diaphragm movement and reproduces ultra wide range "Life-like" sound.

    Horn Tweeter with Neodymium Magnet
  • Flexible Installation

    Flexible Installation

    KFC-HQR710EX includes "6 x 9 inch" bracket,
    and "slated" bracket improve installation capability.

    Flexible Installation
Speaker Tech-Spec KFC-HQR710EX
Peak Input Power 700W
RMS Input Power 155W
Size 7 x 10 inch
Tweeter Design Horn
Tweeter Magnet Composition Neodymium
Woofer Magnet Composition Ferrite
Nominal Impedance 3ohms
Frequency Response 63Hz - 23kHz
Sensitivity (dB/W at 1m) 97dB
Mounting Depth 88mm

KFC-HQ718

Sold over 1.2 million pairs
Legendary 7 x 10 inch Speaker

KFC-HQ718
Speaker Tech-Spec KFC-HQ718
Peak Input Power 320W
RMS Input Power 80W
Size 7 x 10 inch
Tweeter Design PEI Balanced Dome
Tweeter Magnet Composition Ferrite
Woofer Magnet Composition Ferrite
Nominal Impedance 4ohms
Frequency Response 22Hz – 33kHz
Sensitivity (dB/W at 1m) 93dB
Mounting Depth 82mm

KFC-HQ718EX

17cm Round Coaxial Speaker

KFC-HQ718EX
Speaker Tech-Spec KFC-HQ718EX
Peak Input Power 400W
RMS Input Power 80W
Size 7 x 10 inch
Tweeter Design PEI Balanced Dome
Tweeter Magnet Composition Ferrite
Woofer Magnet Composition Ferrite
Nominal Impedance 3ohms
Frequency Response 28Hz – 30kHz
Sensitivity (dB/W at 1m) 93dB
Mounting Depth 82mm

KFC-HQR1600

16cm Round Coaxial Speaker

KFC-HQR1600
Speaker Tech-Spec KFC-HQR1600
Peak Input Power 400W
RMS Input Power 100W
Size 16cm
Tweeter Design PEI Cone
Tweeter Magnet Composition Ferrite
Woofer Magnet Composition Ferrite
Nominal Impedance 4ohms
Frequency Response 65Hz – 20kHz
Sensitivity (dB/W at 1m) 82dB
Mounting Depth 61mm

Subwoofer

KFC-HQR3000

30cm Subwoofer

KFC-HQR3000
Subwoofer Tech-Spec KFC-HQR3000
Peak Input Power 1500W
RMS Input Power 500W
Size 30cm
Tweeter Design
Tweeter Magnet Composition
Woofer Magnet Composition Ferrite
Nominal Impedance 4ohms
Frequency Response 32Hz – 300Hz
Sensitivity (dB/W at 1m) 82dB
Mounting Depth 153mm

30cm Sub-BOX

Recommended Subwoofer Box
Dedicated for KFC-HQR3000

30cm Sub-BOX
Recommended Subwoofer Box 30cm Sub-BOX
Dedicated for KFC-HQR3000
Box Type Slot-Ported
Dimensions W x D x H (mm) 590 x 355 x 362
Cubic Volume 56.6Liter
