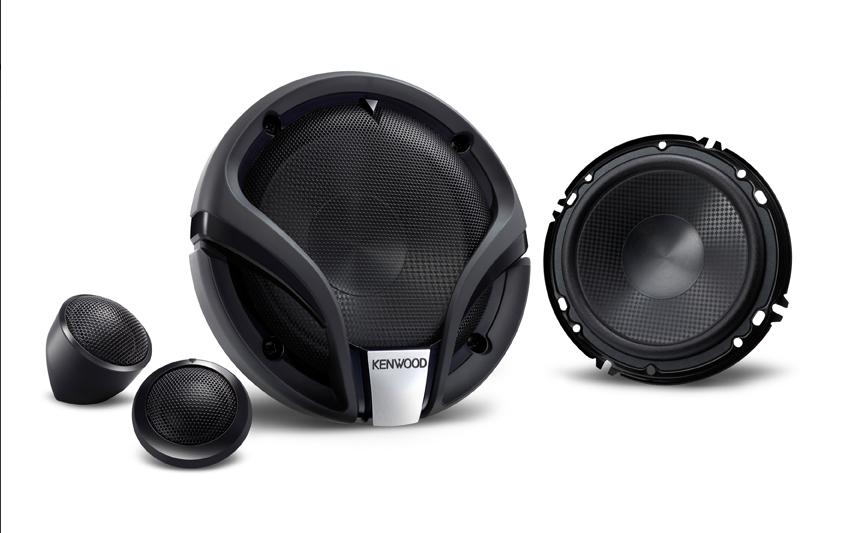

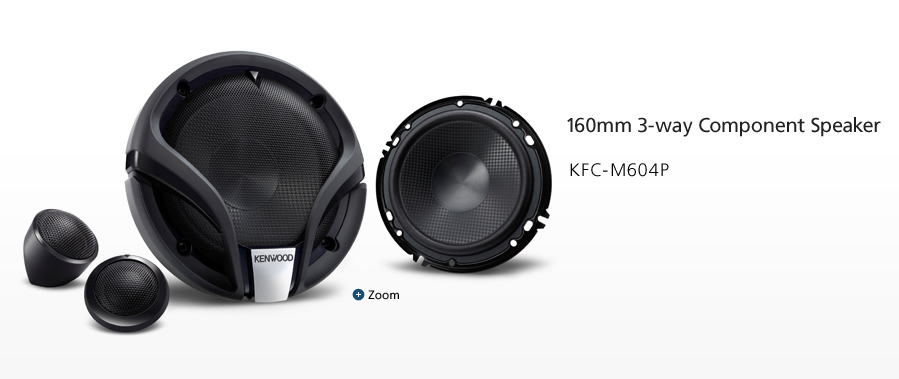

160mm 3-way Component Speaker KFC-M604P

What's the meaning of the “A” in the M series speakers?

These speakers are equipped with a "5 degree slanted" mid-range speaker and a tweeter which we call it as "Angled Direct Sound" (so we put "A" in the model name) to direct mid-high range frequencies towards passengers’ ears and deliver clearer, more directional sound with less loss.

Peak Input Power


Rated Input Power

60W (CEA Spec.)

Woofer Features

160mm Injection P.P. cone with Square-Array Pattern Diaphragm

Tweeter Features

25mm Soft Dome Tweeter

Crossover Network Features

In-Line Crossover Network


Sensitivity: 88dB at 1m
Frequency Response: 65-22k Hz
Impedance: 4 ohms
Size (WHD): 157.7mm x 157.7mm x 55.5mm (w/o Grille)
Mounting Depth: 45.5mm
Gross Weight: 2,000g
Magnet Weight: 220g
