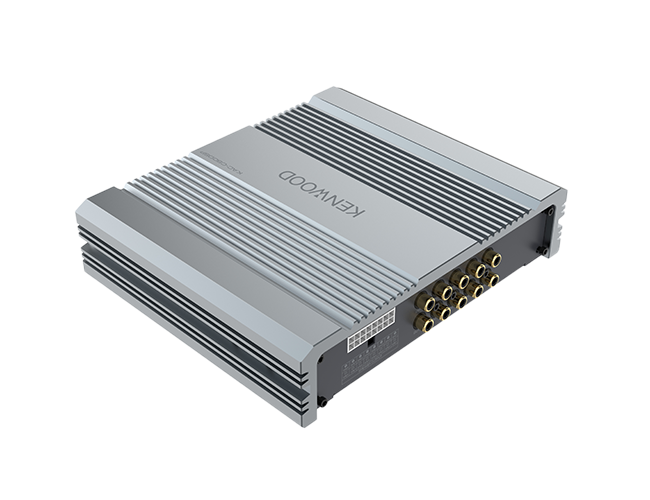

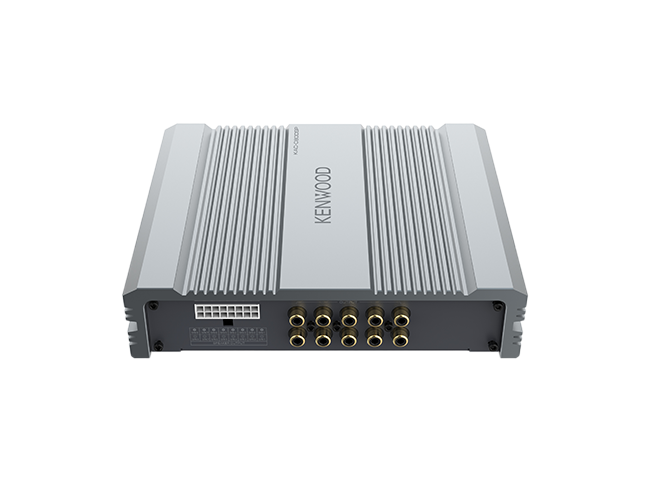

AB-Class, 70W x 4ch
Hi-Performance Amplifier
(1) A better cooling system with fan
(2) 45mm large toroidal transformer,
Secondary Capacitor 9900uF and Primary Capacitor 6600uF ensure solid performance
(3) One-side Terminals for Easier Installation
Speaker-level Input with Signal Sensing Turn-On
| Amplifier Tech-Spec | KAC-PS704EX |
|---|---|
| Maximum Output Power | 1000W |
| RMS Power at 4ohms | 70W x 4ch |
| RMS Power at 2ohms | 100W x 4ch |
| Bridged at 4ohms | 200W x 2ch |
| Frequency Response | 20Hz - 50kHz |
| High Pass Filter | 80Hz, -12dB/oct |
| Low Pass Filter | 50Hz – 200Hz, -24dB/oct |
| Speaker Level Input | Yes |
| Signal to Noise Ratio | 100dB |
| Dimensions W x D x H (mm) | 335 x 204 x 56 |
4ch
| Amplifier Tech-Spec | KAC-PS404 |
|---|---|
| Maximum Output Power | 550W |
| RMS Power at 4ohms | 40W x 4ch |
| RMS Power at 2ohms | 60W x 4ch |
| Bridged at 4ohms | 130W x 2ch |
| Frequency Response | 20Hz - 50kHz |
| High Pass Filter | 80Hz, -12dB/oct |
| Low Pass Filter | 50Hz – 200Hz, -24dB/oct |
| Speaker Level Input | Yes |
| Signal to Noise Ratio | 100dB |
| Dimensions W x D x H (mm) | 335 x 204 x 56 |
2ch
| Amplifier Tech-Spec | KAC-PS702EX |
|---|---|
| Maximum Output Power | 500W |
| RMS Power at 4ohms | 70W x 2ch |
| RMS Power at 2ohms | 85W x 2ch |
| Bridged at 4ohms | 170W x 1ch |
| Frequency Response | 20Hz - 50kHz |
| High Pass Filter | － |
| Low Pass Filter | 80Hz, -18dB/oct |
| Speaker Level Input | Yes |
| Signal to Noise Ratio | 100dB |
| Dimensions W x D x H (mm) | 230 x 167 x 56 |
Class D Mono
| Amplifier Tech-Spec | KAC-8106D |
|---|---|
| Maximum Output Power | 1000W |
| RMS Power at 4ohms | 300W |
| RMS Power at 2ohms | 500W |
| Bridged at 4ohms | － |
| Frequency Response | 20Hz - 200Hz |
| High Pass Filter | － |
| Low Pass Filter | 50Hz - 200Hz, -24dB/oct |
| Speaker Level Input | No |
| Signal to Noise Ratio | 100dB |
| Dimensions W x D x H (mm) | 240 x 192 x 56 |
17cm Component Speaker
(1) 170mm Wide Etched PP Woofer Cone creates solid bass sound by avoiding deformation of diaphragm
(2) Convex Shape PP+Mica+Carbon Cap enhances mid-range performance.
(3) Audiophile grade External Network Box
using hi-quality crossover film capacitors and inductors Tweeter High Pass Filter : -12dB/oct.
(4) Swivel Type 25mm soft dome Tweeter Able to adjust the direction after installation
| Speaker Tech-Spec | KFC-PS170C |
|---|---|
| Peak Input Power | 400W |
| RMS Input Power | 80W |
| Size | 17cm |
| Tweeter Design | Soft Dome |
| Tweeter Magnet Composition | Neodymium |
| Woofer Magnet Composition | Ferrite |
| Nominal Impedance | 4ohms |
| Frequency Response | 58Hz - 22kHz |
| Sensitivity (dB/W at 1m) | 86dB |
| Mounting Depth | 56mm |
6 x 9 inch 5Way / 4Way / 3Way Speaker

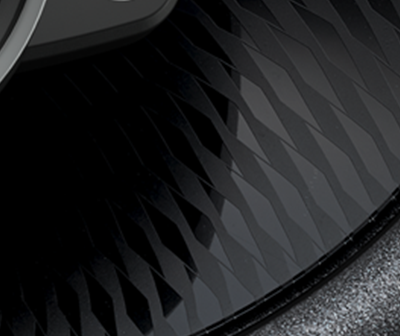

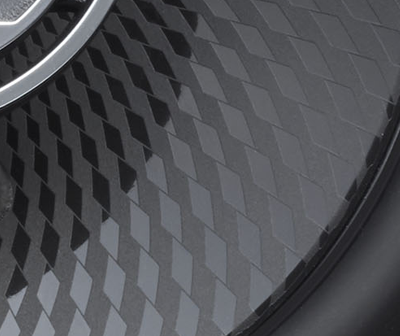

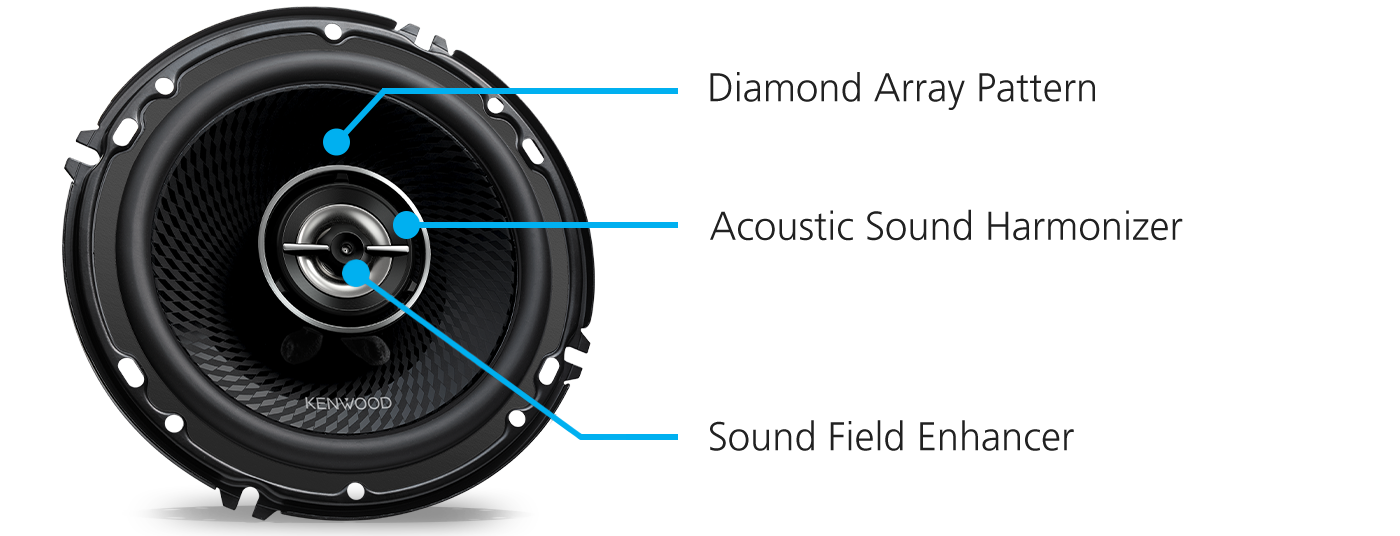

enhances sound and reduces distortion.
The unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and upper frequencies.
harmonizes different sounds from the woofer and tweeter and reproduces a natural sound.

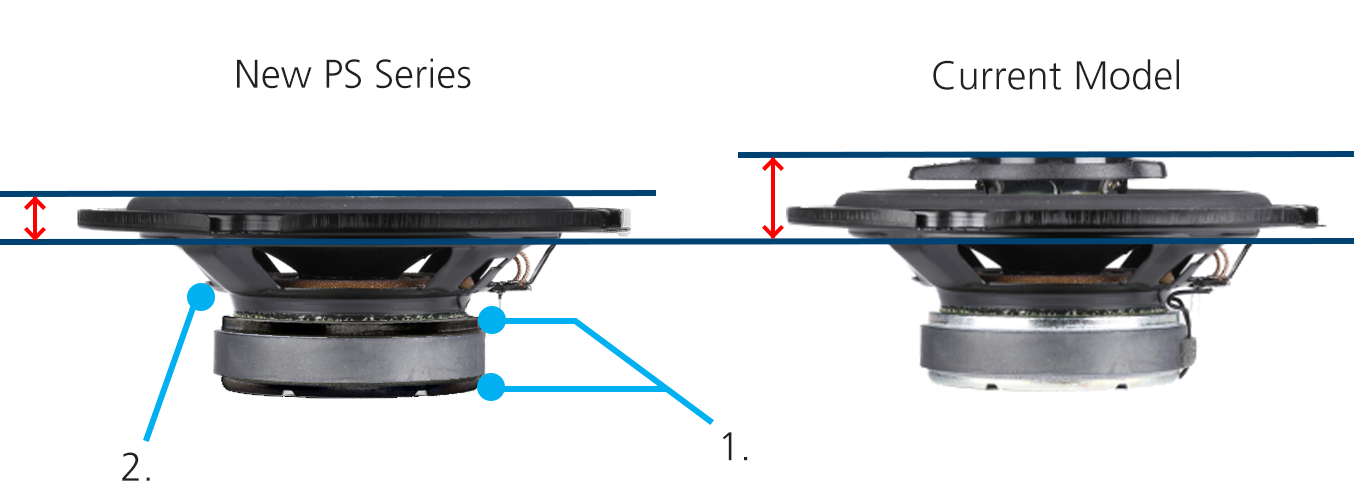

The tweeter height is designed as low as possible, and the speaker units can fit within most of the spaces for factory speakers.

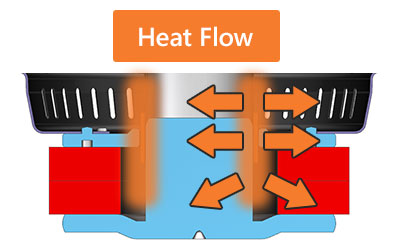

efficiently releases heat inside the magneticcircuit and prevents the temperature of the voice coil from rising, resulting in improved durability.

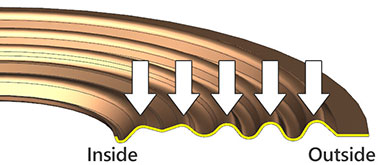

minimizes mechanical stress and makes the sound response smoother.
| Speaker Tech-Spec | KFC-PS6996 | KFC-PS6986 | KFC-PS6976 |
|---|---|---|---|
| Peak Input Power | 650W | 600W | 550W |
| RMS Input Power | 150W | 140W | 130W |
| Size | 6 x 9 inch 5Way | 6 x 9 inch 4Way | 6 x 9 inch 3Way |
| Tweeter Design | Balanced Dome | Balanced Dome | Balanced Dome |
| Tweeter Magnet Composition | Ferrite | Ferrite | Ferrite |
| Woofer Magnet Composition | Ferrite | Ferrite | Ferrite |
| Nominal Impedance | 4ohms | 4ohms | 4ohms |
| Frequency Response | 58Hz–22kHz | 60Hz–22kHz | 63Hz–22kHz |
| Sensitivity (dB/W at 1m) | 88dB | 88dB | 88dB |
| Mounting Depth | 80.5mm | 80.5mm | 80.5mm |

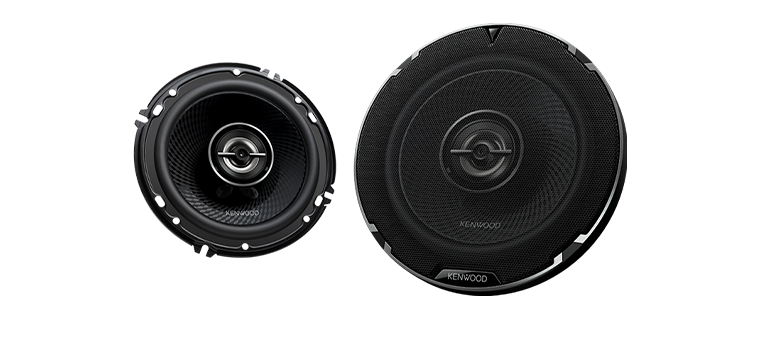

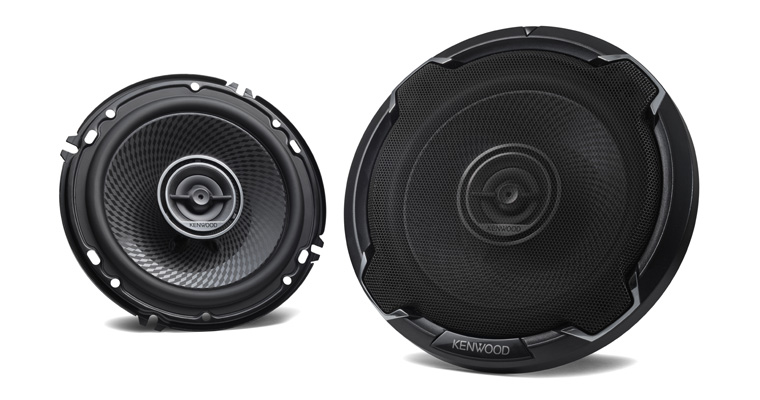

16cm / 13cm / 10cm 2Way Speaker
| Speaker Tech-Spec | KFC-PS1696 | KFC-PS1396 | KFC-PS1096 |
|---|---|---|---|
| Peak Input Power | 320W | 320W | 220W |
| RMS Input Power | 100W | 75W | 50W |
| Size | 16cm 2Way | 13cm 2Way | 10cm 2Way |
| Tweeter Design | Balanced Dome | Balanced Dome | Balanced Dome |
| Tweeter Magnet Composition | Neodynium | Neodynium | Neodynium |
| Woofer Magnet Composition | Ferrite | Ferrite | Ferrite |
| Nominal Impedance | 4ohms | 4ohms | 4ohms |
| Frequency Response | 75Hz–24kHz | 80Hz–25kHz | 114Hz–25kHz |
| Sensitivity (dB/W at 1m) | 88dB | 85dB | 85dB |
| Mounting Depth | 48mm | 46mm | 43.4mm |
30cm / 25cm Subwoofer
Heat-resistant Alminum Bobbin provides higher thermal conductivity.
Computer-optimized Dumper controls stress and increase mechanical durability.
| Subwooer Tech-Spec | KFC-PS3017W | KFC-PS2517W |
| Peak Input Power | 2000W | 1300W |
| RMS Input Power | 400W | 300W |
| Size | 30cm | 25cm |
| Woofer Magnet Composition | Ferrite | Ferrite |
| Nominal Impedance | 4ohms | 4ohms |
| Frequency Response | 29Hz–300Hz | 33Hz–300Hz |
| Sensitivity (dB/W at 1m) | 85dB | 84dB |
| Mounting Depth | 137mm | 124mm |
30cm Subwoofer
| Subwoofer Tech-Spec | KFC-PS3016W |
|---|---|
| Peak Input Power | 2000W |
| RMS Input Power | 400W |
| Size | 30cm |
| Tweeter Design | － |
| Tweeter Magnet Composition | － |
| Woofer Magnet Composition | Ferrite |
| Nominal Impedance | 4ohms |
| Frequency Response | 32Hz–300Hz |
| Sensitivity (dB/W at 1m) | 84dB |
| Mounting Depth | 131.6mm |
