High Definition Recording & Wireless Link

 Camera is equipped with 3.7 Megapixel* Wide Quad Hi-Vision provides easy data transfer to your smartphone through Wireless Link.

  • DRV-A501W Zoom

    Dashboard Camera with Wireless Link

    • 3.7 Megapixel Recording
    • 3.0" LCD Display
    • Touch Panel Control
    • HDR
    • Wireless Link
    • Built-in GPS & G-Sensor
    • Parking Mode Recording
    • 16GB microSD Included
    • Quick Release
    Features Icons

    *Parking Mode Recording requires optional CA-DR1030 Hardwaire Kit

3.7 Megapixel Recording

3.7 Megapixel Recording provides High Resolution Recording

3.7 Megapixel High Definition recording captures clear video even while driving.

Wide Quad-HD
number plate
Capable of capturing a clear image of a license plate

DRV-A501W records with Full-HD (1920 x 1080) when KCA-R100 optional rear camera is connected.

HDR (High Dynamic Range) for Backlighting

Easily records clear images in dark or well lit settings without underexposing or overexposing the image.

Without HDR/WDR
Without HDR
With HDR

Polarized Filter Included

Simply attach PL filter to front of lens to reduce windscreen glare/reflection.
The filter has a rotating bezel, so that you can setup reflection free lens exactly how you need in your vehicle.
without PL Filter
(without PL Filter)
with PL Filter
(with PL Filter)

Supports micro SDXC/SDHC

MicroSDXCME Logo
  • microSDXC/SDHC card 8GB to 256GB supported.
  • SD Card Recorded File Capacity
  • 8GB Micro SD = 47 mins (1 minute x 47 recordings)
  • 16GB Micro SD = 94 mins (1 minute x 94 recordings)
  • 32GB Micro SD = 141 mins (1 minute x 141 recordings)
  • 64GB Micro SD = 376 mins (1 minute x 376 recordings)
  • 128GB Micro SD = 752 mins (1 minute x 752 recordings)
  • 256GB Micro SD = 1504 mins (1 minute x 1504 recordings)
  • *Based on default recording settings.

12V & 24V Compatible

Camera works with both 12V and 24V applications.

Touch Panel Control

3.0" LCD Display with Touch Panel Control

Large touch display provides easy access to checking recorded videos and changing settings.

Enhanced Vehicle Monitoring & Protection

G-sensor & Built-in GPS

The DRV-A501W is equipped with a G-Sensor designed to detect a collision, and GPS that records speed, latitude, and longitude.

Parking Mode Recording

Parking Mode Recording

When the vehicle is parked and turned off, parking mode becomes active.  If the vehicle is subject to a collision or other physical impact, the cameras power on and automatically records 30 seconds of video.
*Parking Mode Recording requires opptional hardwaire kit: CA-DR1030

Super Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.

Quick Release

Magnetic Mount

Quickly place and remove the dash cam.
No cable to connect or disconnect from the dash cam.
Magnetic Mount

2 Mounts Included

3M Tape Style
3M Tape Style
Suction Cup Style
Suction Cup Style

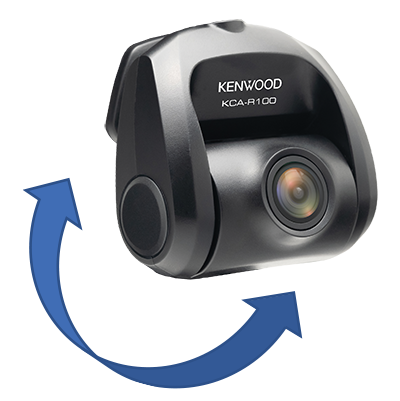

Optional Rear View Camera

Optional Rear View Camera

Front & Rear View Recording

Connect optional KCA-R100 to DRV-A501W to record in front and behind of your vehicle, all at the same time.  The rear dash cam includes a 8m cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield or anywhere else in the vehicle where you would like to record.    When in Dual Camera Recording Mode, both cameras maximum recording resolution is 2.0 Megapixel (Full HD).  Rear cam must be turned off in menu setting to enable front cam 3.7 Megapixel recording.

 Front & Rear View Recording

8m Rear Camera Cable

8m power & video cable enable you to install the rear camera inside your car, truck, or RV.

Do not install the camera outside of your vehicle.

Adjustable Mounting Holder

Adjustable Rear Camera mounting holder enables viewing position change by up to 180 degrees .

page top


« scroll
DRV-A501W KCA-R100
Hard Specification Screen size 3.0inches full color TFT -
Operating voltage 5V / 2A; 12-24V DC DC 5V
Current Consumption 480mA 110mA
Super Capacitor yes -
Button Touch Button -
Wireless Link yes -
Microphone Built-in -
Speaker Built-in -
GPS Receiver Built-in -
G-sensor Built-in -
Collision sensitivity -4.0G to +4.0G (0.1G Step) -
Image sensor 1/2.8 CMOS sensor 1/2.8 CMOS sensor
Valid Pixel 5.14M Pixels (2616 x 1964) 2.12M Pixels (1936x1097)
Number of Pixel 3.7M Pixels (2560 x 1440) 2M Pixels (1920x1080)
Angles of view Horizontal : 126° Vertical : 110° Diagonal :126° Horizontal : 129° Vertical : 66° Diagonal :161°
Lens rotation - yes(180∘)
Image reversal (Upside down) Yes -
Lens F1.6 F2.0
Polarization Filter Bundled no
Operating temperature -10℃ to +60℃ -10℃ to +60℃
Noise Protection yes yes
OSD Menu Language Inmplemented languages EN/DE/FR/NL /IT/ES/PT/RU /PL/CZ/RO -
Recording Specification Recording resolution Single: 2560 x 1440 Quad HD Dual: Full HD(Front) +Full HD(Rear) 1920 x 1080 Full HD
Frame rate 30FPS 30FPS
HDR yes -
WDR yes -
Recording Mode 1 / 3 / 5 min -
Voice recording yes(ON/OFF) -
Video format H.264 / MOV H.264 / MOV
Audio format Linear PCM Linear PCM
Picture format JPEG (Max. 2560 x 1440) -
Recording media microSDXC/SDHC card 8GB to 256GB Class10 -
Port DC-IN mini USB-B type -
AV Out/HD Out HDMI -
AV In (Rear Cam) yes -
SD Slot microSD -
Size Dimensions WxHxD (Main unit) 106mm*50.5mm*40.5mm 63mm*66mm*36mm
Dimensions WxHxD (Bracket attached) 106mm*90mm*40.5mm 63mm*66mm*36mm
Weight (Main unit) 102g 334g
DC/Rear cam Cable Length 4m 8m
Bundled Accessory SD Card microSD 16GB (Class 10) -
DC Cable Cigar Lighter Car Charger Adapter (12-24V, 4m) -
Car Mount Bracket J Type Mount(Build-in GPS) Mounting Bracket (3M Tape & Suction Cup) 3M Tape
Manual /Warranty card Instruction Manual:Multi Warranty Card Yes
USB Cable yes/110cm -
Spare 3M Adhesive Pad yes/2pcs yes/2pcs
Cable Clips yes/4pcs -
Optional Accessory Rear Cam KCA-R100
Hardwire Kit CA-DR1030

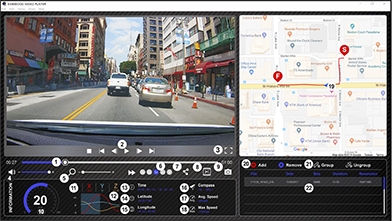

Application PC Viewer Windows/Mac -
Requirement for Windows Windows 10, 8.1, 7 -
Requirement for Mac Mac OS X 10.11 (El Capitan) or later -
Languages for PC Viewer EN/DE/FR/NL /IT/ES/PT/RU /PL/CZ/RO -
Smartphone App Android/iOS -
Requirement for Android Android 5.0.2 and above -
Requirement for iOS iOS 9.0 and above -
Languages for Smartphone App EN/DE/FR/NL /IT/ES/PT/RU /PL/CZ/RO -
