Amplifier

KAC-PS704EX

AB-Class, 70W x 4ch
Hi-Performance Amplifier

KAC-PS704EX KAC-PS704EX
(1)
(2)
(3)

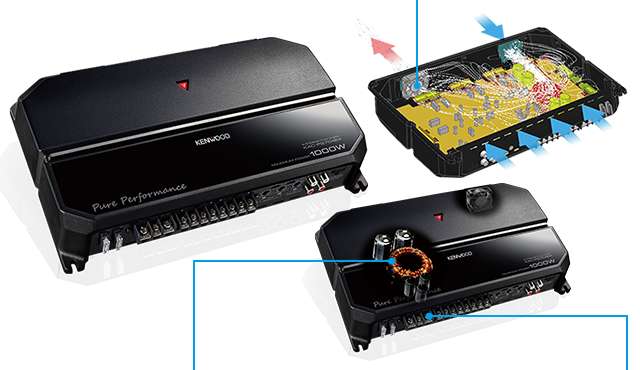

(1) A better cooling system with fan

(2) 45mm large toroidal transformer,
Secondary Capacitor 9900uF and Primary Capacitor 6600uF ensure solid performance

(3) One-side Terminals for Easier Installation
Speaker-level Input with Signal Sensing Turn-On

Amplifier Tech-Spec KAC-PS704EX
Maximum Output Power 1000W
RMS Power at 4ohms 70W x 4ch
RMS Power at 2ohms 100W x 4ch
Bridged at 4ohms 200W x 2ch
Frequency Response 20Hz - 50kHz
High Pass Filter 80Hz, -12dB/oct
Low Pass Filter 50Hz – 200Hz, -24dB/oct
Speaker Level Input Yes
Signal to Noise Ratio 100dB
Dimensions W x D x H (mm) 335 x 204 x 56
