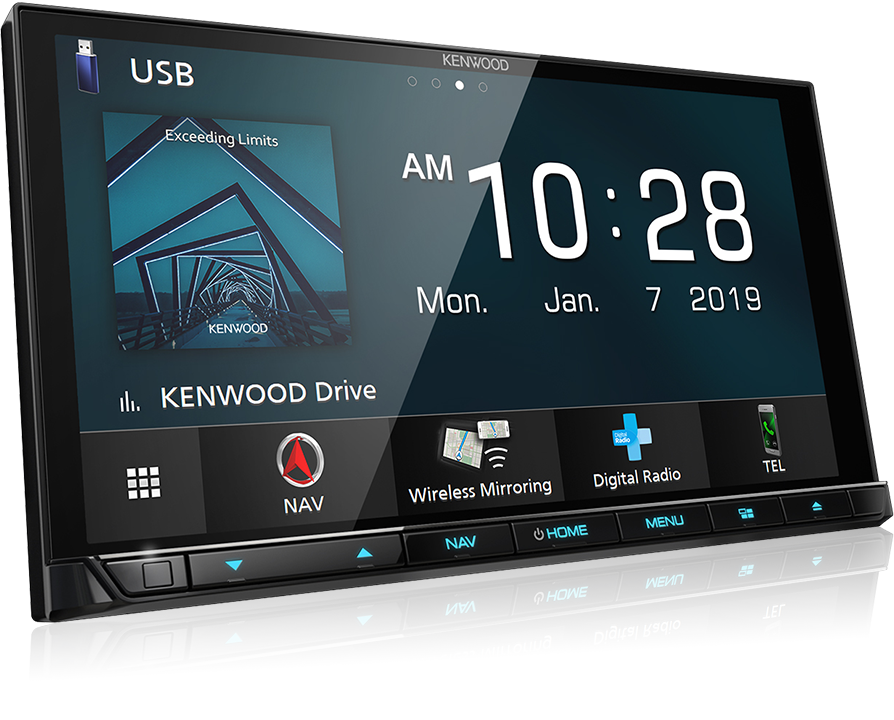

DNX9190DABSAV Navigation with 6.8 inch
High Definition Display
Equipped with the industry leading Garmin navigation software, offering a variety of display options to make your driving easier.
Equipped with the industry leading Garmin navigation system,
offering a variety of display options such as Photo Real Junction
View and Lane Assist to make your driving easy.
*These functions may not be available in certain markets / countries.
Dash Cam ready receivers are compatible with the DRV-N520 Dash Camera. The camera records in full HD video capturing every event that occurs on the road ahead, and also provides safety features such as collision avoidance.
By connecting your smartphone and receiver wirelessly, your driving time will be more fun and convenient.
Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported. New KENWOOD Wi-Fi receivers now support Apple CarPlay wirelessly (compatible phone required).
*Some features, applications, and services are not available in all areas. For details, see: https://www.apple.com/ios/carplay/
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming service like Spotify. Navigate to where you need to with Google Maps or Waze.
New KENWOOD Wi-Fi receivers also support Android Auto wirelessly
(compatible phone required).
To wirelessly use Android Auto on your car display, you need a compatible Android smartphone with an active data plan. You can check which smartphones are compatible at g.co/androidauto/requirements.
Wireless Mirroring is a groundbreaking solution for seamlessly displaying and controlling your smartphone apps on a 9 series screen without cables or a network connection on selected Android devices.
Up to 5 Bluetooth devices can be paired to the head unit
at the same time. You can enjoy audio streaming just by switching the devices among your friends and family.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Listen to popular music applications and music stored on your device with basic audio controls.
* Native music app control services like Spotify have now been discontinued by the service provider, so please select the Bluetooth audio source for music playback and basic control.
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
High-Resolution Audio is high-quality sound that far exceeds CD standards, and can play 192kHz / 24bit sampling DSP. It captures and beautifully expresses details and nuances from the ultra-high to low frequencies.
To meet your high expectations.
To ensure the best possible sound quality, this receiver uses custom-made and carefully selected parts, such as audio quality power supply capacitors, high quality coupling capacitors. These parts are further optimized through meticulous tuning of the component values and circuit paths.
You can play back from USB devices audio and video files compressed in various formats.
|Video Codec||Playable up to|
|MPEG4||1920 × 1080p|
|H.264||1920 × 1080p|
|MKV||1920 × 1080p|
|WMV||1920 × 1080p|
|Music Codec||Playable up to|
|FLAC||～192kHz / ～24bit|
|WAV||～192kHz / ～24bit|
USB sources are available on rear monitor via video output.
The powerful Dual USB provides max 1.5A quick charge for selected Android and 1.0A charge for iPhone.
Keeping you safe on the road ahead is our top priority.
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

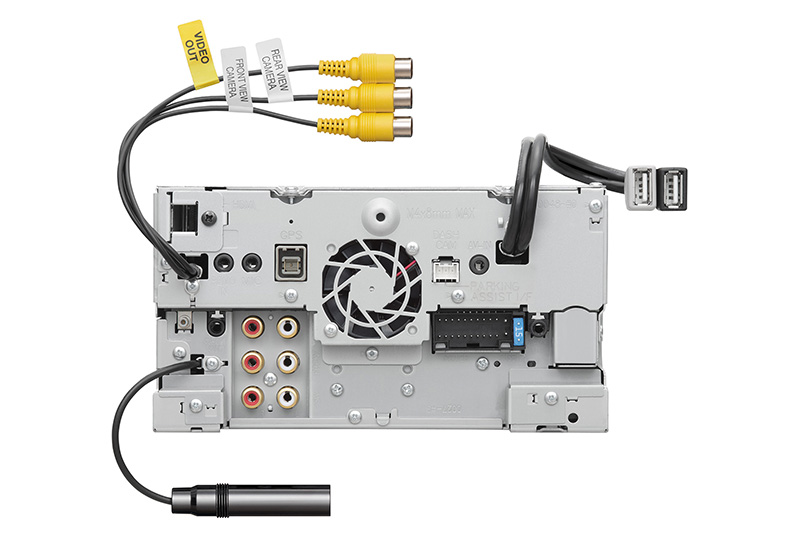

To enable a smarter driving experience, receivers featuring 3 camera inputs allow for the utmost in convenience, flexibility, and safety. With 3 camera inputs, you can connect a front camera, a KENWOOD dashboard camera (DRV-N520 sold separately), and a rear camera.
Alternatively, 3 camera inputs support several other configurations, including the connection of 2 blind spot cameras and a reverse camera. Camera switching is available using on screen controls and manual switchers .The KENWOOD CA-C3AV cable (sold separately) is required to use the 3rd camera input.
WHETRON Optional Advanced Camera / Sensing Solutions
2-way touch communication with High Definition Around View Monitoring System made by Whetron.
Effective Picture Quality : 1,280 × 720 HD Quality
Mounting bracket and dedicated connection cable, ECU unit are included．
Whetron, a Taiwan manufacturer was established in 1982
with a vision to become the leading supplier of automobile electronic parts
for major car manufacturers around the world
Learn about exciting product features and highlights.

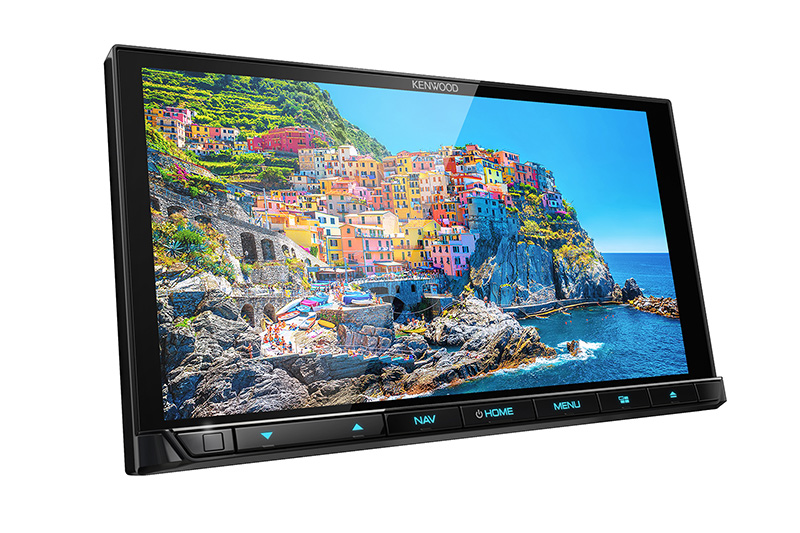

HD display delivers vivid colors with high-contrast and sharpness. Featuring an all-new electrostatic capacitive touch panel and HD LCD panel, with a high luminance white LED backlight.
Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe.

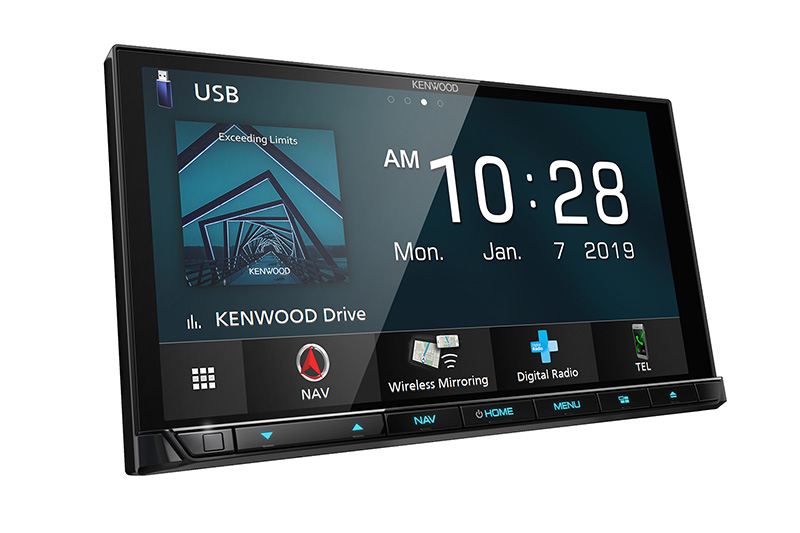

You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, weather, turn-by-turn, Garmin navigation and more.
Play your music from one USB port and use the other to charge your device, or charge both at the same time.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
|MonitorSection||Picture size||6.75 inches(diagonal) wide|
|W x H||152.1 mm x 79.5 mm|
|Display system||AAS LCD panel|
|Drive system||TFT active matrix system|
|Number of pixels||2,764,800
1280H x 720V x RGB
|Pixel arrangement||RGB striped arrangement|
|DVDSection||D/A Converter||24 / 32Bit|
|Audio Decoder||Linear PCM
MP3 / WMA / AAC / WAV / FLAC / Vorbis
|Video Decoder||MPEG1/2,MPEG4 / WMV / H.264 / MKV|
|Wow & Flutter||Below Measurable Limit|
|Frequency response||96k Sampling||20 - 44,000 Hz|
|48k Sampling||20 - 22,000 Hz|
|44.1k Sampling||20 - 20,000 Hz|
|Total harmonic distortion 1kHz||0.010%|
|Signal to Noise ratio||90.5dB (DVD-Video 96k)|
|Dynamic range||89dB (DVD-Video 96k)|
|DISC Format||DVD-Video / VIDEO-CD / CD-DA|
|Quantifying bit number||16 / 20 / 24bit|
|USB Standard||USB2.0 High Speed|
|File System||FAT 16/32, exFAT, NTFS|
|Maximum Power Supply Current||DC5V=1.5A|
|Audio Decoder||MP3 / WMA / AAC / WAV / FLAC / Vorbis|
|Video Decoder||MPEG1/2,MPEG4 / WMV / H.264 / MKV|
|Wi-Fi||IEEE Standard||802.11 a/b/g/n/ac|
|Frequency Range||Dual Band ( 2.4GHz / 5GHz )|
|Transfer rates (MAX)||11a: 54 Mbps / 11b: 11 Mbps /
11g: 54 Mbps / 11n: 300 Mbps /
11ac: 867 Mbps
|Output Power||2.4GHz/SISO||11b:14dBm±2dB / 11g:13dBm±2dB /
11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB /
11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB
|5GHz/MIMO||11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB /
11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB
|Frequency||2.402 – 2.480 GHz|
|RF Output Power (E.I.R.P.)||+4dBm (MAX), Power Class 2|
|Maximum Communication range||Line of sight approx.10m(32.8ft)|
|Audio Codec||SBC / AAC|
|Multi Profile Support||Multi Profile|
|Profile||HFP (V1.7) (Hands Free Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.6) (Audio/Video Remote Control Profile)
PBAP (Phonebook Access Profile)
|HDMI||Connector Type||Type A|
|Input Resolution||VGA (640x480p @59.94Hz/60Hz)
480p (720x480p @59.94Hz/60Hz)
|Input Audio Type||32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM|
|frequency (Hz) (BAND1-13)||62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k|
|2Way X'Over||HIGH PASS FILTER frequency||Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]|
|LOW PASS FILTER frequency||30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]|
|3Way X'Over||HIGH PASS FILTER frequency||250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k|
|Band PASS FILTER frequency||Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz]
|LOW PASS FILTER frequency||30/40/50/60/70/80/90/100/120/150/Through[Hz]|
|Position||Front / Rear /Subwoofer Delay||0 - 6.1m (0.01m Step)|
|Gain||-8 to 0dB|
|Subwoofer Level||-50 to +10dB|
|87.5MHz - 108.0MHz
DIN S/N 46dB
1.6μV / 75Ohms
|30Hz - 15kHz|
|S/N (dB)||65dB (MONO)|
|Selectivity||Over 80dB (±400kHz)|
|Stereo separation||45dB (1kHz)|
|531kHz - 1701kHz
|DAB||Frequency Range||BAND III: 174.928MHz - 239.200MHz|
|Output Voltage||12V DC|
|Video||Color system of external video input||NTSC/PAL|
|External video input level (Mini jacks)||1 Vp-p / 75 Ohms|
|External audio max input level (Mini jacks)||2 V / 25 kOhms|
|Video Input level (RCA jacks)||1 Vp-p / 75 Ohms|
|Video Output level (RCA jacks)||1 Vp-p / 75 Ohms|
|Audio Output level (Mini jacks)||0.9 V / 10 kOhms|
|Audio||Maximum Power Output (Front&Rear)||50Wx4|
|Typical Power Output (Front&Rear)||Full Bandwidth Power
(at less than 1%THD)
|Output frequency band||20 - 88,000Hz|
|Preout level (V)||5V / 10kOhms|
|Preout impedance (Ω)||=< 300 Ohms|
|Speaker Impedance (Ω)||4-8 Ohms|
|Receiver||High-sensitivity GNSS receiver|
(C/A code )
|Acquisition Times||Cold: 26 seconds(typ)|
|All satellites at -130dBm
|Update Rate||1/second, continuous|
|Accuracy||Position: < 2.0meters,CEP, at -130dBm|
|Antenna||External GNSS Antenna|
|General||Operating voltage||12V DC Car Battery|
|Maximum Current consumption||15A|
|Installation Dimensions WxHxD||178mm x 100mm x 160mm|
|Operational temperature range||-10°C to +60°C|
|Weight||Main unit||2.5 kg|
