Amplifier

Hi-Resolution Audio

High-Resolution Audio Certified

With more information to play with, high-resolution audio tends to boast greater detail and texture, you'll hear every song in all its detailed glory – just as the artist intended – for sound that's more engaging, dynamic and lifelike.

More detail, more clarity. KENWOOD understands the true value and potential of High-Resolution Audio, which is why we’ve developed High-Resolution Audio certified products for KENWOOD loyal customers who want to listen music in the best sound quality.

*The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

Hi-Resolution Audio
Flat Terminal Layout

Cooling Fan allows the amplifier to operate at comfortable temperature levels even under the most stressful conditions.

Flat Terminal Layout
Flat Terminal Layout

High Density Construction to achieve best sounding and have one of the smallest footprints in this class.

Flat Terminal Layout
Amplifier Tech-Spec XH901-5 XH401-4
Maximum Output Power 1800W 800W
RMS Power at 4ohms 60W x 4ch + 400W 75W x 4ch
RMS Power at 2ohms 75W x 4ch + 600W 100W x 4ch
Bridged at 4ohms 150W x 2ch + 400W 200W x 2ch
Frequency Response 20Hz - 50kHz 20Hz - 50kHz
High Pass Filter 50Hz - 200Hz, -12dB/oct 50Hz - 200Hz, -12dB/oct (Low Range)
2.5kHz - 10kHz, -12dB/oct (High Range)
Low Pass Filter 50Hz - 200Hz, -24dB/oct 50Hz - 200Hz, -12dB/oct (Low Range)
2.5kHz - 10kHz, -12dB/oct (High Range)
Speaker Level Input Yes Yes
Signal to Noise Ratio 100dB 100dB
Dimensions W x D x H (mm) 260 x 169 x 51 220 x 169 x 35
Amplifier Tech-Spec X802-5 X502-1 X302-4
Maximum Output Power 1600W 1000W 600W
RMS Power at 4ohms 50W x 4ch +300W 300W 50W x 4ch
RMS Power at 2ohms 75W x 4ch +500W 500W 75W x 4ch
Bridged at 4ohms 150W x 2ch +300W - 150W x 2ch
Frequency Response 20Hz - 50kHz 20Hz - 200Hz 20Hz - 50kHz
High Pass Filter 50Hz - 200Hz, -12dB/oct. - 50Hz - 200Hz, -12dB/oct.
Low Pass Filter 50Hz - 200Hz, -24dB/oct. 50Hz - 200Hz, -24dB/oct. 50Hz - 200Hz, -12dB/oct.
Speaker Level Input Yes Yes Yes
Signal Sensing Turn-on Yes Yes Yes
Signal to Noise Ratio 100dB 100dB 100dB
Dimensions (W x D x H)mm 248 x 169 x 53 213 x 149 x 53 213 x 149 x 53

KCA-RC01A

Optional wired remote level control for X802-5 and X502-1 allows you to easily adjust the subwoofer volume.

KCA-RC01A

Speaker

KFC-XS1704

Hi-Res Audio Certified.
17cm Component Speaker

KFC-XS1704
KFC-XS1704

(1) Magnetic Circuit with Aluminum Ring
An aluminum ring minimizes unwanted distortion caused by electromagnetic induction of the voice coil, and it ensures a clear sound.

(2) High Rigid Glass Fiber Diaphragm
A glass-fiber is the material with high strength and high toughness. The woven glass-fiber diaphragm cleanly provides all the detail and impact you expect.

(3) Phase Correcting Diffuser
Its specially designed slits correct unwanted  phase shift and deliver a more life-like sound experience while the concave shape on a center part of diffuser clearly reproduces a vocal sound image.

(4) 2way Tweeter
The tweeter consists of two tweeters. This unique structure delivers the fullness in a wide range while each tweeter reproduces a different frequency band.

(5) Special Phase Plug with Center Dip Design
-optimizes sound radiation resulting in natural and charming vocal.

KFC-XS1704
KFC-XS1704

(1) Aluminium Short Ring

(2) Super Tweeter Voice Coil

(3) Main Magnet

(4) Sub Magnet

(5) Tweeter Voice Coil

Speaker Tech-Spec KFC-XS1704
Peak Input Power 180W
RMS Input Power 45W
Size 17cm
Tweeter Design Soft + Titanium Dome
Tweeter Magnet Composition Ferrite
Woofer Magnet Composition Neodymium
Nominal Impedance 4ohms
Frequency Response 34Hz-56kHz (-10dB)
Sensitivity (dB/W at 1m) 83dB
Mounting Depth 57mm
Speaker Tech-Spec KFC-XH170C KFC-XH170
Peak Input Power 300W 300W
RMS Input Power 100W 100W
Size 17cm 17cm
Tweeter Design 30mm Titanium Dome 30mm Titanium Dome
Tweeter Magnet Composition Neodymium Neodymium
Woofer Design 165mm Glass Fiber Cone 165mm Glass Fiber Cone
Woofer Magnet Composition Ferrite Ferrite
Nominal Impedance 3ohms 3ohms
Frequency Response 43Hz-40kHz(-10dB) 45Hz-40kHz(-10dB)
Sensitivity (dB/W at 1m) 87dB 87dB
Mounting Depth 59mm 59mm

KFC-X694

6 x 9 inch Oval Coaxial Speaker

XR400-4mk2
Speaker Tech-Spec KFC-X694
Peak Input Power 300W
RMS Input Power 130W
Size 6 x 9inch
Tweeter Design Soft Dome
Tweeter Magnet Composition Neodymium
Woofer Magnet Composition Ferrite
Nominal Impedance 3ohms
Frequency Response 51Hz – 20kHz
Sensitivity (dB/W at 1m) 89dB
Mounting Depth 85mm

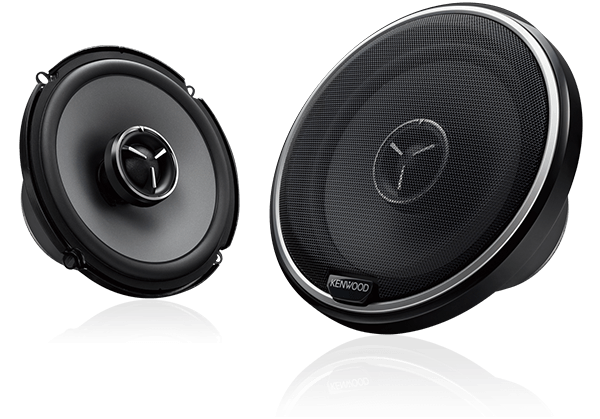

KFC-X174

17cm Round Coaxial Speaker

KFC-X174
Speaker Tech-Spec KFC-X174
Peak Input Power 240W
RMS Input Power 80W
Size 17cm
Tweeter Design Soft Dome
Tweeter Magnet Composition Neodymium
Woofer Magnet Composition Ferrite
Nominal Impedance 4ohms
Frequency Response 69Hz – 21kHz
Sensitivity (dB/W at 1m) 88dB
Mounting Depth 56mm

Subwoofer

KFC-WPS1000F

25cm Shallow Subwoofer

KFC-WPS1000F KFC-WPS1000F
(1)
(2)
(3)

(1)  Rigid Carbon-Glass Fiber Honeycomb Cone
Durable Rubber Surround Aluminum Die-cast Basket
Super Linear Spider
Silver-plated Push Terminal

(2)  Stress-free Spider
delivers smooth and strong bass sound
with long-lasting reliability.

(3)  Large magnet and Optimized Yoke
reproduces deep low frequencies.

Subwoofer Tech-Spec KFC-WPS1000F
Peak Input Power 1000W
RMS Input Power 250W
Size 25cm Shallow Type
Tweeter Design
Tweeter Magnet Composition
Woofer Magnet Composition Ferrite
Nominal Impedance 4ohms
Frequency Response 35Hz – 800Hz
Sensitivity (dB/W at 1m) 90dB
Mounting Depth 85mm

KFC-WPS1200F

30cm Shallow Subwoofer

KFC-WPS1200F
Subwoofer Tech-Spec KFC-WPS1200F
Peak Input Power 1400W
RMS Input Power 350W
Size 30cm Shallow Type
Tweeter Design
Tweeter Magnet Composition
Woofer Magnet Composition Ferrite
Nominal Impedance 4ohms
Frequency Response 30Hz – 700Hz
Sensitivity (dB/W at 1m) 91dB
Mounting Depth 100mm

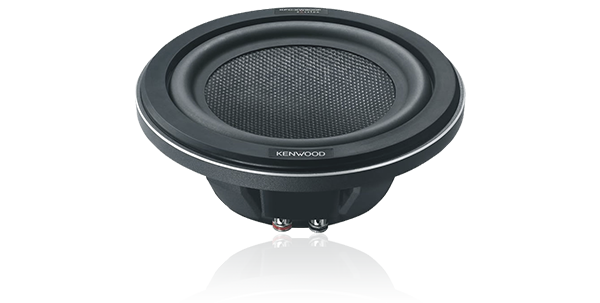

KFC-XW800F

20cm Shallow Subwoofer

KFC-XW800F
Subwoofer Tech-Spec KFC-XW800F
Peak Input Power 600W
RMS Input Power 150W
Size 20cm Shallow Type
Tweeter Design
Tweeter Magnet Composition
Woofer Magnet Composition Ferrite
Nominal Impedance 4ohms
Frequency Response 40Hz – 500Hz
Sensitivity (dB/W at 1m) 78dB
Mounting Depth 70mm

1000FBOX

Recommended Subwoofer Box

1000FBOX
Recommended Subwoofer Box 1000FBOX
Dedicated for KFC-WPS1000F
Box Type Sealed
Dimensions W x D x H (mm) 490 x 150 x 350
Weight 7kg
