XH speakers are precisely designed for High-Resolution audio to create a truly authentic listening experience with every detail and nuance.

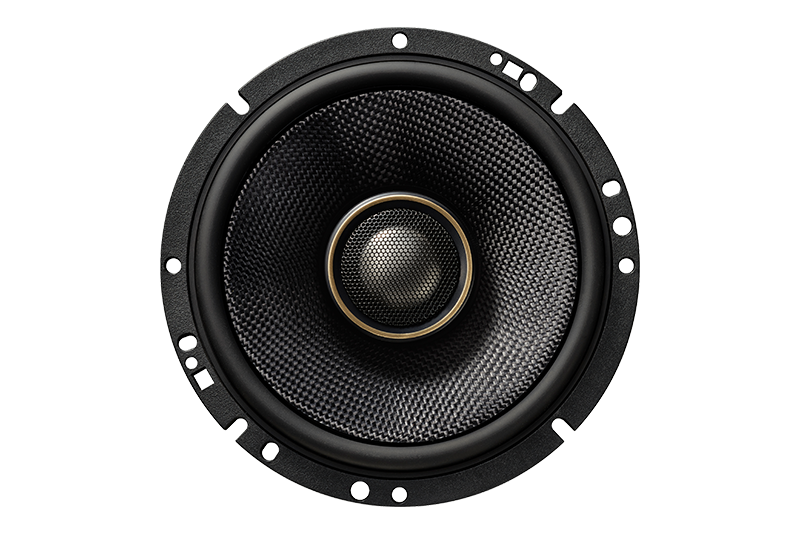

KFC-XH170Hi-Resolution Audio Certified
17cm 2-way Speaker
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.
The glass fiber cone combines high-strength with lightweight materials, allowing the speaker to reproduce all sounds from impactful bass notes to delicate tones.
Asymmetrical thickness of the surround roll shape provides better focussed bass.
30mm tweeters have a larger surface area than most tweeters which allows clear reproduction of vocal sound up through ultra high frequency range.
With its compound curvature diaphragm, a large 30mm titanium hard dome provides the ultimate in high frequency performance.
A multi-bracket is included to make installation easier in a varierty of vehicle types.
|Peak Input Power||300W|
|Rated Input Power||100W|
|Woofer Features||165 mm Glass Fiber Cone|
|Tweeter Features||30 mm Hard Dome|
|Sensitivity||87 dB/ W / m|
|Frequency Response||45Hz-40kHz (-10dB)|
|Cutout Diameter||140 mm|
|Mounting Depth||59 mm|
|Power Handling||Power Handling||Peak Input Power||300W|
|Frequency Response||45 Hz~40,000 Hz (-10dB)|
|CTA Standards||RMS Power||100Watts RMS|
|Sensitivity||87dB/ W at 1 m|
|Frequency Response||64 Hz~35,000 Hz (-3dB)|
|Size||165 mm||6-1/2 inch|
|Magnet||Ferrite||φ90 x t15|
|Dimension||Width||180 mm||7-1/16 inch|
|Height||180 mm||7-1/16 inch|
|Depth||83.5 mm||3-5/16 inch|
|Cut-out Diameter||140 mm||5-1/2 inch|
|Height from the mounting surface with Grille||24.5 mm||15/16 inch|
|Height from the mounting surface without Grille||21 mm||13/16 inch|
|Mounting Depth||59 mm||2-5/16 inch|
|Weight||Net Weight with Grille||1,130ｇ||2.5 lb|
|Net Weight without Grille||1,050g||2.3 lb|
|Gross Weight||3.4 kg||7.5 lb|
|Accessory||Grille Assy 2pcs|
|Bracket (WF) 2pcs|
|Adhesive Tape 1set|
|Tapping Screw (φ4x25mm) 12pcs|
|Tapping Screw (φ4x18mm) 8pcs|
|Speed Nut (φ4) 16pcs|
