DMX1037S
DMX1037S

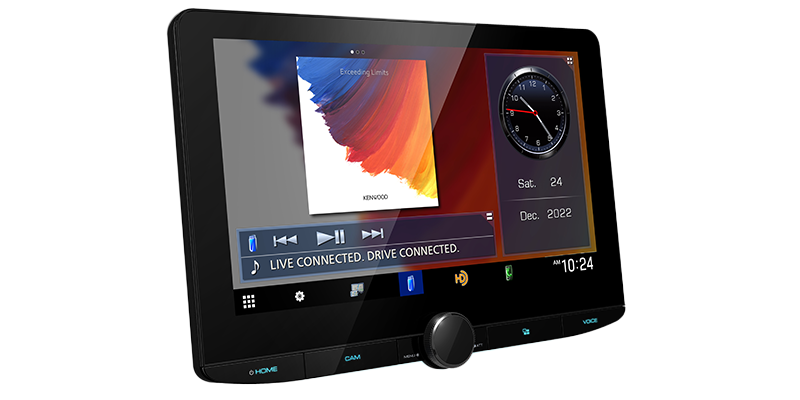

DMX1037S10.1" Digital Multimedia Receiver

  • 10.1" High Definition Monitor with Capacitive Touch Panel
  • Floating Panel Mechanism with 3-way Position Adjustment
  • Android Auto & Android AutoWireless
  • Wired and Wireless Apple CarPlay
  • High-Resolution Audio
  • Wireless Mirroring for Android
  • 4 Camera Inputs
  • HD Front/Rear Camera Ready
  • Built-in Bluetooth, HD Radio & Wi-Fi
  • 3 Preouts 4V

Features

Buy Now

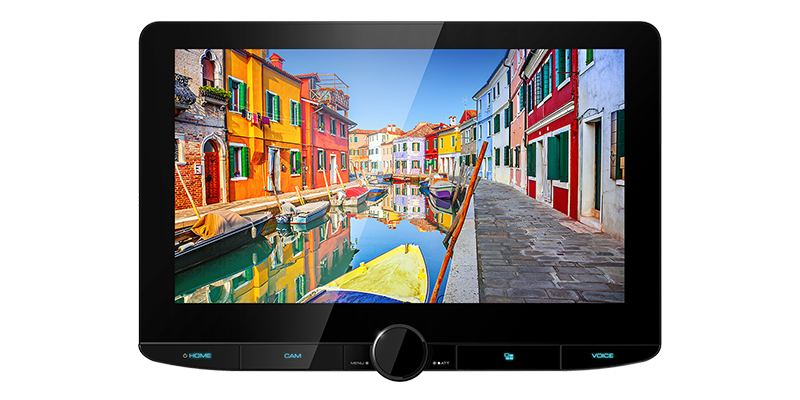

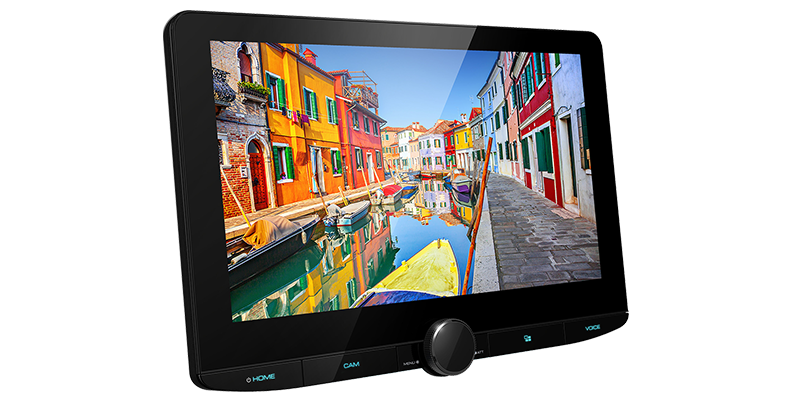

INTRODUCING A REVOLUTIONARY 10.1 INCH HD DISPLAY

Large 10.1 inch HD display

Provides room for more information that is large and easy to see with just a glance.

Over 2x Area Size
of the 7 inch Display

High Definition
— Overwhelming Power of Expression —

10.1" Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.

2.4x Resolution
of the WVGA Display

BONDED OPTICAL DISPLAY
— VIVID COLORS WITH HIGH CONTRAST —

Optical Clear Adhesive (OCA) is added between the touch screen and the LCD to eliminate the air layer and suppress light reflection and glare. This feature enhances the contrast and brightness and maintains the visibility of the display in various environments.

Reflection of natural light

Light from backlight

Loss due to reflection

Loss due to reflection

Conventional Model

Reduced reflection
of natural light

Less loss
due to reflection

10.1" Model

WIDER VIEWING ANGLE
— BEAUTIFUL FROM ANY SEAT —

The AAS display technology of the LCD panel assures you a wider viewing angle of 170° for both horizontal and vertical directions. Together with the protective film which minimizes reflection and glare from sunlight, you can enjoy clear images even from the passenger or back seats.

from Above 85°

from Left 85°

from Right 85°

from Below 85°

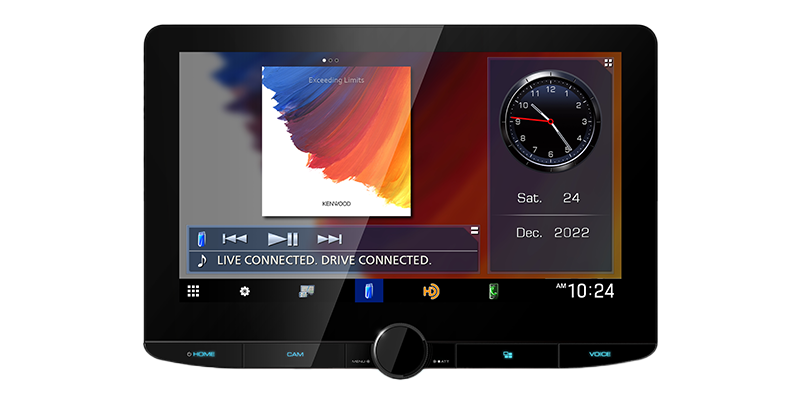

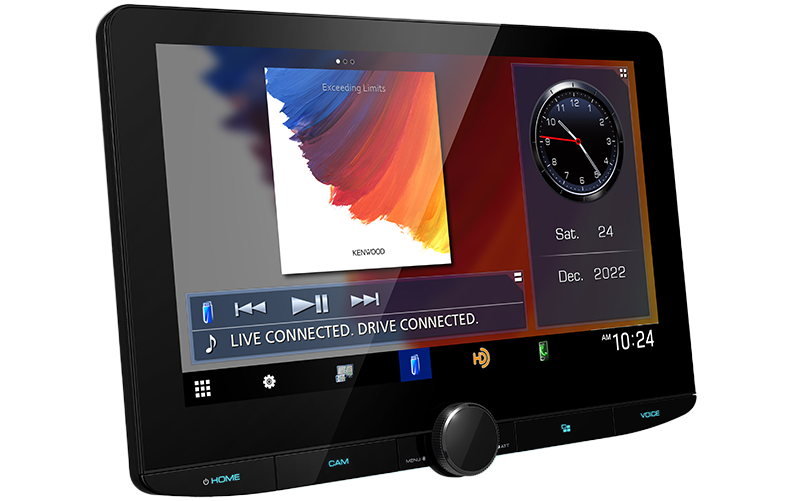

DRIVING WIDGET HOME SCREEN

The 10.1" home screen is composed of a Driving Widget as well as a Source Control Widget overlaid on the background. You can move the Driving Widget from side to side or enlarge the Source Control Widget to optimize the screen for your intuitive operation. The Driving Widget allows selection of a clock, compass, or equalizer setting, etc., while the background allows selection of album art, audio visualizer, or photo.

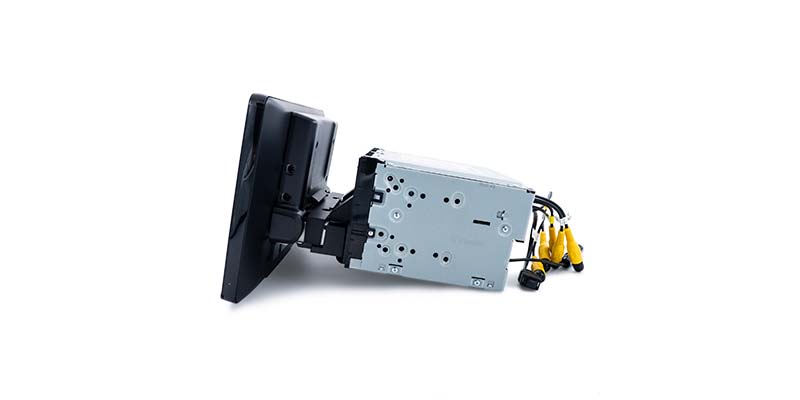

FLOATING PANEL MECHANISM WITH
3-WAY POSITION ADJUSTMENT

Fully adjustable display allows you to change the depth, height and angle for easy vehicle fitment.
Forward / Backward: 13/16"
Up / Down: 1-9/16"
Tilt: -10°/ +45°

Smartphone Connectivity

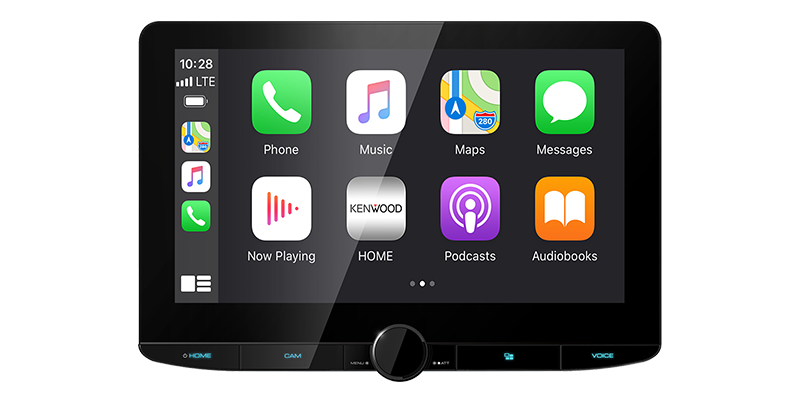

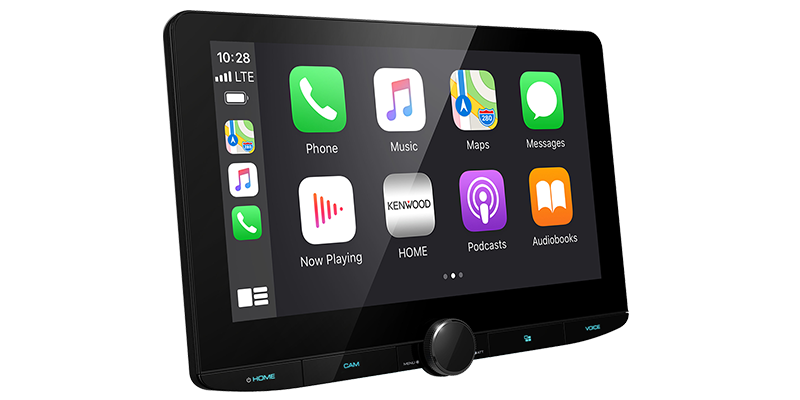

Safe, Smart and Comprehensive Control with Apple CarPlay™

Apple CarPlay™ is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps and Waze are also supported.
New KENWOOD Wi-Fi receivers now support Apple CarPlay™
wirelessly (compatible phone required).






Android Auto for Easy Connectivity

Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze. New KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required).

To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 5.0 or higher, and the Android Auto app.






Wireless Mirroring for Android

Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.

HDMI Input

Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 10.1" monitor. KCA-HD100 optional HDMI cable sold separately.

Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.

Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

Control the Receiver from Your Smartphone
with the KENWOOD Remote App S

A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

KENWOOD Portal App

Display image files stored in your iPhone or Android on the receiver's photo frame widget and/or wallpaper.

The Best Audio Experience

Rich and Immersive High-Resolution Audio

High-Resolution Audio is high-quality sound that far exceeds CD standards, and can play 192kHz / 24bit sampling DSP. It captures and beautifully expresses details and nuances from the ultra-high to low frequencies.


Smooth waveforms

Loss of smoothness

Fine waveforms

* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

Playable FULL HD Video and FLAC Files

You can play back from USB devices audio and video files compressed in various formats.

Video Codec Playable up to
MPEG4 1920 × 1080p
H.264 1920 × 1080p
MKV 1920 × 1080p
WMV 1920 × 1080p

USB sources are available on rear monitor via video output.
The powerful USB provides max 1.5A quick charge for selected Android and 1.0A charge for iPhone.

Music Codec Playable up to
FLAC ~192kHz / ~24bit
WAV ~192kHz / ~24bit
DSD 2.8MHz, 5.6MHZ, 11.2MHz / 1bit

Safe Driving

ENHANCED VEHICLE INTEGRATION

Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, these models feature expanded support when connected to the RR2, including an Advanced Driver Assistance Systems (ADAS) Widget, Customizable Accessory Controls, and compatibility with specific ESCORT radar detector systems (sold separately).

*Available features vary by vehicle

HD Front / Rear Camera Input

The optional CMOS-740HD camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.

WVGA Camera

HD Camera

Rear View Camera Input with Parking Guide Lines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

4 Camera Inputs

To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately).  Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front HD camera, and a rear HD camera (CMOS-740HD sold separately). Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).

RECOMMENDED COMBINATION
DASHCAM + HD REAR CAM + RIGHT CAM + LEFT CAM

RECOMMENDED COMBINATION
FRONT CAM + HD REAR CAM + RIGHT CAM + LEFT CAM

For Best Performance, use the KENWOOD CMOS-320, CMOS-230, or CMOS-130.

Dash Cam Link Ready

Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.

Additional Features

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)

Built-in HD Radio Tuner

HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.

Remote Control (Optional)

This receiver can be operated using the optional remote control KNA-RCDV331.

The above "referred" online retailers are authorized by KENWOOD.
They are listed here based upon meeting specific operational criteria and offer a very informative shopping experience,
along with exceptional customer service.

We want you to have the BEST product/support experience!

KENWOOD's manufacturer's warranty and any rebates offered by KENWOOD are not valid when purchased from an unauthorized dealer.
Buying from an unauthorized dealer also increases your risk of buying fake or counterfeit products.

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Entertainment System

  • Capacitive Touch Panel

    Clear glass display with swipe functionality that provides superior picture and touch panel control.

  • Wireless Mirroring for Android

    Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.

  • 4 Camera Inputs

    Optional camera connection method for up to 4 cameras in various configurations.

  • HD Front/Rear Camera Input

    HD Front/Rear Camera (CMOS-740HD) can be connected for High Definition viewing.

  • Parking Guide Lines

    Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.

  • Dash Cam Link

    Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen.

  • Dual Phone Connection

    While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

  • Graphic EQ / Digital Time Alignment

    13-Band equalizer and DTA gives optimal tuning enhancements for listeners.

« scroll
Main Unit Monitor Section Picture size 10.1 inches(diagonal) wide
W x H 223.7 x 125.8 (mm), 8-13/16 x 4-15/16 (inch)
Display system AAS LCD panel
Drive system TFT active matrix system
Number of pixels 2,764,800
1280H x 720V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
USB I/F Section USB Standard USB2.0 High Speed
File System FAT 16/32, exFAT, NTFS
Maximum Power Supply Current DC5V=1.5A
D/A Converter 24/32Bit
Audio Decoder MP3 / WMA / AAC / WAV / FLAC / DSD / Vorbis
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Frequency response 192k Sampling 20 - 88,000 Hz
96k Sampling 20 - 44,000 Hz
48k Sampling 20 - 22,000 Hz
44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.010%
Signal to Noise ratio 98.5dB
Dynamic range 89dB
Wireless Mirroring Section Mode Sink
Copyright protection HDCP2.2
Touch Control UIBC
Wi-Fi IEEE Standard 802.11 a/b/g/n/ac
Frequency Range Dual Band ( 2.4GHz / 5GHz )
Channels Auto(1-11ch)
Auto(149,153,157,161ch)
Transfer rates (MAX) 11a: 54 Mbps / 11b: 11 Mbps /
11g: 54 Mbps / 11n: 300 Mbps /
11ac: 867 Mbps
Output Power  2.4GHz/SISO 11b:12dBm±2dB / 11g:4dBm±2dB /
11n(20MHz):2dBm±2dB
Output Power   5GHz/SISO 11a:6dBm±2dB /
11n(20MHz):6dBm±2dB / 11n(40MHz):5dBm±2dB /
11ac(20MHz):6dBm±2dB / 11ac(40MHz):5dBm±2dB / 11ac(80MHz):5dBm±2dB
Output Power  5GHz/MIMO 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB /
11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB
Bluetooth Section Technology Bluetooth Ver5.0
Frequency 2.402 – 2.480 GHz
RF Output Power (E.I.R.P.) +4dBm (MAX), Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Audio Codec SBC / AAC
Multi Profile Support Multi Profile
Profile HFP (V1.7) (Hands Free Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.6) (Audio/Video Remote Control Profile)
PBAP (Phonebook Access Profile)
HDMI Connector Type Type A
Input Resolution VGA (640x480p @59.94Hz/60Hz)
480p (720x480p @59.94Hz/60Hz)
720p(1280x720p 59.94Hz/60Hz)
Input Audio Type 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM
DSP Section Graphics equalizer
BAND 13Band
frequency (Hz) (BAND1-13) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over
HIGH PASS FILTER frequency Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
SLOPE -6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE -6/-12/-18/-24[dB/Oct.]
3Way X'Over
HIGH PASS FILTER frequency -
SLOPE -
Band PASS FILTER frequency -
SLOPE -
LOW PASS FILTER frequency -
SLOPE -
Position
Front / Rear /Subwoofer Delay 0 - 20.01ft (0.03or0.04ft Step)
Gain -8 to 0dB
Subwoofer Level -50 to +10dB
Digital FM Frequency Range 87.9MHz - 107.9MHz
(Frequency step) (200kHz)
Frequency Response 20Hz - 20kHz
(±3.0 dB)
S/N 80dB (STEREO)
Digital AM Frequency Range 530kHz - 1700kHz
(Frequency step) (10kHz)
Frequency Response 40Hz - 15kHz
(±3.0 dB)
S/N 80dB (STEREO)
FM Frequency Range 87.9MHz - 107.9MHz
(Frequency step) (200kHz)
Usable sensitivity 7.3dBf (0.7μV) /75Ω
S/N30dB
Frequency response 30Hz - 15kHz
(±3.0dB)
S/N (dB) 70dB (MONO)
Selectivity 80dB (±400kHz)
Stereo separation 45dB (1kHz)
AM Frequency Range 530kHz - 1700kHz
(Frequency step) (10kHz)
Usable sensitivity 30dBμ (31μV)
Video Color system of external video input NTSC/PAL
External audio max input level (Mini jacks) 2 V / 25 kOhms
Video Input level (RCA jacks) 1 Vp-p / 75 Ohms
Video Output level (RCA jacks) 1 Vp-p / 75 Ohms
Audio Output level (Mini jacks) 0.9 V / 10 kOhms
Audio Maximum Power Output (Front&Rear) 50Wx4
Typical Power Output (Front&Rear) Full Bandwidth Power
(at less than 1%THD)
22Wx4
Output frequency band 20 - 88,000Hz
Preout level (V) 4V / 10kOhms
Preout impedance (Ω) =< 300 Ohms
Speaker Impedance (Ω) 4-8 Ohms
General General Operating voltage 12V DC Car Battery
Installation Dimensions WxHxD 178 × 100 × 155 (mm)
7 × 3-15/16 × 6-1/8(inch)
Weight  Main unit 3.25 kg
7.28lbs.
