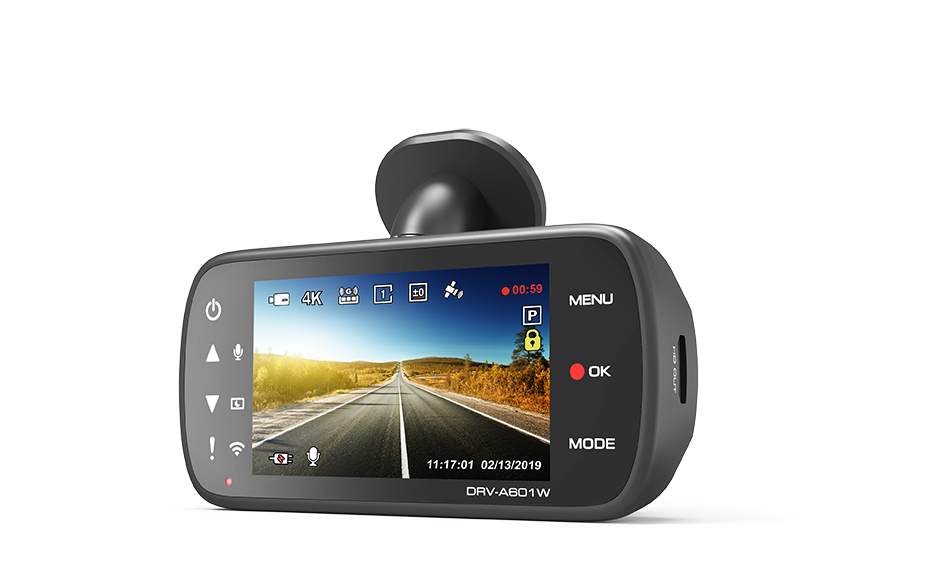

DRV-A601W

High Definition Recording & Wireless Link

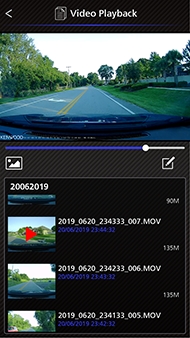

Camera is equipped with 8.3 Megapixel* Recording and provides easy data transfer to your smartphone through Wireless Link.

  • DRV-A601W Zoom

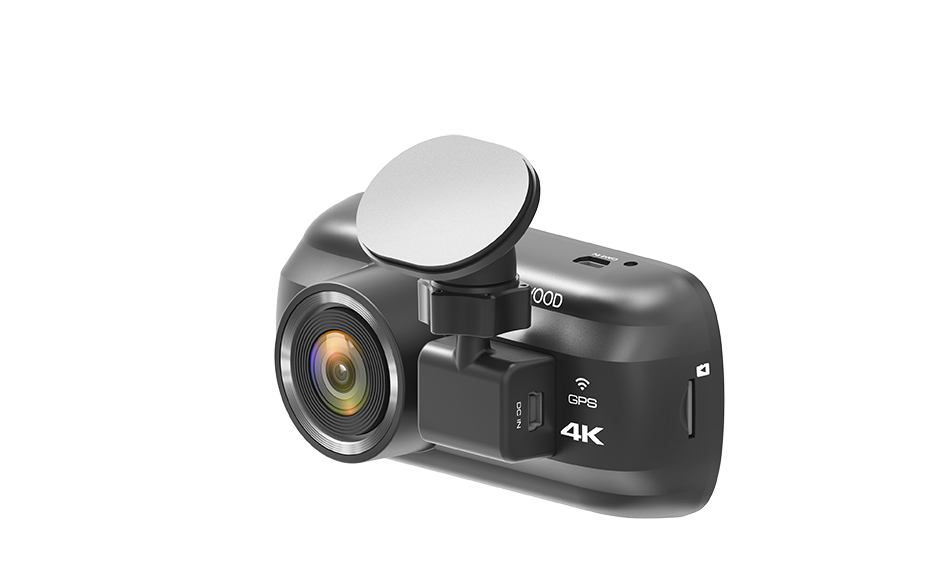

    Dashboard Camera with Wireless Link

    DRV-A601W
    • 8.3M & 3.7M Recording
    • 3.0" LCD Display
    • Touch Panel Control
    • WDR
    • Wireless Link
    • Built-in GPS & G-Sensor
    • Parking Mode Recording
    • 64GB microSD Included
    • Quick Release
    Features Icons

    Buy Now

    Product Registration

    *Parking Mode Recording requires optinal CA-DR1030

8.3 Megapixel Recording

8.3 Megapixel Recording provides High Resolution Recording

8.3 Megapixel High Definition recording captures clear video even while driving.

4K

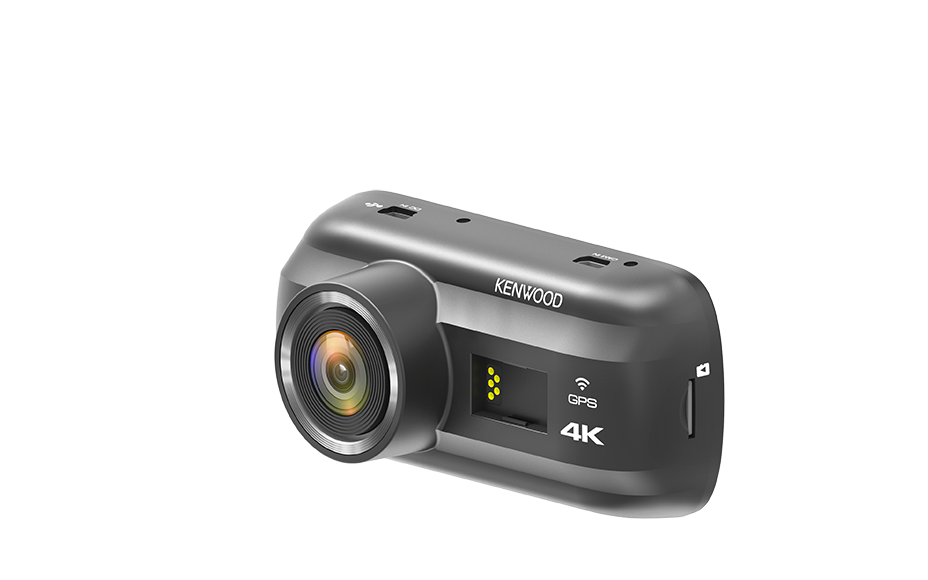

Front Camera

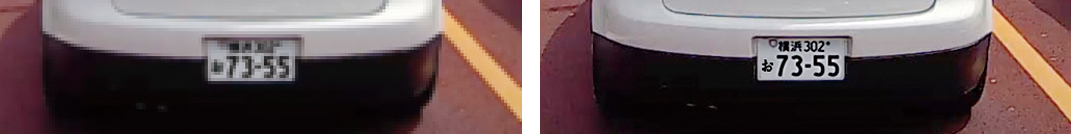

number plate

Capable of capturing a clear image of a license plate


WDR (Wide Dynamic Range) for Backlighting

Easily records clear images in dark or well lit settings without underexposing or overexposing the image.

Without HDR/WDR
Without WDR
With HDR/WDR
With WDR

Front & Rear View Recording

The DRV-A601W connects to the optional KCA-R200 rear camera, providing simultaneous recording in both the front and rear of your vehicle.  The KCA-R200 includes a 26’ cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield or anywhere else in the vehicle where you would like to record.
  When in Dual Camera Recording Mode, both cameras maximum recording resolution is 3.7 Megapixel (Wide Quad HD).  Rear cam must be turned off in menu setting to enable front cam 8.3 Megapixel recording.

 Front & Rear View Recording

Polarized Filter Included (Front Camera)

Simply attach PL filter to front of lens to reduce windscreen glare/reflection.
The filter has a rotating bezel, so that you can setup the reflection free lens exactly how you need in your vehicle.
without PL Filter
without PL Filter
with PL Filter
with PL Filter

Supports micro SDXC/SDHC

MicroSDXCME Logo
  • microSDXC/SDHC card 8GB to 256GB supported.
  • SD Card Recorded File Capacity
  • 8GB Micro SD = 47 mins (1 minute x 47 recordings)
  • 16GB Micro SD = 94 mins (1 minute x 94 recordings)
  • 32GB Micro SD = 141 mins (1 minute x 141 recordings)
  • 64GB Micro SD = 376 mins (1 minute x 376 recordings)
  • 128GB Micro SD = 752 mins (1 minute x 752 recordings)
  • 256GB Micro SD = 1504 mins (1 minute x 1504 recordings)
  • *Based on default recording settings.

12V & 24V Compatible

Cameras work with both 12V and 24V applications.

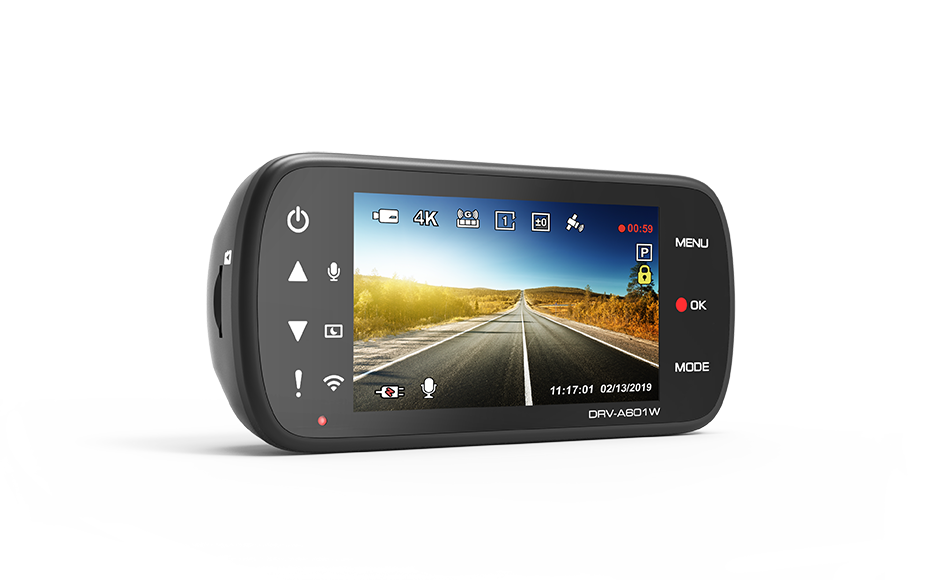

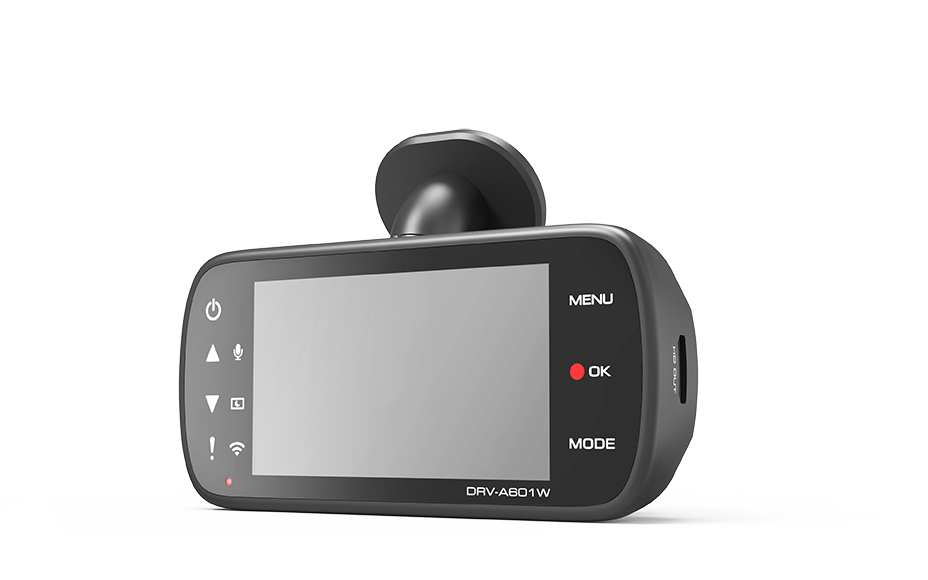

Touch Panel Control

3.0" LCD Display with Touch Panel Control

Large touch display provides easy access to checking recorded videos and changing settings.

Enhanced Vehicle Monitoring & Protection

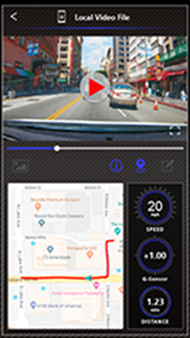

G-sensor & Built-in GPS

The DRV-A601W is equipped with a G-Sensor designed to detect a collision, and GPS that records speed, latitude, and longitude.
G-sensor

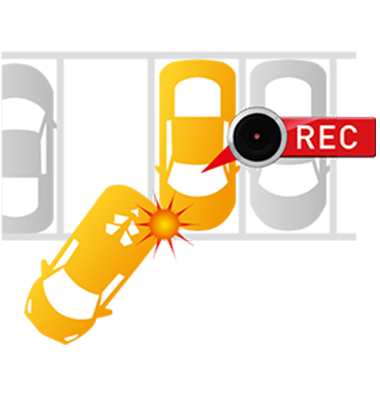

Parking Mode Recording

Parking Mode Recording

When the vehicle is parked and turned off, parking mode becomes active.  If the vehicle is subject to a collision or other physical impact, the camera powers on and automatically record 30 seconds of video.
*Parking Mode Recording requires optional hardwire kit: CA-DR1030

Super Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.
SuperCapacitor

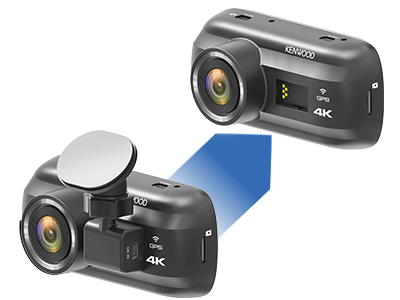

Quick Release

Magnetic Mount

Quickly place and remove the dash cam.
No cable to connect or disconnect from the dash cam.
Magnetic Mount

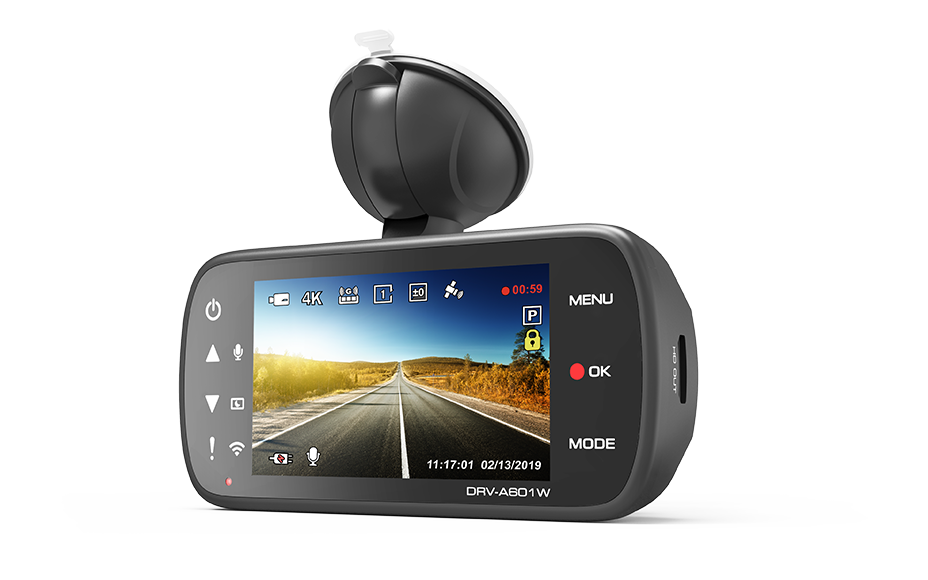

2 Mounts Included for Front Camera

3M Tape Style
3M Tape Style

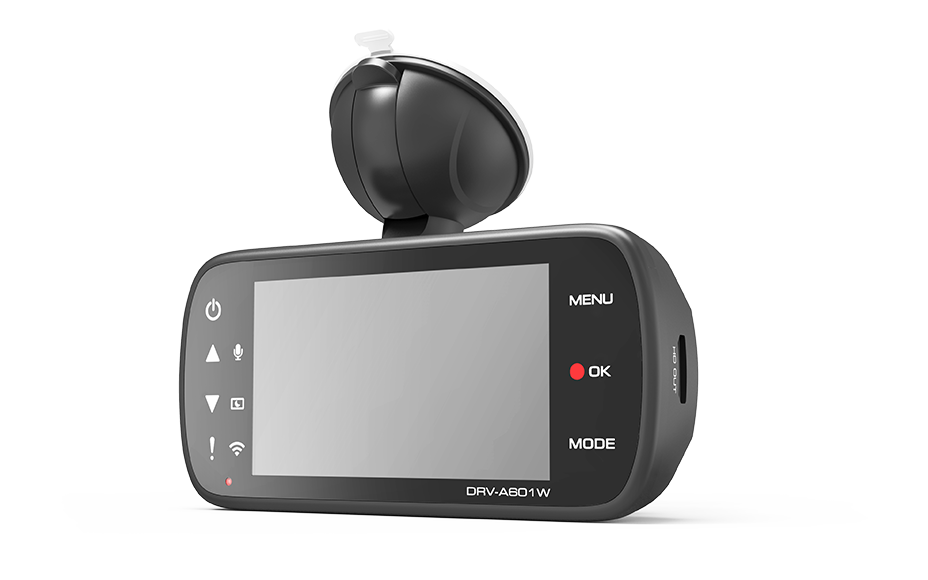

Suction Cup Style
Suction Cup Style

BACK TO TOPpage top

LIVE CONNECTED. DRIVE CONNECTED.

DRV-A601W

« scroll
DRV-A60W(Front Cam) KCA-R200(Rear Cam)
Hard Specification Screen size 3.0inches full color TFT -
Operating voltage 5V / 2A; 12-24V DC DC 5V
Current Consumption 650mA 120mA
Super Capacitor Yes -
Button Touch Button -
Wireless Link Yes -
Microphone Built-in -
Speaker Built-in -
GPS Receiver Built-in -
G-sensor Built-in -
Collision sensitivity -4.0G to +4.0G (0.1G Step) -
Image sensor 1/2.5 CMOS sensor 1/2.8 CMOS sensor
Valid Pixel 8.57M Pixels
(3864x2218)
5.14M Pixels
(2616 x 1964)
Number of Pixel 8.48M Pixels
(3872x2192)
3.7M Pixels
(2560 x 1440)
Angles of view Horizontal : 129°
Vertical : 72°
Diagonal :130°
Horizontal : 129°
Vertical : 66°
Diagonal :161°
Lens rotation - Yes(180∘)
Image reversal (Upside down) Yes -
Lens F1.8 F2.0
Polarization Filter Bundled No
Operating temperature -10℃ to +60℃ -10℃ to +60℃
Noise Protection Yes Yes
OSD Menu Language Inmplemented languages EN/DE/FR/NL/IT/ES/PT/RU/PL/CZ/RO -
Recording Specification Recording resolution Single:3840 x 2160 4K
Dual:1440P (Front) + 1440P(Rear)
2560 x 1440 Quad HD
Frame rate 30FPS 30FPS
HDR - -
WDR Yes Yes
Recording Mode 1 / 3 / 5 min -
Voice recording Yes(ON/OFF) -
Video format H.264 / MOV H.264 / MOV
Audio format Linear PCM Linear PCM
Picture format JPEG
(Max.3840 x 2160)
-
Recording media microSDXC/SDHC card
8GB to 256GB
UHS Speed Class 3 (U3)
-
Port DC-IN mini USB-B type -
AV Out/HD Out HDMI -
AV In (Rear Cam) Yes -
SD Slot microSD -
Size Dimensions WxHxD(Main unit) 106mm*50.5mm*40.5mm
4-3/16" x 2" x 1-9/16"
63mm*66mm*36mm
2-1/2" x 2-5/8" x 1-7/16"
Dimensions WxHxD(Bracket attached) 106mm*90mm*40.5mm
4-3/16" x 3-9/16" x 1-9/16"
63mm*66mm*36mm
2-1/2" x 2-5/8" x 1-7/16"
Weight(Main unit) 108g 334g
DC/Rear cam Cable Length 4m 8m
Bundled Accessory SD Card microSD 64GB -
DC Cable Cigar Lighter Car Charger Adapter (12-24V, 4m) Hardware Kit
(12-24V, 4m)
Car Mount Bracket J Type Mount(Build-in GPS)
Mounting Bracket
(3M Tape & Suction Cup)
3M Tape
Manual /Warranty card Quick Start Guide Yes
USB Cable Yes/110cm -
Spare 3M Adhesive Pad Yes/2pcs Yes/2pcs
Cable Clips Yes/4pcs -
Optional Accessory Rear Cam -
Hardwire Kit CA-DR1030 -
Application PC Viewer Windows/Mac -
Requirement for Windows Windows 10, 8.1, 7 -
Requirement for Mac Mac OS X 10.11
(El Capitan) or later
-
Languages for PC Viewer EN/DE/FR/NL/IT/ES/PT/RU/PL/CZ/RO -
Smartphone App Android/iOS -
Requirement for Android Android 5.0.2 and above -
Requirement for iOS iOS 9.0 and above -
Languages for Smartphone App EN/DE/FR/NL/IT/ES/PT/RU/PL/CZ/RO -
