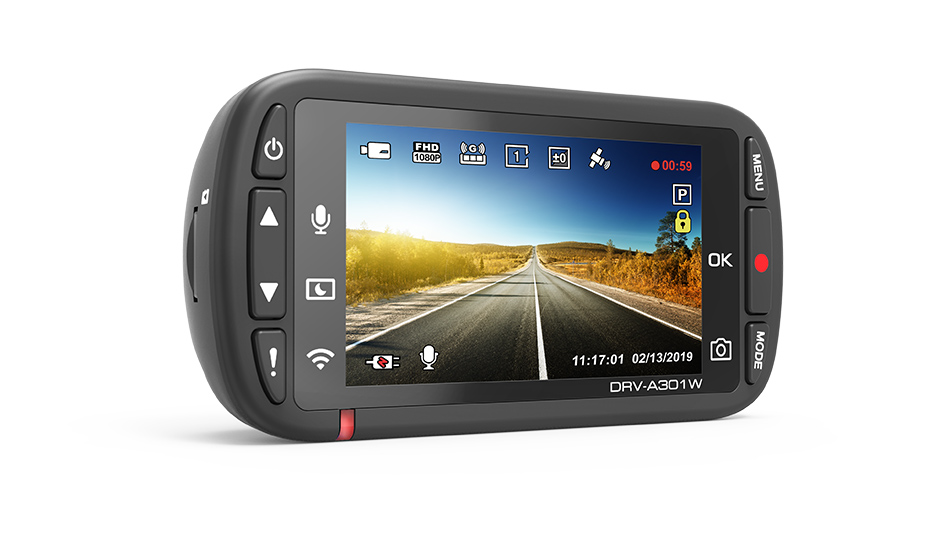

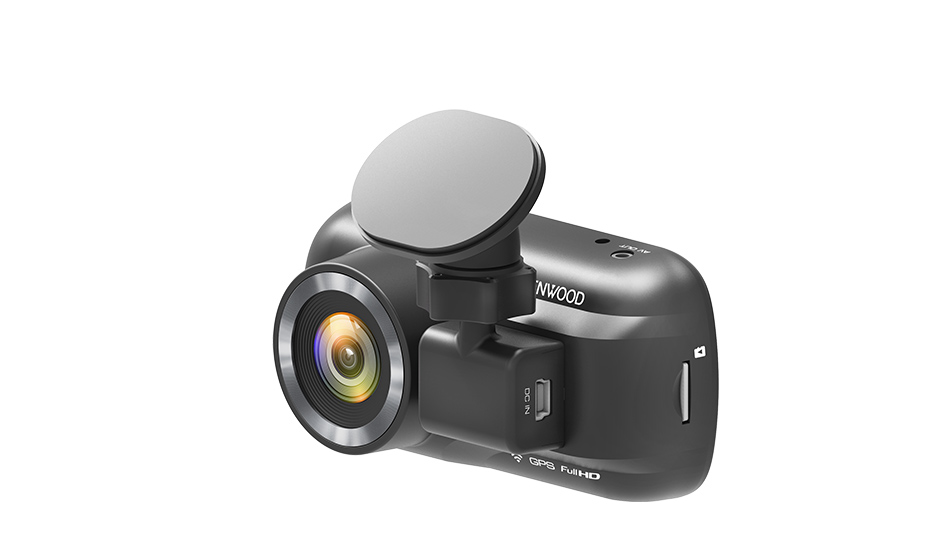

DRV-A301W

High Definition Recording & Wireless Link

Dashboard cameara is equipped with 2 Megapixel Full Hi-Vision recording and provides easy data transfer to your smartphone through Wireless Link.

  • DRV-A301W Zoom

    Dashboard Camera

    DRV-A301W
    • 2 Megapixel Recording
    • HDR
    • 2 Million Pixels
    • Wireless Link
    • Built-in GPS
    • G-Sensor
    • Parking Mode Recording
    • 16GB Micro SD Included
    • Easy Detachable Mount
    Features Icons

    Buy Now

    *Parking Mode Recording requires optional CA-DR1030 power cable

2 Megapixel Recording

2 Megapixel Recording provides High Resolution Recording

2 Megapixel High Definition recording captures clear video even while driving.

full hivision

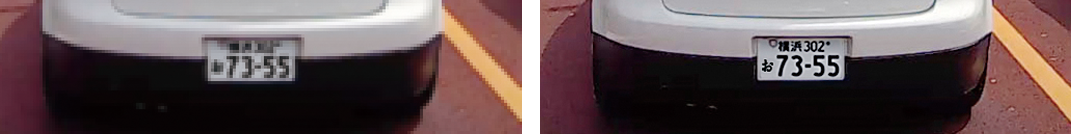

number plate

Capable of capturing a clear image of a license plate


HDR (High Dynamic Range) for Backlighting

Easily records clear images in dark or well lit settings without underexposing or overexposing the image.

without HDR
without HDR
with HDR
with HDR

Accident Avoidance Features

G-sensor & Built-in GPS

The DRV-A301W is equipped with a G-Sensor designed to detect a collision, and GPS that records speed, latitude, and longitude.
KENWOOD DASH CAM MANAGER is a PC application that displays video recorded by the DVR-A301W.KENWOOD DASH CAM MANAGER can be downloaded from the JVCKENWOOD website.
G-sensor

Parking Mode Recording

Parking Mode Recording

When the vehicle is parked and turned off, parking mode becomes active.  If the vehicle is subject to a collision or other physical impact, the camera powers on and automatically records 30 seconds of video.
*Parking Mode Recording requires optional CA-DR1030 power cable

Super Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.
SuperCapacitor

Easy Detachable Mount

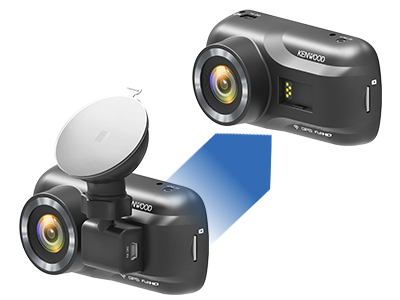

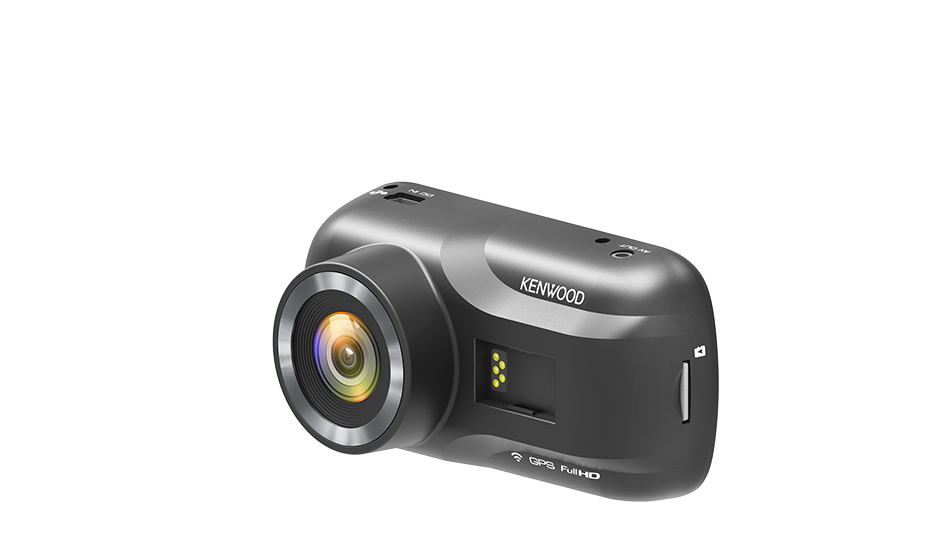

Magnetic Mount

Quickly place and remove the dash cam.
No cable to connect or disconnect from the dash cam.
Magnetic Mount

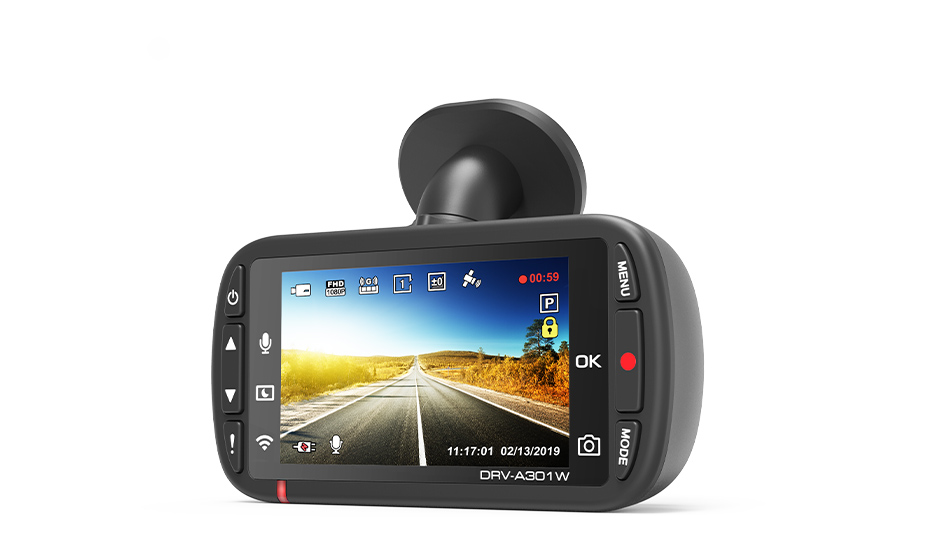

2 Mounts Included

3M Tape Style
3M Tape Style

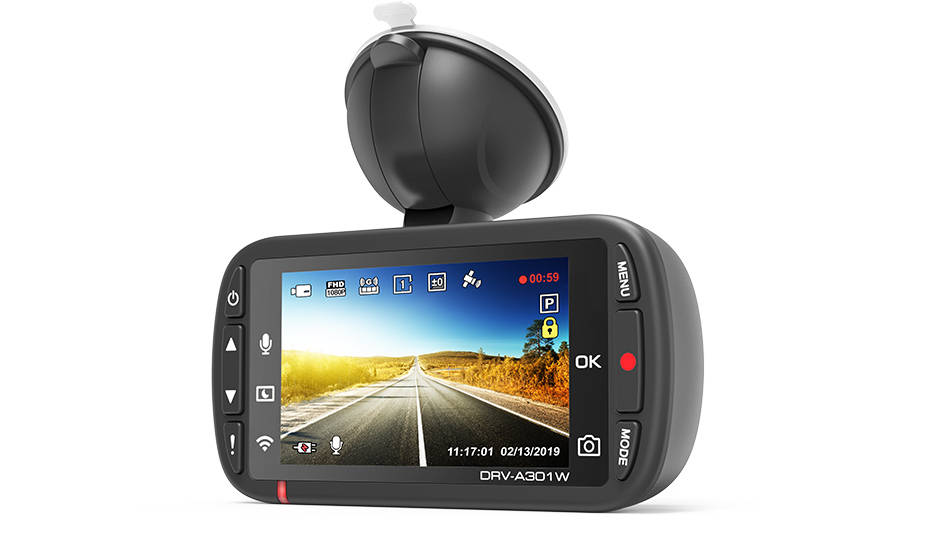

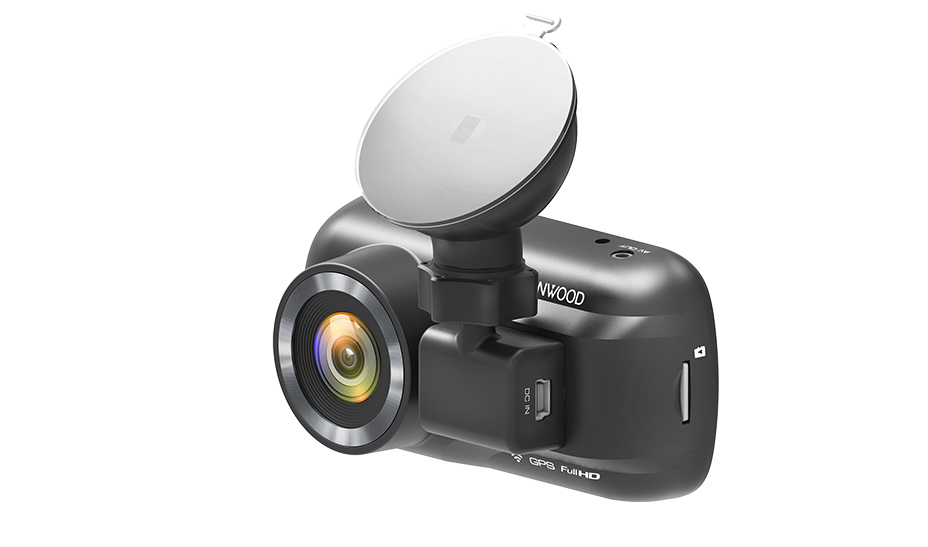

Suction Cup Style
Suction Cup Style

page top

LIVE CONNECTED. DRIVE CONNECTED.

DRV-A301W

« scroll
Hard Specification Screen size 2.7inches full color TFT
Operating voltage DC 5V
Current Consumption 380mA
Built-in Battery -
Super Capacitor yes
Button Tact
Wi-Fi yes
Microphone Built-in
Speaker Built-in
GPS Receiver Built-in
G-sensor Built-in
Collision sensitivity -4.0G to +4.0G (0.1G Step)
Image sensor 1/2.8 CMOS sensor
Valid Pixel 2.13M Pixels
(1945x1097)
Number of Pixel 2M Pixels
(1920x1080)
Angles of view Horizontal : 115°
Vertical : 61°
Diagonal :136°
Lens rotation -
Image reversal (Upside down) Yes
Lens F1.8
Polarization Filter no
Operating temperature -10℃ to +60℃
Noise Protection yes
OSD Menu Language Max handling no. of languages 13
Inmplemented languages EN/DE/FR/NL
/IT/ES/PT/RU
/PL/CZ/RO
Recording Specification Recording resolution 1920 x 1080 Full HD
Frame rate 30FPS
HDR yes
WDR -
Recording time for collision detection Base on reocrding mode
1 /3 /5 mins
Before Collision detected Base on collision detected time,
Detected on first 30% time:
Curren file and previous file
Detcted on middle 30% time:
Only curren file
Detected on last 30% time:
Curren file and next file
After Collision detected "Base on collision detected time,
Detected on first 30% time:
Curren file and previous file
Detcted on middle 30% time:
Only curren file
Detected on last 30% time:
Curren file and next file"
Recording Mode 1 / 3 / 5 min
Voice recording yes(ON/OFF)
Video format H.264 / MPEG-4 AVC
Audio format Linear PCM
Picture format JPEG
(Max.1920 x 1080)
Recording media microSDXC/SDHC card
8GB to 256GB
Class10
Port DC-IN mini USB-B type
AV Out/HD Out MiniJack
AV In (Rear Cam) -
SD Slot microSD
Size Dimensions WxHxD (Main unit) 92mm*46mm*37mm
3-5/8" x 1-7/8" x 1-7/16"
Dimensions WxHxD (Bracket attached) 92mm*86mm*37.5mm
3-5/8" x -3-3/8" x 1-1/2"
Weight (Main unit) 82g

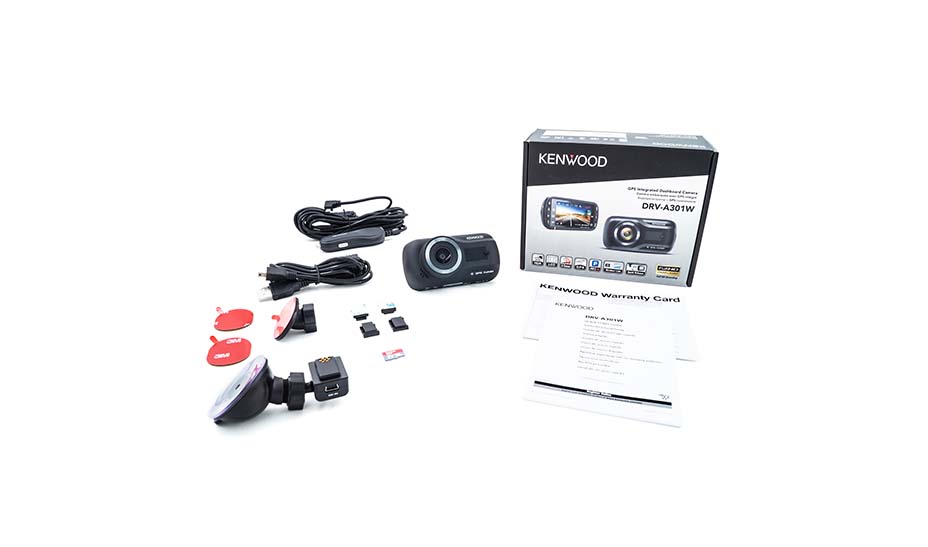

Bundled Accessory SD Card microSD 16GB
DC Cable Cigar Lighter Car Charger Adapter (12-24V, 4m)
Viewer Soft(CD-ROM) no
Car Mount Bracket J Type Mount(Built-in GPS)
Mounting Bracket
(3M Tape & Suction Cup)
Manual /Warranty card Instruction Manual:Multi
Warranty Card
USB Cable yes/110cm
Spare 3M Adhesive Pad yes/2pcs
Cable Clips yes/4pcs
Optional Accessory Rear Cam -
Hardwire Kit CA-DR1030
Application PC Viewer Windows/Mac
Requirement for Windows Windows 10, 8.1, 7
Requirement for Mac "Mac OS X 10.11
(El Capitan) or later"
Languages for PC Viewer Multi
Smartphone App Android/iOS
Requirement for Android Android 5.0.2 and above
Requirement for iOS iOS 9.0 and above
Languages for Smartphone App Multi
