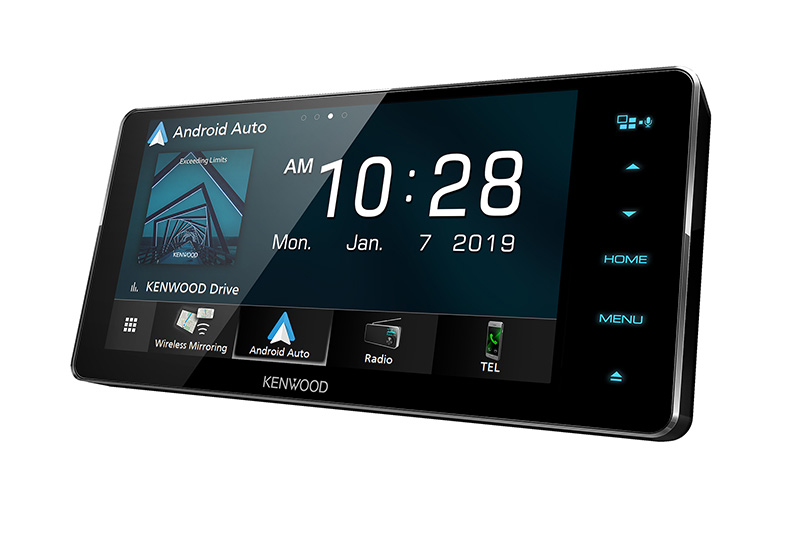

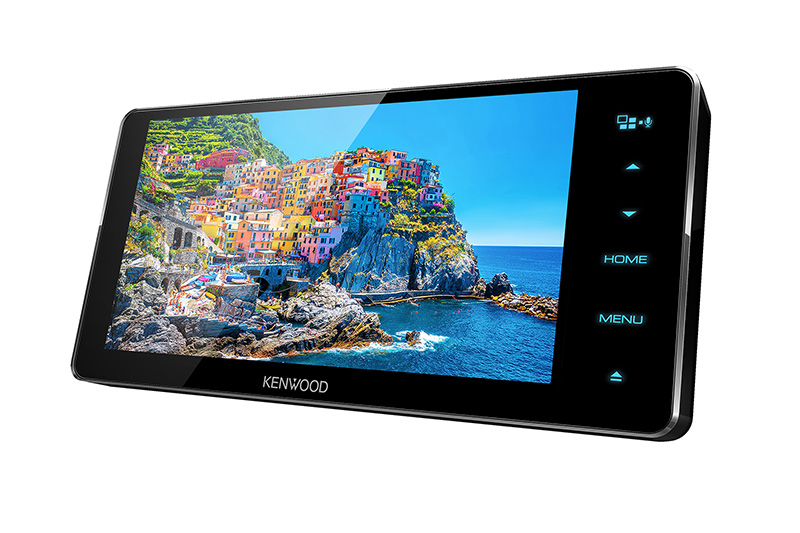

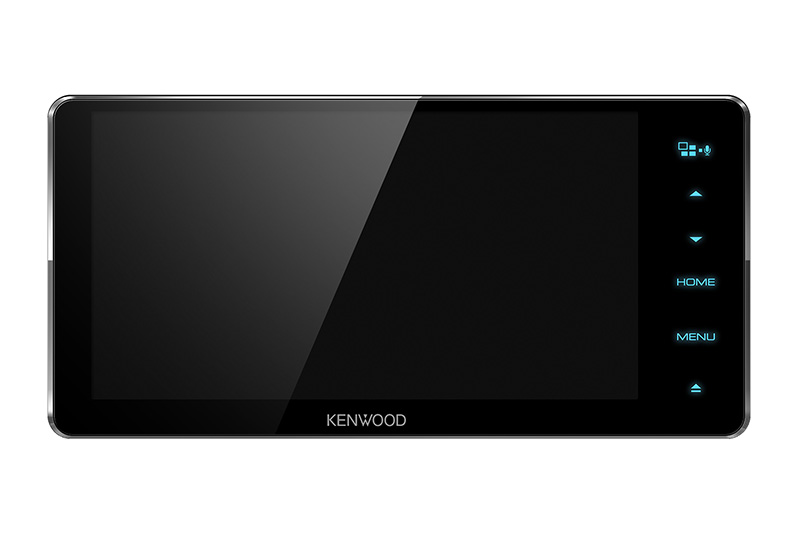

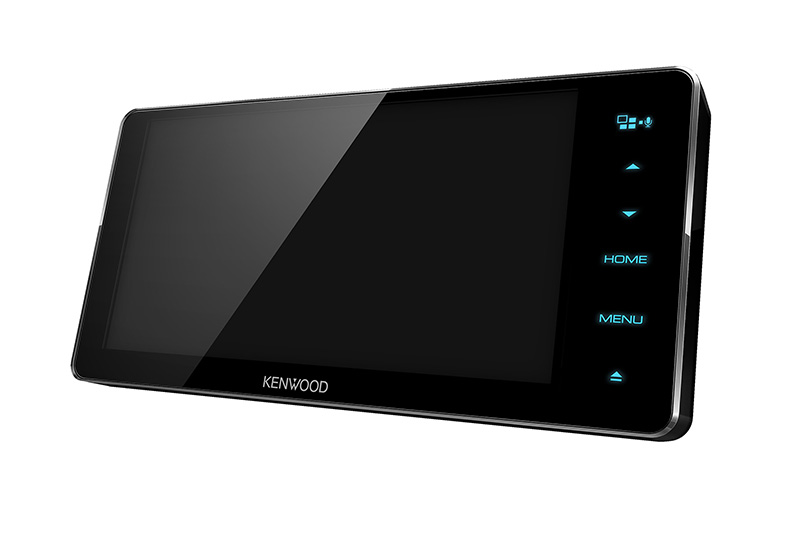

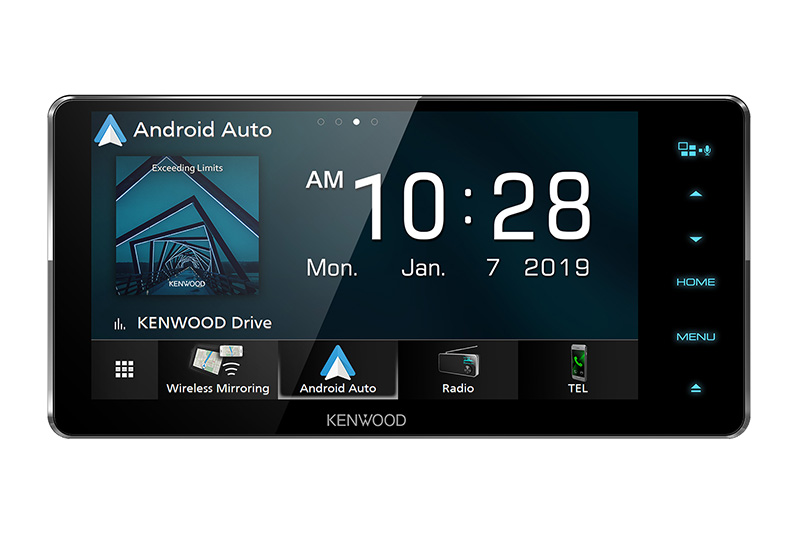

DDX919WSAV Receiver with 6.8 inch
High Definition Display
(Discontinued)

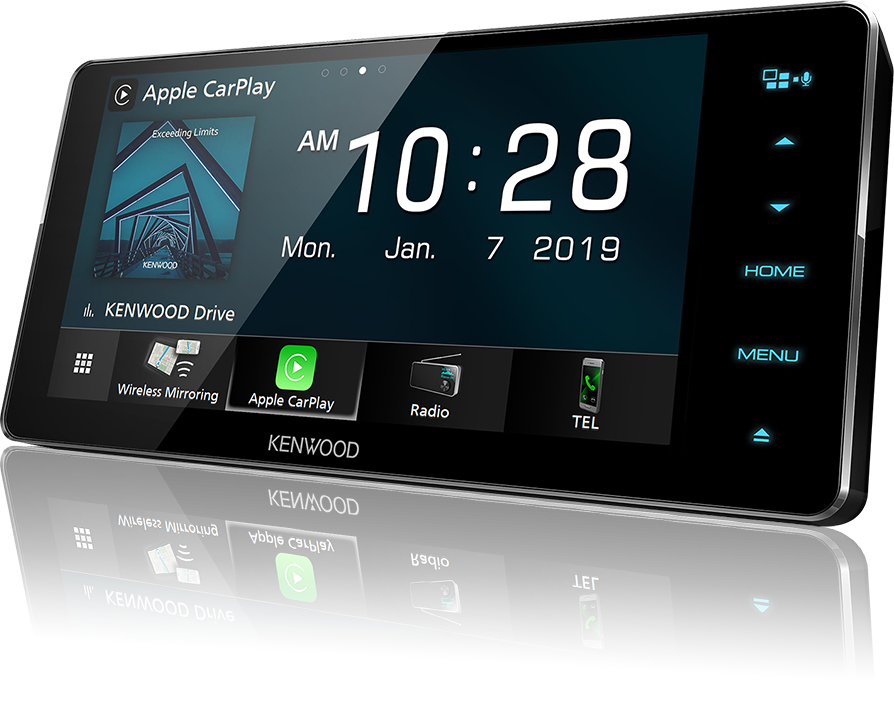

  • Wired & Wireless Apple CarPlay
  • Android Auto™ & Android Auto™ Wireless
  • High-Resolution Audio Ready
  • Wireless Mirroring for Android
  • Customizable Multi Widget Screen

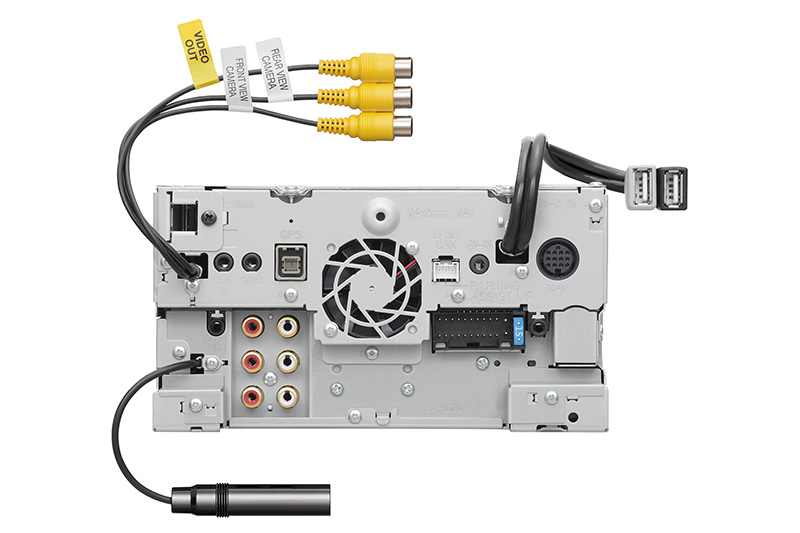

  • 3 Camera Inputs
  • 3 Preouts 5V

Smartphone Connectivity

By connecting your smartphone and receiver wirelessly, your driving time will be more fun and convenient.

Learn More

Learn More

The Best Audio Experiences

Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Learn More

Learn More

Safe Driving

Keeping you safe on the road ahead is our top priority.

Learn More

Learn More

Additional Features

Learn about exciting product features and highlights.

Learn More

Learn More

KENWOOD Car Electronics System

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

« scroll
MonitorSection Picture size 6.75 inches(diagonal) wide
W x H 152.1 mm x 79.5 mm
Display system AAS LCD panel
Drive system TFT active matrix system
Number of pixels 2,764,800
1280H x 720V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
DVDSection D/A Converter 24 / 32Bit
Audio Decoder Linear PCM
Dolby Audio
MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Wow & Flutter Below Measurable Limit
Frequency response 96k Sampling 20 - 44,000 Hz
48k Sampling 20 - 22,000 Hz
44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.010%
Signal to Noise ratio 90.5dB (DVD-Video 96k)
Dynamic range 89dB (DVD-Video 96k)
DISC Format DVD-Video / VIDEO-CD / CD-DA
Quantifying bit number 16 / 20 / 24bit
USB I/F
Section
USB Standard USB2.0 High Speed
File System FAT 16/32, exFAT, NTFS
Maximum Power Supply Current DC5V=1.5A
D/A Converter 24/32Bit
Audio Decoder MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Wireless Mirroring
Section
Mode Sink
Copyright protection HDCP2.2
Touch Control UIBC
Wi-Fi IEEE Standard 802.11 a/b/g/n/ac
Frequency Range Dual Band ( 2.4GHz / 5GHz )
Channels Auto(1-11ch)
Auto(149,153,157,161ch)
Transfer rates (MAX) 11a: 54 Mbps / 11b: 11 Mbps /
11g: 54 Mbps / 11n: 300 Mbps /
11ac: 867 Mbps
Output Power 2.4GHz/SISO 11b:14dBm±2dB / 11g:13dBm±2dB /
11n(20MHz):12dBm±2dB
5GHz/SISO 11a:9dBm±2dB /
11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB /
11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB
5GHz/MIMO 11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB /
11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB
Bluetooth
Section
Technology Bluetooth Ver5.0
Frequency 2.402 – 2.480 GHz
RF Output Power (E.I.R.P.)  +4dBm (MAX), Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Audio Codec SBC / AAC
Multi Profile Support Multi Profile
Profile HFP (V1.7) (Hands Free Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.6) (Audio/Video Remote Control Profile)
PBAP (Phonebook Access Profile)
HDMI Connector Type Type A
Input Resolution VGA (640x480p @59.94Hz/60Hz)
480p (720x480p @59.94Hz/60Hz)
720p(1280x720p 59.94Hz/60Hz)
Input Audio Type 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM
DSP
Section
Graphics equalizer BAND 13Band
frequency (Hz) (BAND1-13) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over HIGH PASS FILTER frequency Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
SLOPE -6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE -6/-12/-18/-24[dB/Oct.]
3Way X'Over HIGH PASS FILTER frequency 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
SLOPE -12/-18/-24[dB/Oct.]
Band PASS FILTER frequency Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz]
250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
SLOPE -12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/Through[Hz]
SLOPE -12/-18/-24[dB/Oct.]
Position Front / Rear /Subwoofer Delay 0 - 6.1m (0.01m Step)
Gain -8 to 0dB
Subwoofer Level -50 to +10dB
FM Frequency Range
(Frequency step)
87.5MHz - 108.0MHz
(50kHz)
Usable sensitivity
S/N30dB
9.3dBf
0.8μV/75Ω
Quieting sensitivity
DIN S/N 46dB
15.2dBf
1.6μV / 75Ohms
Frequency response
(±3.0dB)
30Hz - 15kHz
S/N (dB) 65dB (MONO)
Selectivity Over 80dB (±400kHz)
Stereo separation 45dB (1kHz)
AM Frequency Range
(Frequency step)
531kHz - 1611kHz
(9kHz)
Usable sensitivity 25μV
Video Color system of external video input NTSC/PAL
External video input level (Mini jacks) 1 Vp-p / 75 Ohms
External audio max input level (Mini jacks) 2 V / 25 kOhms
Video Input level (RCA jacks) 1 Vp-p / 75 Ohms
Video Output level (RCA jacks) 1 Vp-p / 75 Ohms
Audio Output level (Mini jacks) 0.9 V / 10 kOhms
Audio Maximum Power Output (Front&Rear) 50Wx4
Typical Power Output (Front&Rear) Full Bandwidth Power
(at less than 1%THD)
22Wx4
Output frequency band 20 - 88,000Hz
Preout level (V) 5V / 10kOhms
Preout impedance (Ω) =< 300 Ohms
Speaker Impedance (Ω) 4-8 Ohms
General Operating voltage 12V DC Car Battery
Maximum Current consumption 15A
Installation Dimensions  WxHxD 178mm x 100mm x 160mm
Operational temperature range -10°C to +60°C
Weight Main unit 2.4 kg
