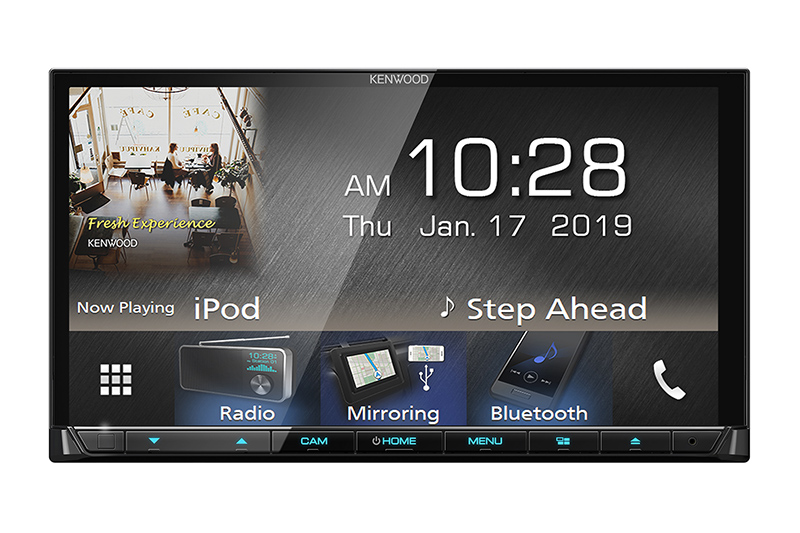

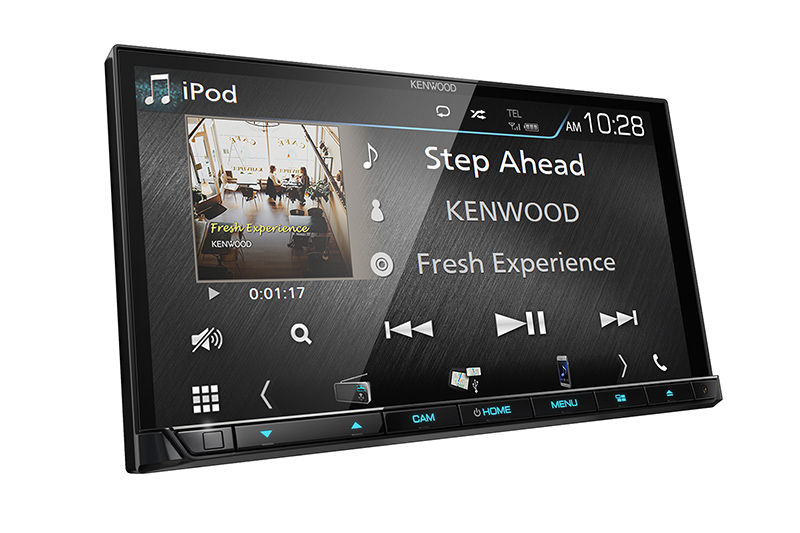

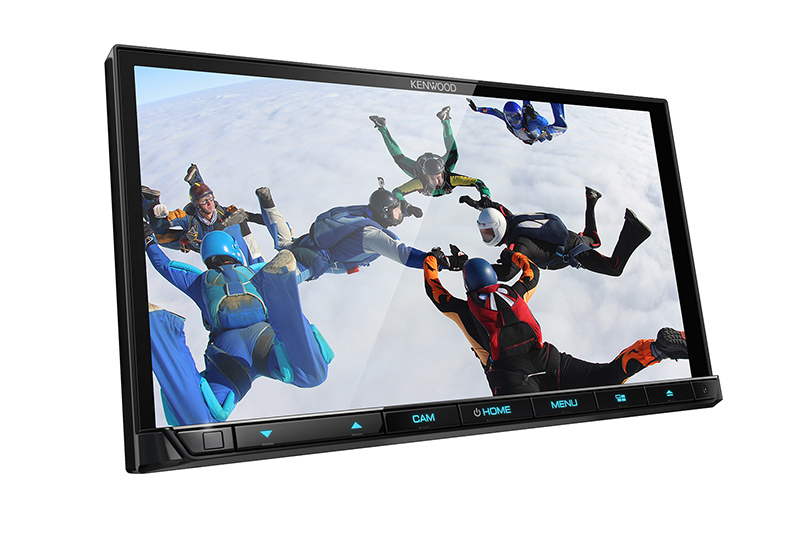

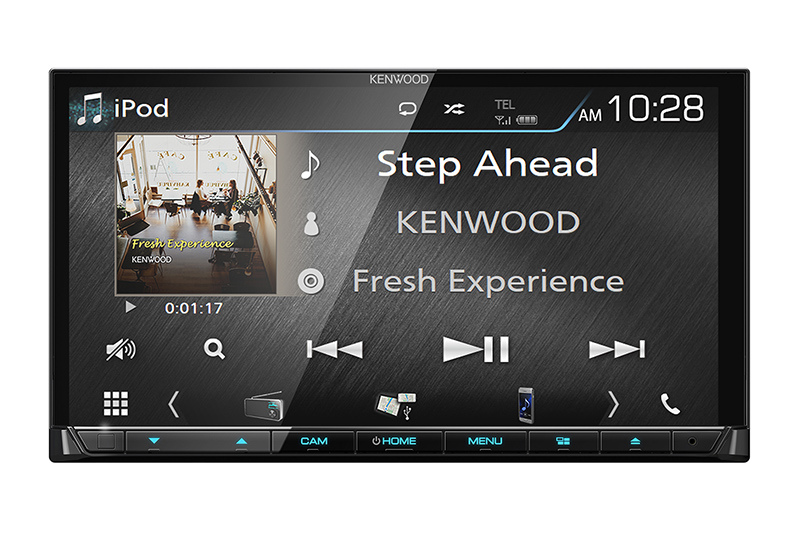

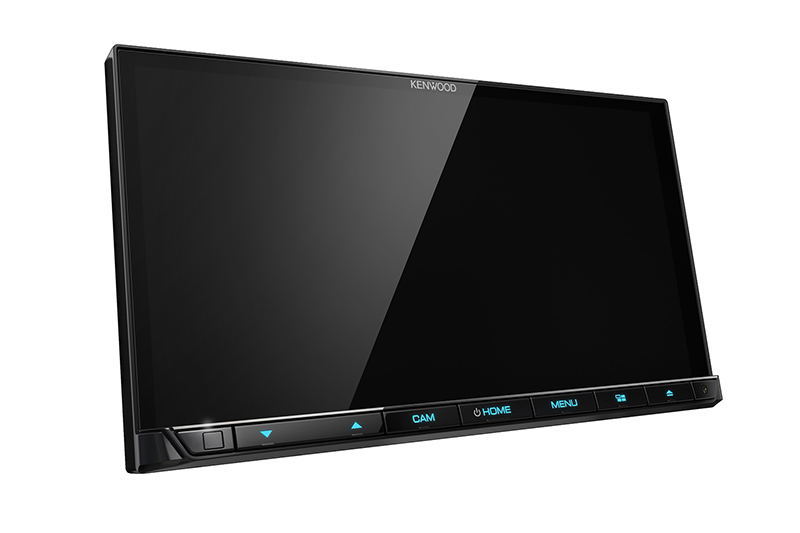

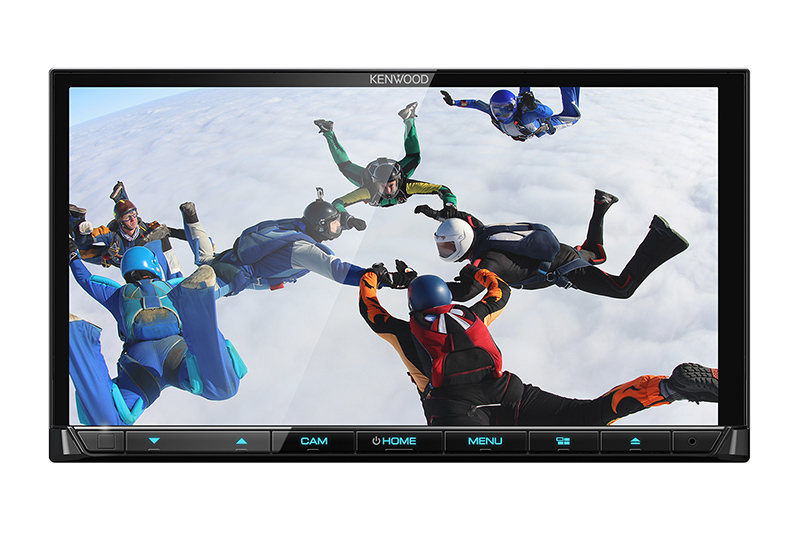

DDX7019BTAV Receiver with 7.0" WVGA
Superfine view Display
(Discontinued)

  • USB Mirroring Ready for iPhone & Android
  • Built-in Bluetooth
  • Built-in Microphone
  • 2 Camera Inputs
  • 13 Band EQ & Digital Time Alignment
  • 3 Preouts 4V

Smartphone Connectivity

By connecting your smartphone and receiver wirelessly, your driving time will be more fun and convenient.

Learn More

Learn More

The Best Audio Experiences

Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Learn More

Learn More

Safe Driving

Keeping you safe on the road ahead is our top priority.

Learn More

Learn More

Additional Features

Learn about exciting product features and highlights.

Learn More

Learn More

KENWOOD Car Electronics System

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

« scroll
Monitor Section Picture size 6.95 inches(diagonal) wide
W x H 156.6 mm x 81.6 mm
Display system Transparent TN LCD panel
Drive system TFT active matrix system
Number of pixels 1,152,000
800H x 480V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
DVD Section D/A Converter 24Bit
Audio Decoder Linear PCM
Dolby Audio
MP3/WMA/AAC(.m4a)/WAV
Video Decoder MPEG1/MPEG2
Wow & Flutter Below Measurable Limit
Frequency response 96k Sampling 20 - 20,000 Hz
48k Sampling  20 - 20,000 Hz
44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.020%
Signal to Noise ratio 90dB
Dynamic range 90dB
DISC Format DVD-Video/VIDEO-CD/CD-DA
Sampling frequency 44.1kHz/48kHz
96kHz
Quantifying bit number 16/20/24bit
USB I/F Section  USB Standard USB2.0 High Speed
Compatible Devices Mass storage class
File System FAT 16/32, NTFS
Maximum Power Supply Current DC5V (DC logo) = 1.5A
D/A Converter 24bit
Audio Decoder MP3/WMA/AAC(.m4a)/WAV/FLAC
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Bluetooth Section Technology Bluetooth V3.0
Frequency 2.402 - 2.480 GHz
RF Output Power (E.I.R.P.) +4dBm (MAX),  Power Class 2
Maximum Communication range Line of sight approx.10m (32.8ft)
Audio Codec SBC/AAC
Profile HFP(Hands Free Profile) 1.6
A2DP(Advanced Audio Distribution Profile) 1.3
AVRCP(Audio/Video Remote Control Profile) 1.5
GAP(Generic Access Profile)
PBAP(Phonebook Access Profile) 1.2
SDP(Service Discovery Profile)
SPP(Serial Port Profile) 1.2
FM Frequency range
(Frequency step)
87.5 MHz - 108.0 MHz
(50 kHz)
Usable sensitivity 6.2 dBf
S/N:30dB Dev. 22.5kHz 0.56 μV / 75 Ohms
Quieting sensitivity 15.2 dBf
DIN S/N:46dB Dev.40kHz 1.58 μV / 75 Ohms
Frequency response
(±3.0 dB)
30 Hz - 15 kHz
S/N (dB) 68 dB(MONO)
Selectivity Over 80 dB(±400 kHz)
Stereo separation 40 dB(1 kHz)
AM Frequency range
(Frequency step)
531 kHz - 1611 kHz
(9 kHz)
Usable sensitivity 28.5 μV
Video Color system of external video input NTSC/PAL
External video input level (mini jack) 1Vp-p / 75Ohms
External audio max input level (mini jack) 2V / 25kOhms
Video Input level for Rear Camera (RCA jack) 1Vp-p / 75Ohms
Video Input level for Front Camera (RCA jack) 1Vp-p / 75Ohms
Video Output level (RCA jacks) 1Vp-p / 75Ohms
Analog RGB input 0.7Vp-p / 75Ohms
Audio Maximum Power (Front&Rear) 50Wx4
Full Bandwidth Power (Front&Rear) 22Wx4
(at less than 1%THD)
Preout level(V) 4V / 10kOhms
Preout Impedance(Ω) =< 600 Ohms
Speaker Impedance(Ω) 4-8 Ohms
Equalizer BAND 13Band
Frequency(Hz) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 [dB]
2Way X'Over Tweeter
Frequency(Hz)
-
 Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
Front (HPF)
Frequency(Hz)
Through/30/40/50/60/70/80/90/100/120/150/180/220/250
 Slope -6/-12/-18/-24 [dB/Oct.]
 Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
Rear (HPF)
Frequency(Hz)
Through/30/40/50/60/70/80/90/100/120/150/180/220/250
 Slope -6/-12/-18/-24 [dB/Oct.]
 Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
SW (LPF)
Frequency(Hz)
30/40/50/60/70/80/90/100/120/150/180/220/250/Through
 Slope -6/-12/-18/-24 [dB/Oct.]
 Phase Phase Inversion: Off/ On
 Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
3Way X'Over Tweeter (HPF)
Frequency(Hz)
1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
 Slope -6/-12 [dB/Oct.]
 Phase Phase Inversion: Off/ On
 Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
Mid Range (HPF)
Frequency(Hz)
Through/30/40/50/60/70/80/90/100/120/150/180/220/250
 Slope -6/-12 [dB/Oct.]
Mid Range (LPF)
Frequency(Hz)
1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k/Through
 Slope -6/-12 [dB/Oct.]
 Phase Phase Inversion: Off/ On
 Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
SW (LPF)
Frequency(Hz)
30/40/50/60/70/80/90/100/120/150/180/220/250/Through
 Slope -6/-12 [dB/Oct.]
 Phase Phase Inversion: Off/ On
 Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
Position 2Way: Front / Rear /Subwoofer Delay 0 - 610cm (1.0cm Step)
3Way: Tweeter / Mid Range / SW Delay 0 - 610cm (1.0cm Step)
Gain -8 to 0dB
Subwoofer Level -50 to +10dB
General Operating voltage 12 V DC car battery
Installation Dimensions  WxHxD
(with Sleeve)
178mm x 100mm x 162mm
Weight         Main unit 2.4 kg
