DRV-MN1025Optional Front & Rear Camera for DMX1025BT

  • Direct Control on DMX1025BT Multimedia Receiver
  • WDR - Wide Dynamic Range
  • Front/Rear Full HD 1080P ( 1920 x 1080)
  • Rear Dashcam as Rear Camera
  • Parking Mode Recording
  • Built-in G-Sensor

Direct Control on DMX1025BT

Complete and direct control from DMX1025BT.Select Front / Rear / Front + Rear view to show on display and press touch screen to take picture or start movie recording.

WDR (Wide Dynamic Range) for Backlighting

Easily records clear images in dark or well lit settings without underexposing or overexposing the image.

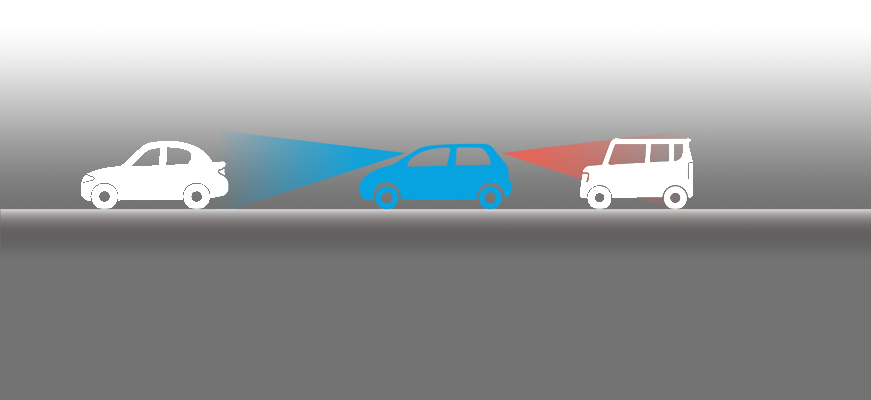

Front & Rear View Recording

Connect DRV-MN1025 to DMX1025BT to record in front and behind of your vehicle, all at the same time.  The Dash Cam includes a 9.5m cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield.

Rear Dashcam as Backup Camera

Adjustable rear dash camera mounting holder enables viewing position change by up to 180 degrees.

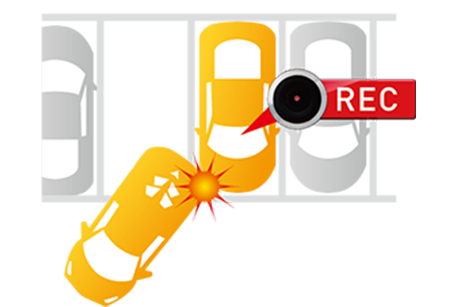

Parking Mode Recording

When the vehicle is parked and turned off, parking mode becomes active.

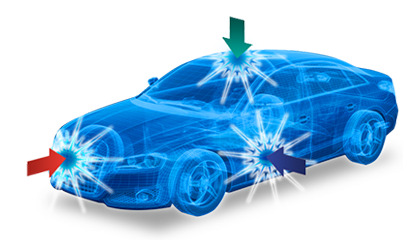

Built-In G-Sensor

When the G-Sensor detects any sudden motion, DRV-MN1025 automatically save and lock the recording to protect it from being deleted.The integrated 3-axis sensor records G-force which shows the direction and the strength of possible impact.

« scroll
Image Sensor 1/2.8 Color CMOS Sensor
Frame rate 30fps
Resolution 1920 x 1080
Recording Format H.264 (MP4)
Lens F=2.0 Fixed Focus Lens
Field of View(Front/Rear) 140°/140°(Diagonal)
External Storage microSDXC card Class 10 or above (MAX.256GB)
Operating Voltage DC 9-16V
Maximum Current Consumption 350mA
Dimensions(Front Camera) 54mm(W) x 26mm(H) x 71mm(D)
Dimensions(Rear Camera) 62mm(W) x 42mm(H) x 40mm(D)
Weight(Front Camera) 93.3g
Weight(Rear Camera) 58.0g
Cable length 9.5m
SD Card No
Polarizer Filter No
Mount Bracket Yes
