Amplifier

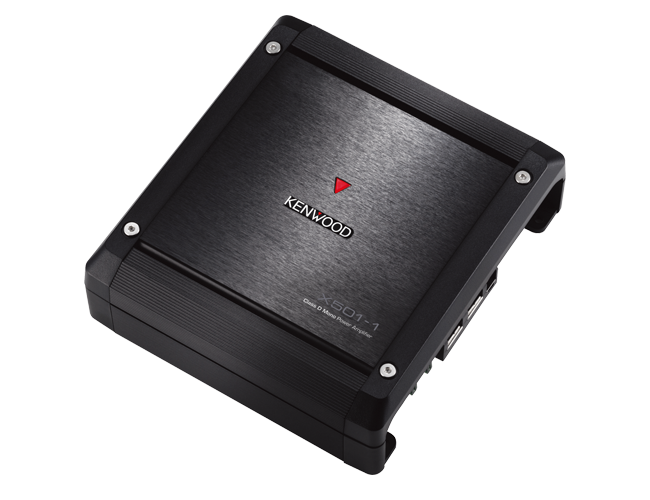

  • X501-1

    Class D Mono Power Amplifier

    X501-1

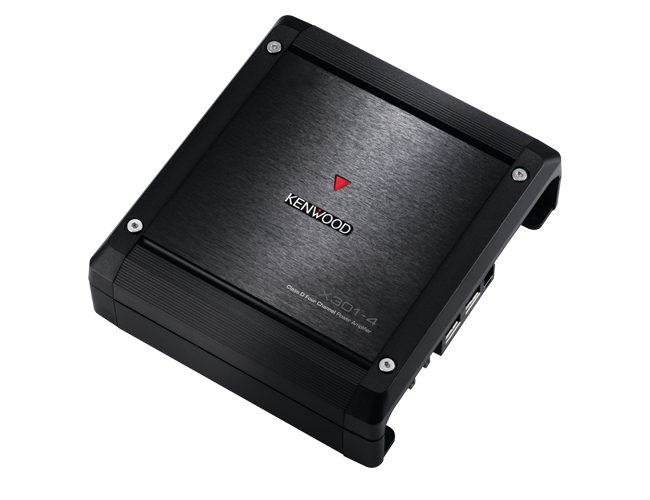

  • X301-4

    Class D 4-Channel Power Amplifier

    X301-4
Amplifier Tech-Spec X501-1 X301-4
Maximum Output Power 1000W 600W
RMS Power at 4ohms 300W 50W x 4ch
RMS Power at 2ohms 500W 75W x 4ch
Bridged at 4ohms - 150W x 2ch
Frequency Response 20Hz - 200kHz 20Hz - 50kHz
High Pass Filter - 50Hz - 200Hz, -12dB/oct
Low Pass Filter 50Hz - 200Hz, -24dB/oct 50Hz - 200Hz, -12dB/oct
Speaker Level Input Yes Yes
Signal to Noise Ratio 100dB 100dB
Dimensions W x D x H (mm) 170 x 187 x 55 170 x 187 x 55
