KFC-W2541
KFC-W2541

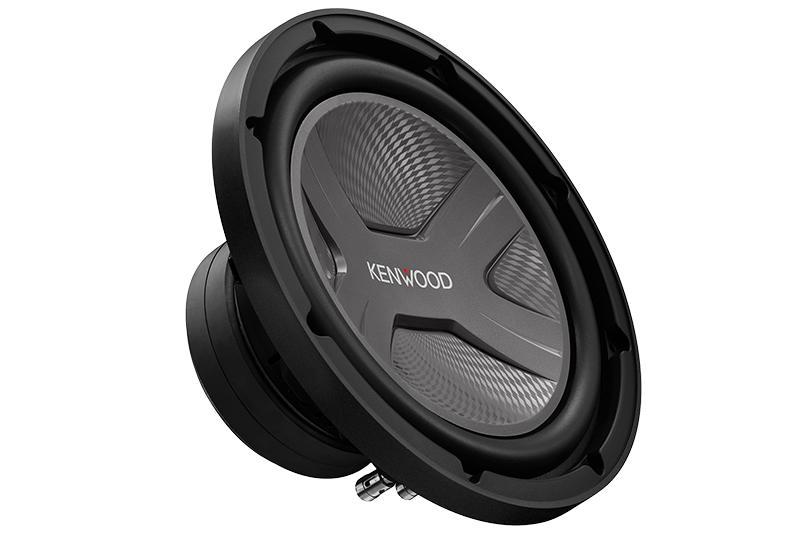

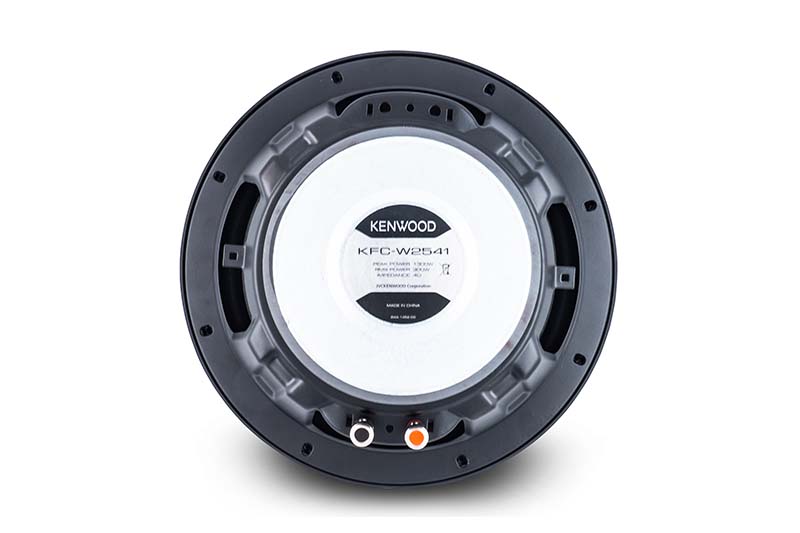

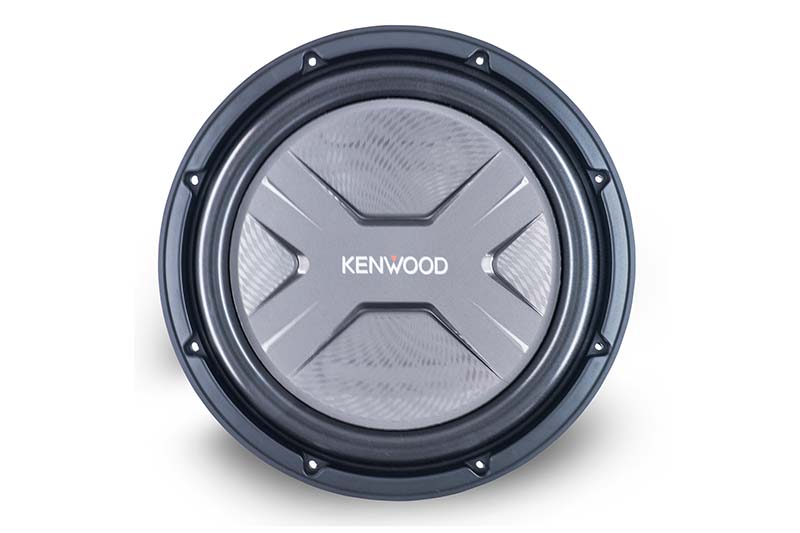

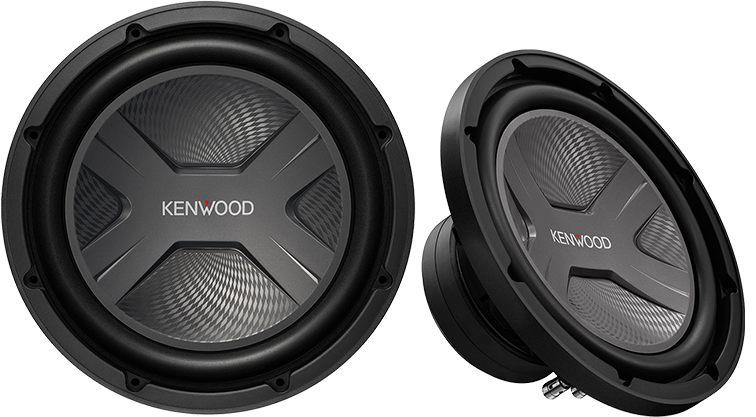

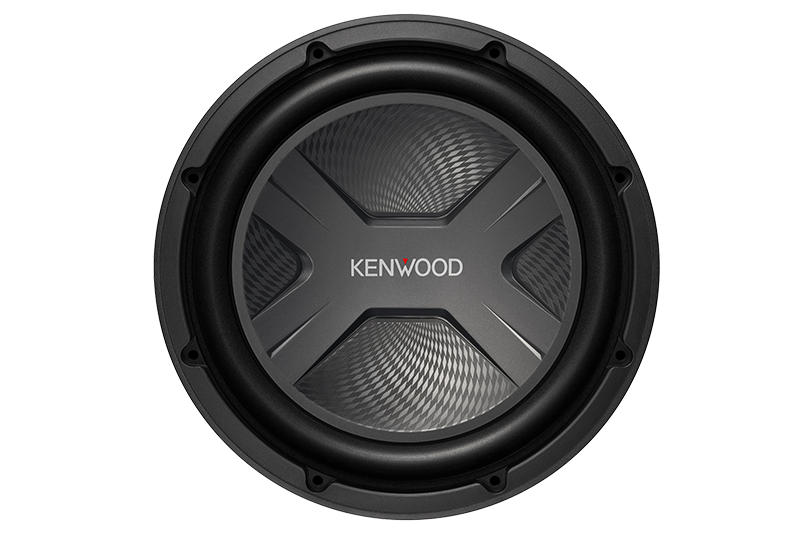

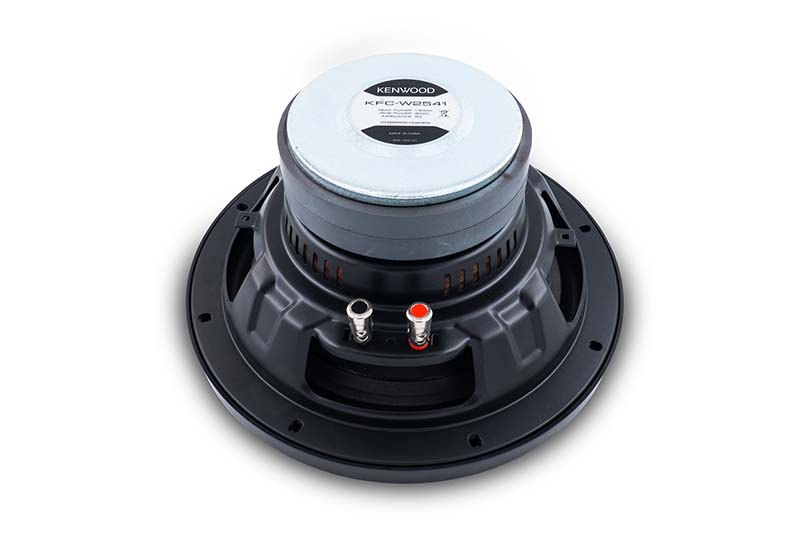

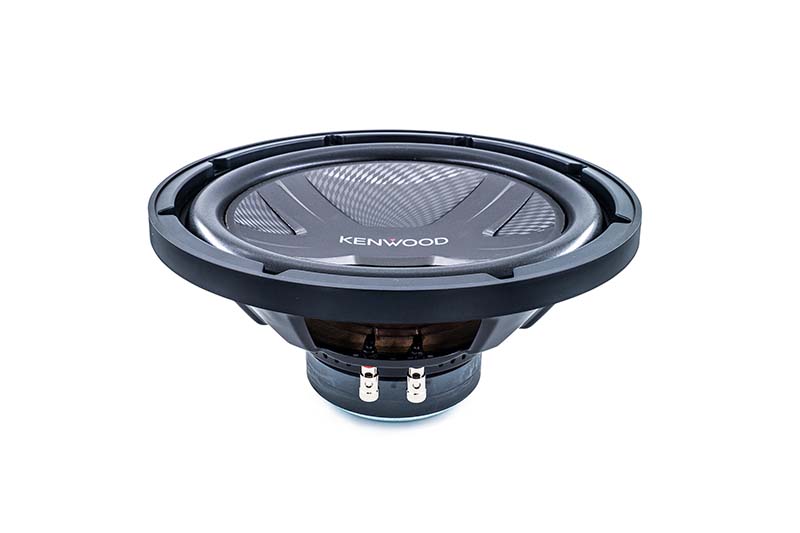

KFC-W254110" Subwoofer

  • Peak Power 1300W
  • PP X-motif Cone with Diamond Array Pattern
  • Closed Yoke with Advanced Airflow Control
  • Stress Controlled Spider
  • Robust Thermal Management System

X-Motif Cone with Diamond Array Pattern

X-Motif Cone controls resonance frequency and cuts unnecessary frequency, delivering powerful and solid bass response.

Closed Yoke with Advanced Airflow Control

The KFC-W2541 has a robust thermal management system implemented with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control.

Stress Controlled Spider

Computer-optimized damper controls stress and increases mechanical durability.

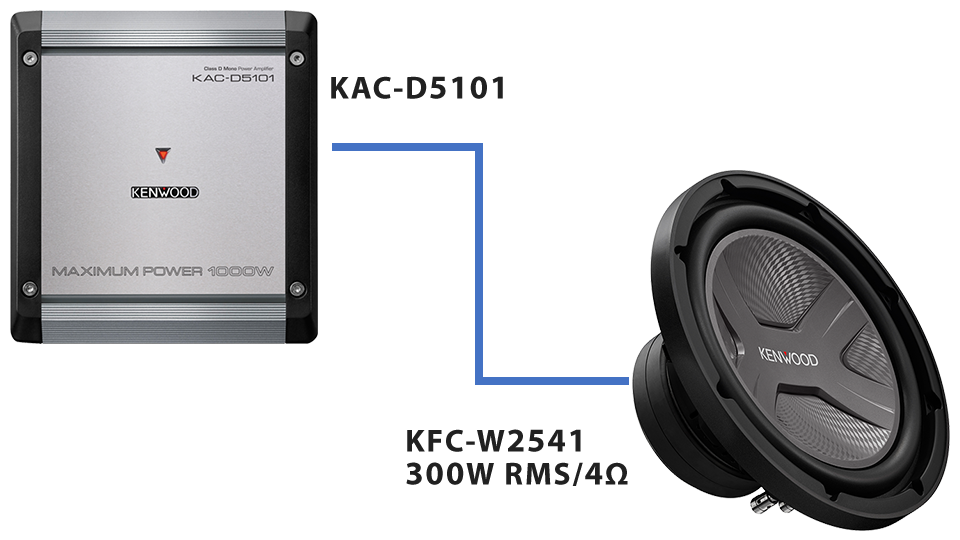

The Best Match

KFC-W2541 subwoofer is precisely power matched with the KAC-D5101 amplifier.

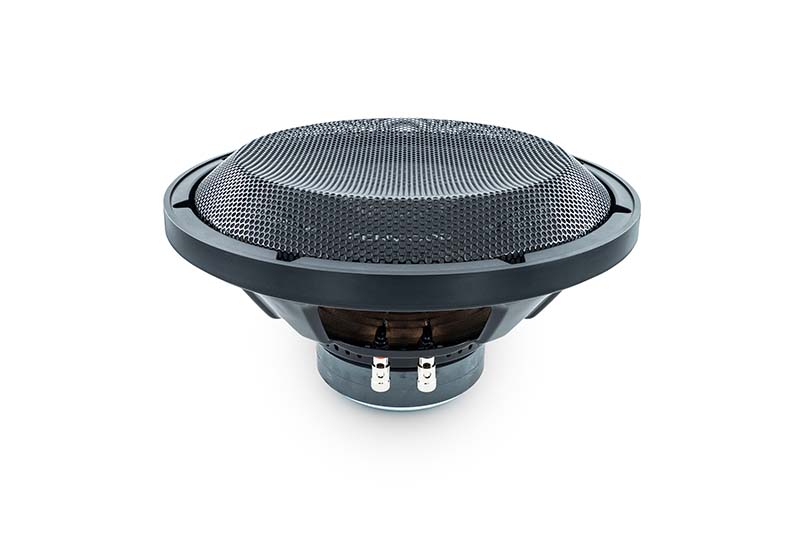

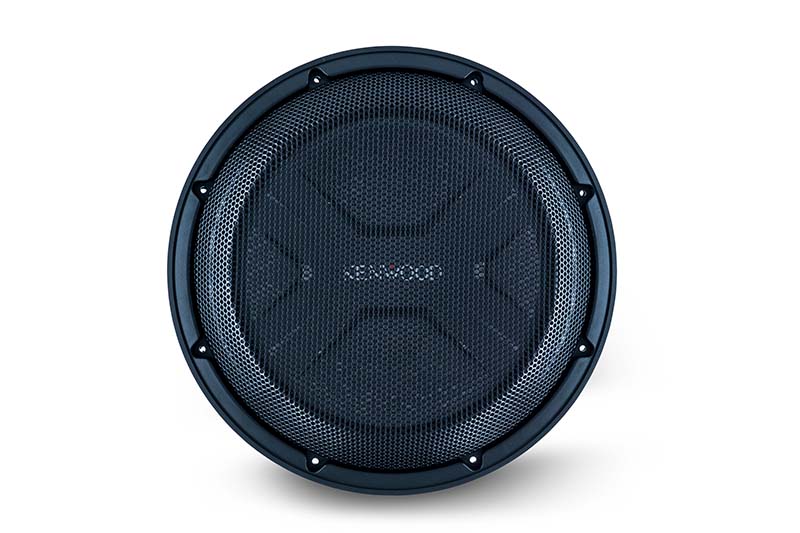

Optional CA-101G Subwoofer Grille Ready

Recommended Enclosures

« scroll
Model Type Inner Volume W H D Mounting Hole SW SH SL
KFC-W2541 Sealed 0.65cft (18.4 liter) 14-3/4" (375mm) 12-3/4" (324mm) 9" (229mm) 9-3/16" (233mm)
Ported 0.9 cft (25.5 liter) 18-1/4" (464mm) 12-1/4" (311mm) 13" (330mm) 1-1/8" (29mm) 10-3/4" (273mm) 25-1/2" (648mm)

General Features

ELECTRICAL
Impedance (Ω) 4
Peak Input Power (W) 1300
RMS Power (W) 300
Sensitivity (dB at 1m) 84
Frequency Response (Hz) 33 ~ 300
MOUNTED SPEAKER
Size 250mm 10 inch
Diaphragm Paper
Cap Injection PP
Surround Urethane
Basket Steel
Gasket ABS
Magnet Ferrite φ134-φ70-t30
DIMENSION
Width 275mm 10 - 13/16 inch
Height 275mm 10 - 13/16 inch
Cut-out Diameter 230mm 9 - 1/16 inch
Depth 142.2mm 5 - 5/8 inch
Mounting Depth 124mm 4 - 7/8 inch
WEIGHT
Woofer without Gasket 4.0 kg 8.8 lb
Gross Weight 4.6 kg 10.1 lb
Weight of Magnet 1560 g 54.9 oz
ACCESSORY Instruction Manual
Warranty Card
SPECIAL FEATURE Injection PP X-motif Cone with
Diamond Array Pattern
Closed Yoke with Advanced
Airflow Control
Aluminum Bobbin
« scroll
ELECTRICAL
Impedance (Ω) 4
Peak Input Power (W) 1300
RMS Power (W) 300
Sensitivity (dB at 1m) 84
Frequency Response (Hz) 33 ~ 300
MOUNTED SPEAKER
Size 250mm 10 inch
Diaphragm Paper
Cap Injection PP
Surround Urethane
Basket Steel
Gasket ABS
Magnet Ferrite φ134-φ70-t30
DIMENSION
Width 275mm 10 - 13/16 inch
Height 275mm 10 - 13/16 inch
Cut-out Diameter 230mm 9 - 1/16 inch
Depth 142.2mm 5 - 5/8 inch
Mounting Depth 124mm 4 - 7/8 inch
WEIGHT
Woofer without Gasket 4.0 kg 8.8 lb
Gross Weight 4.6 kg 10.1 lb
Weight of Magnet 1560 g 54.9 oz
ACCESSORY Instruction Manual
Warranty Card
SPECIAL FEATURE Injection PP X-motif Cone with
Diamond Array Pattern
Closed Yoke with Advanced
Airflow Control
Aluminum Bobbin
