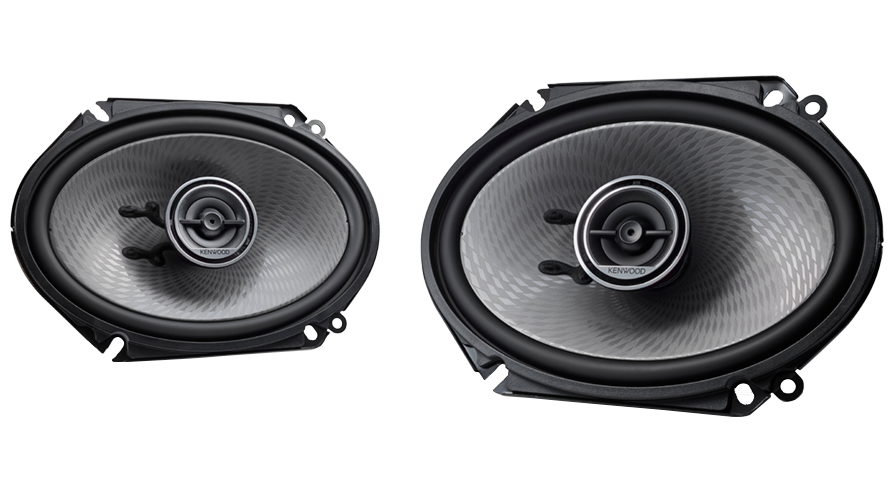

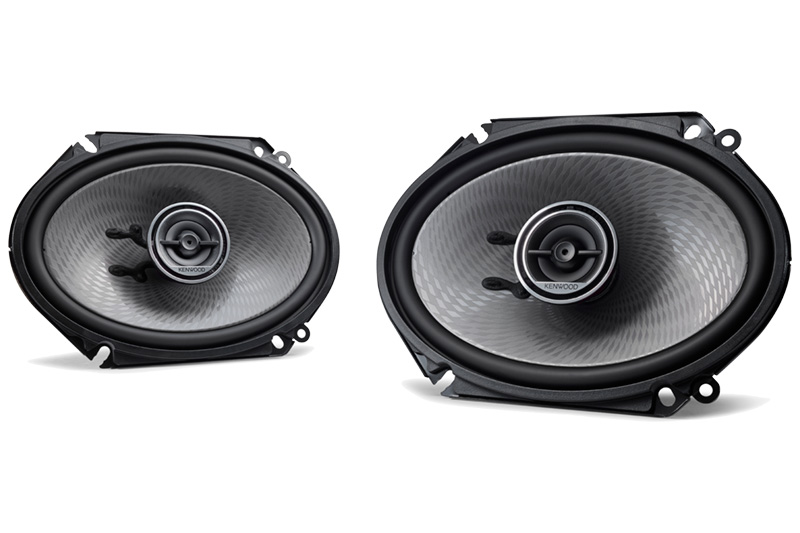

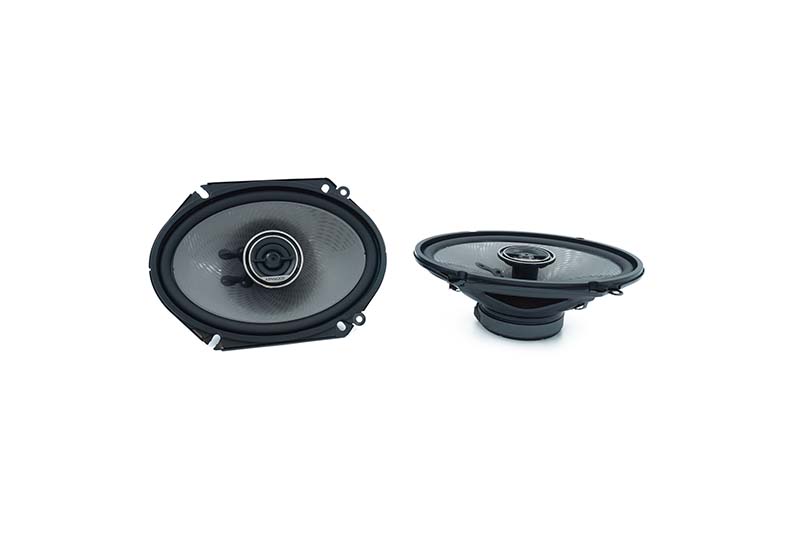

KFC-D681C6x8" Oval Custom Fit 2-way 2 Speaker

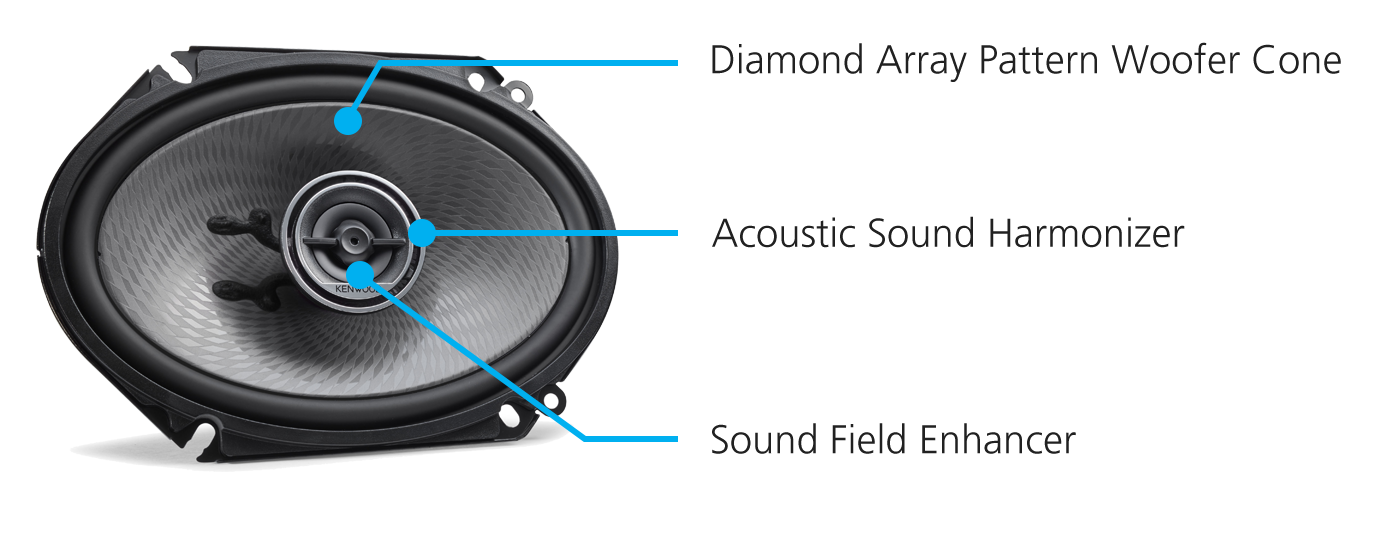

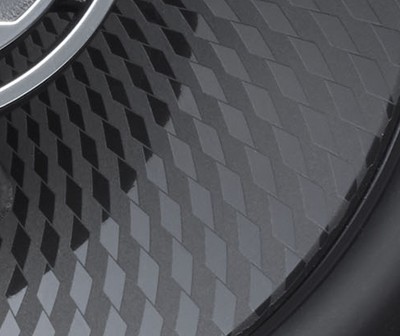

This technology enhances sound and reduces distortion.

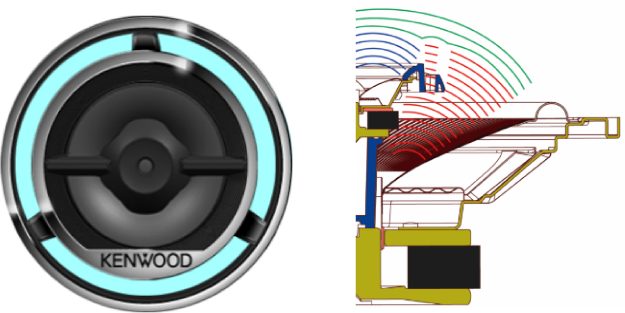

This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.
Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

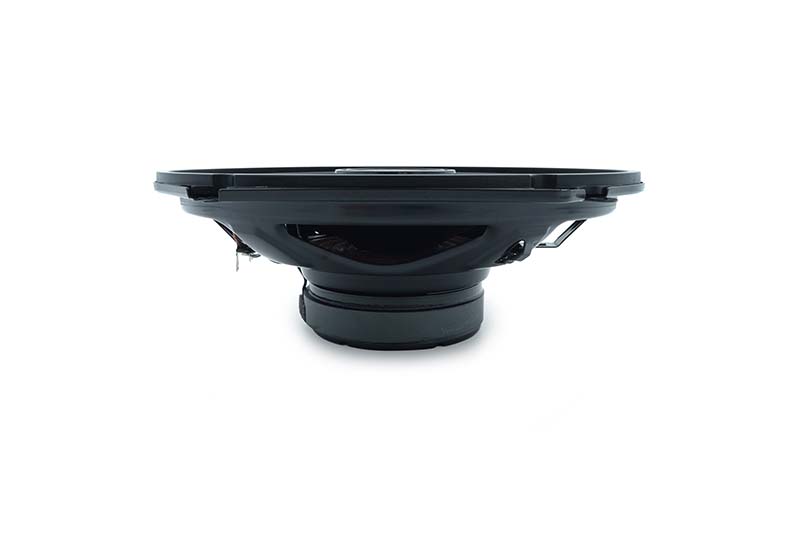

The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.
By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.
Stress leveling points increase durability and provide a smoother sound response.
KFC-D691 | KFC-D681C | KFC-D161 | KFC-D131 | KFC-D101 | |
---|---|---|---|---|---|
Peak Input Power | 600W | 360W | 320W | 320W | 220W |
Rated Input Power | 140W | 81W | 100W | 75W | 50W |
Impedance | 4Ω | 4Ω | 4Ω | 4Ω | 4Ω |
Woofer Features | 6 x 9 inch Polypropylene Cone | 6 x 8 inch Polypropylene Cone | 6-1/2 inch Polypropylene Cone | 5-1/4 inch Polypropylene Cone | 4 inch Polypropylene Cone |
Tweeter Features | 1-3/4 inch Balanced Dome | 1-3/16 inch Balanced Dome | 1-3/16 inch Balanced Dome | 1 inch Balanced Dome | 1 inch Balanced Dome |
Super Tweeter Features | 4/5 inch Ceramic Tweeter | - | - | - | - |
Super Tweeter Features | 1/2 inch Ceramic Tweeter | - | - | - | - |
Specifications | |||||
Sensitivity | 88 dB/ W / m | 88 dB/ W / m | 88 dB/ W / m | 85 dB/ W / m | 85 dB/ W / m |
Frequency Response | 60Hz -22KHz | 58Hz -24KHz | 75Hz -24KHz | 80Hz -25KHz | 114Hz -25KHz |
Cutout Diameter | 5-7/8 x 8-5/8 inch | 5-1/8 x 7-3/8 inch | 4-7/8 inch | 4-7/16 inch | 3-11/16inch |
Mounting Depth | 3-3/16 inch | 2-3/8 inch | 1-7/8 inch | 1-13/16 inch | 1-11/16 inch |
Gross Weight | 6.4lbs | 3.7lbs | 3.6lbs | 2.5lbs | 2.3lbs |
Weight of Magnet(Woofer) | 0.75lbs | 0.5lbs | 0.6lbs | 0.35lbs | 0.35lbs |
The above "referred" online retailers are authorized by KENWOOD.
They are listed here based upon meeting specific operational criteria and offer a very informative shopping experience,
along with exceptional customer service.
KENWOOD's manufacturer's warranty and any rebates offered by KENWOOD are not valid when purchased from an unauthorized dealer.
Buying from an unauthorized dealer also increases your risk of buying fake or counterfeit products.
ELECTRICAL | Impedance(Ω) | 4Ω | |
---|---|---|---|
Peak Input Power(W) | 360W | ||
RMS Input Power(W) CTA standards |
81W | ||
Sensitivity (dB at 1m) CTA standards |
88dB | ||
Frequency Response(Hz) CTA standards |
58-24000Hz | ||
Woofer | Diaphragm / Color | PP Cone | Dark Gray |
Size | 145x204mm | 6x8 inch | |
Surround | Rubber | ||
Basket | Steel | ||
Magnet | Ferrite | φ80xt12 | |
Tweeter | Diaphragm / Color | Balanced Dome | Matte Black |
Size | 30mm | 1-3/16 inch | |
Magnet | Neodynium | ||
Dimension | Width (w_Gr) | - | - |
Width (w/o_Gr) | 203.7 mm | 8 in. | |
Height (w_Gr) | - | - | |
Height (w/o_Gr) | 145 mm | 5-11/16 in. | |
Top Height | 8 mm | 5/16 in. | |
Cutout Diameter | 129.8x187.8 mm | 5-1/8x7-3/8 in. | |
Mounting Depth | 60 mm | 2-3/8 in. | |
Weight | with Grille (pc.) | - | - |
without Grille (pc.) | 829g | 1.8 lb | |
Weight of Woofer Magnet | 230 g | 8.1 oz | |
Net Weight | 1.70 kg | 3.7 lb | |

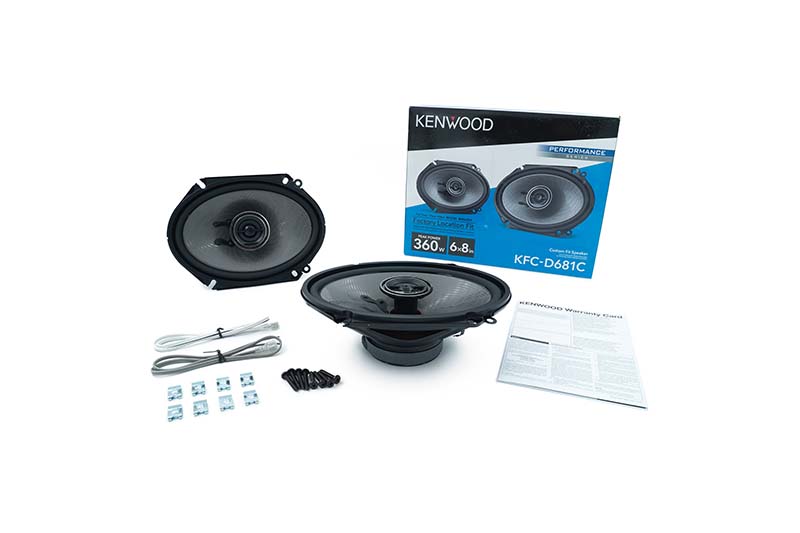

Accessory | Accessory | Tapping Screw | φ4x25*8pcs |
Speaker Cord | 0.3m*2pcs |
KFC-D681C
