KFC-D161
KFC-D161

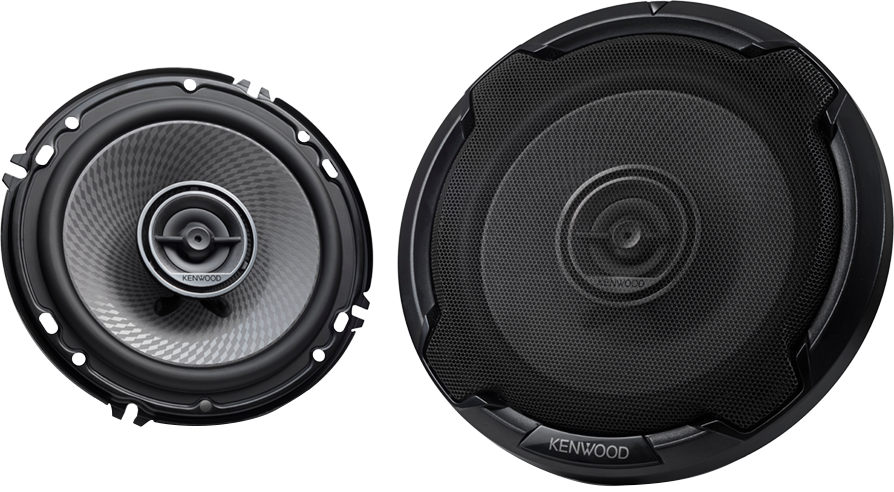

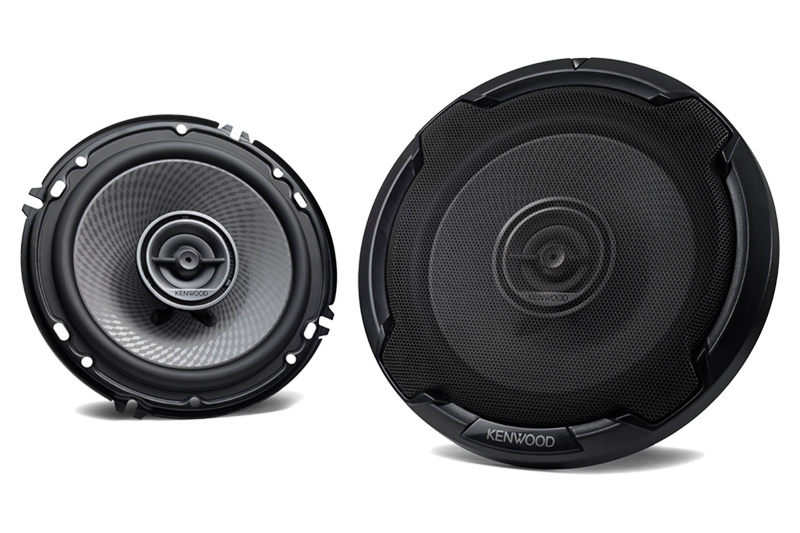

KFC-D1616-1/2" Round 2-way 2 Speaker(Discontinued)

  • Peak Power 320W
  • Diamond Array Pattern Woofer Cone
  • Acoustic Sound Harmonizer
  • Sound Field Enhancer

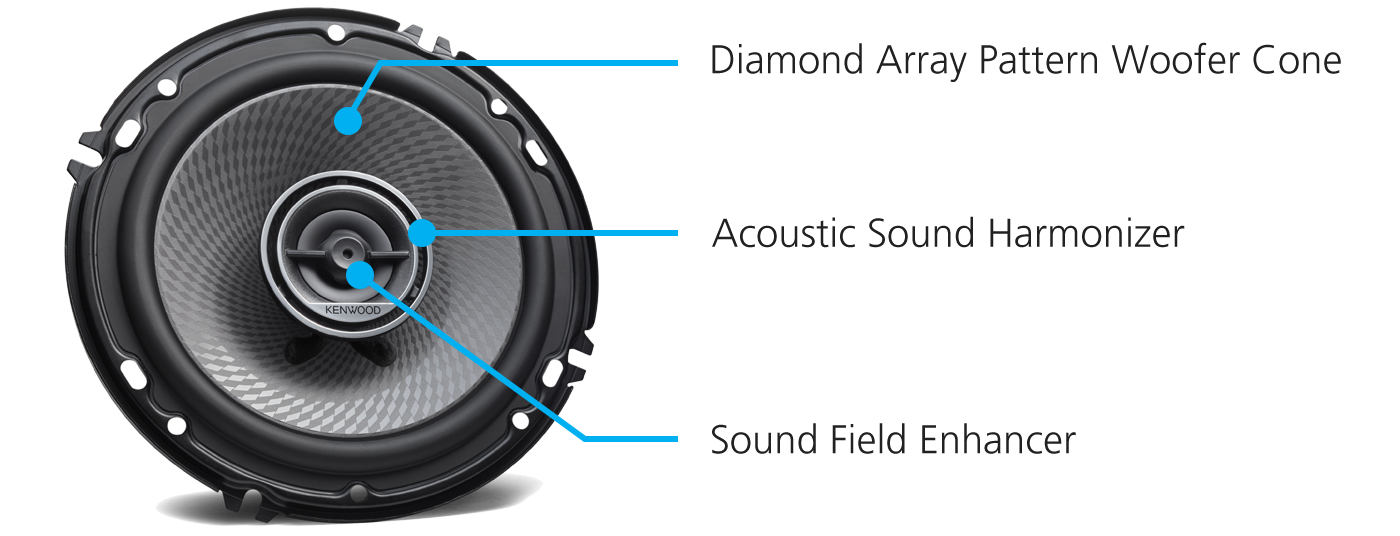

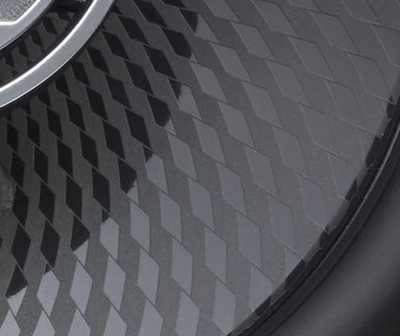

Diamond Array Pattern Woofer Cone

This technology enhances sound and reduces distortion.

Sound Field Enhancer

This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.

Acoustic Sound Harmonizer

Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

Factory Location Fit

The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.

1. Black Painted Yoke and Plate

By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.

2. New Woofer Damper Shape

Stress leveling points increase durability and provide a smoother sound response.

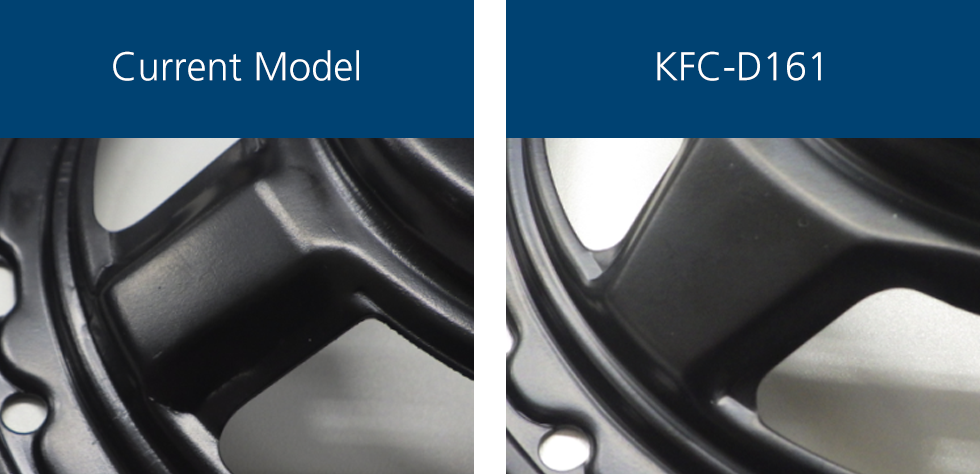

New Frame Design

Enlarged open area provides more bass and cleaner sound.

General Features

« scroll
KFC-D691 KFC-D681C KFC-D161 KFC-D131 KFC-D101
Peak Input Power 600W 360W 320W 320W 220W
Rated Input Power 140W 81W 100W 75W 50W
Impedance
Woofer Features 6 x 9 inch Polypropylene Cone 6 x 8 inch Polypropylene Cone 6-1/2 inch Polypropylene Cone 5-1/4 inch Polypropylene Cone 4 inch Polypropylene Cone
Tweeter Features 1-3/4 inch Balanced Dome 1-3/16 inch Balanced Dome 1-3/16 inch Balanced Dome 1 inch Balanced Dome 1 inch Balanced Dome
Super Tweeter Features 4/5 inch Ceramic Tweeter - - - -
Super Tweeter Features 1/2 inch Ceramic Tweeter - - - -
Specifications
Sensitivity 88 dB/ W / m 88 dB/ W / m 88 dB/ W / m 85 dB/ W / m 85 dB/ W / m
Frequency Response 60Hz -22KHz 58Hz -24KHz 75Hz -24KHz 80Hz -25KHz 114Hz -25KHz
Cutout Diameter 5-7/8 x 8-5/8 inch 5-1/8 x 7-3/8 inch 4-7/8 inch 4-7/16 inch 3-11/16inch
Mounting Depth 3-3/16 inch 2-3/8 inch 1-7/8 inch 1-13/16 inch 1-11/16 inch
Gross Weight 6.4lbs 3.7lbs 3.6lbs 2.5lbs 2.3lbs
Weight of Magnet(Woofer) 0.75lbs 0.5lbs 0.6lbs 0.35lbs 0.35lbs
« scroll
ELECTRICAL Impedance(Ω)
Peak Input Power(W) 320W
RMS Input Power(W)
CTA standards
100W
Sensitivity (dB at 1m)
CTA standards
88dB
Frequency Response(Hz)
CTA standards
75-24000Hz
Woofer Diaphragm / Color PP Cone Dark Gray
Size 160mm 6-1/2 inch
Surround Rubber
Basket Steel
Magnet Ferrite φ85xt12
Tweeter Diaphragm / Color Balanced Dome Matte Black
Size 30mm 1-3/16 inch
Magnet Neodynium
Dimension Width (w_Gr) 170 mm 6-11/16 in.
Width (w/o_Gr) 157.7 mm 6-3/16 in.
Height (w_Gr) 170 mm 6-11/16 in.
Height (w/o_Gr) 157.7 mm 6-3/16 in.
Top Height 9 mm 3/8 in.
Cutout Diameter 123.6 mm 4-7/8 in.
Mounting Depth 48 mm 1-7/8 in.
Weight with Grille (pc.) 823g 1.8 lb
without Grille (pc.) 748 g 1.6 lb
Weight of Woofer Magnet 270 g 9.5 oz
Net Weight 1.60 ㎏ 3.6 lb

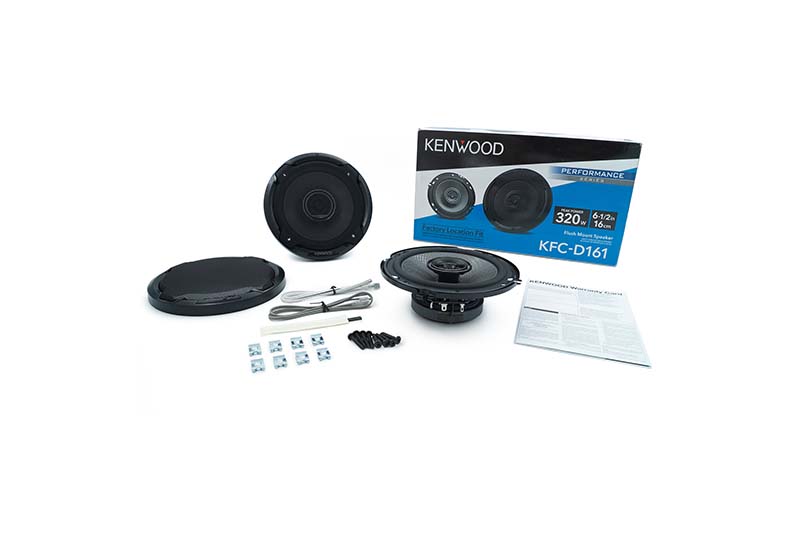

Accessory Grille Assy 2pcs
Accessory Tapping Screw φ4x25*8pcs
Speed Nut 8pcs
Speaker Cord 0.5m*2
Adhesive Tape 1set
