KFC-C6896PS
KFC-C6896PS

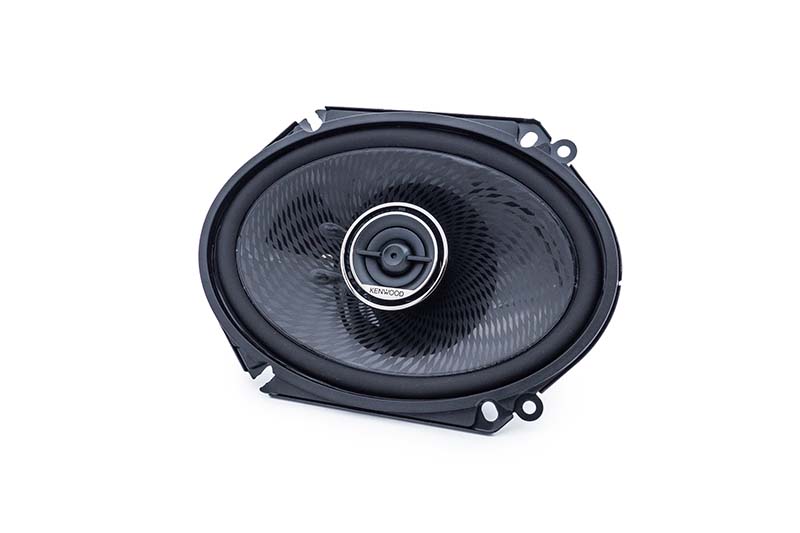

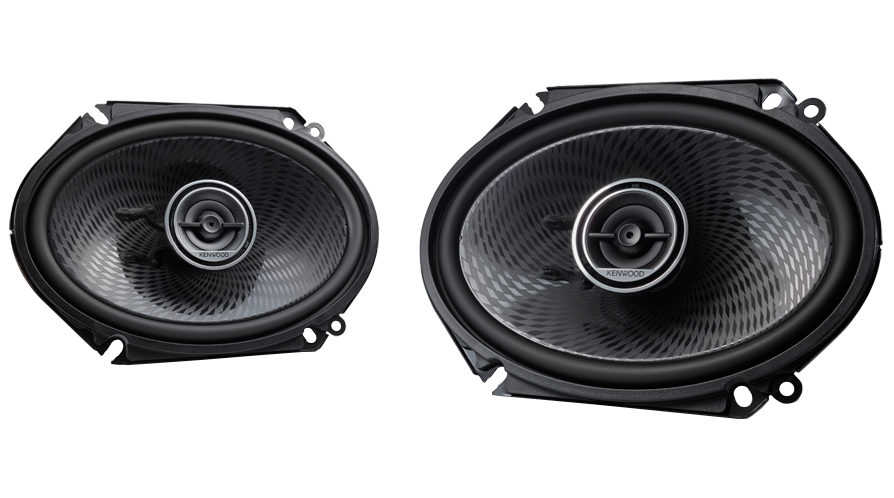

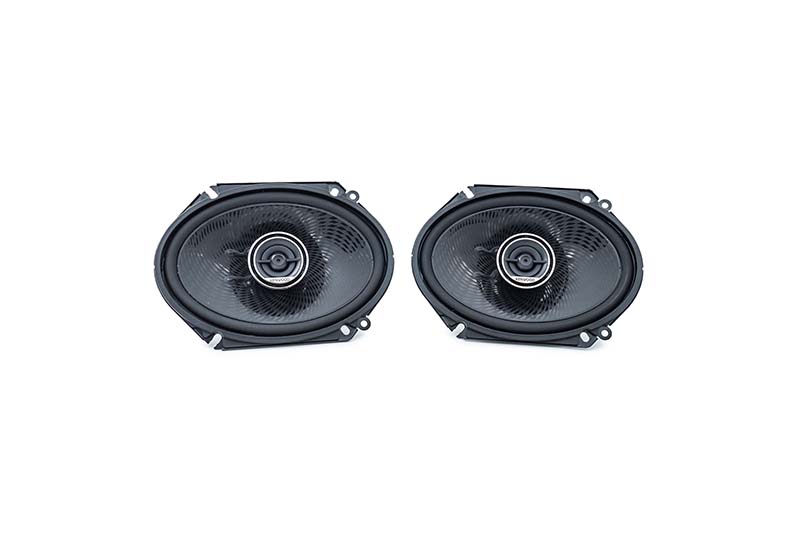

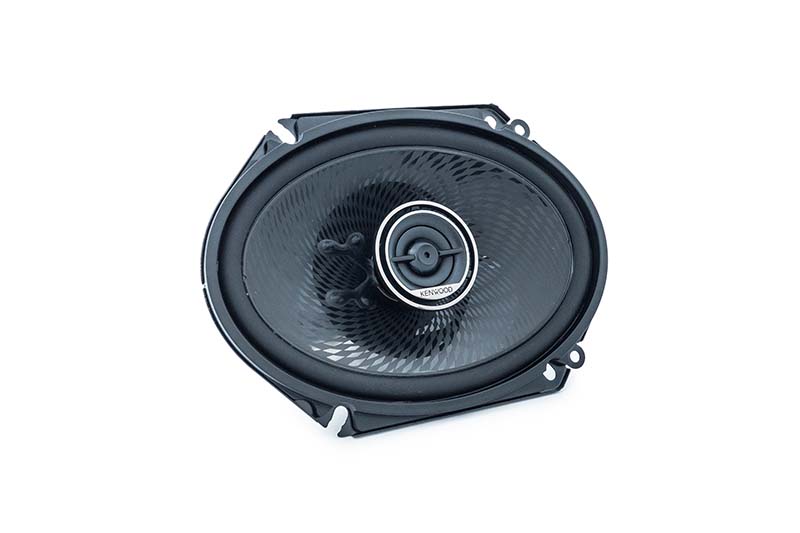

KFC-C6896PS6x8" Oval Custom Fit 2-way 2 Speaker

  • Peak Power 360W
  • Diamond Array Pattern Woofer Cone
  • Acoustic Sound Harmonizer
  • Sound Field Enhancer

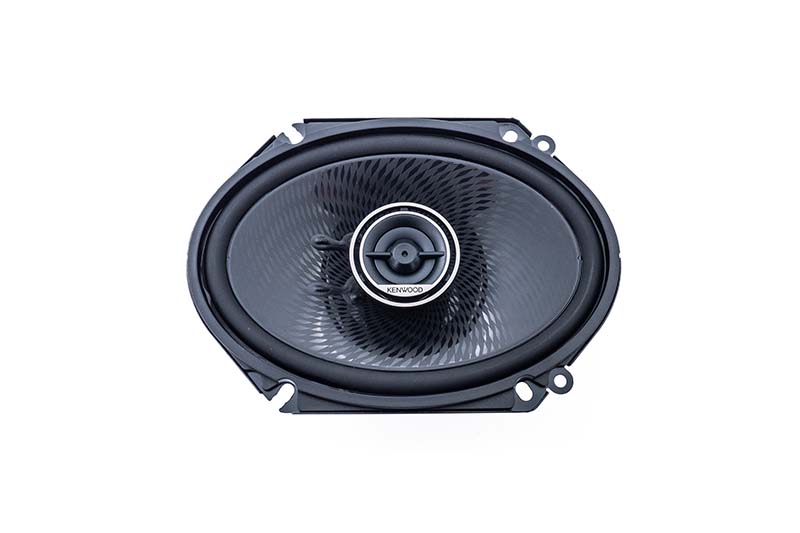

Diamond Array Pattern Woofer Cone

This technology enhances sound and reduces distortion.

Sound Field Enhancer

This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.

Acoustic Sound Harmonizer

Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

Factory Location Fit

The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.

1. Black Painted Yoke and Plate

By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.

2. New Woofer Damper Shape

Stress leveling points increase durability and provide a smoother sound response.

General Features

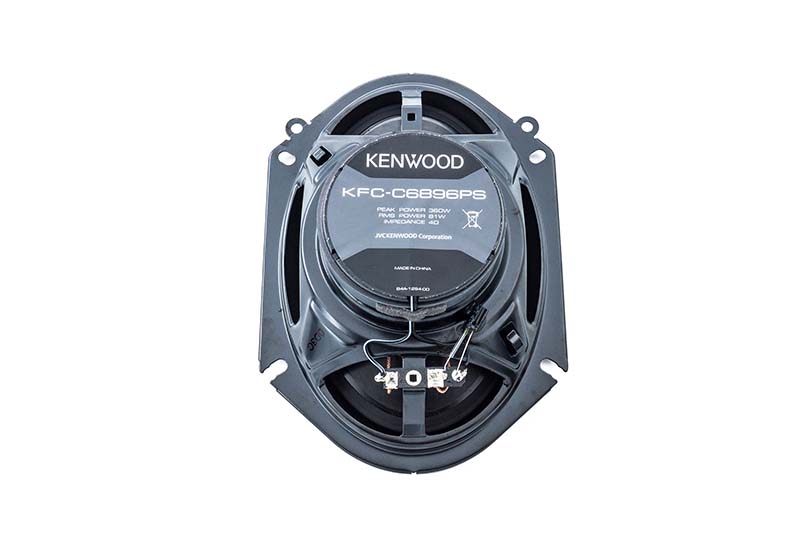

Peak Input Power 360W
Rated Input Power 81W
Impedance
Woofer Features 6 x 8 inch Polypropylene Cone
Tweeter Features 1-3/16 inch Balanced Dome
Specifications
Sensitivity 88 dB/ W / m
Frequency Response 58Hz -24KHz
Cutout Diameter 5-1/8 x 7-3/8 inch
Mounting Depth 2-3/8 inch
Gross Weight 3.7lbs
Weight of Magnet(Woofer) 0.5lbs
« scroll
ELECTRICAL Impedance(Ω)
Peak Input Power(W) 360W
RMS Input Power(W)
CTA standards
81W
Sensitivity (dB at 1m)
CTA standards
88dB
Frequency Response(Hz)
CTA standards
58-24000Hz
Woofer Diaphragm / Color PP Cone Black
Size 145x204mm 6x8 inch
Surround Rubber
Basket Steel
Magnet Ferrite φ80xt12
Tweeter Diaphragm / Color Balanced Dome Matte Black
Size 30mm 1-3/16 inch
Magnet Neodynium
Dimension Width (w_Gr) - -
Width (w/o_Gr) 203.7 mm 8 in.
Height (w_Gr) - -
Height (w/o_Gr) 145 mm 5-11/16 in.
Top Height 8 mm 5/16 in.
Cutout Diameter 129.8x187.8 mm 5-1/8x7-3/8 in.

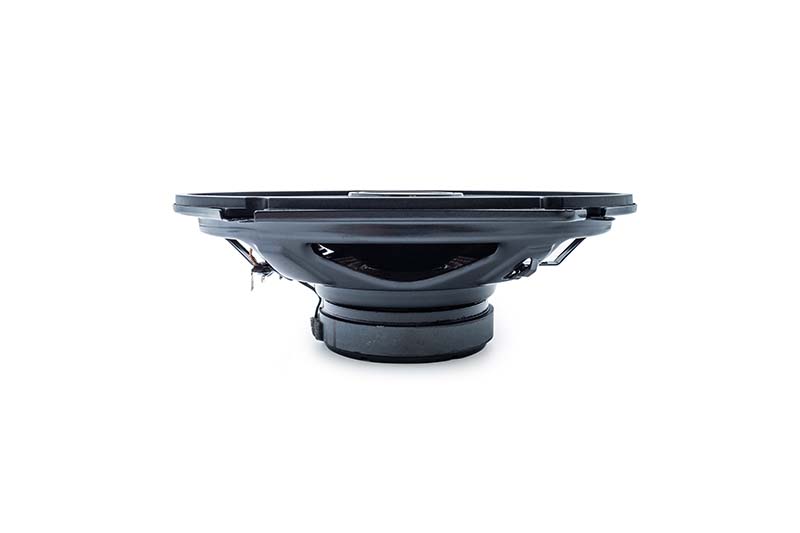

Mounting Depth 60 mm 2-3/8 in.
Weight with Grille (pc.) - -
without Grille (pc.) 829g 1.8 lb
Weight of Woofer Magnet 230 g 8.1 oz
Net Weight 1.70 kg 3.7 lb

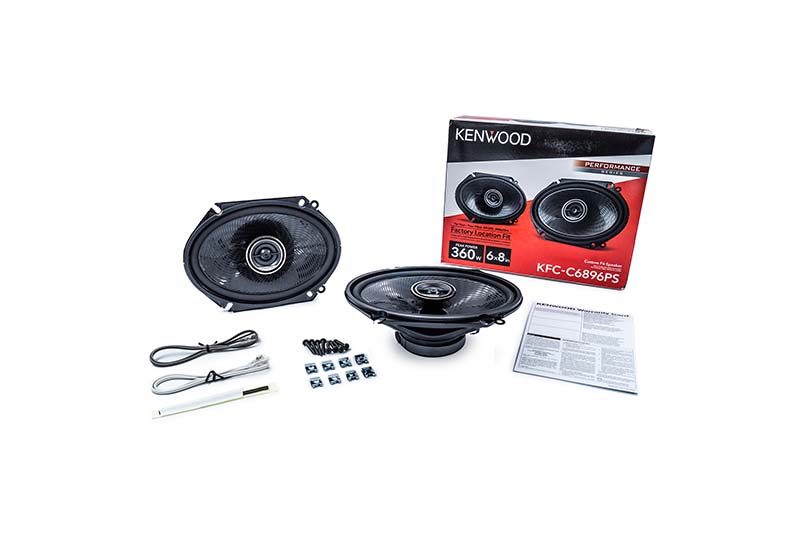

Accessory Accessory Tapping Screw φ4x25*8pcs
Speaker Cord 0.3m*2pcs
