KFC-6986PS
KFC-6986PS

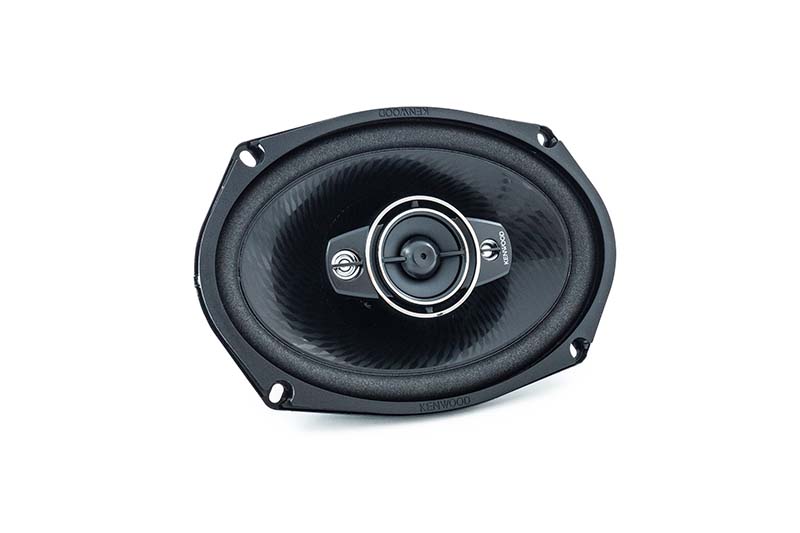

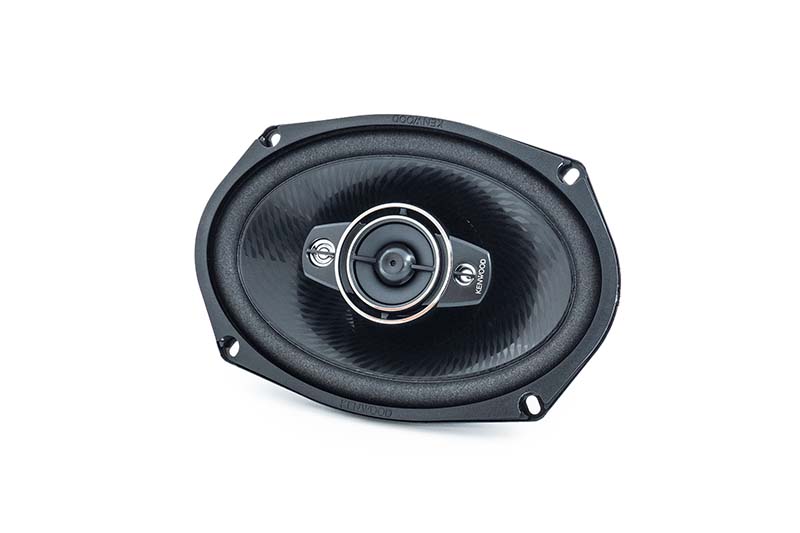

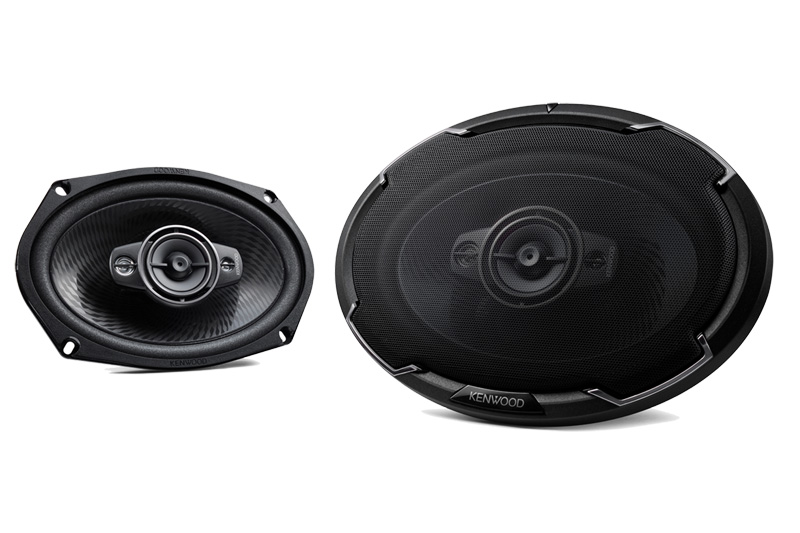

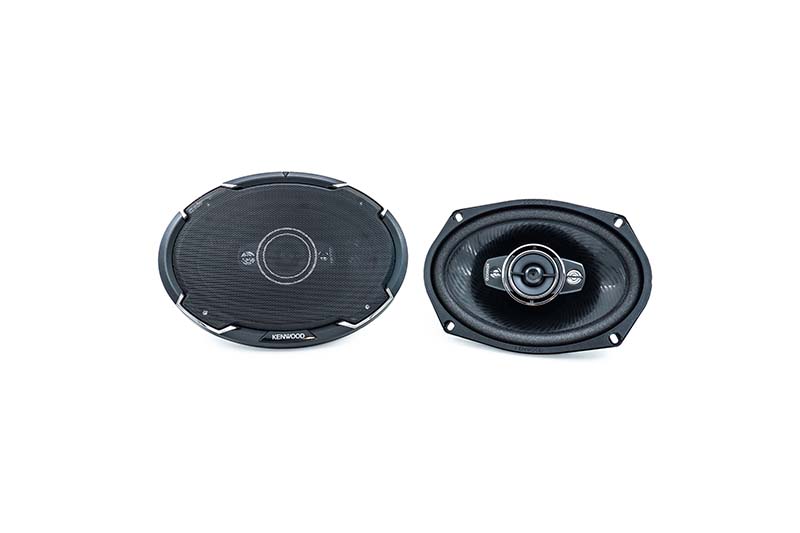

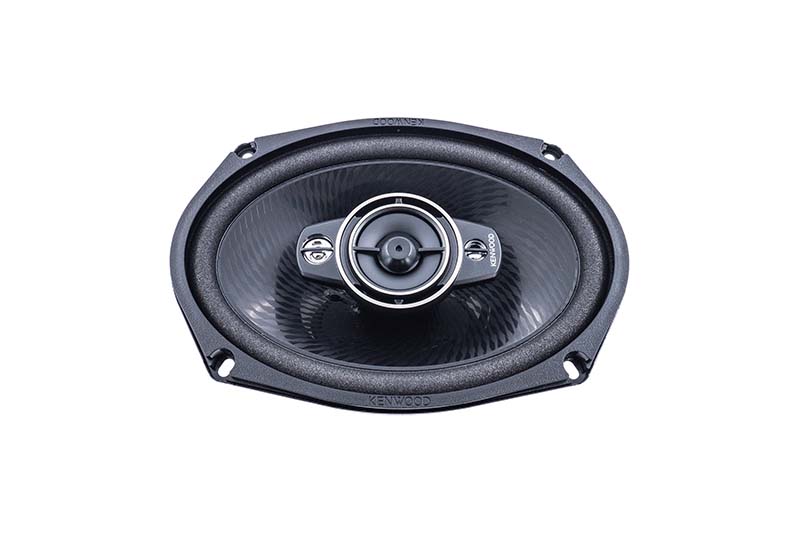

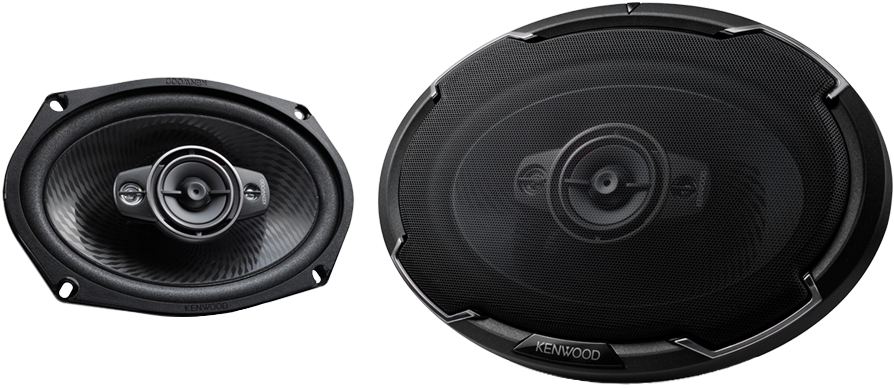

KFC-6986PS6x9" Oval 4-way 4 Speaker

  • Peak Power 600W
  • Diamond Array Pattern Woofer Cone
  • Acoustic Sound Harmonizer
  • Sound Field Enhancer

Diamond Array Pattern Woofer Cone

This technology enhances sound and reduces distortion.

Sound Field Enhancer

This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.

Acoustic Sound Harmonizer

Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

Factory Location Fit

The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.

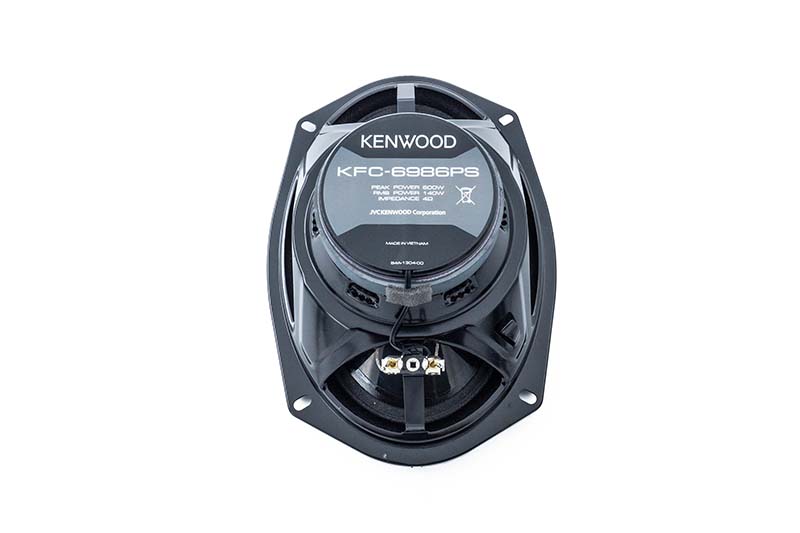

1. Black Painted Yoke and Plate

By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.

2. New Woofer Damper Shape

Stress leveling points increase durability and provide a smoother sound response.

New Frame Design

Enlarged open area provides more bass and cleaner sound.

General Features

Peak Input Power 600W
Rated Input Power 140W
Impedance
Woofer Features 6 x 9 inch Polypropylene Cone
Tweeter Features 1-3/4 inch Balanced Dome
Super Tweeter Features 4/5 inch Ceramic Tweeter
Super Tweeter Features 1/2 inch Ceramic Tweeter
Specifications
Sensitivity 88 dB/ W / m
Frequency Response 60Hz -22KHz
Cutout Diameter 5-7/8 x 8-5/8 inch
Mounting Depth 3-3/16 inch
Gross Weight 6.4lbs
Weight of Magnet(Woofer) 0.75lbs

The above "referred" online retailers are authorized by KENWOOD.
They are listed here based upon meeting specific operational criteria and offer a very informative shopping experience,
along with exceptional customer service.

We want you to have the BEST product/support experience!

KENWOOD's manufacturer's warranty and any rebates offered by KENWOOD are not valid when purchased from an unauthorized dealer.
Buying from an unauthorized dealer also increases your risk of buying fake or counterfeit products.

« scroll
ELECTRICAL Impedance(Ω)
Peak Input Power(W) 600W
RMS Input Power(W)
CTA standards
140W
Sensitivity (dB at 1m)
CTA standards
88dB
Frequency Response(Hz)
CTA standards
60-22000Hz
Woofer Diaphragm / Color PP Cone Black
Size 153x229mm 6x9 inch
Surround Urethane
Basket Steel
Magnet Ferrite φ90xt15
Tweeter Diaphragm / Color Balanced Dome Matte Black
Size 44mm 1-3/4 inch
Magnet Ferrite
Super Tweeter1 Diaphragm / Color Cermic Silver
Size 20mm 4/5 inch
Super Tweeter2 Diaphragm / Color Cermic Silver
Size 12mm 1/2 inch
Dimension Width (w_Gr) 266.1 mm 10-1/2 in.
Width (w/o_Gr) 236.4 mm 9-5/16 in.
Height (w_Gr) 197.3 mm 7-3/4 in.
Height (w/o_Gr) 164 mm 6-7/16 in.
Top Height 12.0 mm 1/2 in.
Cutout Diameter 149.5x218.5 mm 5-7/8x8-5/8 in.

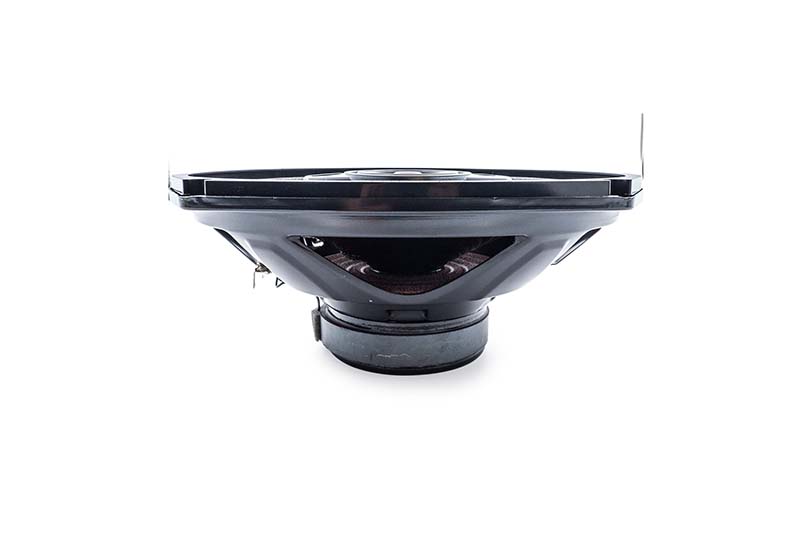

Mounting Depth 80.5 mm 3-3/16 in.
Weight with Grille (pc.) 1,460g 3.2 lb
without Grille (pc.) 1,320g 2.9 lb
Weight of Woofer Magnet 340 g 12.0 oz
Net Weight 2.92 kg 6.4 lb

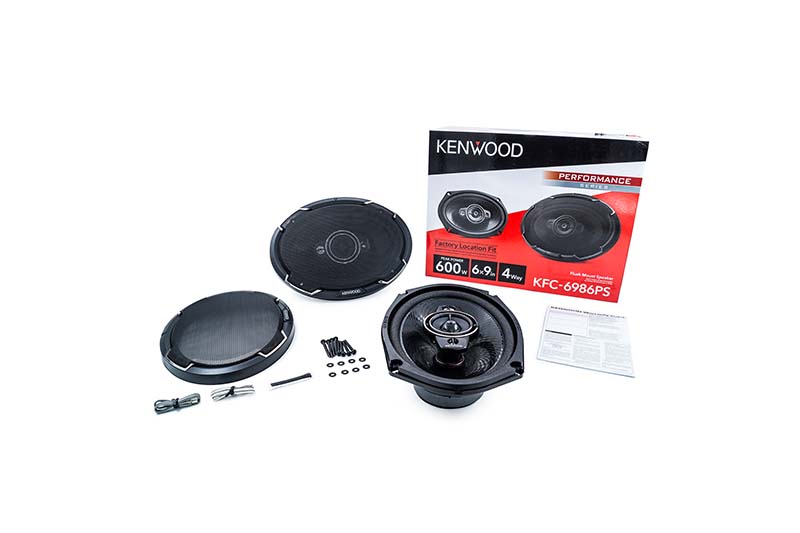

Accessory Grille Assy 2pcs
Accessory Tapping Screw φ4x40*8pcs
Flat Washer Φ4 8pcs
Speaker Cord 0.3m*2pcs
Adhesive Tape 1set
