KFC-1796PS
KFC-1796PS

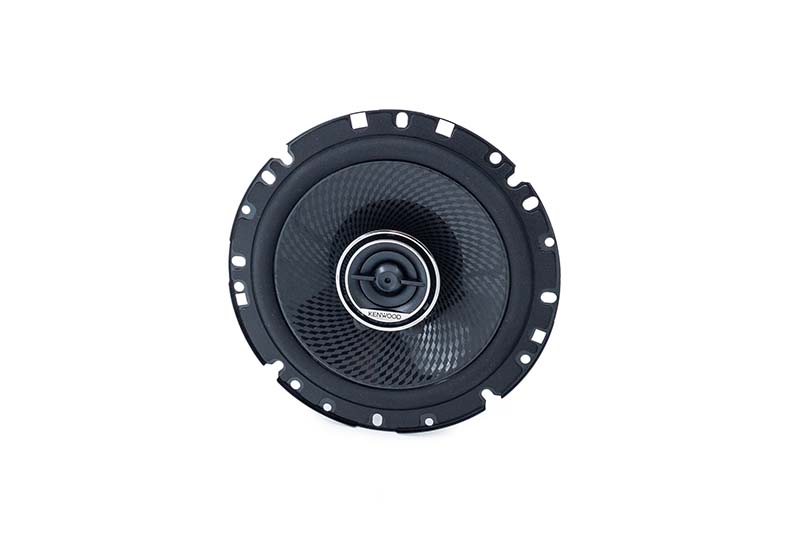

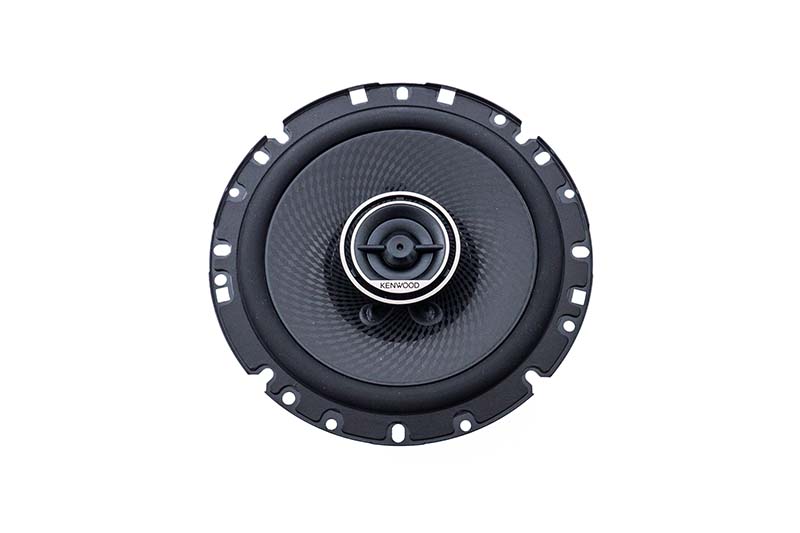

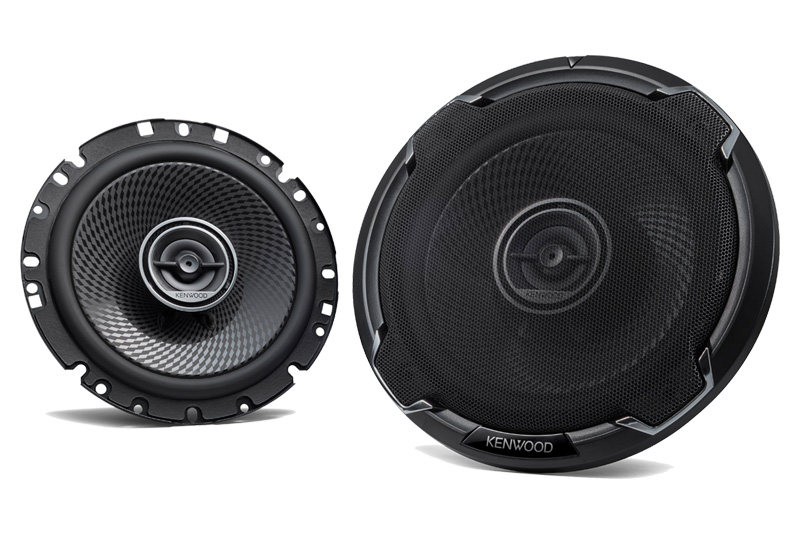

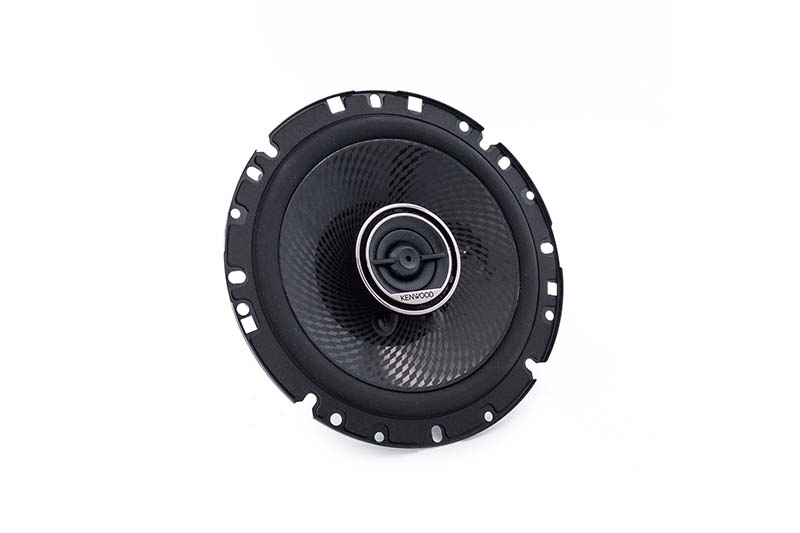

KFC-1796PS6-3/4" Round 2-way 2 Speaker

  • Peak Power 330W
  • Diamond Array Pattern Woofer Cone
  • Acoustic Sound Harmonizer
  • Sound Field Enhancer

Diamond Array Pattern Woofer Cone

This technology enhances sound and reduces distortion.

Sound Field Enhancer

This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.

Acoustic Sound Harmonizer

Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

Factory Location Fit

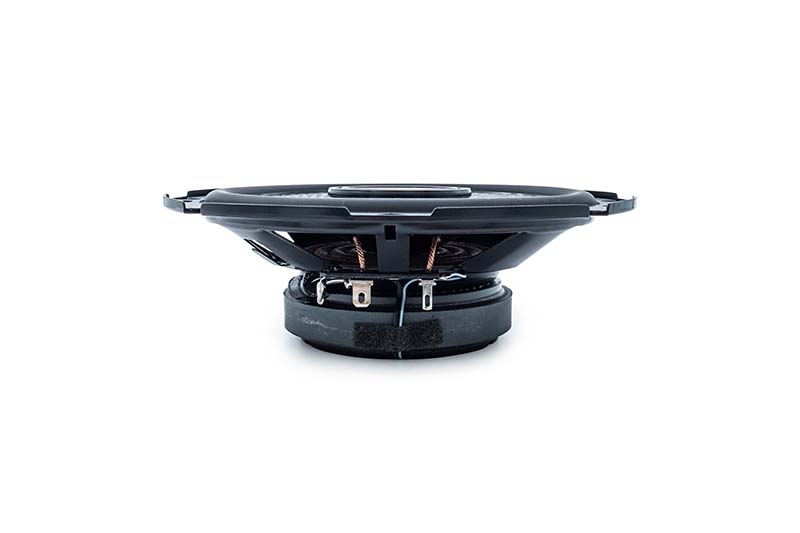

The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.

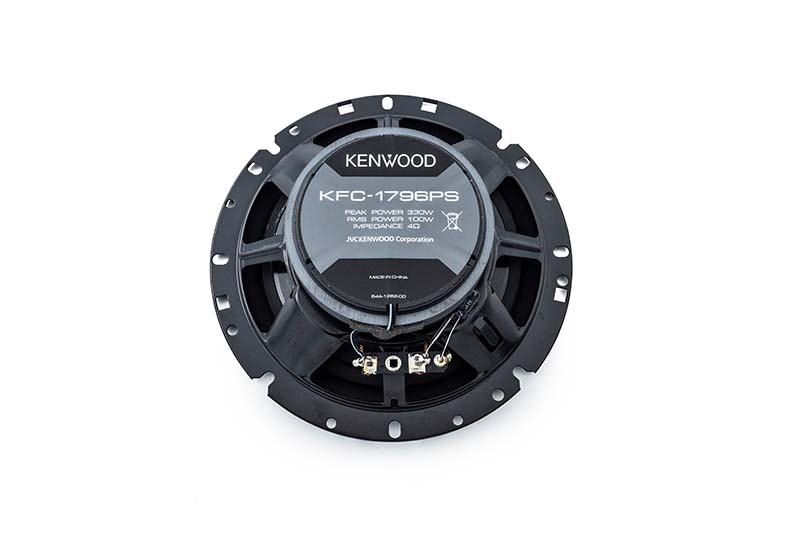

1. Black Painted Yoke and Plate

By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.

2. New Woofer Damper Shape

Stress leveling points increase durability and provide a smoother sound response.

New Frame Design

Enlarged open area provides more bass and cleaner sound.

Specs

Peak Input Power 330W
Rated Input Power 100W
Impedance
Woofer Features 6-3/4 inch Paper Cone
Midrange Features 1-3/16 inch Paper Cone
Specifications
Sensitivity 88 dB/ W / m
Frequency Response 72Hz -24KHz
Cutout Diameter 5-1/2 inch
Mounting Depth 1-7/8 inch
Gross Weight 3.6lbs
Weight of Magnet(Woofer) 0.6lbs
« scroll
ELECTRICAL Impedance(Ω)
Peak Input Power(W) 330W
RMS Input Power(W)
CTA standards
100W
Sensitivity (dB at 1m)
CTA standards
88dB
Frequency Response(Hz)
CTA standards
72-24000Hz
Woofer Diaphragm / Color PP Cone Black
Size 170mm 6-3/4 inch
Surround Rubber
Basket Steel
Magnet Ferrite φ85xt12
Tweeter Diaphragm / Color Balanced Dome Matte Black
Size 30mm 1-3/16 inch
Magnet Neodynium
Dimension Width (w_Gr) 179 mm 7-1/16 in.
Width (w/o_Gr) 165 mm 6-1/2 in.
Height (w_Gr) 179 mm 7-1/16 in.
Height (w/o_Gr) 165 mm 6-1/2 in.
Top Height 6 mm 1/4 in.
Cutout Diameter 139.6 mm 5-1/2 in.
Mounting Depth 48 mm 1-7/8 in.
Weight with Grille (pc.) 813g 1.8 lb
without Grille (pc.) 733 g 1.6 lb
Weight of Woofer Magnet 270 g 9.5 oz
Net Weight 1.60 ㎏ 3.6 lb

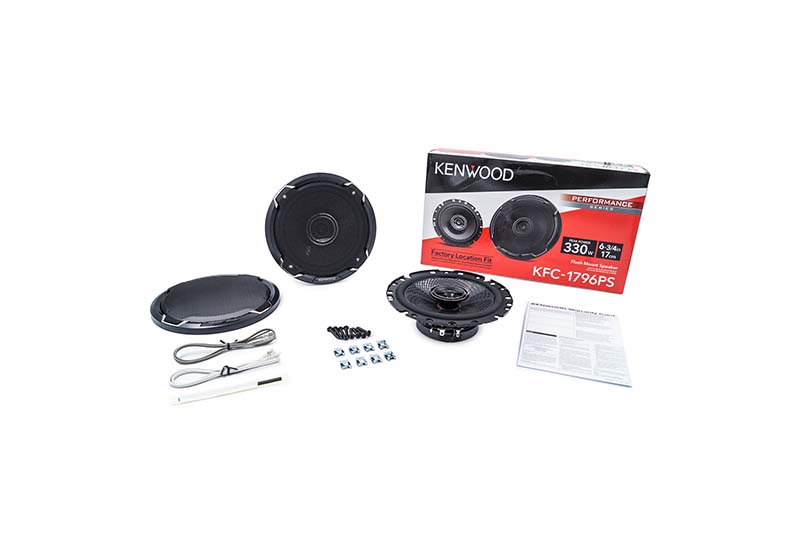

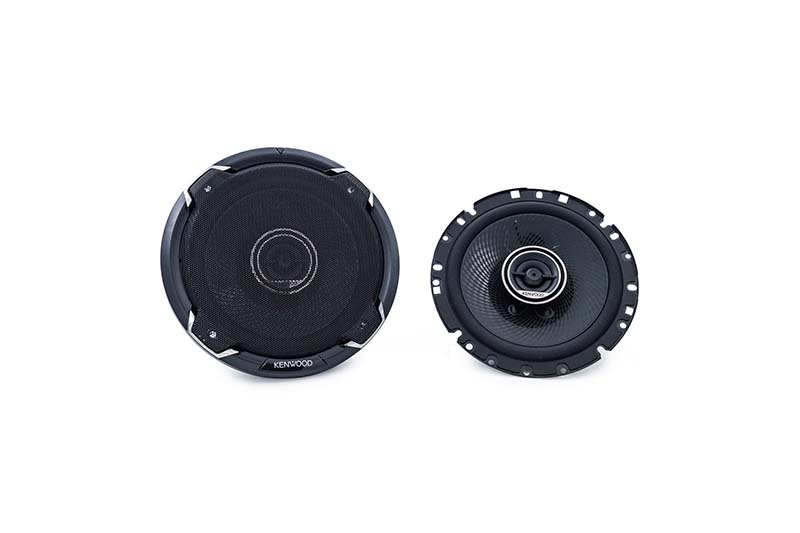

Accessory Grille Assy 2pcs
Accessory Tapping Screw φ4x25*8pcs
Speed Nut 8pcs
Speaker Cord 0.5m*2pcs
Adhesive Tape 1set
