KFC-1396PS
KFC-1396PS

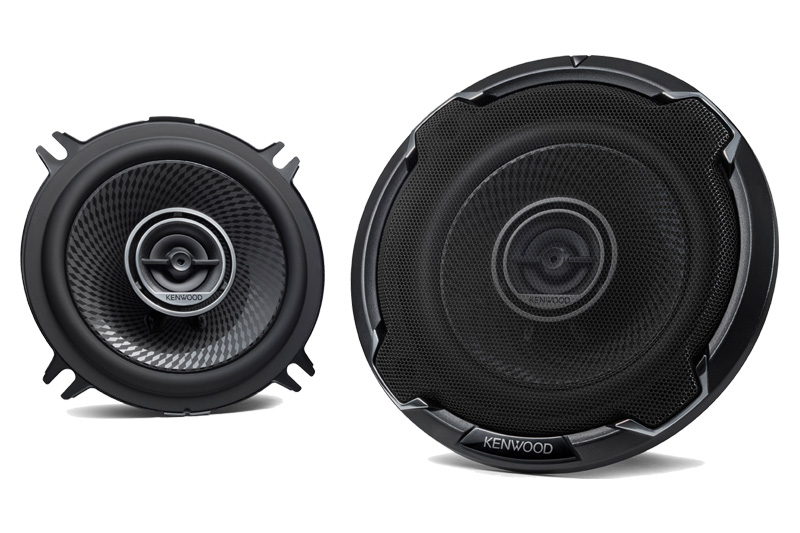

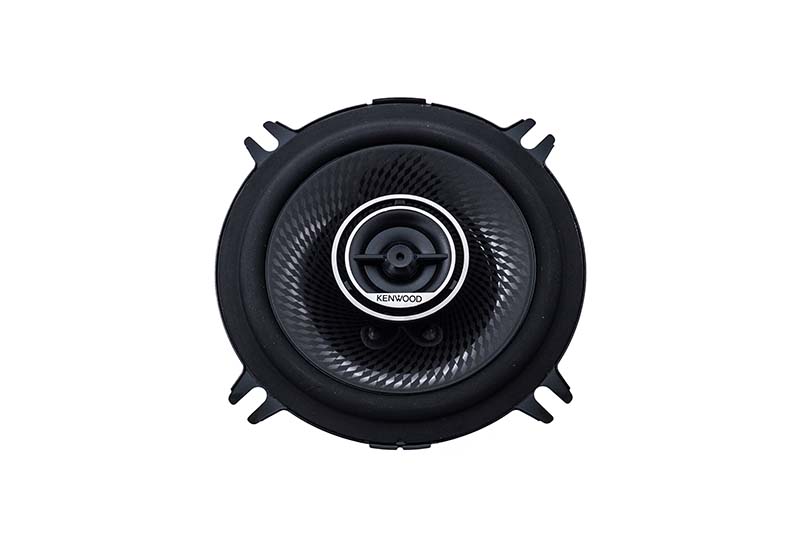

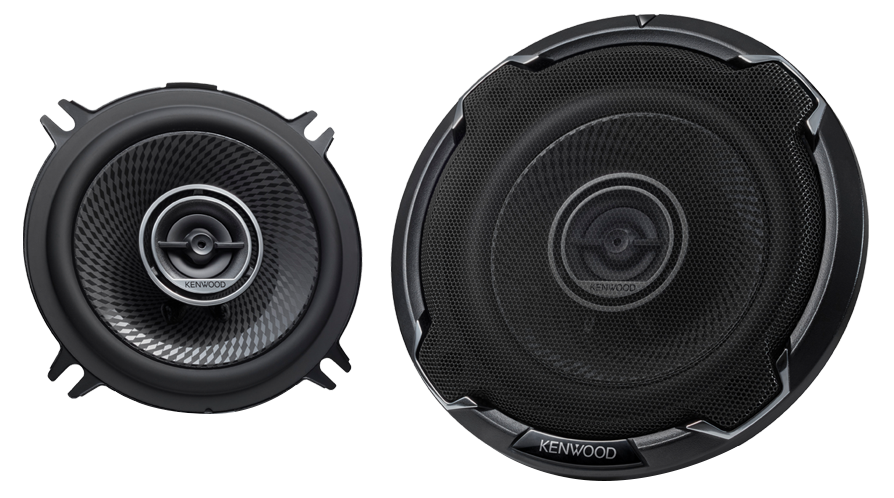

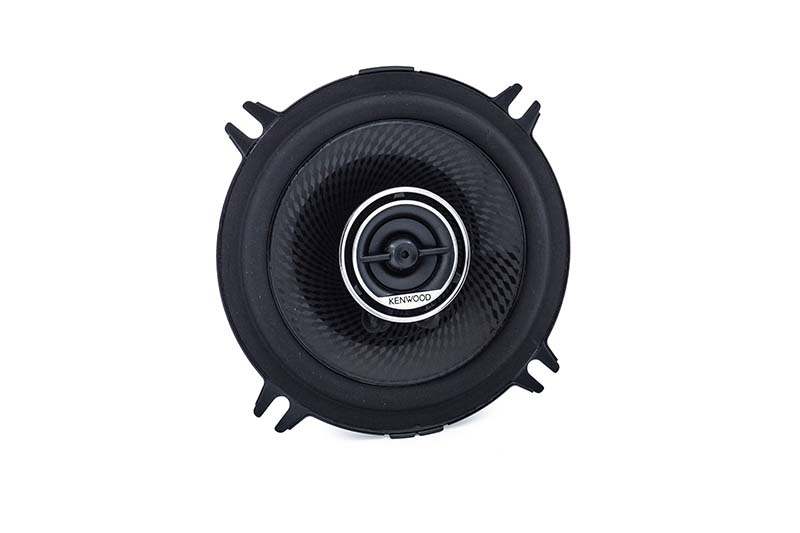

KFC-1396PS5-1/4" Round 2-way 2 Speaker

  • Peak Power 320W
  • Diamond Array Pattern Woofer Cone
  • Acoustic Sound Harmonizer
  • Sound Field Enhancer

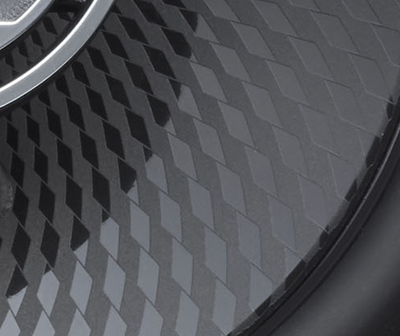

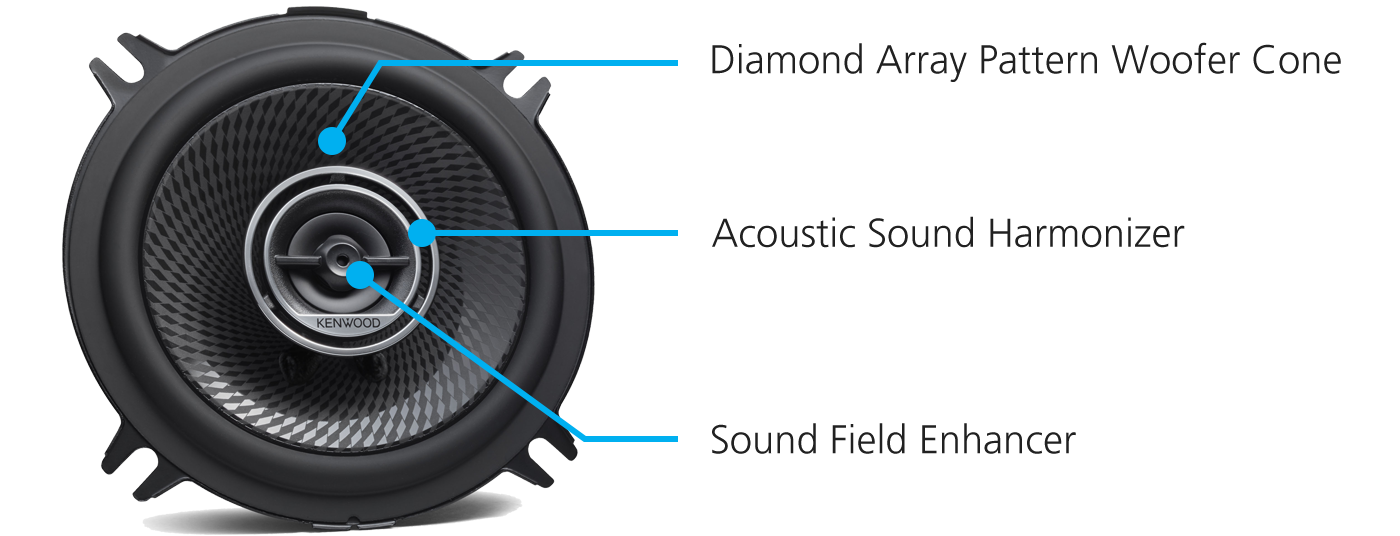

Diamond Array Pattern Woofer Cone

This technology enhances sound and reduces distortion.

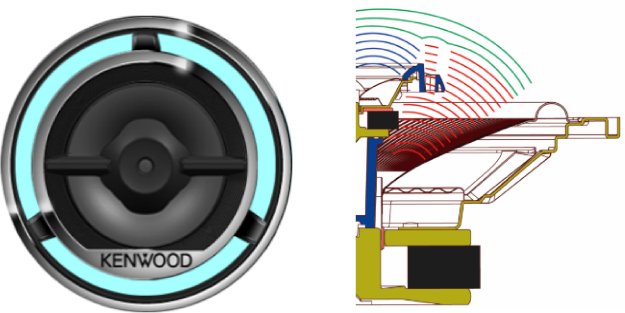

Sound Field Enhancer

This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.

Acoustic Sound Harmonizer

Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

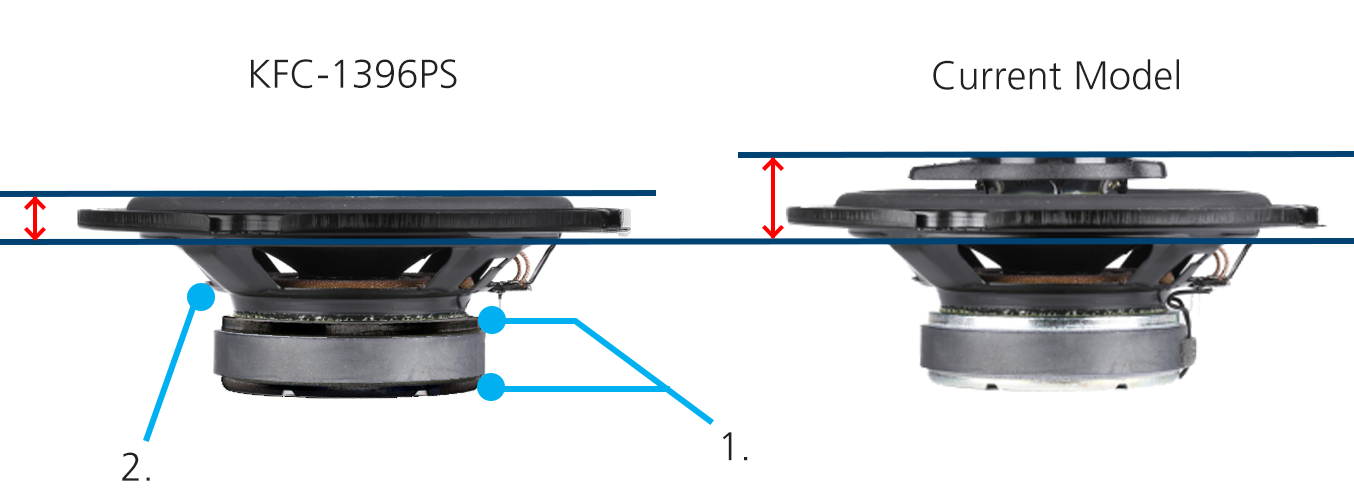

Factory Location Fit

The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.

1. Black Painted Yoke and Plate

By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.

2. New Woofer Damper Shape

Stress leveling points increase durability and provide a smoother sound response.

General Features

Peak Input Power 320W
Rated Input Power 75W
Impedance
Woofer Features 5-1/4 inch Polypropylene Cone
Tweeter Features 1 inch Balanced Dome
Specifications
Sensitivity 85 dB/ W / m
Frequency Response 80Hz -25KHz
Cutout Diameter 4-7/16 inch
Mounting Depth 1-13/16 inch
Gross Weight 2.5lbs
Weight of Magnet(Woofer) 0.35lbs
« scroll
ELECTRICAL Impedance(Ω)
Peak Input Power(W) 320W
RMS Input Power(W)
CTA standards
75W
Sensitivity (dB at 1m)
CTA standards
85dB
Frequency Response(Hz)
CTA standards
80-25000Hz
Woofer Diaphragm / Color PP Cone Black
Size 130mm 5-1/4 inch
Surround Rubber
Basket Steel
Magnet Ferrite φ70xt10
Tweeter Diaphragm / Color Balanced Dome Matte Black
Size 25mm 1 inch
Magnet Neodynium
Dimension Width (w_Gr) 158 mm 6-1/4 in.
Width (w/o_Gr) 131 mm 5-3/16 in.
Height (w_Gr) 158 mm 6-1/4 in.
Height (w/o_Gr) 131 mm 5-3/16 in.
Top Height 7 mm 1/4 in.
Cutout Diameter 112.6 mm 4-7/16 in.
Mounting Depth 46 mm 1-13/16 in.
Weight with Grille (pc.) 563g 1.2 lb
without Grille (pc.) 500 g 1.1 lb
Weight of Woofer Magnet 160 g 5.6 oz
Net Weight 1.10 ㎏ 2.5 lb

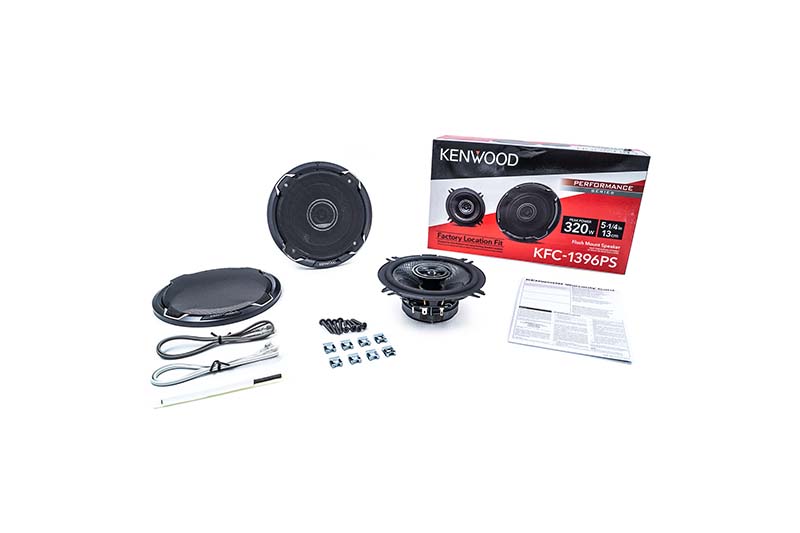

Accessory Grille Assy 2pcs
Accessory Tapping Screw φ4x25*8pcs
Speed Nut 8pcs
Speaker Cord 0.5m*2
Adhesive Tape 1set
