DNR476S
DNR476S

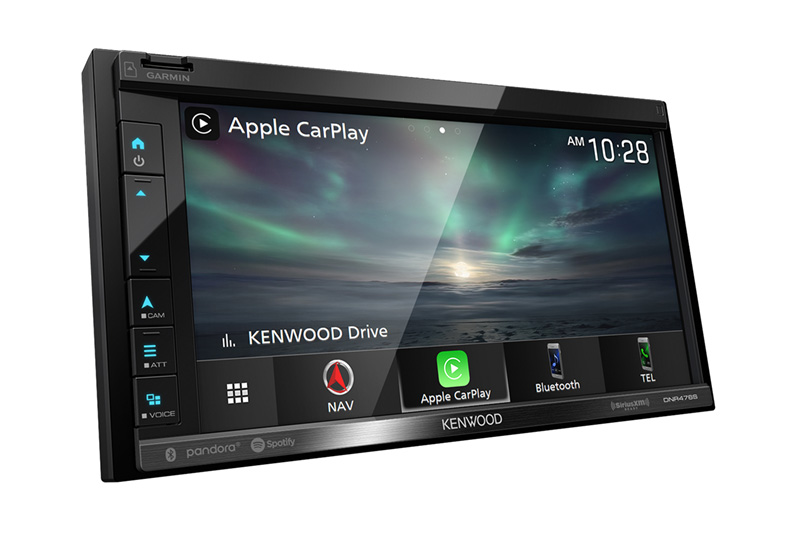

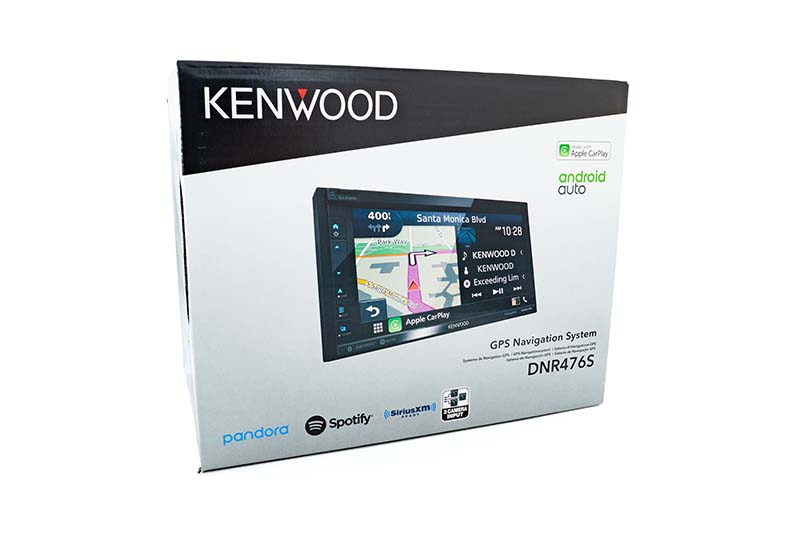

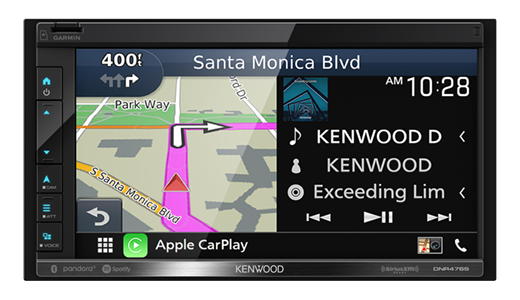

DNR476SGPS Navigation System
6.8" Digital Multimedia Receiver

  • 6.8" WVGA Monitor

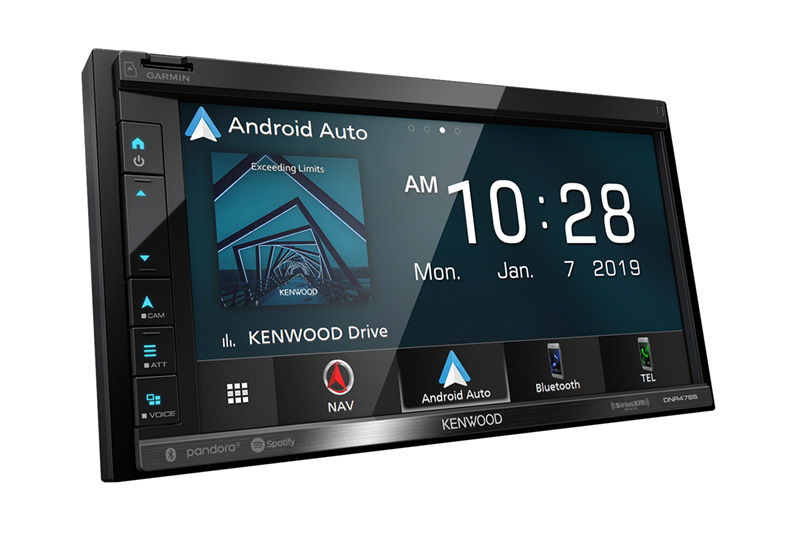

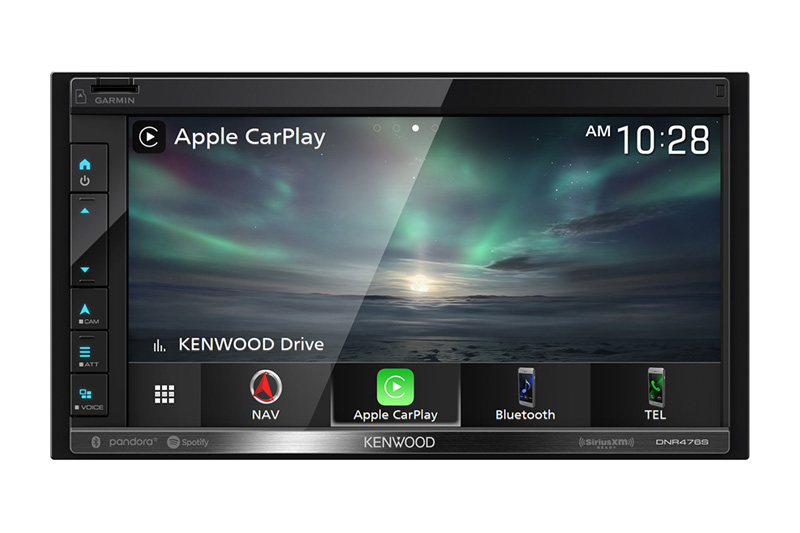

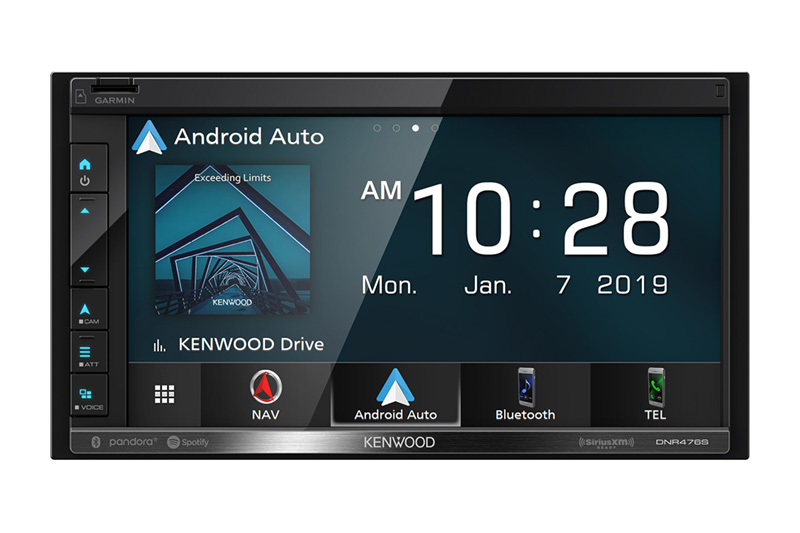

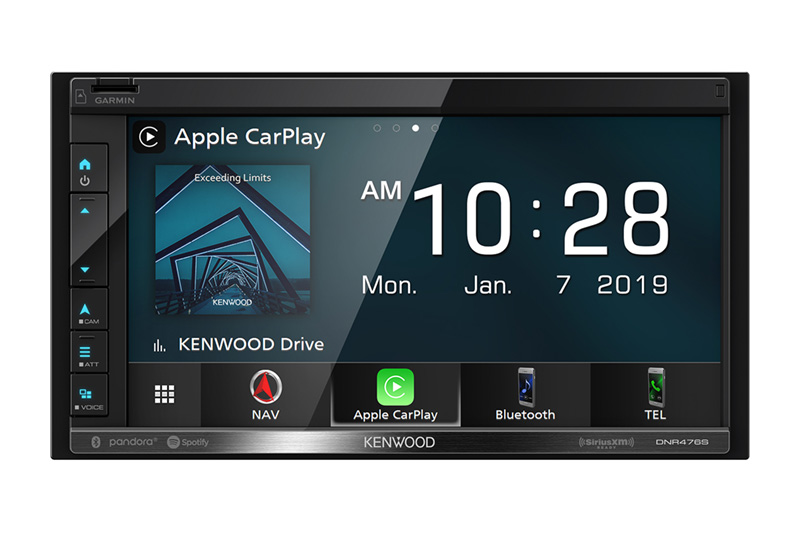

  • Apple CarPlay® & Android Auto™ Ready
  • High-Resolution Audio Ready
  • Customizable Multi Widget Screen
  • 3 Camera Inputs
  • Built-in Bluetooth
  • 3 Preouts 4V

Features

*Important Notice for INRIX Service.

Product Registration

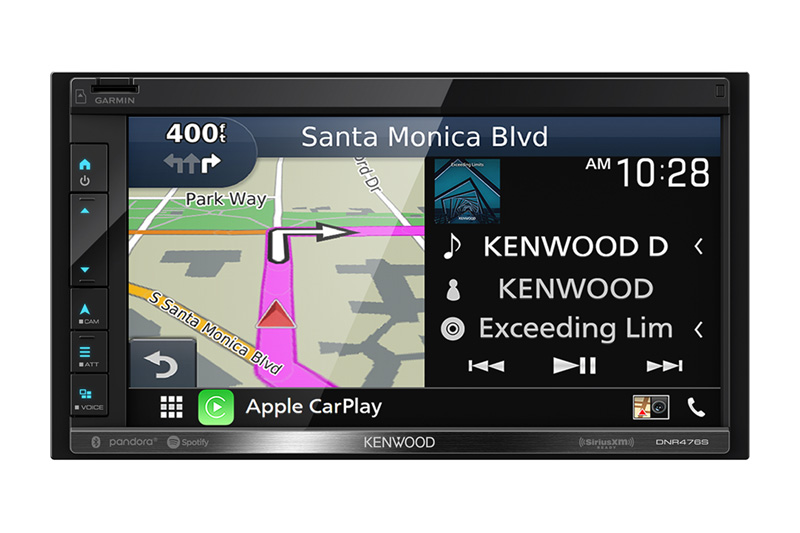

Advanced Navigation

Equipped with the industry leading Garmin navigation software,
offering a variety of display options to make your driving easier.

Learn More

Smartphone Connectivity

Enjoy built-in Bluetooth for convenient access to hands-free calls
and streaming music, as well as the ability to use your
smartphone like a wireless remote control.

Learn More

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files.
Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Learn More

Safe Driving

Keeping you safe on the road ahead is our top priority.

Learn More

Additional Features

Learn about exciting product features and highlights.

Learn More

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Entertainment System

  • Clear Resistive Touch Panel

    A clear screen designed to reduce glare that includes a resistive touch sensor for accurate control during operation

  • Lane Assist

    Lane Assist guides you to the correct lane for an approaching turn or exit, making unfamiliar intersections and exits easy to navigate.

  • Customizable Multi Widget

    Customize your Home Screen by selecting four shortcut/ information widgets. Widget options can include album art, clock, compass, photo frame, visualizer, weather, turn-by-turn, Garmin navigation, and more.

  • Music Mix

    Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.

  • Dual Phone Connection

    While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

  • Remote App

    A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

  • Wireless Music Browsing (AVRCP 1.5 / 1.6)

    Search and select songs from your music collection through a Bluetooth connection.

  • Graphic EQ / Digital Time Alignment

    13-Band equalizer and DTA gives optimal tuning enhancements for listeners.

  • Drive EQ

    Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.

  • FLAC Supported

    Compatible with various audio file formats from high-res FLAC and WAV, to MP3, WMA and AAC.

  • Dash Cam Ready

    Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen.

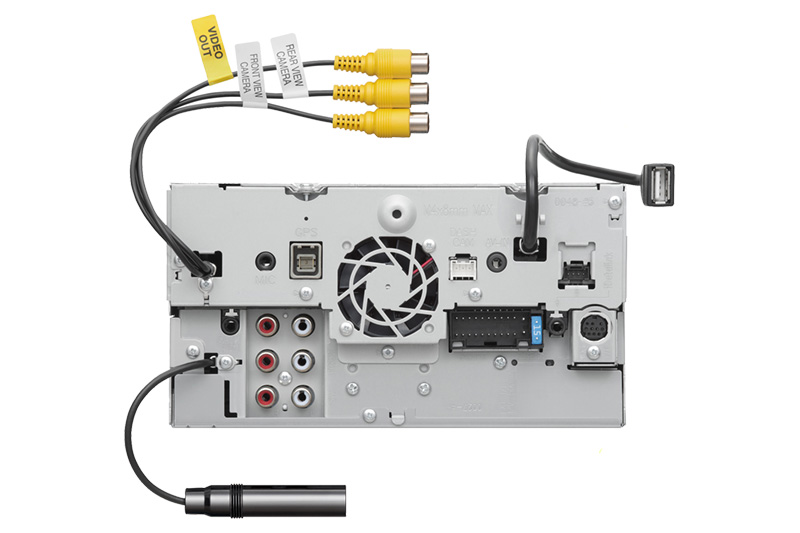

  • 3 Camera Inputs

    Optional camera connection method for up to 3 cameras in various configurations.

  • Parking Guidelines

    Parking Guidelines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.

« scroll
Monitor Section
Picture size 6.75 inches(diagonal) wide
W x H 151.8 mm x 79.68 mm, 5-31/32 x 3-1/8 inch
Display system TN LCD panel
Drive system TFT active matrix system
Number of pixels 1,152,000
800H x 480V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
USB I/F Section
USB Standard USB2.0 High Speed
File System FAT 16/32, exFAT, NTFS
Maximum Power Supply Current DC5V=1.5A
D/A Converter 24/32Bit
Audio Decoder MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Frequency response 192k Sampling 20 - 88,000 Hz
96k Sampling 20 - 44,000 Hz
48k Sampling 20 - 22,000 Hz
44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.0001%
Signal to Noise ratio 98.5dB
Dynamic range 89dB
SD Section
SD Standard SD / SDHC / SDXC
Compatible File System FAT 16/32, exFAT, NTFS
Capacity Maximum 2T Byte
Data Transfer Rate Maximum 25MB/sec
Audio Decoder MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Bluetooth Section
Technology Bluetooth Ver5.0
Frequency 2.402 – 2.480 GHz
RF Output Power (E.I.R.P.) +4dBm (MAX), Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Audio Codec SBC / AAC
Multi Profile Support Multi Profile
Profile HFP (V1.7) (Hands Free Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.6) (Audio/Video Remote Control Profile)
PBAP (Phonebook Access Profile)
DSP Section
Graphics equalizer
BAND 13Band
frequency (Hz) (BAND1-13) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over
HIGH PASS FILTER frequency Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
SLOPE -6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE -6/-12/-18/-24[dB/Oct.]
Position
Front / Rear /Subwoofer Delay 0 - 20.01ft (0.03or0.04ft Step)
Gain -8 to 0dB
Subwoofer Level -50 to +10dB
FM
Frequency Range
(Frequency step)
87.9MHz - 107.9MHz
(200kHz)
Usable sensitivity
S/N30dB
9.3dBf
0.8μV/75Ω
Quieting sensitivity
DIN S/N 46dB
10.2dBf
1.13μV / 75Ohms
Frequency response
(±3.0dB)
30Hz - 15kHz
S/N (dB) 65dB (MONO)
Selectivity Over 80dB (±400kHz)
Stereo separation 45dB (1kHz)
AM
Frequency Range
(Frequency step)
530kHz - 1700kHz
(10kHz)
Usable sensitivity 28dBμ
Video
Color system of external video input NTSC/PAL
External video input level (Mini jacks) 1 Vp-p / 75 Ohms
External audio max input level (Mini jacks) 2 V / 25 kOhms
Video Input level (RCA jacks) 1 Vp-p / 75 Ohms
Video Output level (RCA jacks) 1 Vp-p / 75 Ohms
Audio Output level (Mini jacks) 0.9 V / 10 kOhms
Audio
Maximum Power Output (Front&Rear) 50Wx4
Typical Power Output (Front&Rear) Full Bandwidth Power
(at less than 1%THD)
22Wx4
Output frequency band 20 - 88,000Hz
Preout level (V) 4V / 10kOhms
Preout impedance (Ω) =< 300 Ohms
Speaker Impedance (Ω) 4-8 Ohms
Navigation Section
Receiver High-sensitivity GPS receiver
Receiving frequency 1575.42MHz (C/A code )
Acquisition Times Cold: 29 seconds(typ)
All satellites at -130dBm Without aiding
Update Rate 1/second, continuous
Accuracy Position: < 2.5meters,CEP, at -130dBm
Accuracy Velocity: 0.1meter/sec
Positioning Method GPS
Antenna External GPS Antenna
General
Operating voltage 12V DC Car Battery
Maximum Current consumption 15A
Installation Dimensions WxHxD 178mm x 100mm x 155mm
7-3/16 x 4-7/16 x 6-2/16 inch
(with Sleeve) 182mm x 112mm x 153mm
7-3/16 x 4-7/16 x 6 inch
Operational temperature range -10°C to +60°C
Weight Main unit 1.7 kg
3.8 lb
