DMX9707S
DMX9707S

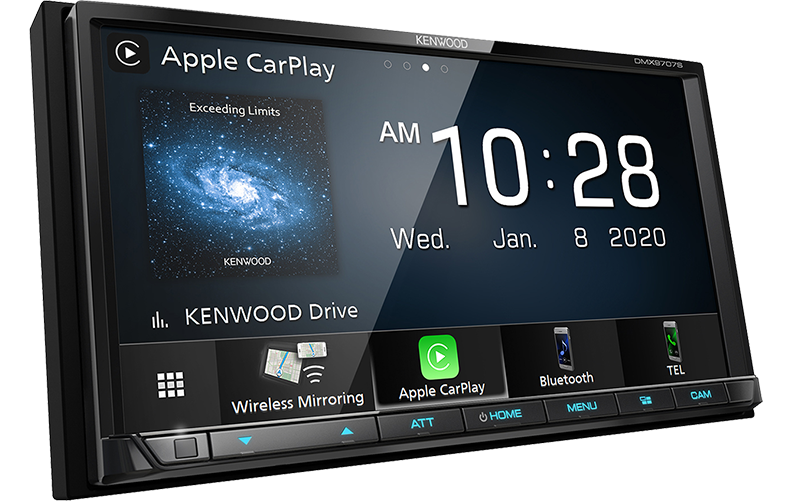

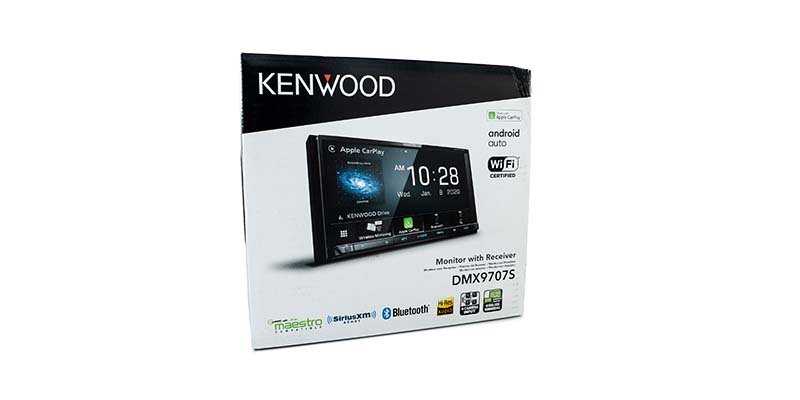

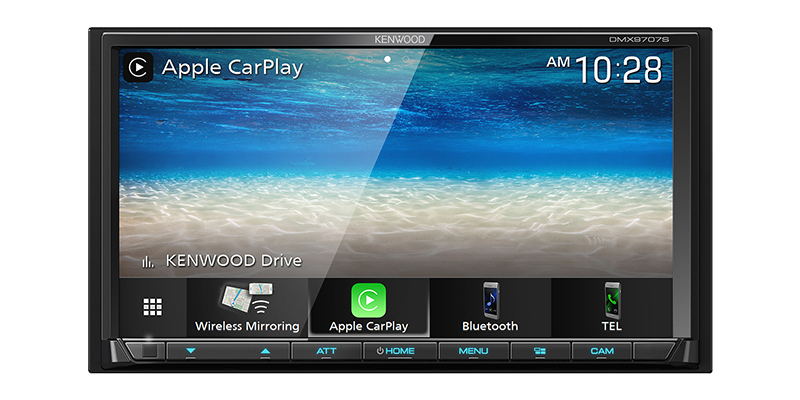

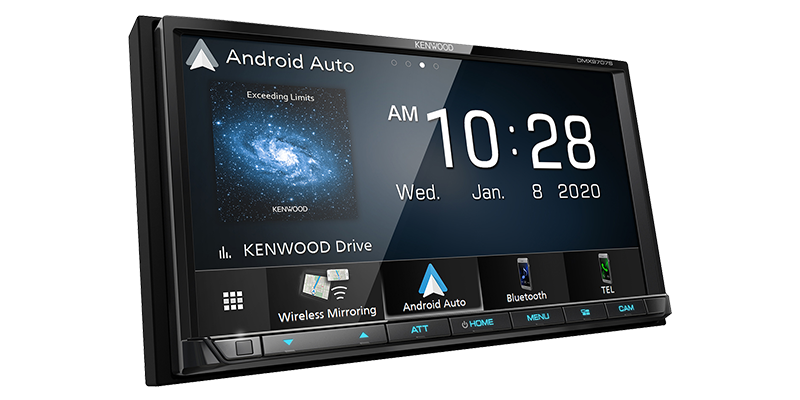

DMX9707SMonitor with Receiver
6.95" Digital Multimedia Receiver
(Discontinued)

  • 6.95" WVGA Monitor

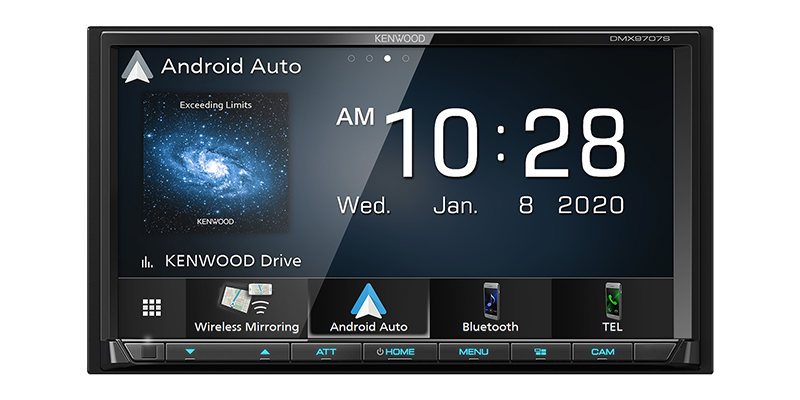

  • Android Auto™ & Android Auto™ Wireless

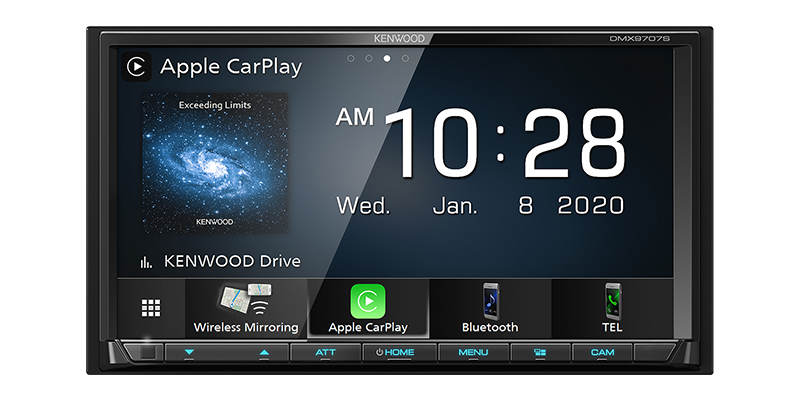

  • Wired and Wireless Apple CarPlay™
  • Wireless Mirroring for Android
  • USB Mirroring for iPhone and Android
  • High-Resolution Audio
  • Dash Camera Link
  • 4 Camera Inputs
  • 3 Preouts 4V

Features

Buy Now

Product Registration

Smartphone Connectivity

Enjoy built-in Bluetooth for convenient access to hands-free calls
and streaming music, as well as the ability to use your
smartphone like a wireless remote control.

Learn More

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files.
Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Learn More

Safe Driving

Keeping you safe on the road ahead is our top priority.

Learn More

Additional Features

Learn about exciting product features and highlights.

Learn More

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Entertainment System

  • Clear Resistive Touch Panel

    A clear screen designed to reduce glare that includes a resistive touch sensor for accurate control during operation

  • Customizable Multi Widget

    Customize your Home Screen by selecting four shortcut/ information widgets. Widget options can include album art, clock, compass, photo frame, visualizer, and more.

  • Wireless Mirroring for Android

    Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.

  • USB Mirroring

    USB Mirroring via USB for iPhone & Android, 2-way Touch Control for Android.

  • 4 Camera Inputs

    Optional camera connection method for up to 4 cameras in various configurations.

  • Parking Guide Lines

    Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.

  • Dash Cam Link

    Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen.

  • Music Mix

    Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.

  • Dual Phone Connection

    While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

  • Graphic EQ / Digital Time Alignment

    13-Band equalizer and DTA gives optimal tuning enhancements for listeners.

  • FLAC Supported

    Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.

  • DUAL USB

    Multiple USB ports provide additional inputs for music sources or smartphone battery charging.

  • Variable Color Illumination

    Bright variable color LEDs can be adjusted to match any color dash lighting.

« scroll
Monitor Section Picture size 6.95 inches(diagonal) wide
W x H 156.6 mm x 81.6 mm , 6-3/16 x 3-3/16 inch
Display system TN LCD panel
Drive system TFT active matrix system
Number of pixels 1,152,000
800H x 480V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
USB I/F Section USB Standard USB2.0 High Speed
File System FAT 16/32, exFAT, NTFS
Maximum Power Supply Current DC5V=1.5A
D/A Converter 24/32Bit
Audio Decoder MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Frequency response 192k Sampling 20 - 88,000 Hz
96k Sampling 20 - 44,000 Hz
48k Sampling 20 - 22,000 Hz
44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.010%
Signal to Noise ratio 98.5dB
Dynamic range 89dB
Wireless Mirroring Section Mode Sink
Copyright protection HDCP2.2
Touch Control UIBC
Wi-Fi IEEE Standard 802.11 a/b/g/n/ac
Frequency Range Dual Band ( 2.4GHz / 5GHz )
Channels Auto(1-11ch)
Auto(149,153,157,161ch)
Transfer rates (MAX) 11a: 54 Mbps / 11b: 11 Mbps /
11g: 54 Mbps / 11n: 300 Mbps /
11ac: 867 Mbps
Output Power 2.4GHz/SISO 11b:14dBm±2dB / 11g:13dBm±2dB /
11n(20MHz):12dBm±2dB
Output Power 5GHz/SISO 11a:9dBm±2dB /
11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB /
11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB
Output Power 5GHz/MIMO 11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB /
11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB
Bluetooth Section Technology Bluetooth Ver5.0
Frequency 2.402 – 2.480 GHz
RF Output Power (E.I.R.P.) +4dBm (MAX), Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Audio Codec SBC / AAC
Multi Profile Support Multi Profile
Profile HFP (V1.7) (Hands Free Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.6) (Audio/Video Remote Control Profile)
-
PBAP (Phonebook Access Profile)
DSP Section Graphics equalizer
BAND 13Band
frequency (Hz) (BAND1-13) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over
HIGH PASS FILTER frequency Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
SLOPE -6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE -6/-12/-18/-24[dB/Oct.]
Position
Front / Rear /Subwoofer Delay 0 - 20.01ft (0.03or0.04ft Step)
Gain -8 to 0dB
Subwoofer Level -50 to +10dB
FM Frequency Range 87.9MHz - 107.9MHz
(Frequency step) (200kHz)
Usable sensitivity 9.3dBf
S/N30dB 0.8μV/75Ω
Quieting sensitivity 10.2dBf
DIN S/N 46dB 1.13μV / 75Ohms
Frequency response 30Hz - 15kHz
(±3.0dB)
S/N (dB) 65dB (MONO)
Selectivity Over 80dB (±400kHz)
Stereo separation 45dB (1kHz)
AM Frequency Range 530kHz - 1700kHz
(Frequency step) (10kHz)
Usable sensitivity 28dBμ
Video Color system of external video input NTSC/PAL
External video input level (RCA jacks) -
External video input level (Mini jacks) 1 Vp-p / 75 Ohms
External audio max input level (RCA jacks) -
External audio max input level (Mini jacks) 2 V / 25 kOhms
Video Input level (RCA jacks) 1 Vp-p / 75 Ohms
Video Output level (RCA jacks) 1 Vp-p / 75 Ohms
Audio Output level (RCA jacks) -
Audio Output level (Mini jacks) 0.9 V / 10 kOhms
Analog RGB input -
Audio Maximum Power Output (Front&Rear) 50Wx4
Typical Power Output (Front&Rear) Full Bandwidth Power
(at less than 1%THD)
22Wx4
Output frequency band 20 - 88,000Hz
Preout level (V) 4V / 10kOhms
Preout impedance (Ω) =< 300 Ohms
Speaker Impedance (Ω) 4-8 Ohms
General Installation Dimensions WxHxD 178mm x 100mm x 155mm
7 x 3-15/16 x 6-1/8 inch
(with Sleeve) 182mm x 112mm x 153mm
7-3/16 x 4-7/16 x 6 inch
Weight Main unit 1.7 kg
3.8 lb
(Excluding trim plate and sleeve)
