DDX57S
DDX57S

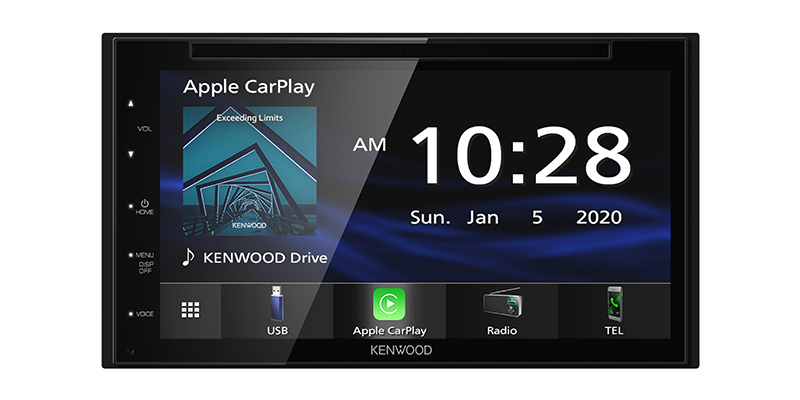

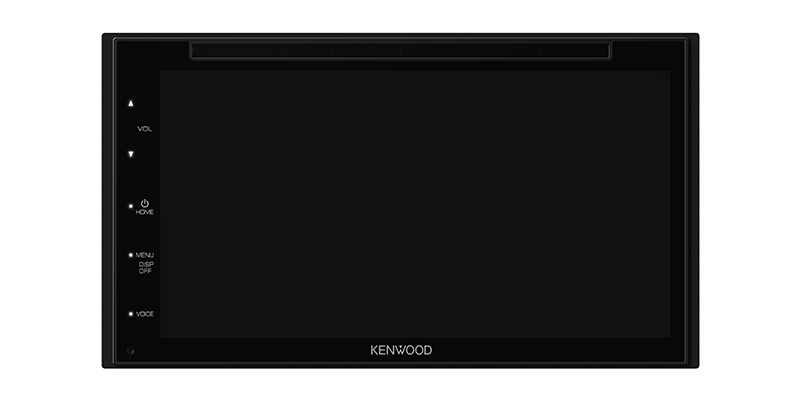

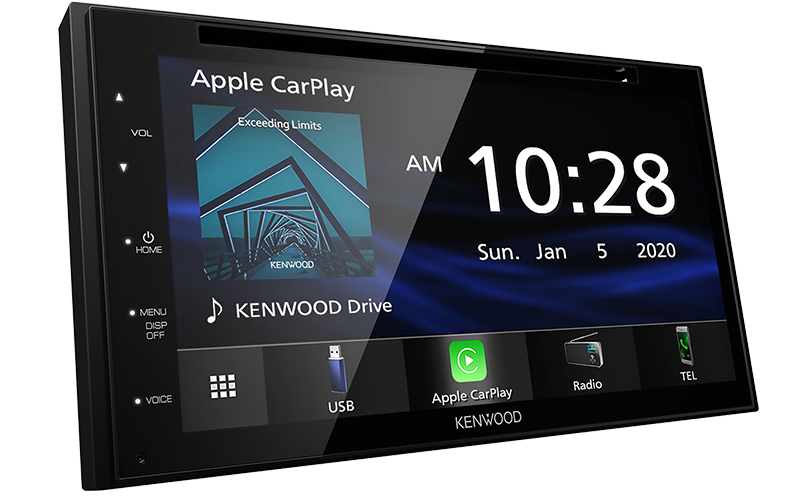

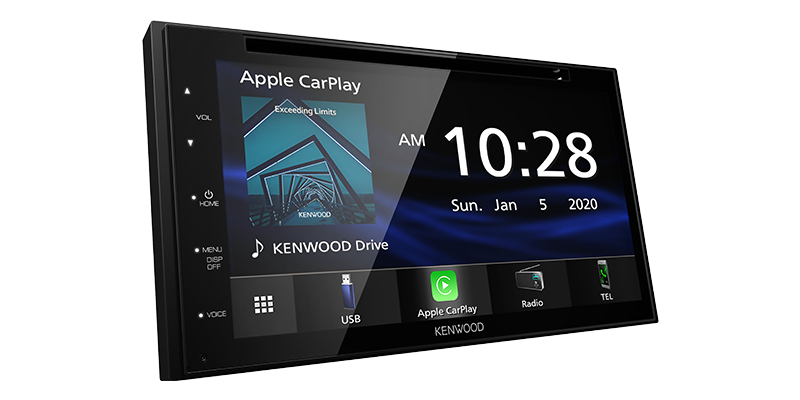

DDX57SMonitor with DVD Receiver
6.8" DVD Receiver

  • 6.8" WVGA Monitor with Capacitive Touch Panel

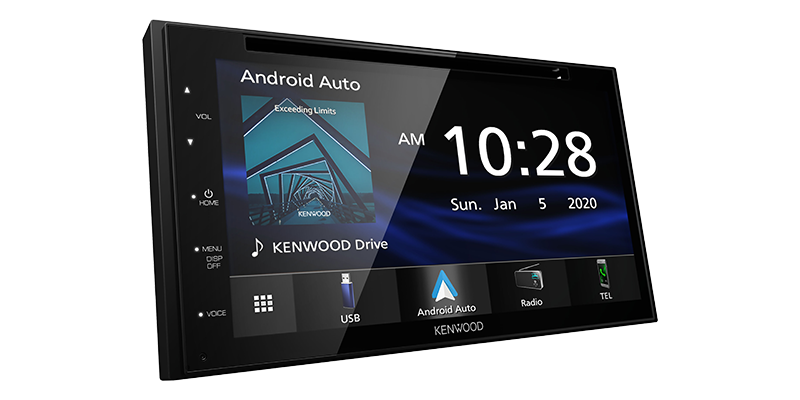

  • Apple CarPlay & Android Auto Ready
  • USB Mirroring for Android
  • 13 Band EQ & Digital Time Alignment
  • Rear View Camera Input with Parking Guidelines
  • Built-in Bluetooth
  • 2 Preouts 2V & Subwoofer Out

Features

Buy Now

Product Registration

Smartphone Connectivity

Enjoy built-in Bluetooth for convenient access to hands-free calls
and streaming music, as well as the ability to use your
smartphone like a wireless remote control.

Learn More

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files.
Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Learn More

Safe Driving

Keeping you safe on the road ahead is our top priority.

Learn More

Additional Features

Learn about exciting product features and highlights.

Learn More

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Entertainment System

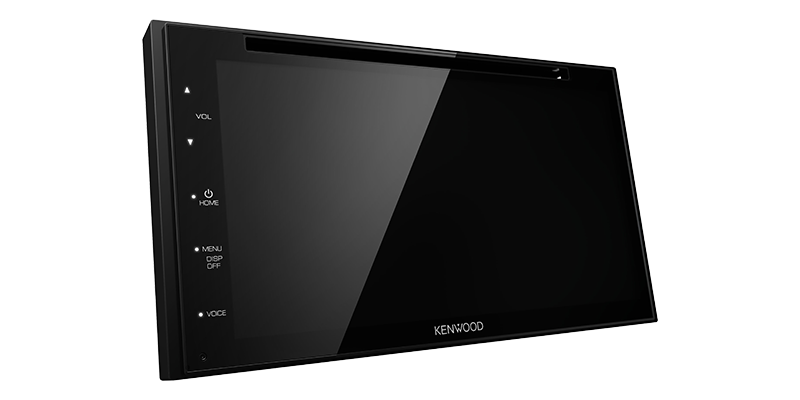

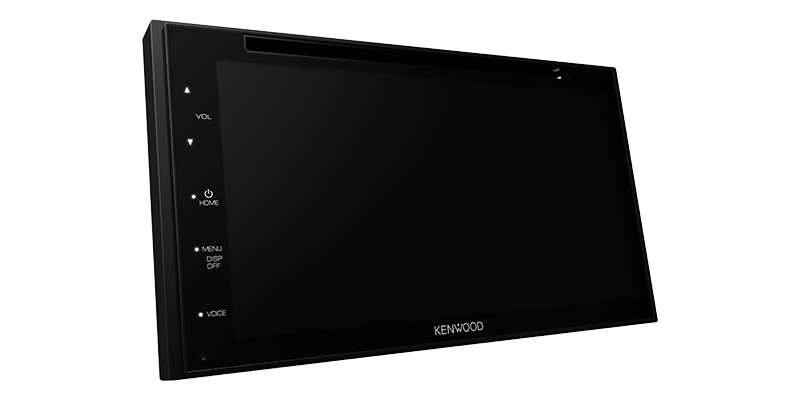

  • Capacitive Touch Panel

    Clear glass display with swipe functionality that provides superior picture and touch panel control.

  • Android USB Mirroring

    Solution for seamlessly displaying and controlling your smartphone apps on a screen via a USB connection on select Android devices.

  • Parking Guide Lines

    Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.

  • Graphic EQ / Digital Time Alignment

    13-Band equalizer and DTA gives optimal tuning enhancements for listeners.

  • FLAC Supported

    Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.

  • Android Rapid Charge

    Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 1.5A.

« scroll
Monitor Section Picture size 6.75inches(diagonal) wide
W x H 151.8 x 79.7mm, 5-15/16 x 3-1/8 inch
Display system Transparent TN LCD panel
Drive system TFT active matrix system
Number of pixels 1,152,000
800H x 480V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
DVD Section D/A Converter 24 Bit
Audio Decoder Linear PCM
Dolby Digital
Video Decoder -
Wow & Flutter Below Measurable Limit
Frequency response 96k Sampling 20 - 22,000 Hz
48k Sampling 20 - 22,000 Hz
44.1k Sampling 20 - 22,000 Hz
Total harmonic distortion 1kHz 0.0001
Signal to Noise ratio 90.5dB
Dynamic range 89dB
DISC Format DVD-Video / VIDEO-CD / CD-DA
DVD-R / DVD-RW / DVD+R / DVD+RW
Sampling frequency  44.1kHz / 48kHz / 96kHz
Quantifying bit number 16 / 20 / 24bit
USB I/F Section USB Standard USB2.0 High Speed
File System FAT 16/32 , exFAT
Maximum Power Supply Current DC5V=1.5A
D/A Converter 24Bit
Audio Decoder MP3 / WMA / AAC / WAV / FLAC
Video Decoder MPEG1/2, MPEG4 / WMV / H.264 / .mkv
Frequency response 192k Sampling 20 - 20,000 Hz
96k Sampling 20 - 20,000 Hz
48k Sampling 20 - 20,000 Hz
44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.2
Signal to Noise ratio 75dB
Dynamic range 75dB
Bluetooth Section Technology Bluetooth Ver4.1
Frequency 2.402 – 2.480 GHz
RF Output Power (E.I.R.P.) +8dBm (Avg.), Power Class 1
Maximum Communication range Line of sight approx.10m(32.8ft)
Audio Codec SBC / AAC
Multi Profile Support Multi Profile
Profile HFP (V1.6) (Hands Free Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.5) (Audio/Video Remote Control Profile)
PBAP (Phonebook Access Profile)
DSP Section Graphics equalizer
BAND 13 Band
frequency (Hz) (BAND1-13) 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k
Gain -09 to +09 (-9dB to +9dB)
2Way X'Over
HIGH PASS FILTER frequency (Hz) Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250
SLOPE -6/ -12/ -18/ -24 dB/Oct.
Gain -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
LOW PASS FILTER frequency (Hz) 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through
SLOPE -6/ -12/ -18/ -24 dB/Oct.
Gain -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
Position
Front / Rear /Subwoofer Delay 0 to 6.1m (0.01m Step)
Gain -8 to 0dB
Subwoofer Level -40 to +6dB
FM Frequency Range 87.9 - 107.9 MHz
(Frequency step) (200kHz)
Usable sensitivity 16.2dBf
S/N:30dB 1.8μV/75 Ohms
Quieting sensitivity -
DIN S/N 46dB 13dBf(4.47uV/75 ohm)
Frequency response
(±3.0dB)
30Hz - 14kHz
S/N (dB) 50dB (MONO)
Selectivity Over 80dB
Stereo separation 35dB (1kHz)
AM Frequency Range 530 - 1700 kHz
(Frequency step) (10kHz)
Usable sensitivity 99μV(40dBμ)
Video Color system of external video input NTSC/ PAL
External video input level (Mini jacks) 1.0Vp-p / 75 Ohms
External audio max input level (RCA jacks) 1.5V / 25k Ohms
Video Output level (RCA jacks) 1.0Vp-p / 75 Ohms
Audio Maximum Power Output (Front&Rear) 45Wx4
Full Bandwidth Power
(at less than 1%THD)
21Wx4
Output frequency band 20 - 20,000Hz
Preout level (V) 2.0V / 10k Ohms
Preout impedance (Ω) 1.4k Ohms
Speaker Impedance (Ω) 4-8 Ohms
General Operating voltage 12V DC Car Battery
Installation Dimensions WxHxD 182 x 112 x 153 (mm)
7-3/16 x 4-7/16 x 6 (inch)

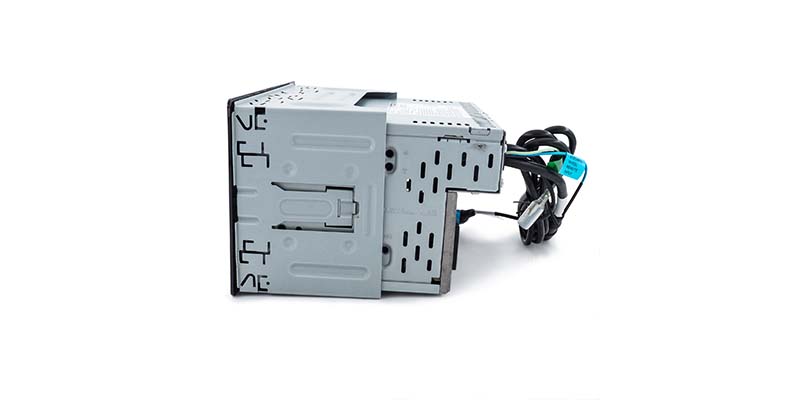

Main Unit Installation size W x H x D(w/o sleeve) 178 x 100 x 153 (mm)
7 x 3-15/16 x 6 (inch)
Weight Main unit 1.8 kg / 4.0 lbs
(Including Sleeve and Trim plate) 2.0 kg / 4.4 lbs
