DDX276BT
DDX276BT

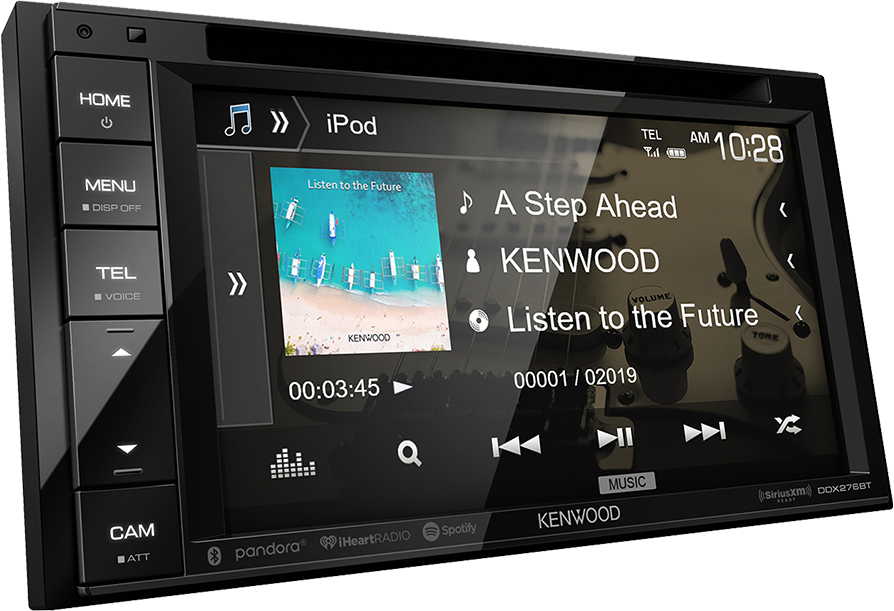

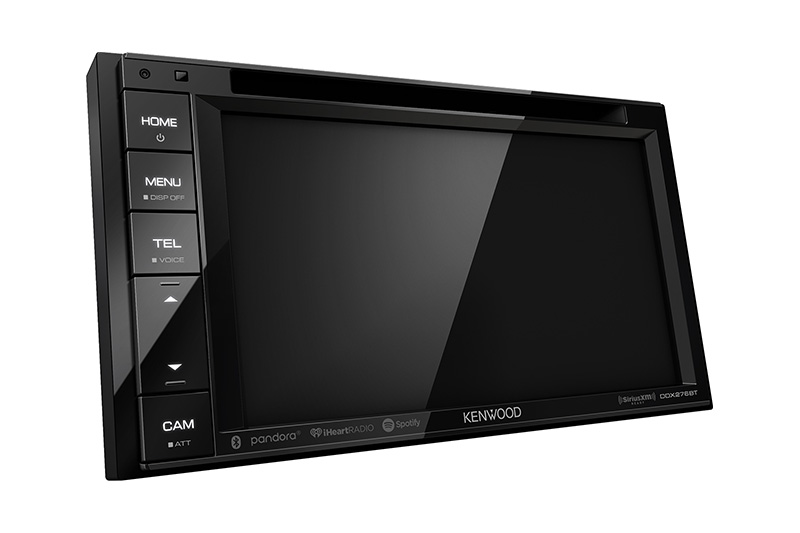

DDX276BTMonitor with DVD Receiver
6.2" DVD Receiver
(Discontinued)

  • 6.2” WVGA Clear Resistive Touch Panel
  • Rear USB Input
  • White Illumination
  • 3 Preouts 2.5V
  • Rear View Camera Input with Parking Guidelines
  • 1 Video Output

Features

Product Registration

Smartphone Connectivity

Enjoy built-in Bluetooth for convenient access to hands-free calls
and streaming music, as well as the ability to use your
smartphone like a wireless remote control.

Learn More

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files.
Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Learn More

Safe Driving

Keeping you safe on the road ahead is our top priority.

Learn More

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Entertainment System

  • Clear Resistive Touch Panel

    A clear screen designed to reduce glare that includes a resistive touch sensor for accurate control during operation

  • Music Mix

    Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.

  • Dual Phone Connection

    While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

  • Remote App

    A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

  • Android Music Playback (AOA2)

    Supporting AOA2, install the KENWOOD Music Play app and connect your smartphone to the receiver via USB, and control your music directly from the receiver.

  • Android Rapid Charge

    Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 1.5A.

  • Wireless Music Browsing (AVRCP 1.5 / 1.6)

    Search and select songs from your music collection through a Bluetooth connection.

  • Graphic EQ / Digital Time Alignment

    13-Band equalizer and DTA gives optimal tuning enhancements for the listener.

  • Drive EQ

    Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.

  • Parking Guide Lines

    Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.

  • FLAC Supported

    Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.

« scroll
Monitor Section
Picture size 6.2 inches(diagonal) wide
W x H 5-7/16 x 3-1/16
Display system Transparent TN LCD panel
Drive system TFT active matrix system
Number of pixels 800H x 480V x RGB
Pixel arrangement RGB striped arrangement
Back lighting LED
DVD Section
D/A Converter 24Bit
Audio Decoder Linear PCM
Dolby Audio
MP3/WMA/AAC(.m4a)/WAV
Video Decoder MPEG1/MPEG2/JPEG
Wow & Flutter Below Measurable Limit
Frequency response            96k Sampling 20 - 22,000 Hz
                                              48k Sampling  20 - 22,000 Hz
                                           44.1k Sampling  20 - 20,000 Hz
Total harmonic distortion 1kHz 0.0001
Signal to Noise ratio 90dB
Dynamic range 90dB
DISC Format DVD-Video/VIDEO-CD/CD-DA
Sampling frequency 44.1kHz/48kHz
96kHz
Quantifying bit number 16/20/24bit
USB I/F Section
USB Standard USB2.0 Full Speed / High Speed
Compatible Devices Mass storage class
File System FAT 16/32
Maximum Power Supply Current DC5V (DC logo) = 1.5A
D/A Converter 24bit
Audio Decoder MP3/WMA/AAC(.m4a/.aac)/WAV/FLAC
Video Decoder MPEG1/MPEG2/JPEG
Bluetooth Section
Technology Bluetooth V3.0
Frequency 2.402 - 2.480 GHz
RF Output Power (E.I.R.P.) +4dBm (MAX),  Power Class 2
Maximum Communication range Line of sight approx.10m (32.8ft)
Audio Codec SBC/AAC
Profile HFP(Hands Free Profile) 1.6
A2DP(Advanced Audio Distribution Profile) 1.3
AVRCP(Audio/Video Remote Control Profile) 1.5
GAP(Generic Access Profile)
PBAP(Phonebook Access Profile) 1.2
SDP(Service Discovery Profile)
SPP(Serial Port Profile) 1.2
FM
Frequency range 87.9 MHz - 107.9 MHz
(Frequency step) (200 kHz)
Usable sensitivity 7.2 dBf
S/N:30 dB 0.63 μV / 75 Ohms
Quieting sensitivity 15.2 dBf
S/N:50 dB 1.58 μV / 75 Ohms
Frequency response 30 Hz - 15 kHz
(±3.0 dB)
S/N (dB) 68 dB(MONO)
Selectivity Over 80 dB(±400  kHz)
Stereo separation 40 dB(1 kHz)
AM
Frequency range 530 kHz - 1700 kHz
(Frequency step) (10 kHz)
Usable sensitivity 29 dBμ
Video
Color system of external video input NTSC/PAL
External video input level (mini jack) 1Vp-p / 75Ohms
External audio max input level (mini jack) 2V / 25kOhms
Video Input level for Rear Camera (RCA jack) 1Vp-p / 75Ohms
Video Output level (RCA jacks) 1Vp-p / 75Ohms
Audio
Maximum Power (Front&Rear) 50Wx4
Full Bandwidth Power (Front&Rear) 22Wx4
(at less than 1%THD)
Preout level(V) 2.5V / 10kOhms
Preout Impedance(Ω) =< 600 Ohms
Speaker Impedance(Ω) 4-8 Ohms
Equalizer
BAND 13Band
Frequency(Hz) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 [dB]
Q factor 1.35/1.5/2.0
2Way X'Over
Tweeter                        Frequency(Hz) 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
Front (HPF)                  Frequency(Hz) Through/30/40/50/60/70/80/90/100/120/150/180/220/250
Slope -6/-12/-18/-24 [dB/Oct.]
Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
Rear (HPF)                   Frequency(Hz) Through/30/40/50/60/70/80/90/100/120/150/180/220/250
Slope -6/-12/-18/-24 [dB/Oct.]
Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
SW (LPF)                     Frequency(Hz) 30/40/50/60/70/80/90/100/120/150/180/220/250/Through
Slope -6/-12/-18/-24 [dB/Oct.]
Phase Normal/Reverse
Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
2Way: Front / Rear /Subwoofer Delay 0 - 20.0ft (0.07ft Step)
Gain -8 to 0dB
Subwoofer Level -50 to +10dB
General
Operating voltage 12 V DC car battery
Installation Dimensions  WxHxD   7 x 3-15/16 x 6-3/8 inch
Weight                             Main unit 3.8 lbs
