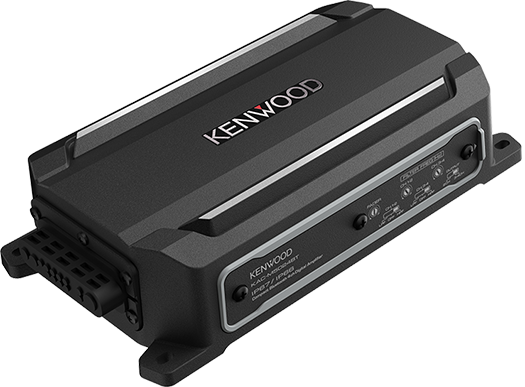

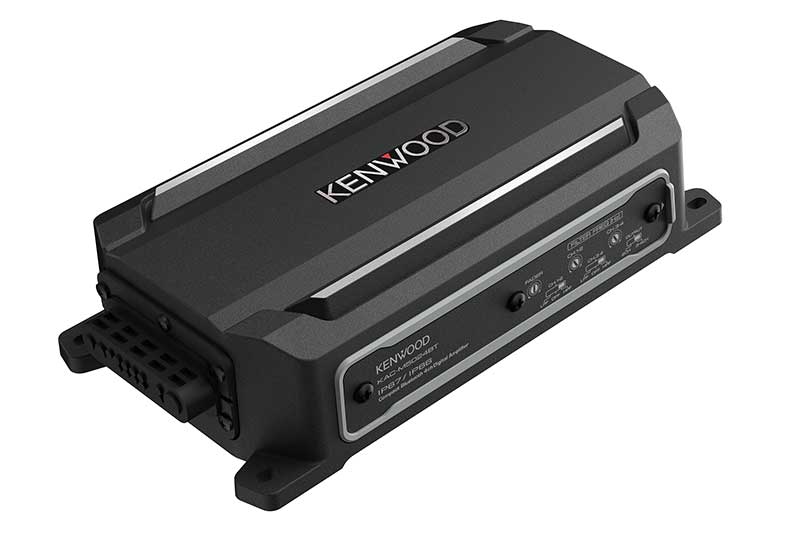

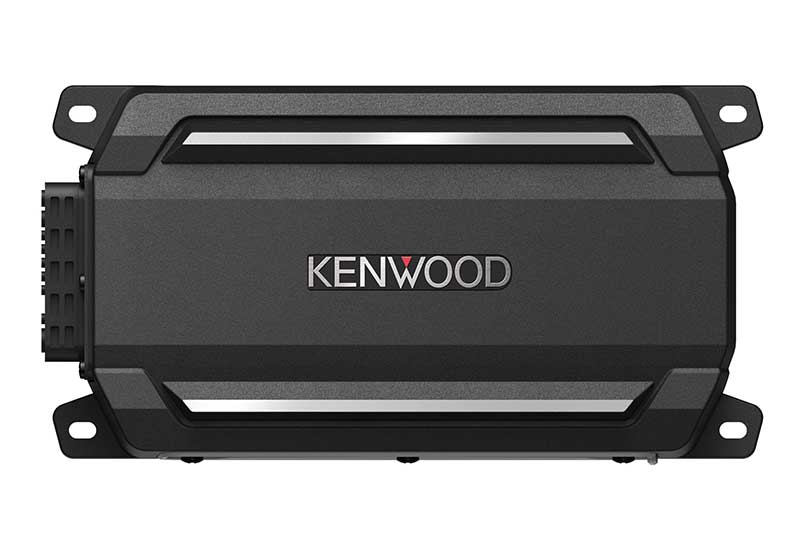

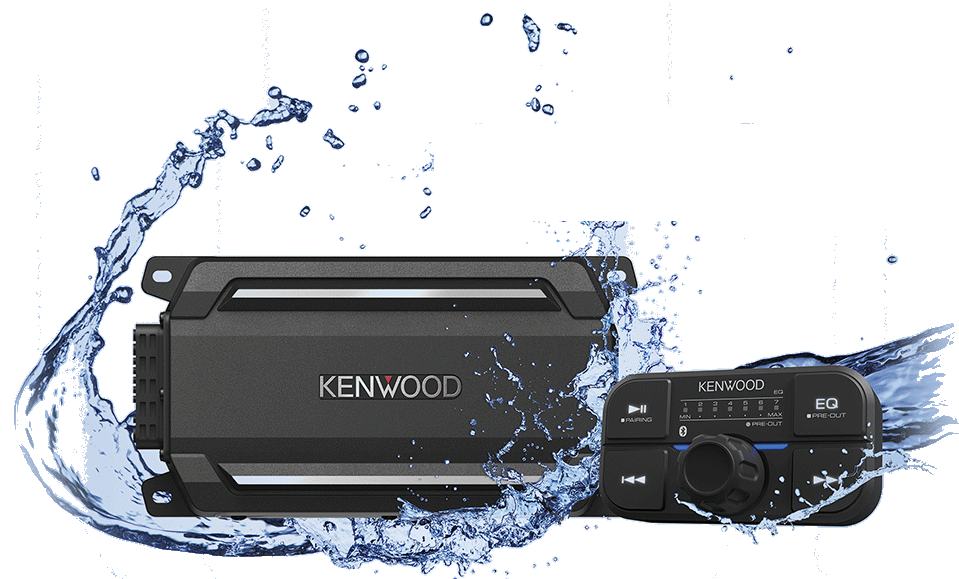

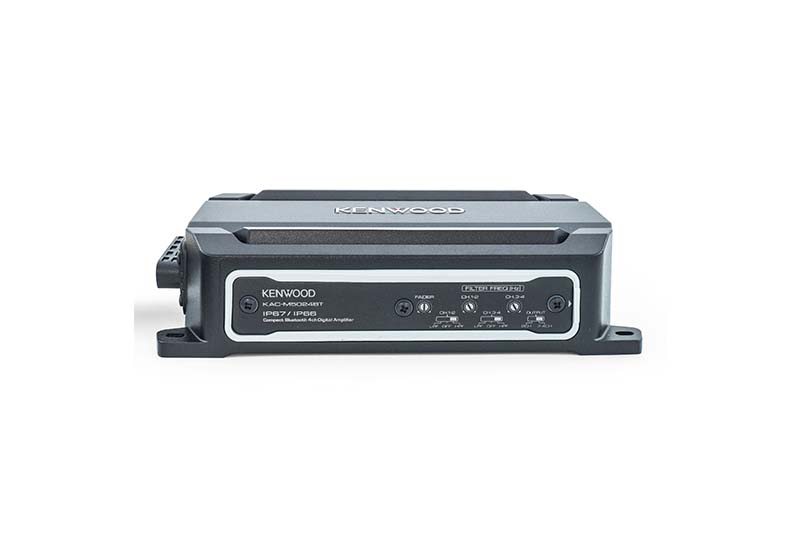

KAC-M5024BTCompact Bluetooth® 4 Channel Digital Amplifier

KAC-M5024BTCompact Bluetooth® 4 Channel Digital Amplifier


Your EVERWHERE Audio Experience

  • IP67/IP66 Certified Waterproof & Dustproof
  • RMS 50W x4 (4Ω)
  • RMS 75W x4 (2Ω)
  • 7 Selectable EQ Presets
  • Wired Remote Control Included
  • Built-in Bluetooth with aptX
  • RCA Line Output Terminals for System Expansion
  • (W)7-13/16” x (H)1-15/16” x (D)4-1/8”

KAC-M5024BT received the "Editor's Choice" award from Stereowise Plus

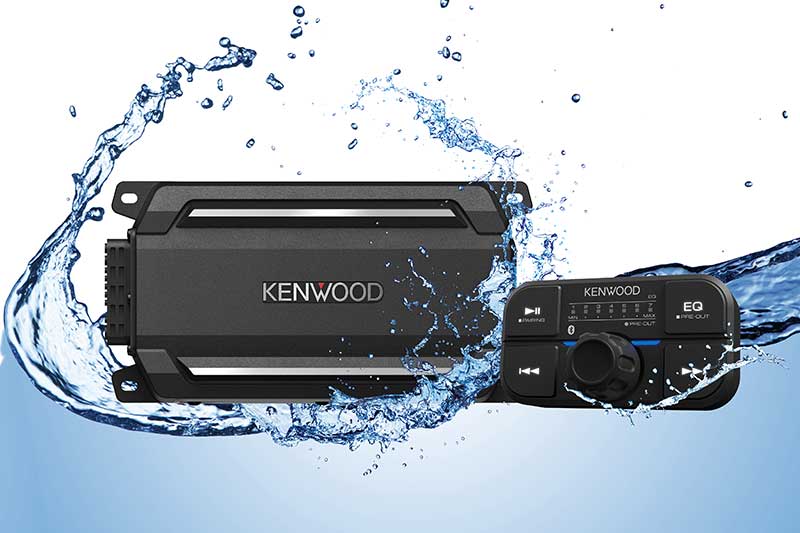

EXTREME Durability


IPX7/IPX6/IP6X certified. The amplifier can be submerged in up to 3.3 feet of water for 30 minutes, and can resist high-pressure, heavy sprays of water.

Salt Spray PROOF

ASTM B117 salt spray (or salt fog) corrosion testing ensures the amplifier will not corrode or fail in saltwater and other harsh environments.

Vibration PROOF

Thick 1/4" die-cast frame suppresses vibration.

Raised drain tunnel prevents moisture buildup.


Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth® devices can be connected to the amplifier at the same time, allowing you to take turns streaming music with your friends and family.

High Quality Bluetooth Streaming

Compatible with high quality codecs such as aptX and AAC, allowing you to be entertained with superior music playback.

ULTIMATE Performance

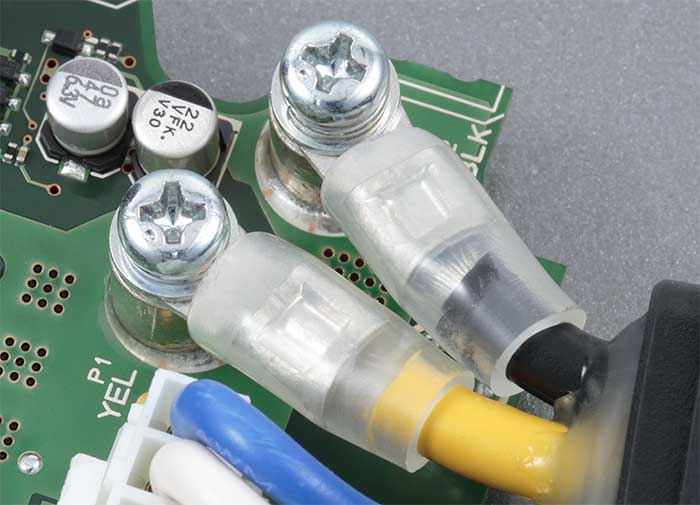

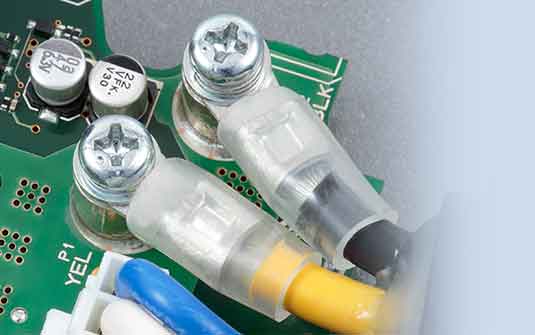

Increased Power Flow

Metal studs enable high current flow for connections between the amplifier and battery, resulting in powerful bass reproduction and enhanced overall sound quality.

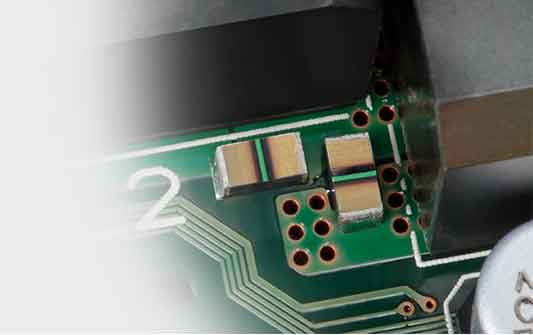

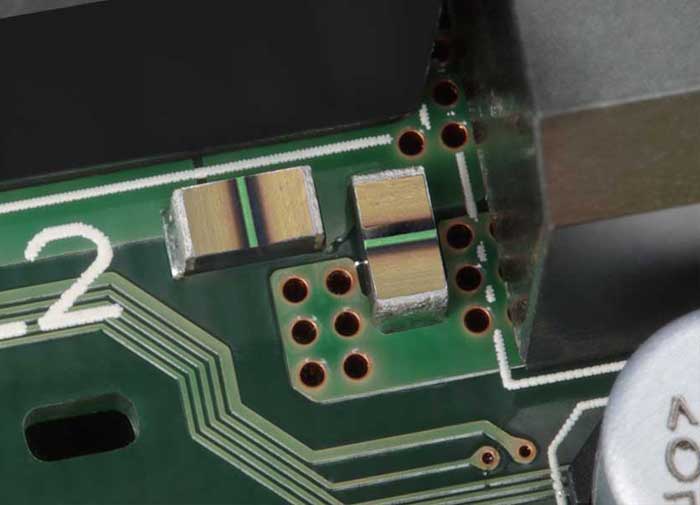

High Quality Capacitors

PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

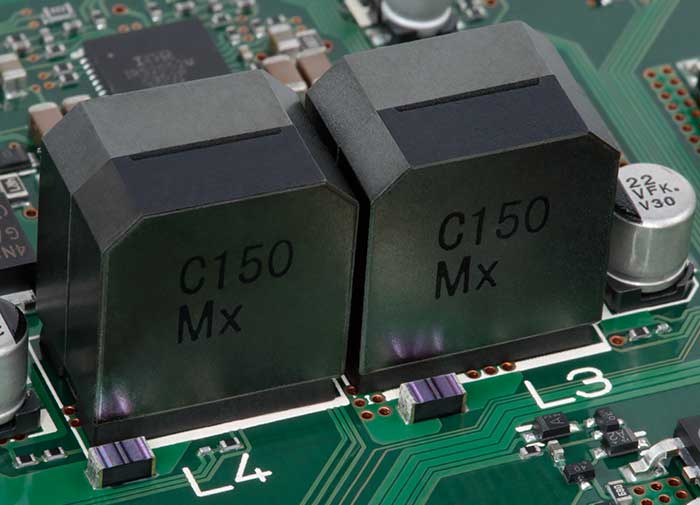

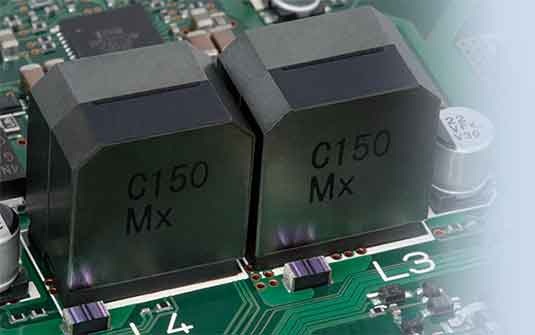

Magnetic Shielding

Magnetic shields for the output coils reduce radiated noise, further contributing to smooth and accurate sound.

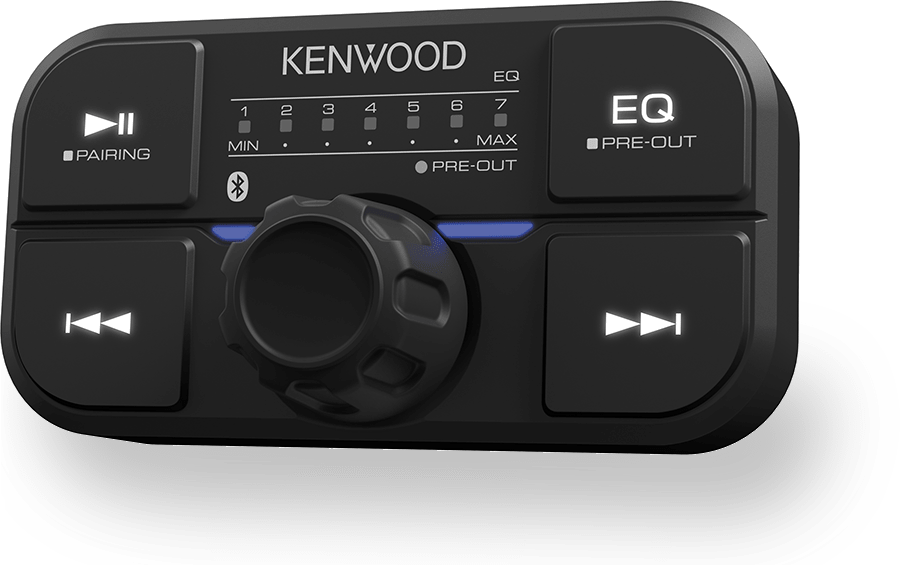

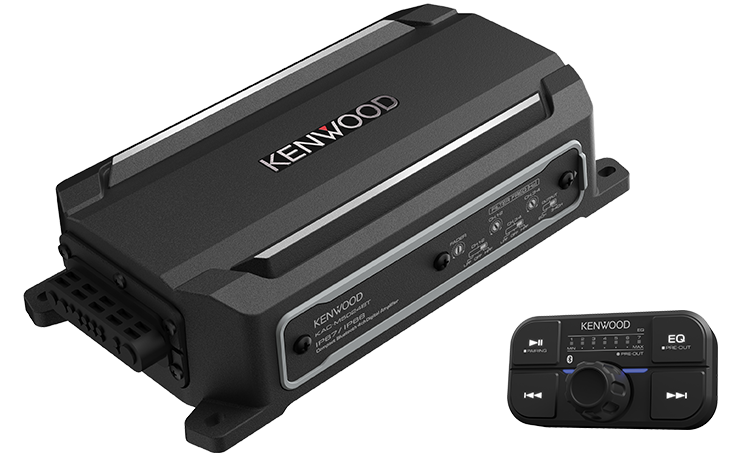

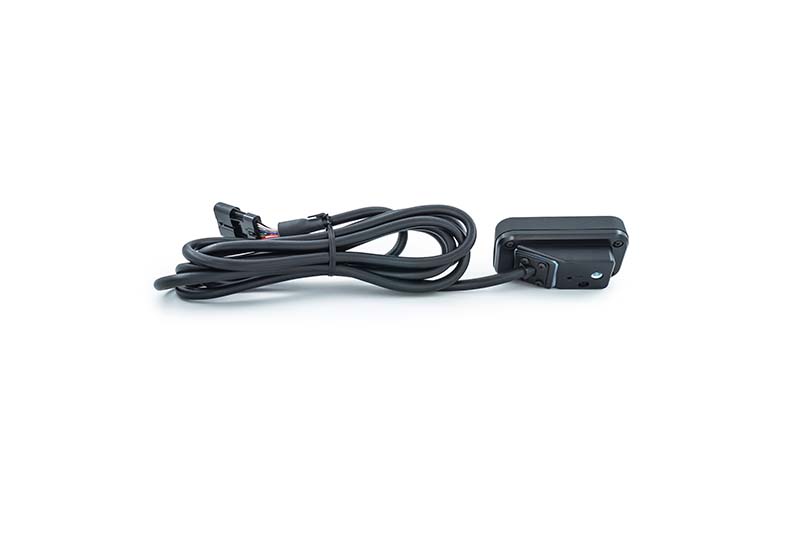

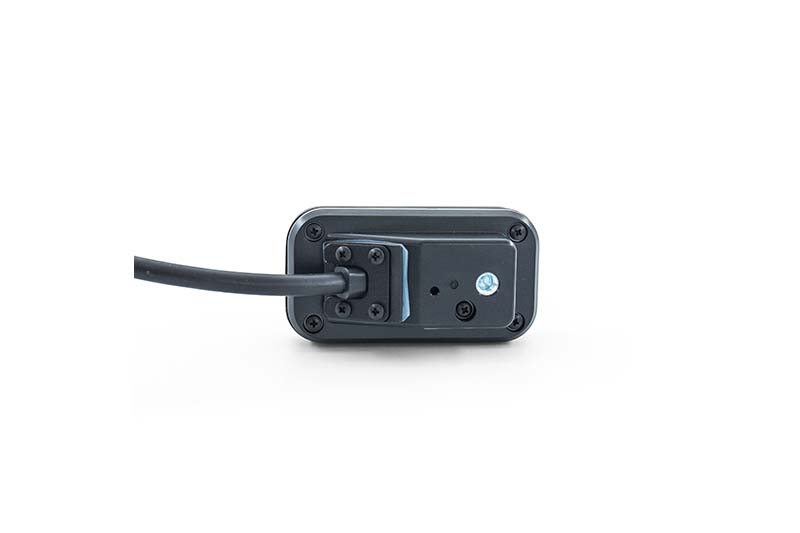

SMART Remote Control

The Bluetooth antenna is housed inside the remote control, effectively providing a solid and sensible range for device connectivity, ensuring you stay connected to the music.

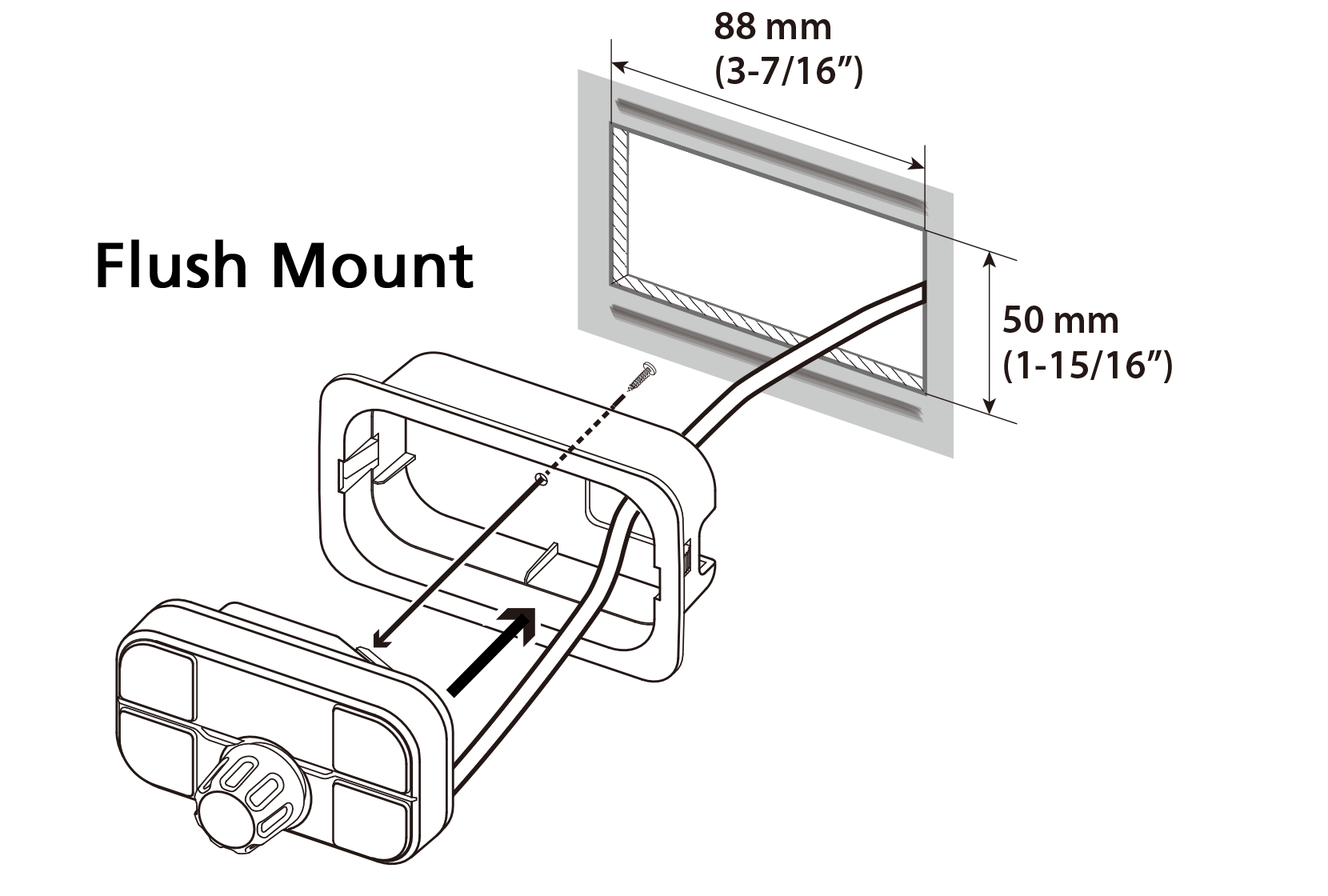

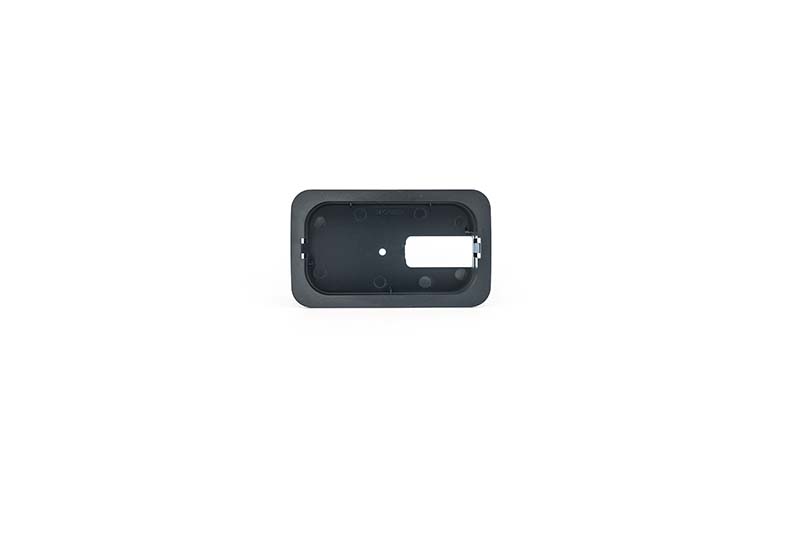

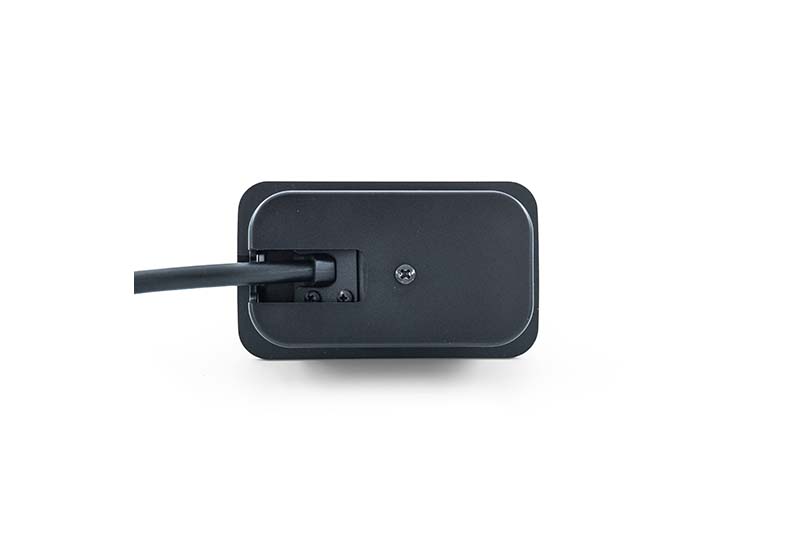

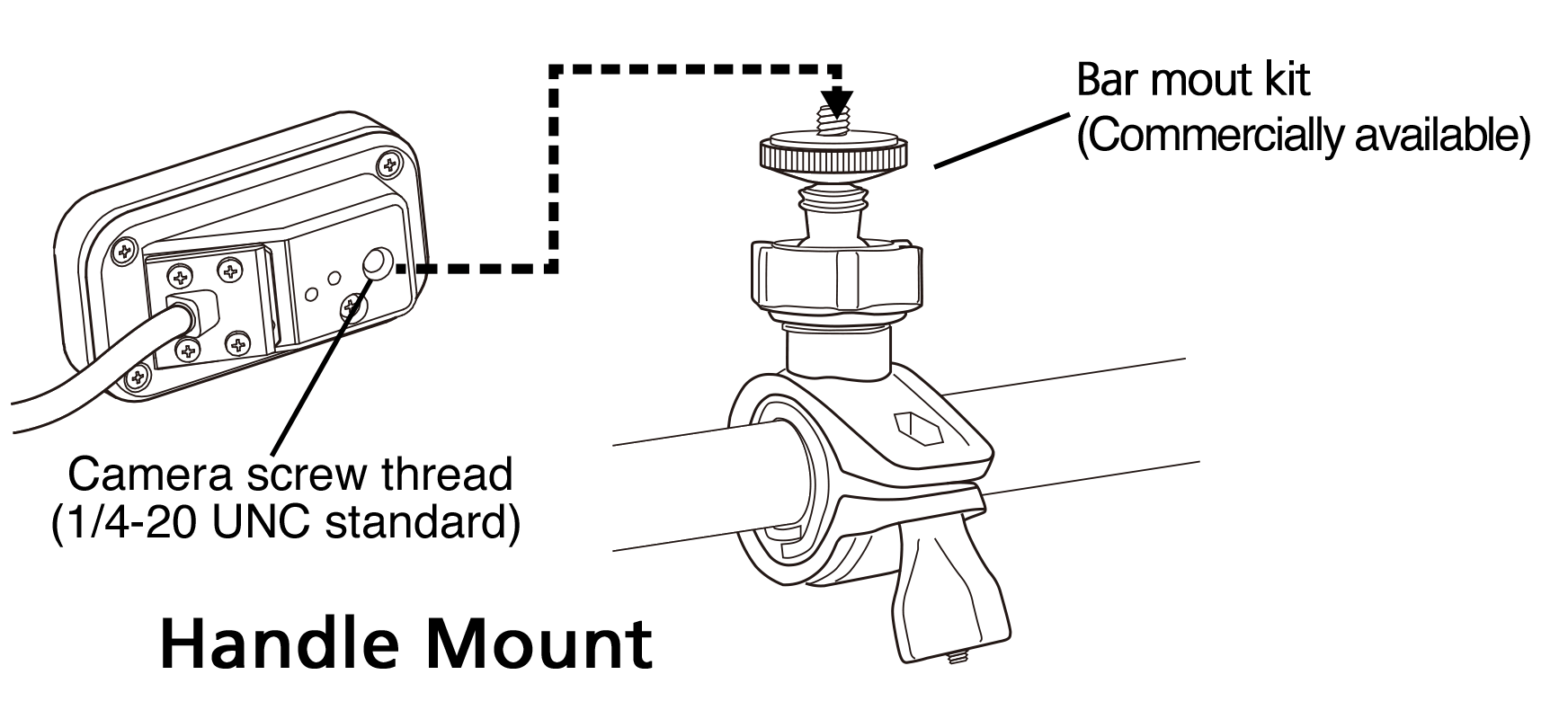

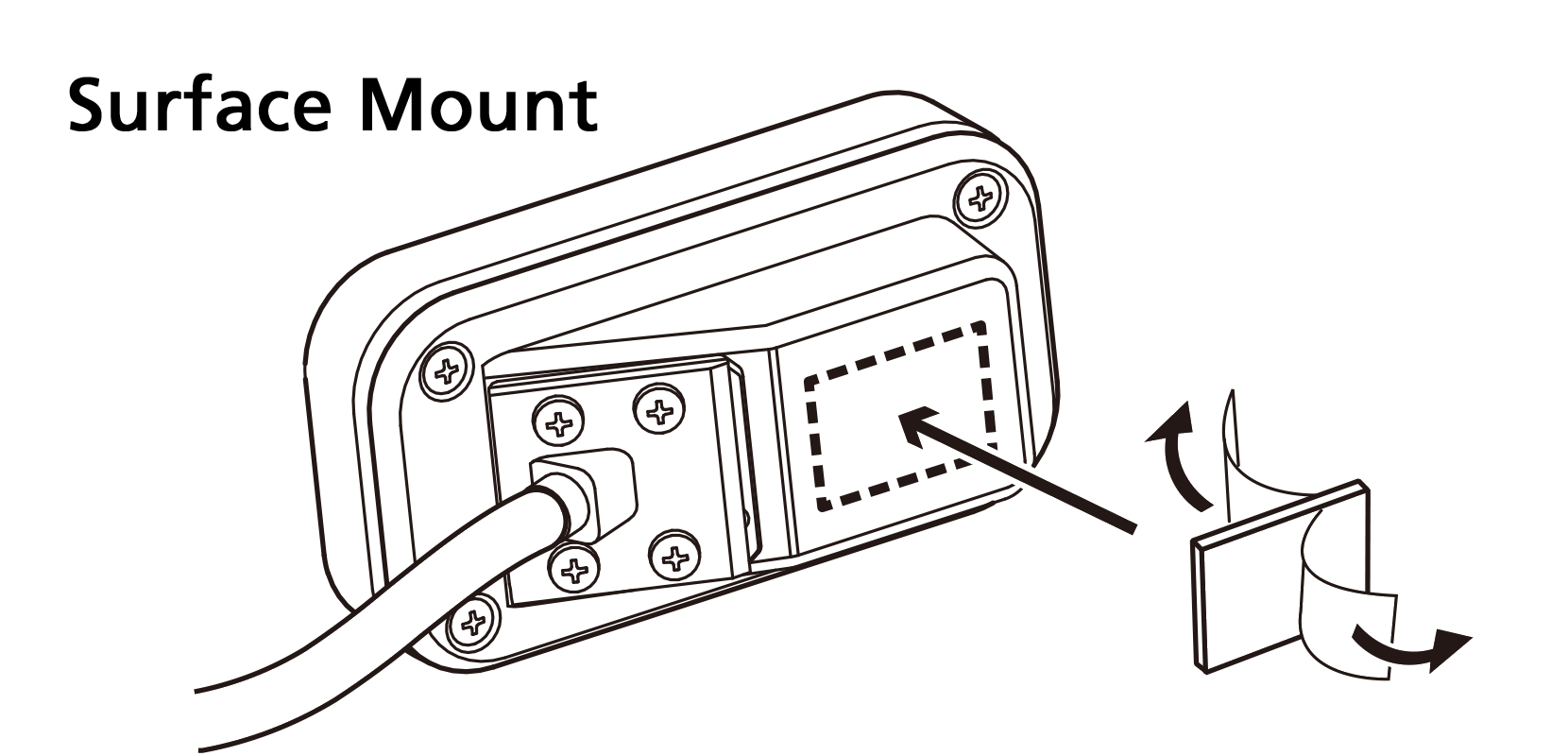

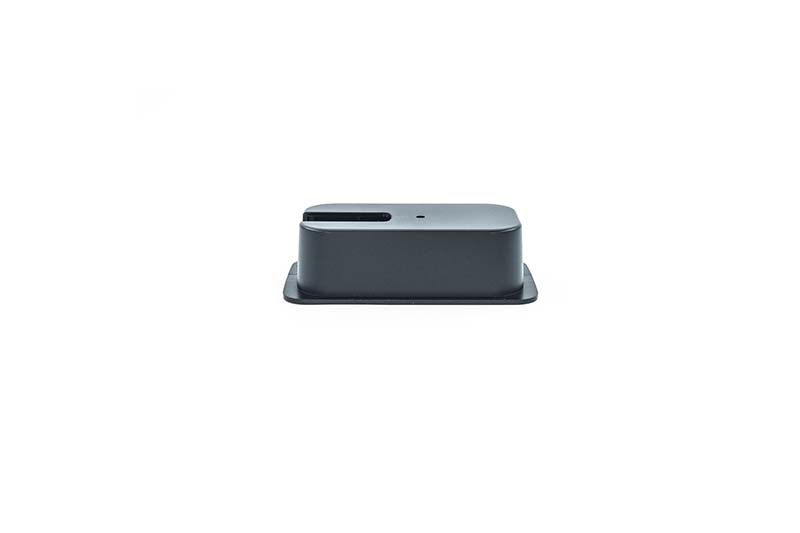

VERSATILE Installation

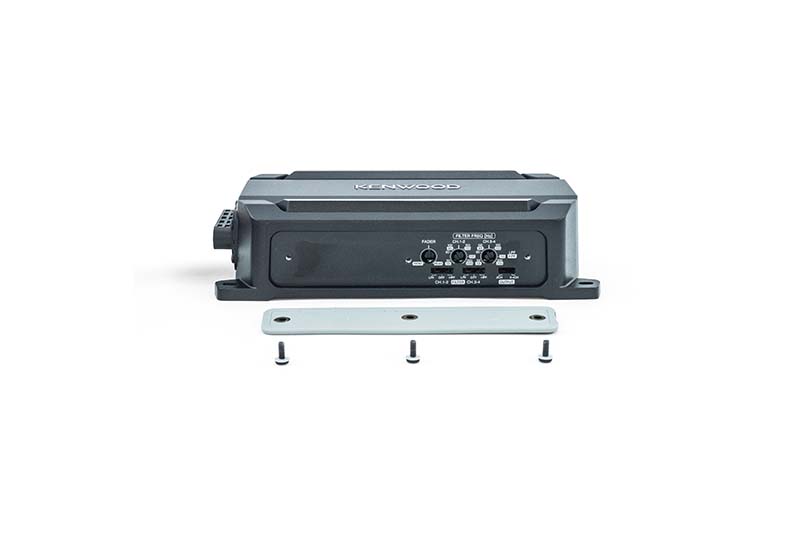

Multiple installation options are available, giving you complete control where you want it.

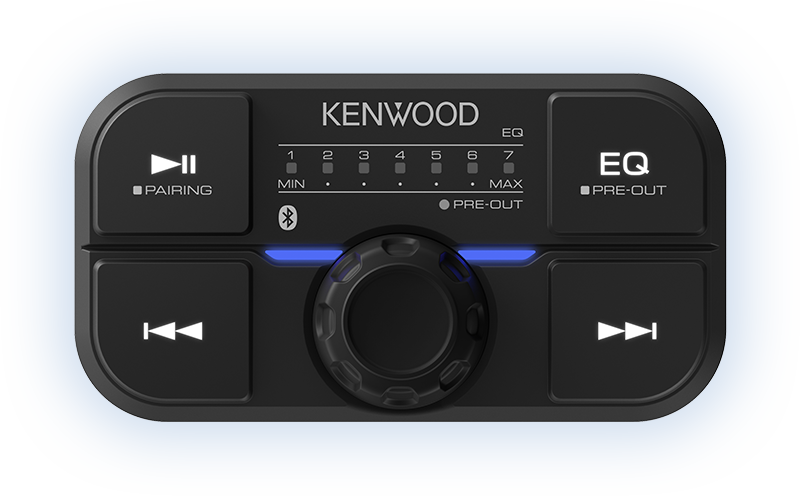

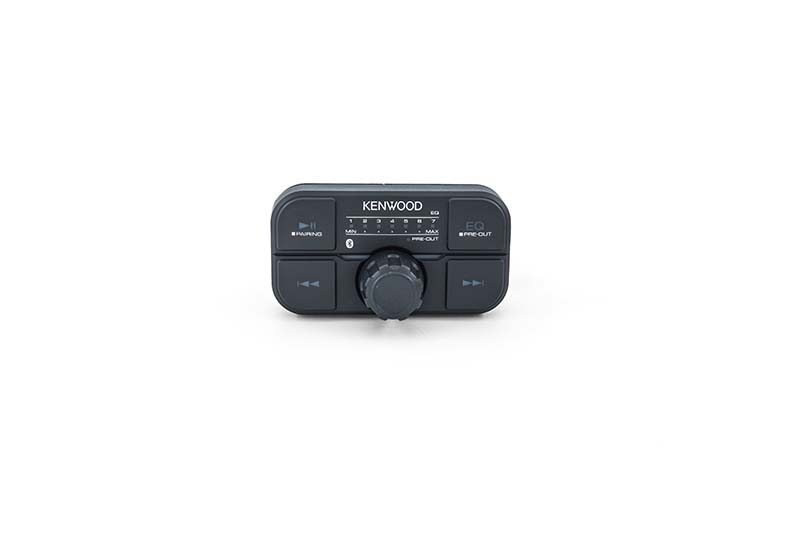

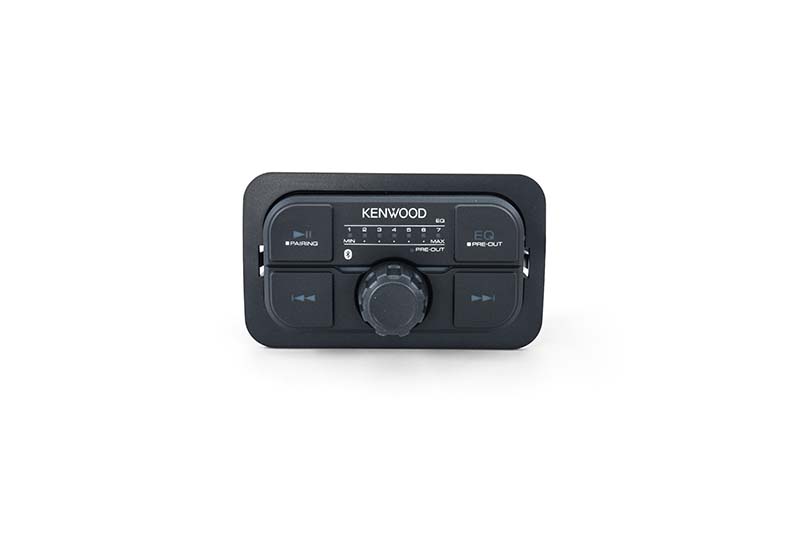

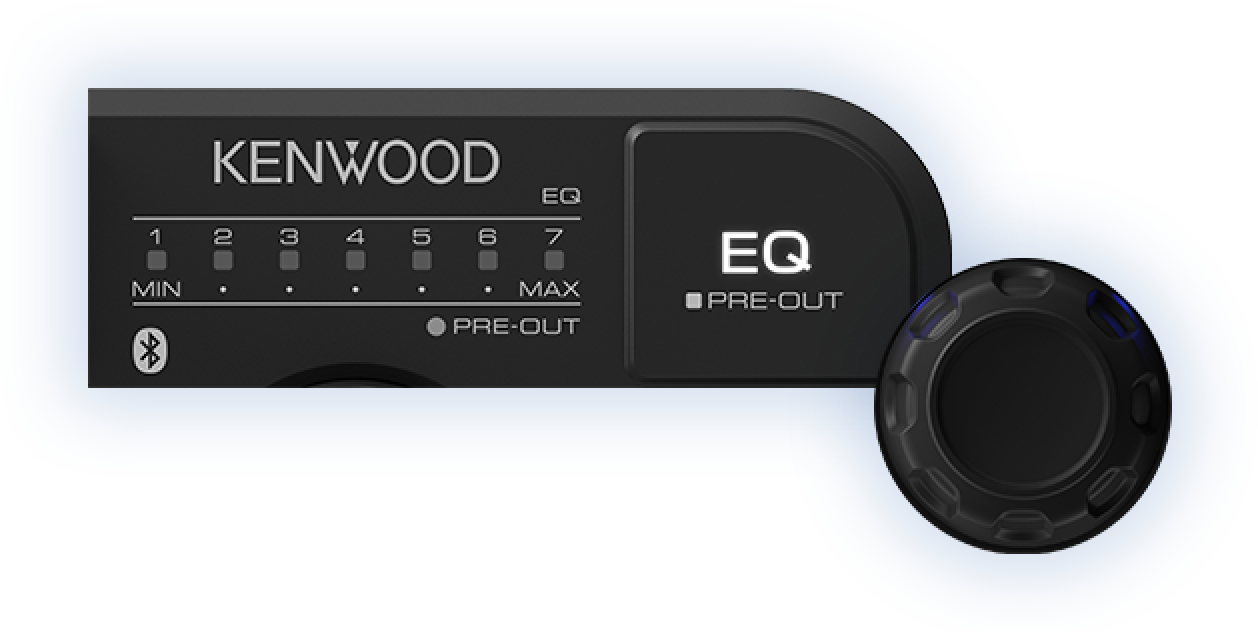

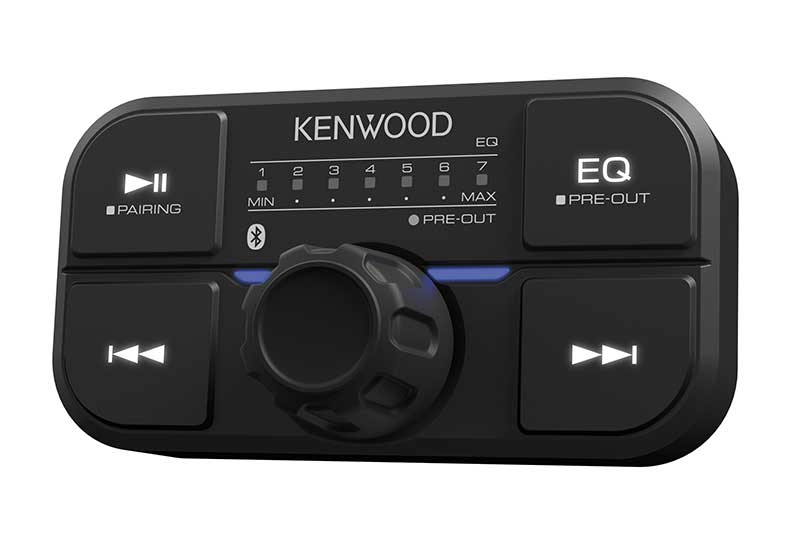

EASY Sound Control

With an easy to access volume knob, separated buttons with multi-controls, & LED indicators, this remote is your perfect companion.

7 Selectable EQ Presets

You can choose your favorite sound setting from 7 EQ Presets.
1:Natural, 2;Rock, 3:Pops, 4:Easy, 5:Top40, 6:Jazz, 7:Powerful

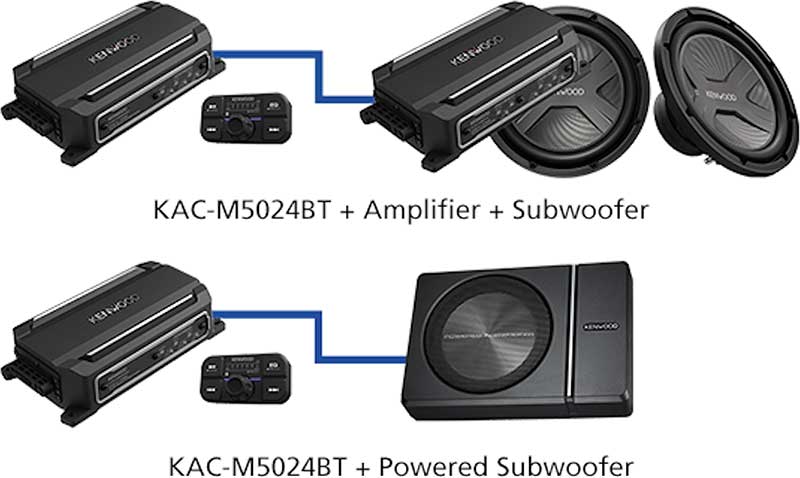

System EXPANSION Ready

The KAC-M5024BT has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer. You can even control the output level from the remote control by pressing the PRE-OUT button, then turning the volume knob.

*Subwoofers pictured here are not water-resistant.


General Features

Max Power 600W
RMS Power 50W x 4 (4Ω)
75W x 4 (2Ω)
150W x 2 (Bridged)
S/N Signal to Noise Ratio: 74 dB
Size (W)7-13/16” x (H)1-15/16” x (D)4-1/8”

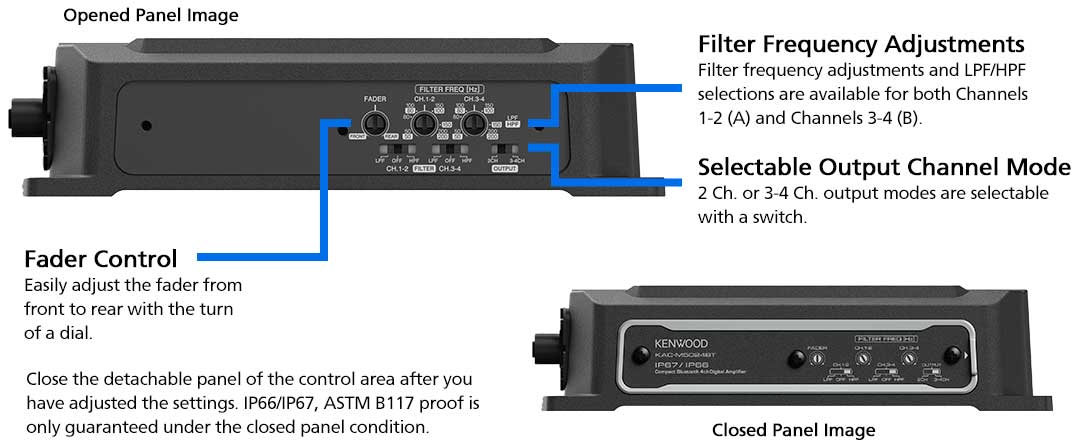

Low Pass Filter 50Hz-200Hz, -12dB/oct (A/B)
High Pass Filter 50Hz-200Hz, -12dB/oct (A/B)
Other Features Class-D Amplifier
IP67/IP66 Waterproof & Dustproof
ASTM B117 Salt Spray Proof (Amplifier)
Variable High & Low Pass Filter
RCA Line Output


Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Entertainment System

« scroll
Amplifier Type Class D
CTA-2006-D Value Maximum Dynamic Power 65W at 4ohms and ≤ 10% THD + N
Continuous Power Output 50W at 4ohms and ≤ 1% THD + N
Signal to Noise 74dBA reference 1 Watt RMS
Maximum Power Output MAX POWER 600W
RMS Power at 14.4V A/B (4 Ohms) 50Watts RMS x 4 at 4 Ohms, 20Hz-20kHz , ≤1% THD+N
A/B (2 Ohms) 75Watts RMS x 4 at 4 Ohms, 1kHz, ≤1%THD+N
A/B (Bridged 4 Ohms) 150Watts RMS x2 at 4 Ohms, 1kHz, ≤1%THD+N
Specifications Signal to Noise Ratio 89dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 10Hz-20kHz (+0dB, -3dB)
Speaker Impedance 4Ω ( 2Ω to 8Ω allowable)
Bridged Connection 4Ω to 8Ω allowable
Audio Section Low-pass Filter 50-200Hz, -12dB/oct (A/B CH)
High-pass Filter 50-200Hz, -12dB/oct (A/B CH)
Filter Selecter LPF/OFF/HPF (A/B CH)
Output Selecter 2ch, 3/4ch

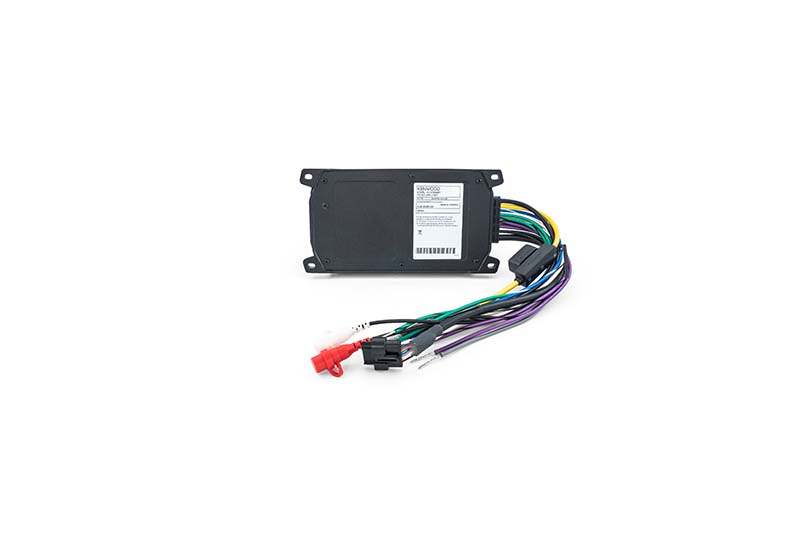

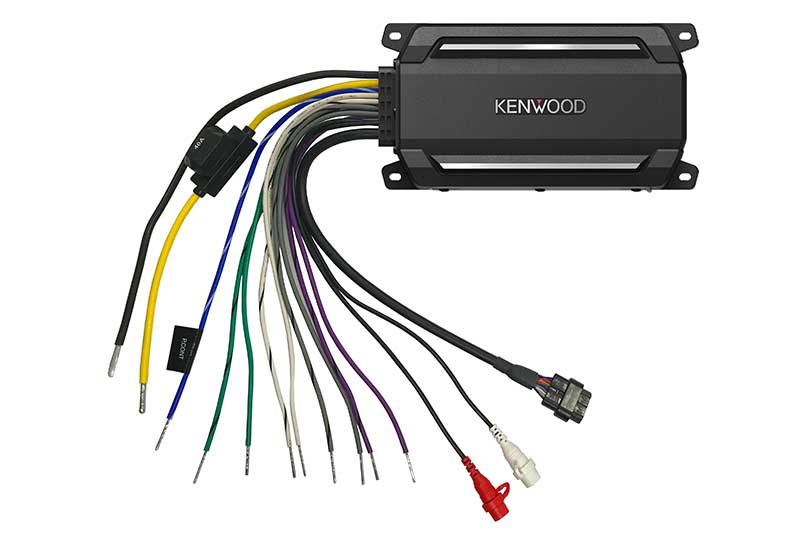

Terminal Battery & Ground 12" 10-gauge Pigtail Cable with Molded Strain Relief Bushing
Speaker Output 12" 16-gauge Pigtail Cable with Molded Strain Relief Bushing
Line In (Pigtail RCA) No
Pre Out (Pigtail RCA) Yes (Sub)
Speaker Input (Pigtail RCA In) No
Connector for Wired Remote Controller Yes
General Dimensions(WxHxD) 198[mm] x 48.5 [mm] x 104 [mm]
7-13/16" x 1-15/16" x 4-1/8"
Weight (kg) 1.6 [kg] 3.5 [lbs]
Operating Voltage 14.4V(11-16V allowable)
Current Consumption 26A
Fuse 40A
Key Features CTA-2006 Compliant
Class D
Power MOS-FET Switching Power Supply
2 Ohms Load Capability
One-Sided Connection

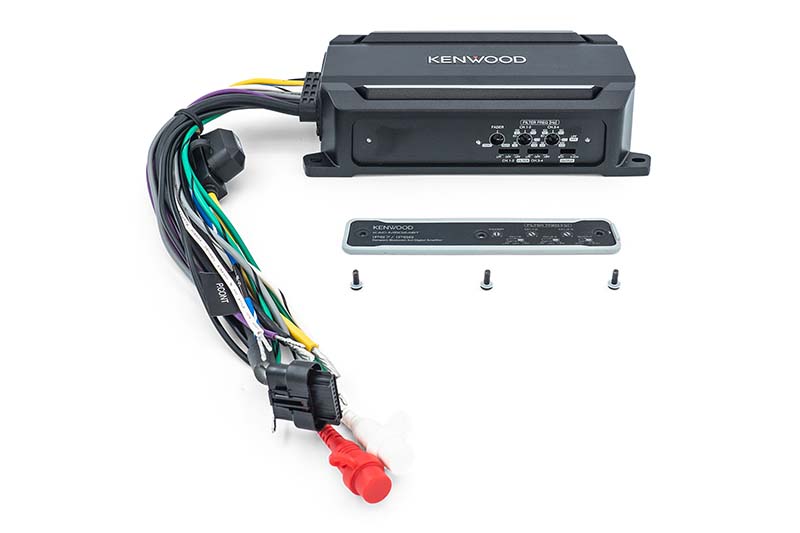

Terminal Cover
Speaker Output Selector (2ch / 3ch4ch)
Pre Out terminals for Extension

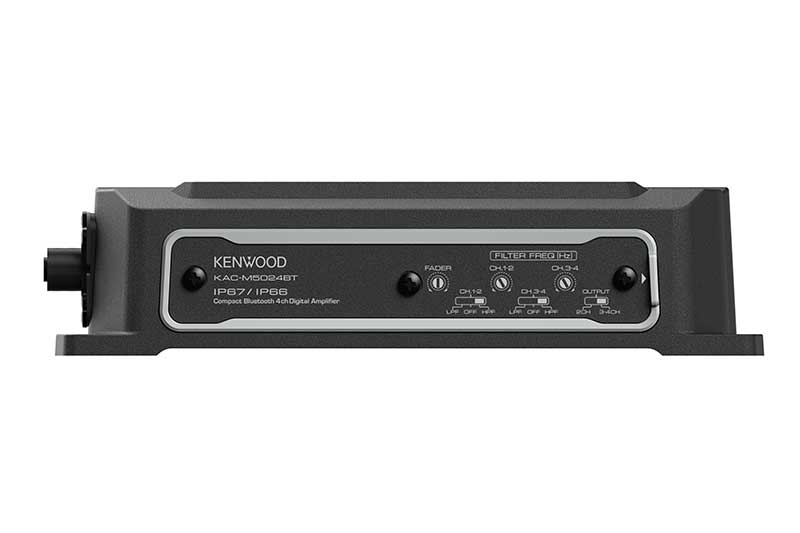

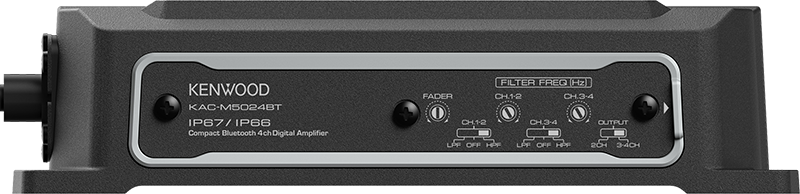

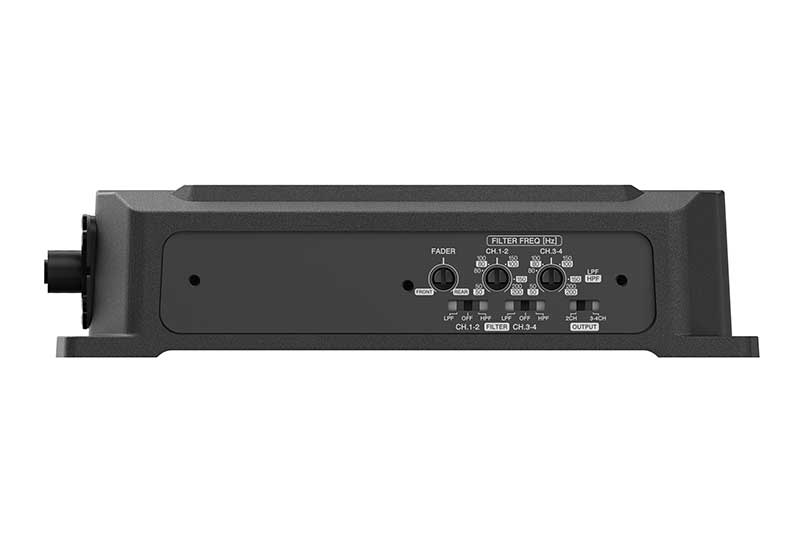

Audio Controls on the Side
Corrosion-Resistant Sealed Cast Aluminum Chassis
Drain Tunnel
Bluetooth Wired Remote Control
Bluetooth (A2DP/AVRCP)
Bluetooth 5 Devices Pairing
Bluetooth 2 Devices Connection
EQ Control (Sub/Bass/Mid/Tre)
Water-proof & Dust-proof (Main Unit/DC cable)
Water-proof & Dust-proof (Remote Control Unit/cable)
ASTM B117 (Main Unit)
Other Features apt-X
Blue Illumination for Bluetooth Status
Fuse Rubber Cover

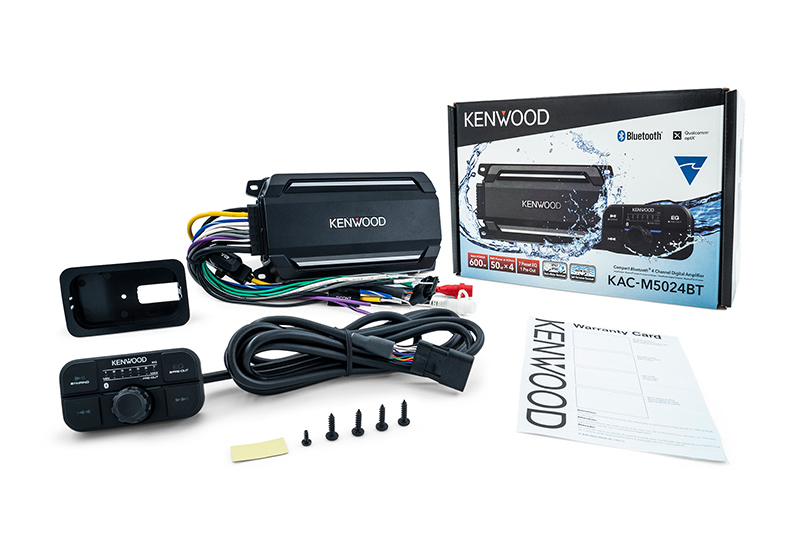

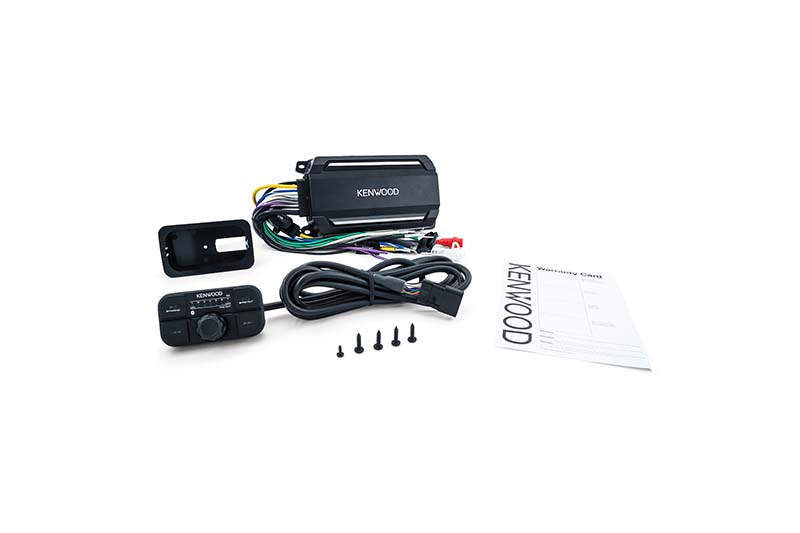

Accessories Remote Control Unit
Mounting Bracket
Double-side adhesive tape
Stainless Steel Self-tapping Screw (Φ4 x 16mm) 4pcs
Self-tapping Screw (Φ3x8mm) 1pc
Instruction Manual
Warranty Card
