KMR-M332BT
KMR-M332BT

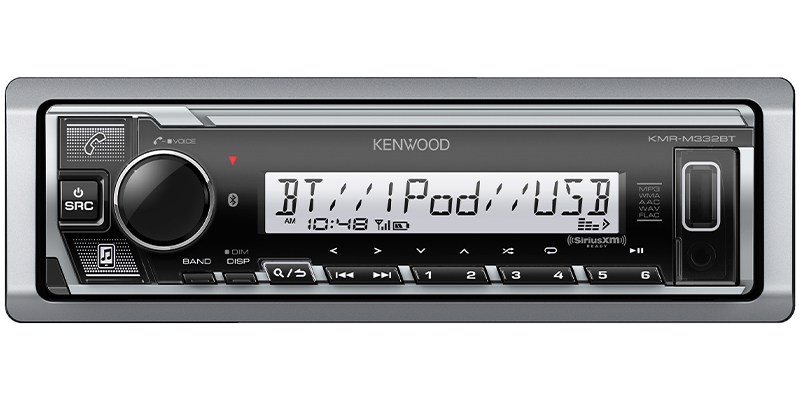

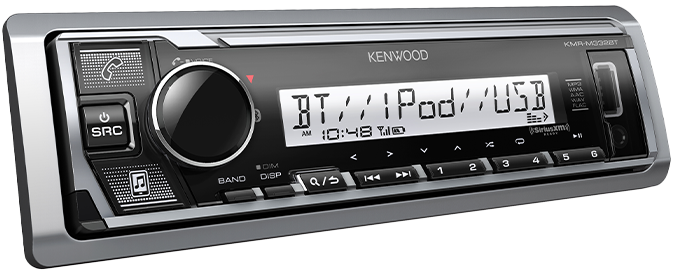

KMR-M332BTDigital Media Receiver
with Bluetooth

  • 255 Segment 1.5 Line Text Display
  • Bluetooth Direct Access Button
  • Variable Color Illumination
  • 13Band EQ & DTA
  • Conformal Coating
  • Optional Wired Remote Control Ready
  • Front USB & AUX IN
  • 3 Preouts 4.0V

Features

Smartphone Connectivity

Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.

Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

Control the Receiver from Your Smartphone with the KENWOOD Remote App

A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

Designed for Ease of Use

Direct Bluetooth keys allow you to access quickly to answering to and making a call, and entering Bluetooth Audio source.

And Vertical Alignment LCD display secures higher visibility during day-time drive.

Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices

Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.

The Best Audio Experience

13-Band EQ / Digital Time Alignment

13-Band equalizer and DTA gives optimal tuning enhancements for the listener.

Playable USB Files

Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.

Music Codec Playable up to
FLAC ~96kHz / ~24bit
WAV ~44.1kHz / ~16bit
MP3 ~48kHz / ~320kbps
WMA ~48kHz / ~192kbps
AAC ~48kHz / ~320kbps

Digital Time Alignment

Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.

Drive Equalizer

Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.

System EXPANSION Ready

The KENWOOD receiver has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer.

Additional Features

Variable Color Display

Bright variable color LED's can be adjusted to match your environment.

Short Chassis Design

With audio receivers shorter in depth, installation is made easier in a wider range of cars.

Conformal Coating

Improved moisture resistance of the circuit boards to prevent corrosion.

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)

Spanish and French Text Display

On-screen display menu now available in Spanish and French.

Wired Remote Control (Optional)

Remote control and remote extension cables are optionally available.

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Entertainment System

left
right
  • Conformal Coating

    Improved moisture resistance of the circuit boards to prevent corrosion.

  • Music Mix

    Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.

  • Dual Phone Connection

    While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

  • Remote App

    A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

  • Graphic EQ / Digital Time Alignment

    13-Band equalizer and DTA gives optimal tuning enhancements for listeners.

  • Drive EQ

    Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.

  • Variable Color Illumination

    Bright variable color LEDs can be adjusted to match any color dash lighting.

  • Short Chassis

    With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.

« scroll
FM Frequency Range(MHz) 87.9MHz to 107.9MHz
(Frequency step) (200kHz)
Usable Sensitivity 8.2dBf
S/N:30dB (0.71μV/75Ω)
Quieting Sensitivity 17.2dBf
DIN S/N:46dB (2.0μV/75Ω)
Frequency Response(±3.0dB) 30Hz to 15kHz
S/N(dB) 64.0dB(MONO)
Stereo Separation 40dB(1kHz)
MW
(AM)
Frequency Range(kHz) 530kHz to 1700kHz
(Frequency step) (10kHz)
Usable Sensitivity 29dBμ (28.2μV)
(S/N 20dB)
Preout Level(mV)/Load -Unbalanced 4000mV/10kΩ
Preout Impedance(Ω) =<600Ω
Speaker Impedance(Ω) 4 to 8Ω
USB I/F USB USB 1.1 / 2.0 High Speed
File System FAT12 / 16 / 32
Maximum Supply current DC5V(DC logo) 1.5A
Frequency Response 20Hz to 20kHz(±1dB)
S/N Ratio (dB) 98dB(1kHz)
Dynamic Range 93dB
Channel Separation 91dB
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
AAC Decode AAC-LC ".aac",".m4a" files
WAV Decode Linear-PCM
FLAC Decode FLAC file (Up to 24bit/96kHz)
AUX
Input
Frequency Response 20Hz to 20kHz ±3dB
Input Maximum Voltage 1000mV
Input Impedance 30kΩ
AMP PWR(MAX) 50Wx4
Full Bandwidth Power
(at less than 1%THD)
22Wx4
TONE Band1 62.5Hz ±9dB
Band2 100Hz ±9dB
Band3 160Hz ±9dB
Band4 250Hz ±9dB
Band5 400Hz ±9dB
Band6 630Hz ±9dB
Band7 1kHz ±9dB
Band8 1.6kHz ±9dB
Band9 2.5kHz ±9dB
Band10 4kHz ±9dB
Band11 6.3kHz ±9dB
Band12 10kHz ±9dB
Band13 16kHz ±9dB
Bluetooth Version Bluetooth 4.2
Frequency Range 2.402 to 2.480GHz
RF Output Power (E.I.R.P.) +4dBm (MAX), Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Profile HFP 1.7.1 (Hands Free Profile)
SPP(Serial Port Profile)
PBAP(Phonebook Access Profile)
A2DP(Advanced Audio Distribution Profile)
AVRCP 1.6.1 (Audio/Video Remote Control Profile)
GENE Operating voltage 12V DC car battery
Installation Size (W)
(H)
(D)
182(mm) 7-3/16(in)
53(mm) 2-1/16(in)
100(mm) 3-15/16(in)
Net Weight 0.7(kg) 1.5(lbs)
(Trim plate and Mounting sleeve: Included)
