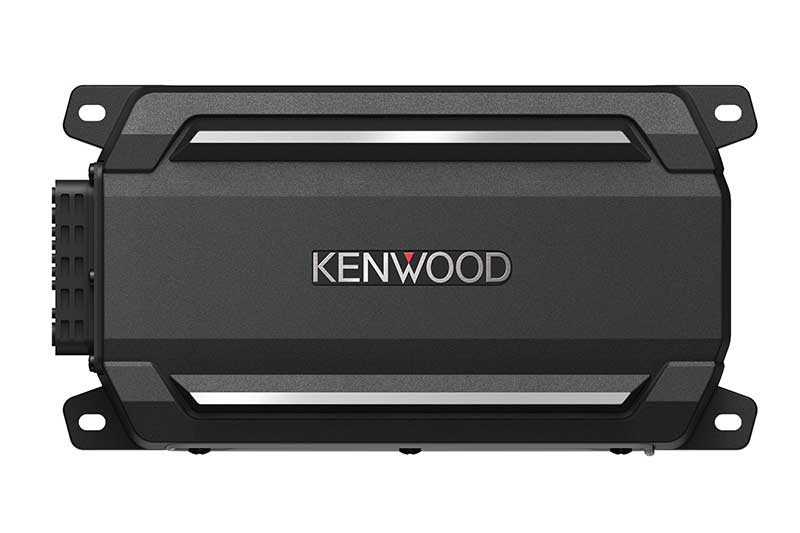

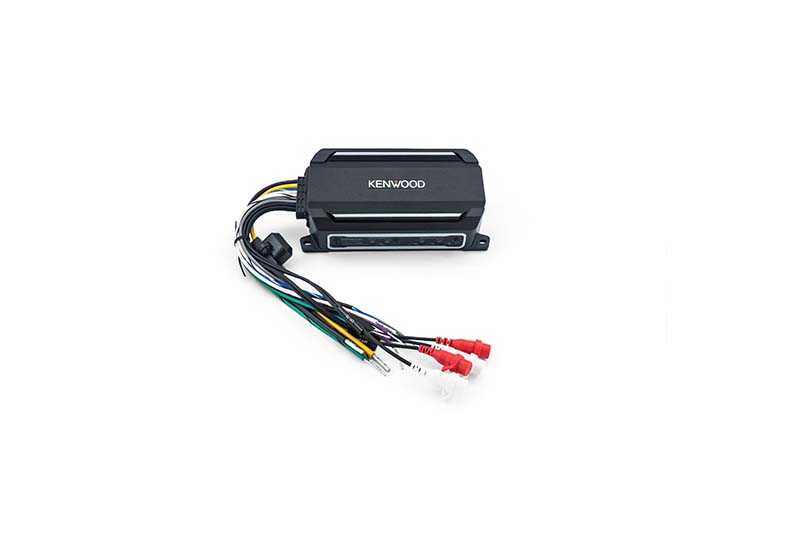

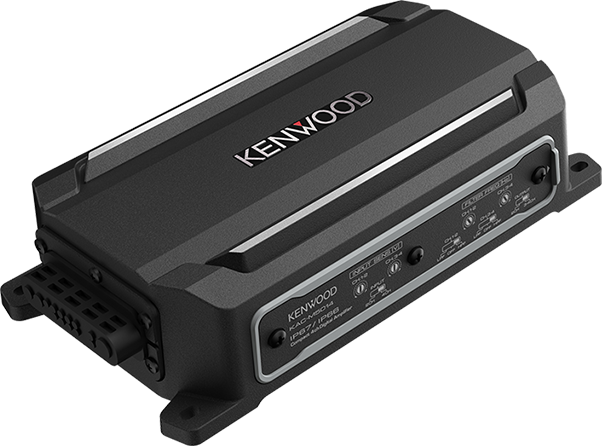

KAC-M5014Compact 4 Channel Digital Amplifier

KAC-M5014Compact 4 Channel Digital Amplifier

KAC-M5014

Your EVERWHERE Audio Experience

KAC-M5014
  • IP67/IP66 Certified Waterproof & Dustproof
  • RMS 50W x4 (4Ω)
  • RMS 75W x4 (2Ω)
  • Speaker Level Input
  • Signal Sensing Turn-on
  • Variable High & Low Pass Filter
  • (W)7-13/16” x (H)1-15/16” x (D)4-1/8”

EXTREME Durability

WaterPROOF & DustPROOF

IPX7/IPX6/IP6X certified. The amplifier can be submerged in up to 3.3 feet of water for 30 minutes, and can resist high-pressure, heavy sprays of water.

Salt Spray PROOF

ASTM B117 salt spray (or salt fog) corrosion testing ensures the amplifier will not corrode or fail in saltwater and other harsh environments.

Vibration PROOF

Thick 1/4" die-cast frame suppresses vibration.

Raised drain tunnel prevents moisture buildup.

ULTIMATE Performance

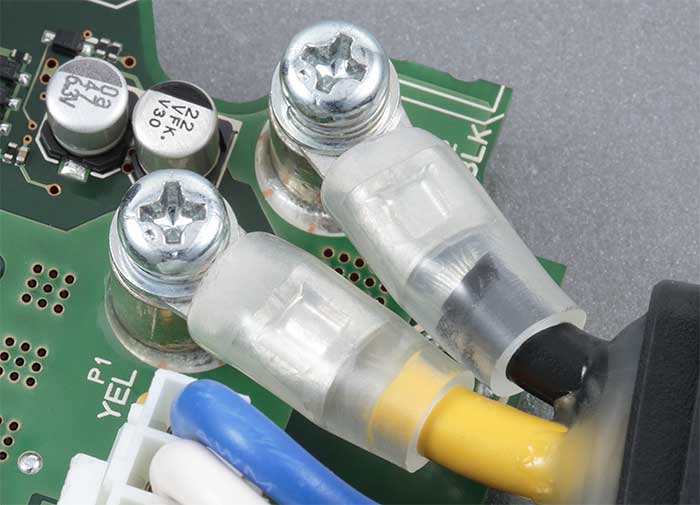

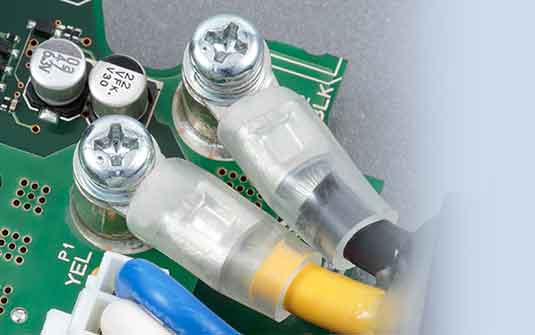

Increased Power Flow

Metal studs enable high current flow for connections between the amplifier and battery, resulting in powerful bass reproduction and enhanced overall sound quality.

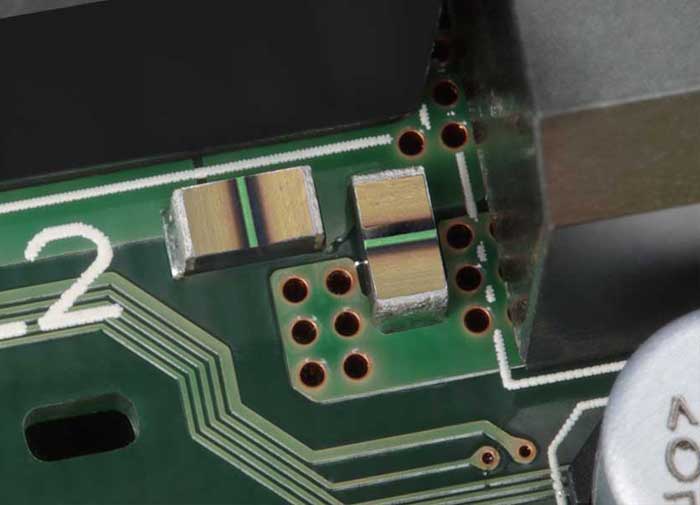

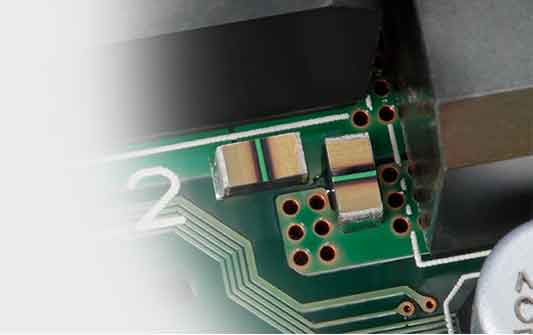

High Quality Capacitors

PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

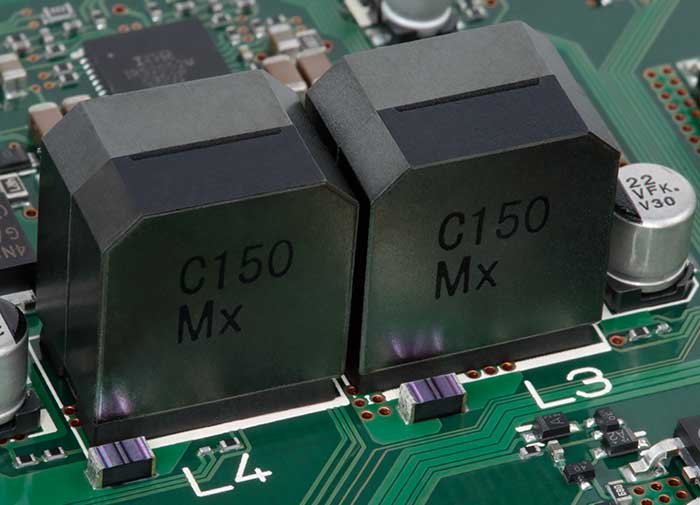

Magnetic Shielding

Magnetic shields for the output coils reduce radiated noise, further contributing to smooth and accurate sound.

Selectable Connection

Speaker Level Input

If your receiver does not have RCA outputs, you can connect your speaker cables directly to the KAC-M5014’s RCA cables to use as an audio signal input.

Take CONTROL

General Features

Max Power 600W
RMS Power 50W x 4 (4Ω)
75W x 4 (2Ω)
150W x 2 (Bridged)
S/N Signal to Noise Ratio: 77 dB
Size (W)7-13/16” x (H)1-15/16” x (D)4-1/8”
Low Pass Filter 50Hz-200Hz, -12dB/oct (A/B)
High Pass Filter 50Hz-200Hz, -12dB/oct (A/B)
Other Features Class-D Amplifier
IP67/IP66 Waterproof & Dustproof
ASTM B117 Salt Spray Proof
Variable High & Low Pass Filter
Signal Sencing Turn-on
Speaker Level Input
Bridgeable

Retailers

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Entertainment System

« scroll
Amplifier Type Class D
CTA-2006-D Value Maximum Dynamic Power 65W at 4ohms and ≤ 10% THD + N
Continuous Power Output 50W at 4ohms and ≤ 1% THD + N
Signal to Noise 77dBA reference 1 Watt RMS
Maximum Power Output MAX POWER 600W
RMS Power at 14.4V A/B (4 Ohms) 50Watts RMS x 4 at 4 Ohms, 20Hz-20kHz , ≤1% THD+N
A/B (2 Ohms) 75Watts RMS x 4 at 4 Ohms, 1kHz, ≤1%THD+N
A/B (Bridged 4 Ohms) 150Watts RMS x 2 at 4 Ohms, 1kHz, ≤1%THD+N
Specifications Signal to Noise Ratio 89dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 10Hz-35kHz (+0dB, -3dB)
Input Impedance 10k ohm
Speaker Impedance 4Ω ( 2Ω to 8Ω allowable)
Bridged Connection 4Ω to 8Ω allowable
Audio Section Low-pass Filter 50-200Hz, -12dB/oct (A/B CH)
High-pass Filter 50-200Hz, -12dB/oct (A/B CH)
Filter Selecter LPF/OFF/HPF (A/B CH)
RCA Input Sensitivity 0.2 (V) - 5.0 (V)
Speaker Level Input Sensitivity 4.0 (V) - 12.0 (V)
Input Selecter 2ch, 4ch
Output Selecter 2ch, 3/4ch

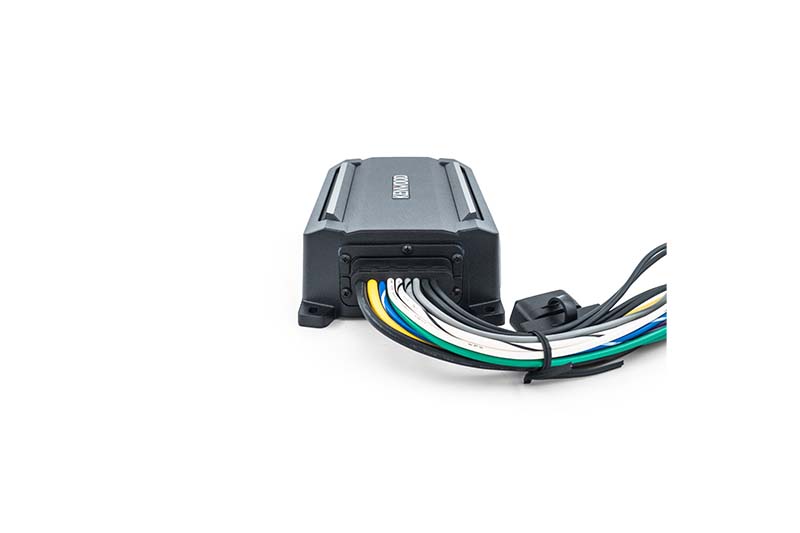

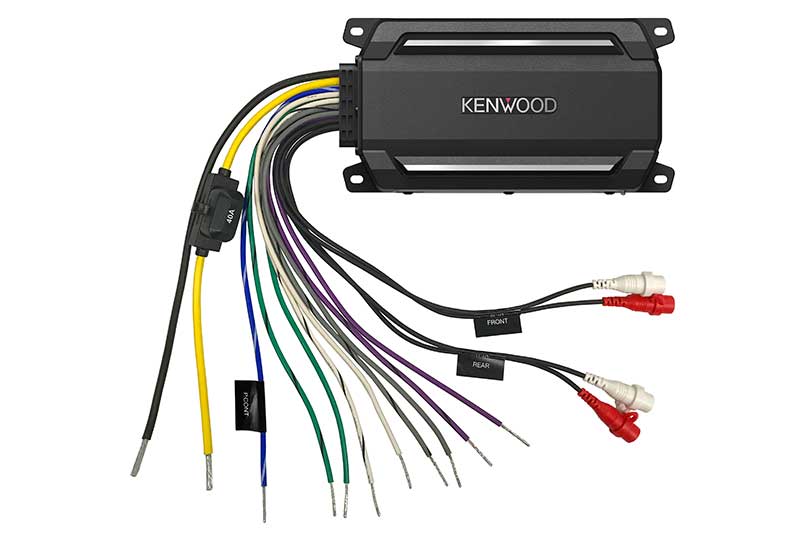

Terminal Battery & Ground 12" 10-gauge Pigtail Cable with Molded Strain Relief Bushing
Speaker Output 12" 16-gauge Pigtail Cable with Molded Strain Relief Bushing

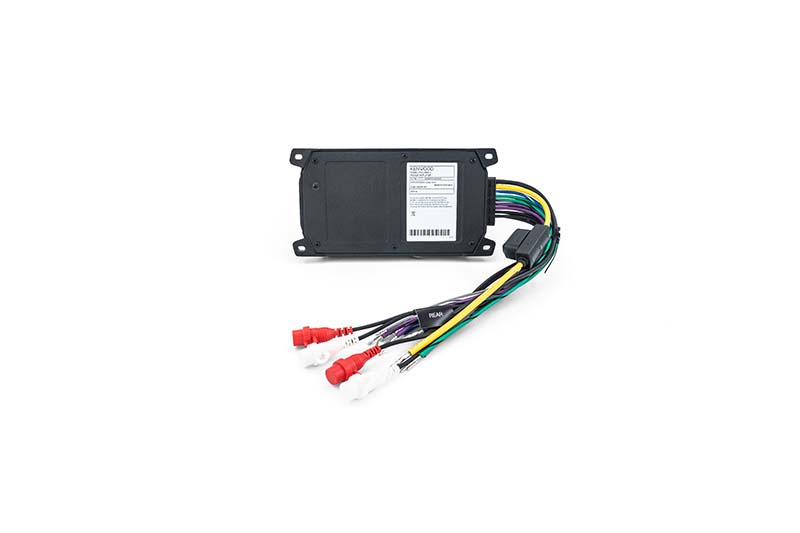

Line In (Pigtail RCA) Yes (A/B)
Pre Out (Pigtail RCA) No
Speaker Input (Pigtail RCA In) Yes (A/B)
General Dimensions(WxHxD) 198[mm] x 48.5 [mm] x 104 [mm]
7-13/16" x 1-15/16" x 4-1/8"
Weight (kg) 1.3 [kg] 2.9 [lbs]
Operating Voltage 14.4V (11-16V allowable)
Current Consumption 26A
Fuse 40A
Key Features CTA-2006 Compliant
Class D
Power MOS-FET Switching Power Supply
2 Ohms Load Capability
One-Sided Connection
Line Input Terminals
Speaker Level Input
Signal Sensing Turn-on
Remote Turn-on
Terminal Cover
AB/A Channel Input Selector with Independent Gain Adjustment
Speaker Output Selector (2ch / 3ch4ch)

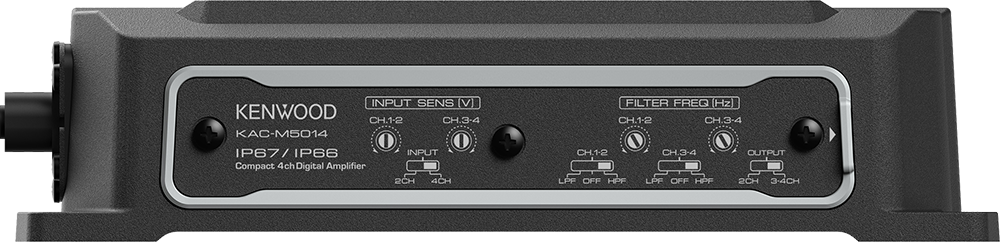

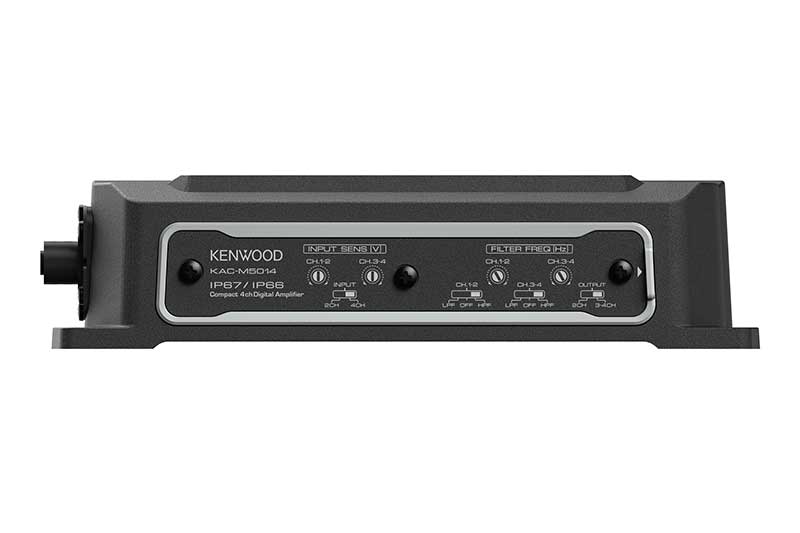

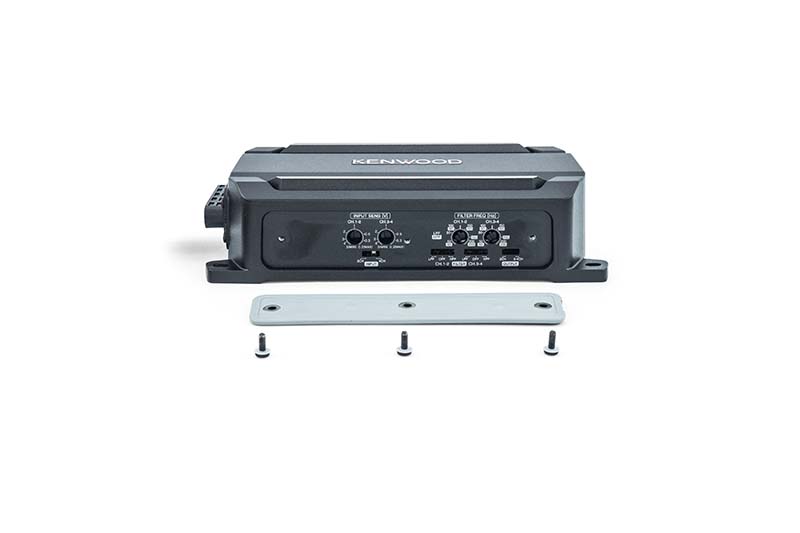

Audio Controls on the Side
Corrosion-Resistant Sealed Cast Aluminum Chassis
Drain Tunnel
Water-proof & Dust-proof (Main Unit/DC cable)
ASTM B117 (Main Unit)
Other Features Fuse Rubber Cover

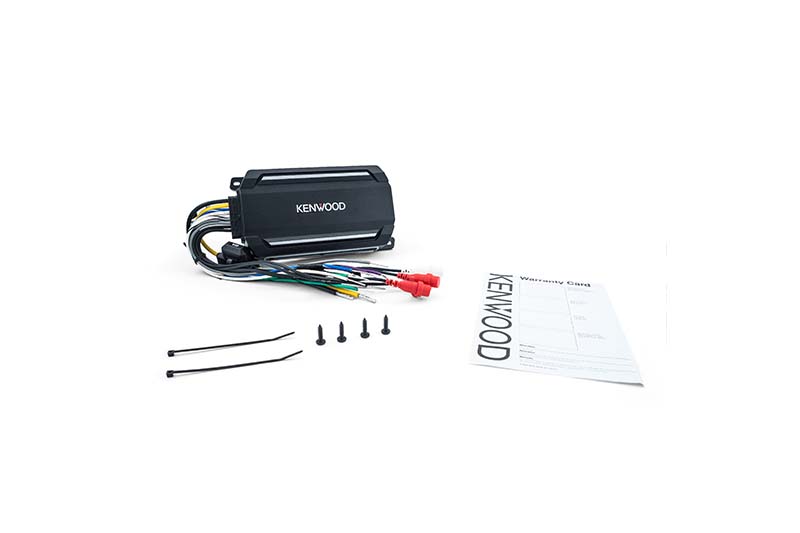

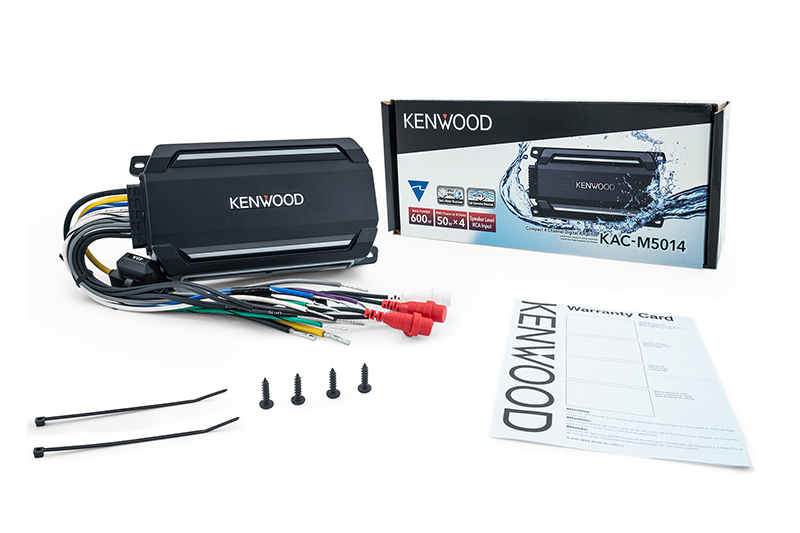

Accessories Stainless Steel Self-tapping Screw (Φ4 x 16mm) 4pcs
Wire band (100mm [3-15/16"]) 2pcs
Instruction Manual
Warranty Card
