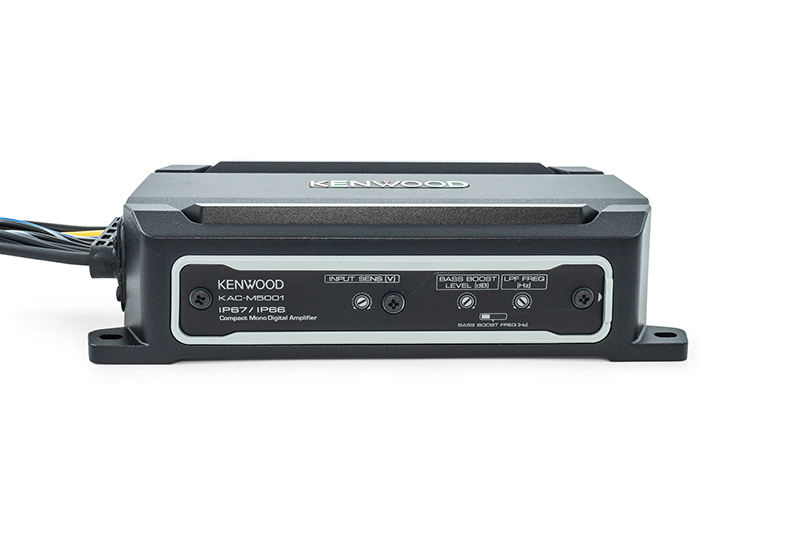

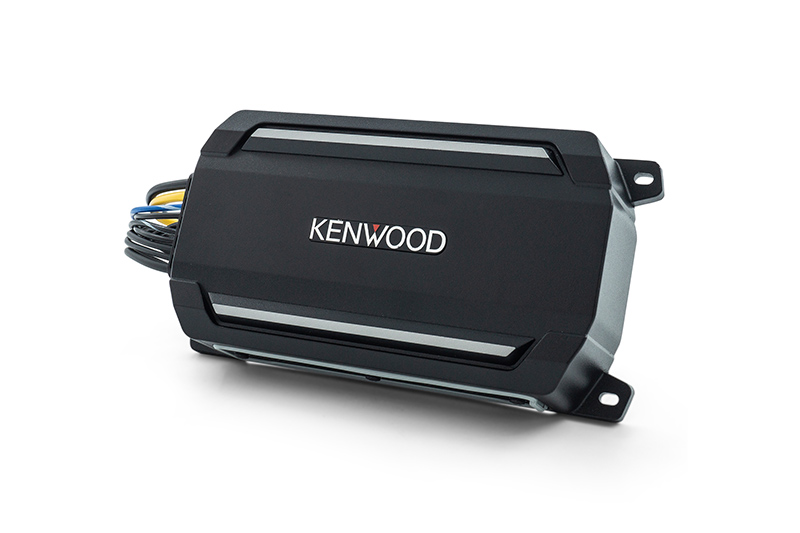

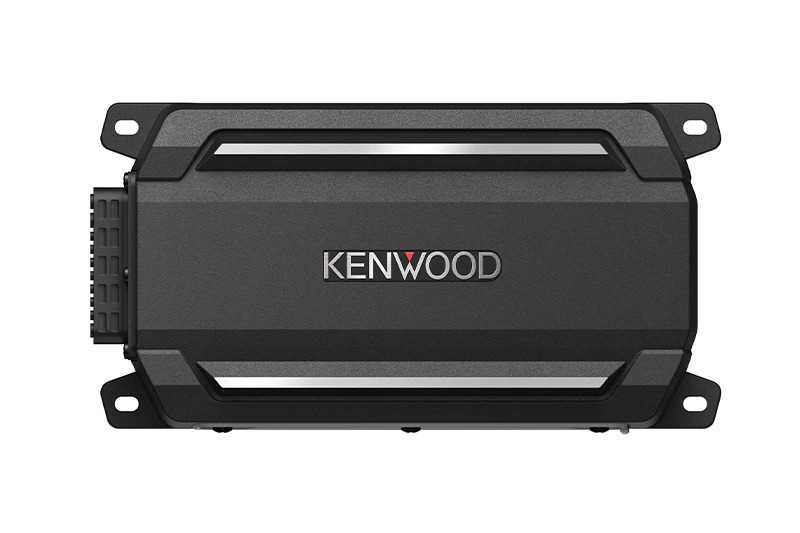

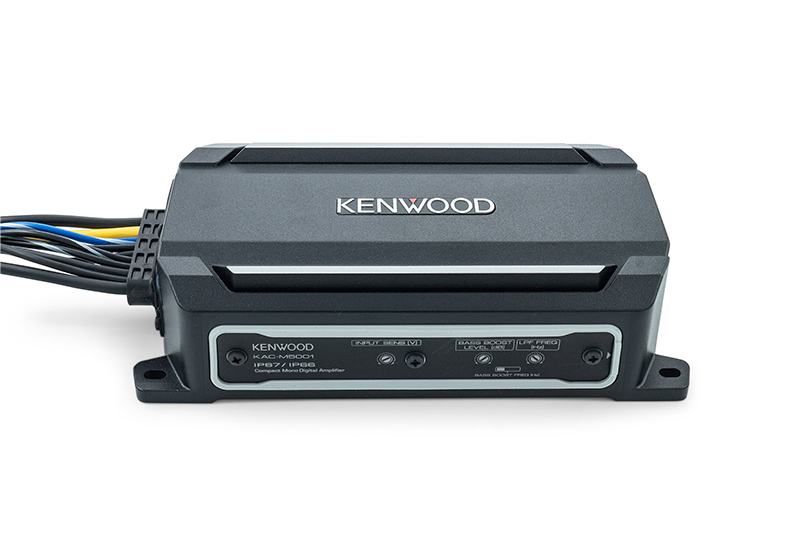

KAC-M5001Compact Mono Digital Amplifier

KAC-M5001Compact Mono Digital Amplifier

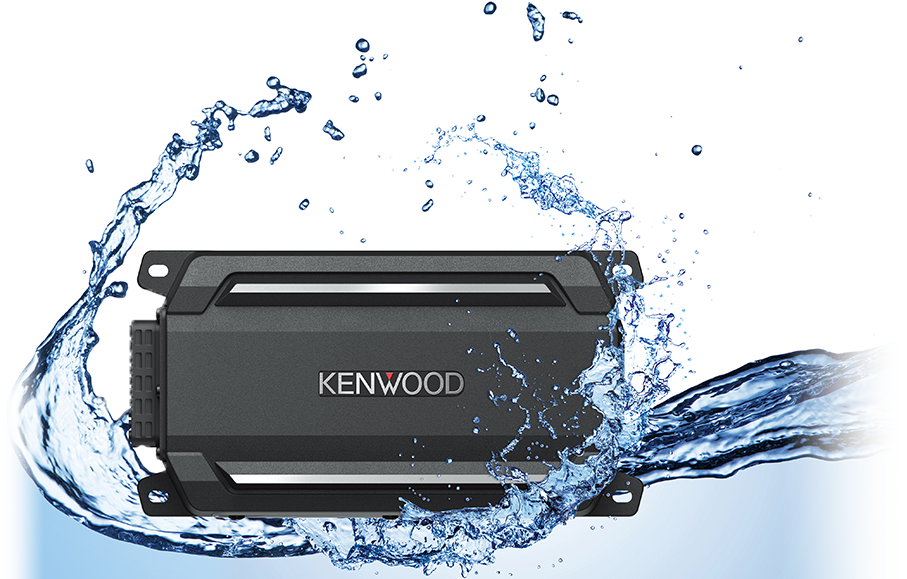

KAC-M5001

Your EVERWHERE Audio Experience

KAC-M5001
  • IP67/IP66 Certified Waterproof & Dustproof
  • RMS 200W (4Ω)
  • RMS 300W (2Ω)
  • Speaker Level Input
  • Signal Sensing Turn-on
  • Wired Level Control Included
  • (W)7-13/16” x (H)1-15/16” x (D)4-1/8”

EXTREME Durability

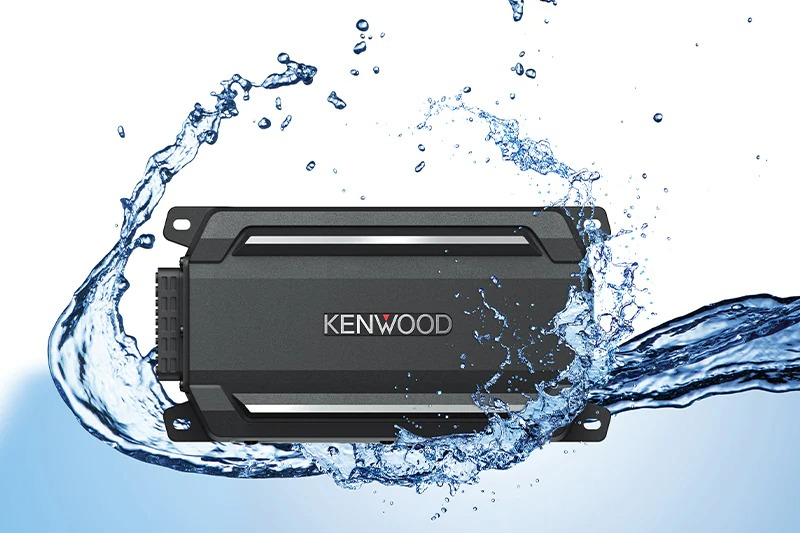

WaterPROOF & DustPROOF

IPX7/IPX6/IP6X certified. The amplifier can be submerged in up to 3.3 feet of water for 30 minutes, and can resist high-pressure, heavy sprays of water.

Salt Spray PROOF

ASTM B117 salt spray (or salt fog) corrosion testing ensures the amplifier will not corrode or fail in saltwater and other harsh environments.

Vibration PROOF

Thick 1/4" die-cast frame suppresses vibration.

Raised drain tunnel prevents moisture buildup.

ULTIMATE Performance

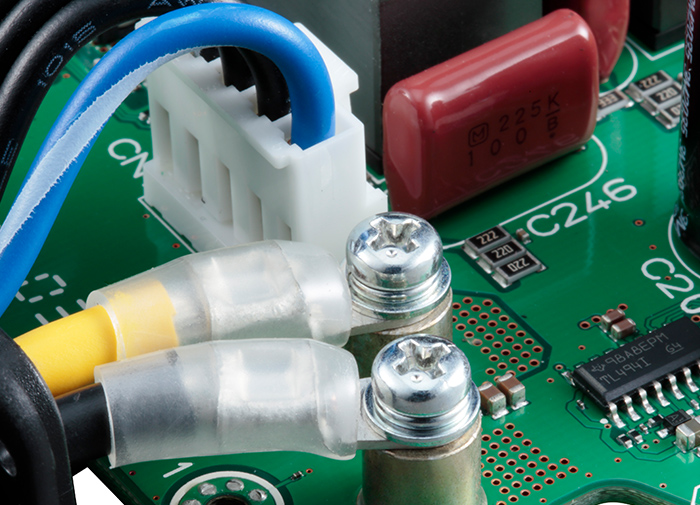

Increased Power Flow

Metal studs enable high current flow for connections between the amplifier and battery, resulting in powerful bass reproduction.

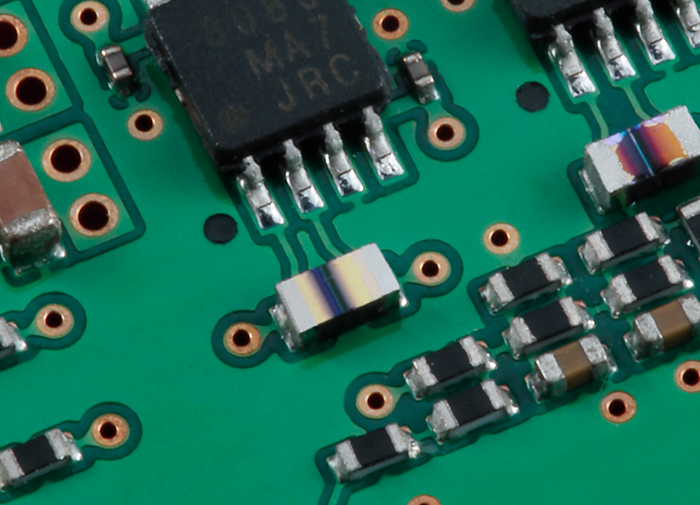

High Quality Capacitors

PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

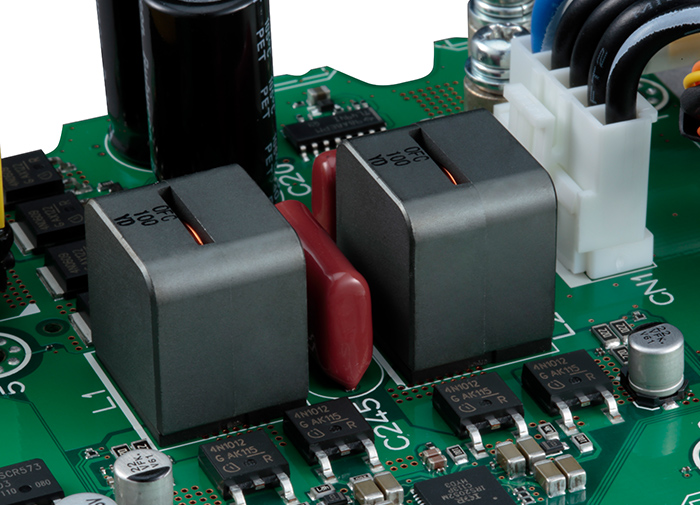

Magnetic Shielding

Magnetic shields for the output coils reduce radiated noise, further contributing to smooth and accurate bass frequency signals.

Selectable Connection

Speaker Level Input

If your receiver does not have RCA outputs, you can connect your speaker cables directly to the KAC-M5001's RCA cables to use as an audio signal input.

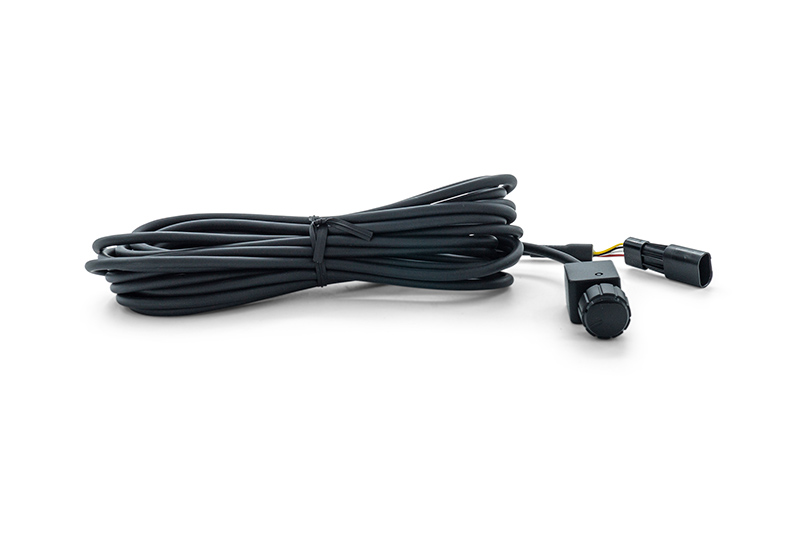

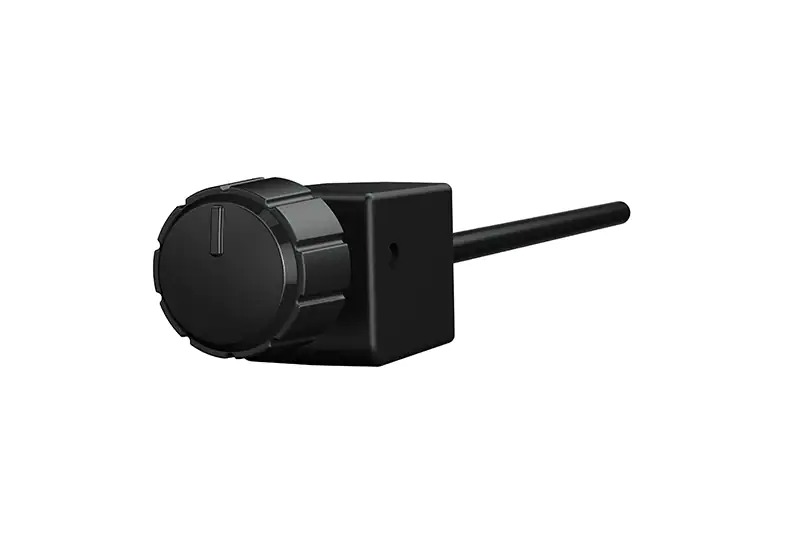

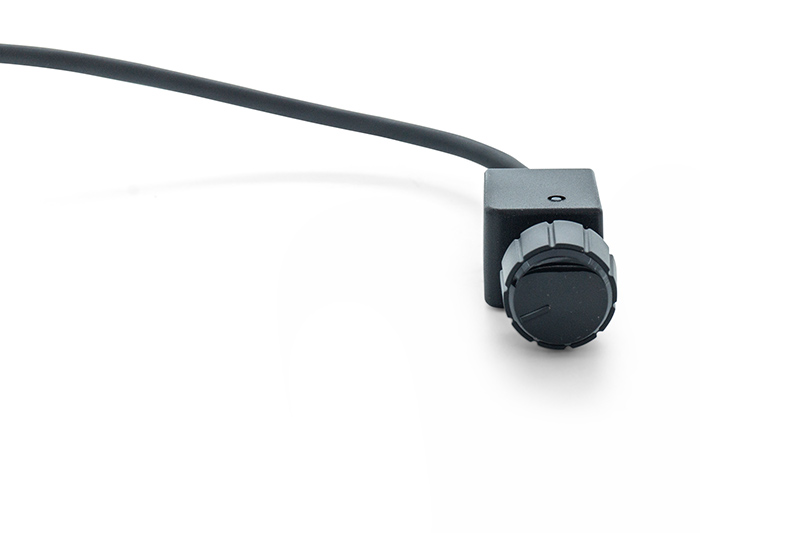

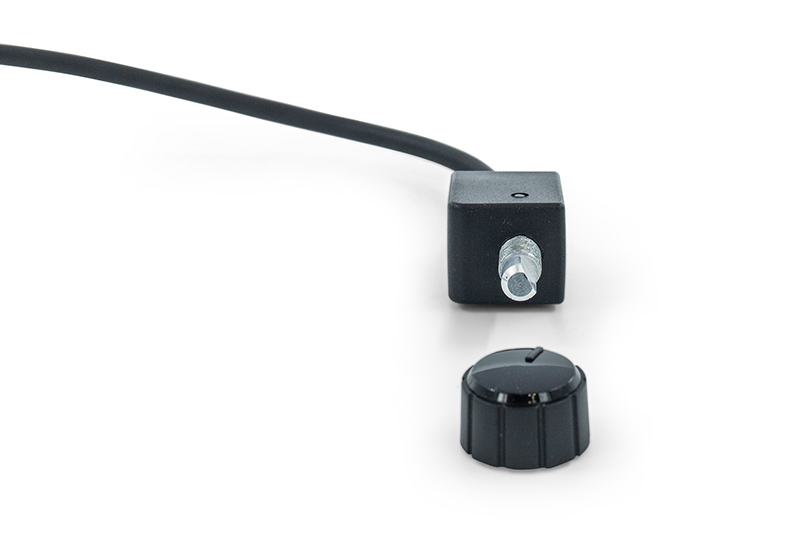

Wired Level Control Included

Waterproof certified wired remote level control allows you to easily adjust the subwoofer volume.

System EXPANSION Ready

KENWOOD Audio Receivers and the KAC-M5024BT have RCA outputs to expand the system to connect to the KAC-M5001 mono amplifier and subwoofer.

*Subwoofers pictured here are not water-resistant

x2 Paired Parallel Speaker cables

for easier connection to 2 subwoofers or a single Dual Voice Coil subwoofer.

Take CONTROL

General Features

Max Power 600W
RMS Power 300W (2Ω)
200W (4Ω)
S/N Signal to Noise Ratio: 78 dB
Size (W)7-13/16” x (H)1-15/16” x (D)4-1/8”
Low Pass Filter 50Hz-200Hz, -24dB/oct
Inflasonic Filter 20Hz, -24dB/oct
Other Features Class-D Amplifier
IP67/IP66 Waterproof & Dustproof
ASTM B117 Salt Spray Proof (Amplifier)

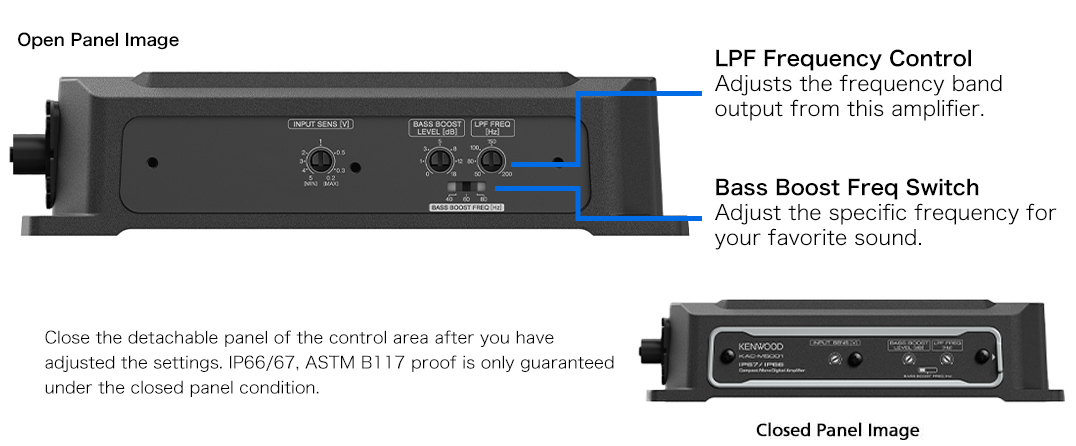

Variable Low Pass Filter
Bridgeable
Wired Level Control Included

Retailers

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Entertainment System

« scroll
Amplifier Type Class D
CTA-2006-D Value Maximum Dynamic Power 220W at 4ohms and ≤ 10% THD + N
Continuous Power Output 200W at 4ohms and ≤ 1% THD + N
Signal to Noise 78dBA reference 1 Watt RMS
Maximum Power Output MAX POWER 600W
RMS Power at 14.4V 4 Ohms 200Watts RMS x 1 at 4 Ohms, 20-200Hz , ≤1% THD+N
2 Ohms 300Watts RMS x 1 at 2 Ohms, 100Hz, ≤1%THD+N
Specifications Signal to Noise Ratio 97dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 20Hz-200Hz (+0dB, -3dB)
Input Impedance 10k ohm
Speaker Impedance 4Ω ( 2Ω to 8Ω allowable)
Audio Section Low-pass Filter 50-200Hz, -24dB/oct
High-pass Filter -
Infrasonic Filter 20Hz, -24dB/oct
Bass Boost Control 40/60/80Hz, 0dB - +18dB
RCA Input Sensitivity 0.2 (V) - 5.0 (V)
Speaker Level Input Sensitivity 4.0 (V) - 12.0 (V)

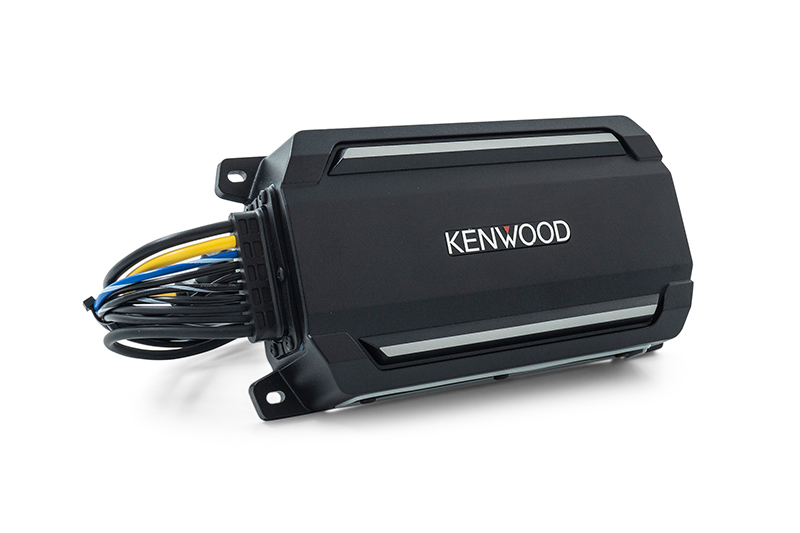

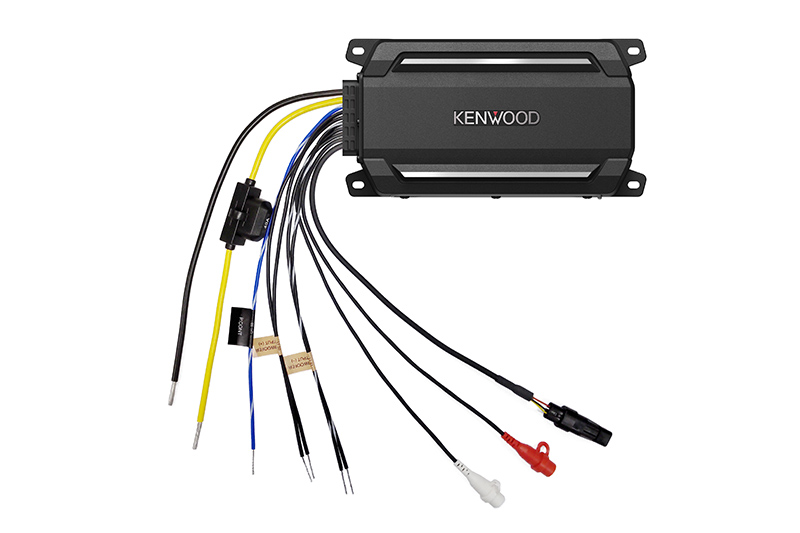

Terminal Battery & Ground 12" 10-gauge Pigtail Cable with Molded Strain Relief Bushing
Speaker Output 12" 18-gauge x2(Parallel) Pigtail Cable with Molded Strain Relief Bushing
Line In (Pigtail RCA) Yes
Pre Out (Pigtail RCA) No
Speaker Input (Pigtail RCA In) Yes
Connector for Wired Remote Controller Pigtail Connector (4pin)
General Dimensions(WxHxD) 198[mm] x 48.5 [mm] x 104 [mm]
7-13/16" x 1-15/16" x 4-1/8"
Weight (kg) 1.2 [kg] 2.7 [lbs]
Operating Voltage 14.4V (11-16V allowable)
Current Consumption 14A
Fuse 40A
Key Features CTA-2006 Compliant
Class D
Power MOS-FET Switching Power Supply
2 Ohms Load Capability
One-Sided Connection
Line Input Terminals
Speaker Level Input
Signal Sensing Turn-on
Remote Level Control

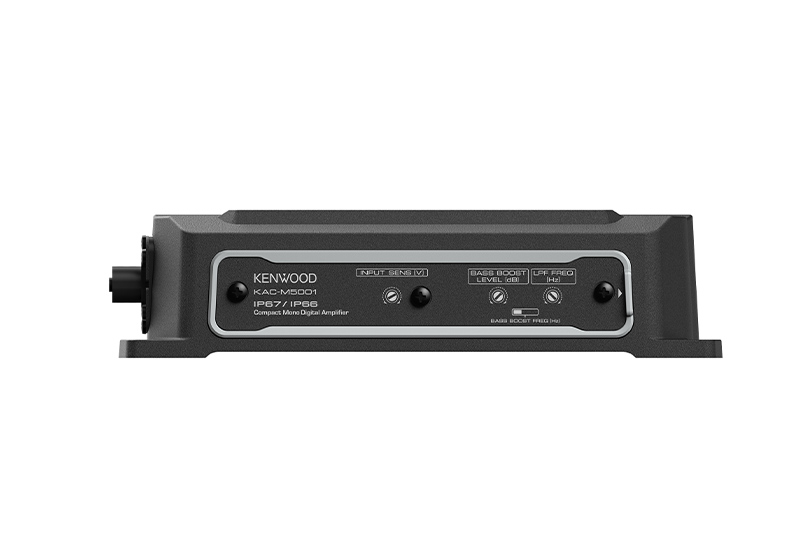

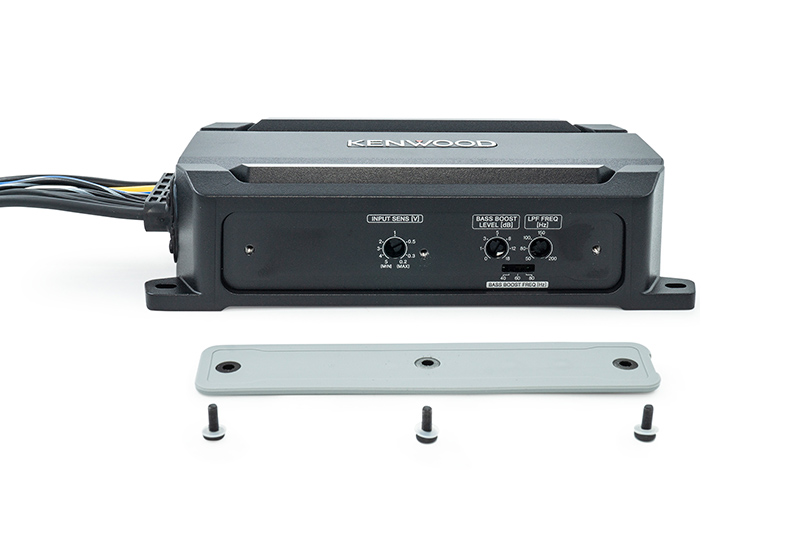

Terminal Cover

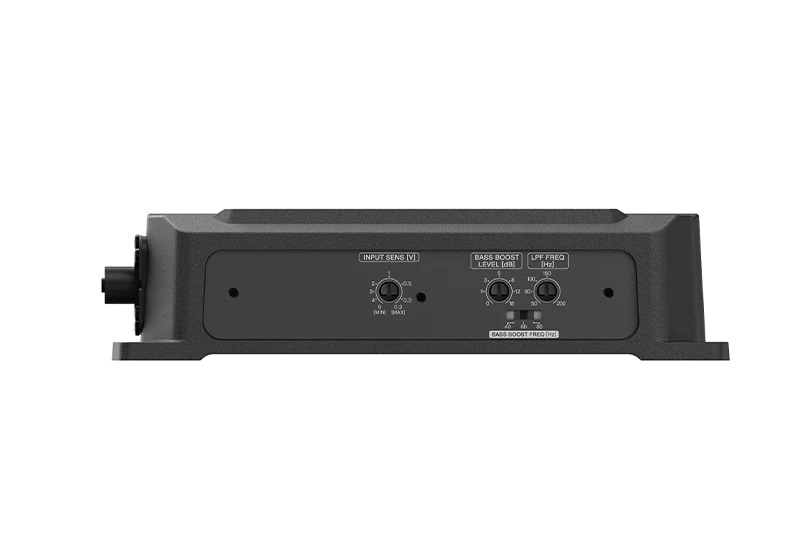

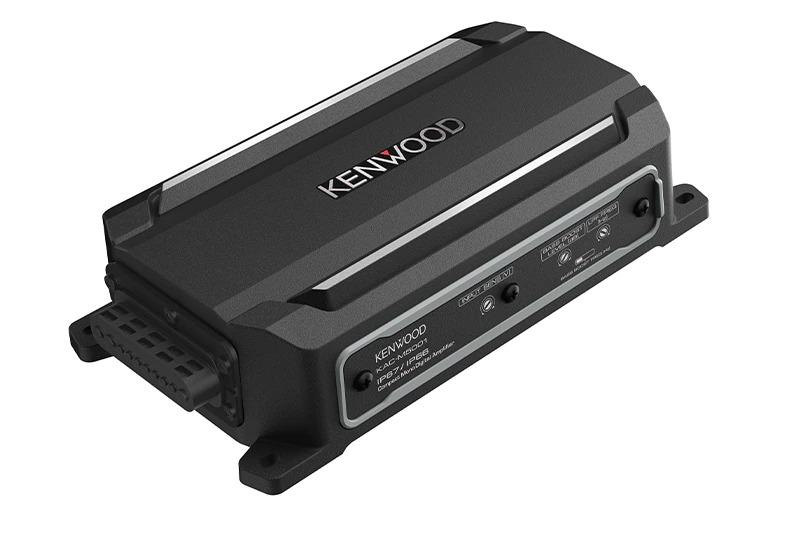

Audio Controls on the Side
Corrosion-Resistant Sealed Cast Aluminum Chassis
Drain Tunnel
Water-proof & Dust-proof (Main Unit/DC cable)
Water-proof (Remote Control)
ASTM B117 (Main Unit)
UV Resistant ( Remote Control)
Other Features Fuse Rubber Cover

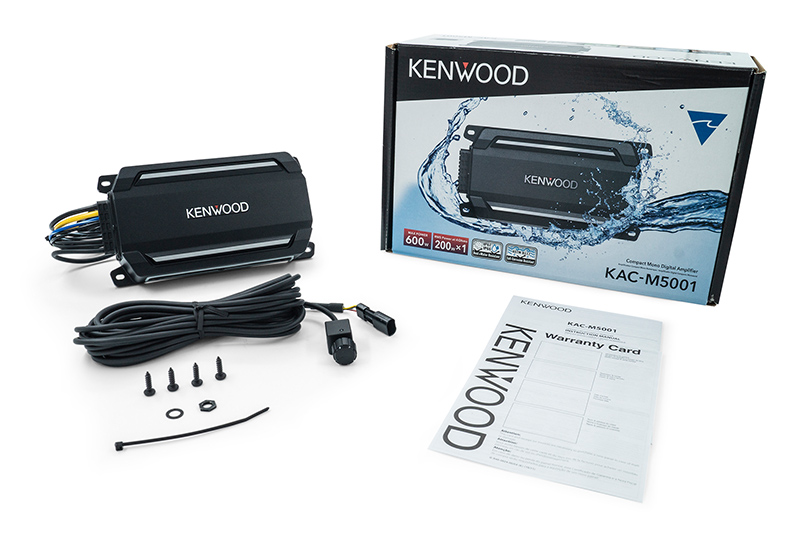

Accessories Wired Remote Control Unit with Attached 23.6' (6m) Cable
Nut,1pc and Washer,1pc for remote unit mounting
Stainless Steel Self-tapping Screw (Φ4 x 16mm) 4pcs
4" Plastic Wire Tie, 1pc
Instruction Manual
Warranty Card
