XR speakers are precisely designed for High-Resolution audio to create a truly authentic listening experience with every detail and nuance.
XR-1701High-Resolution Audio Certified

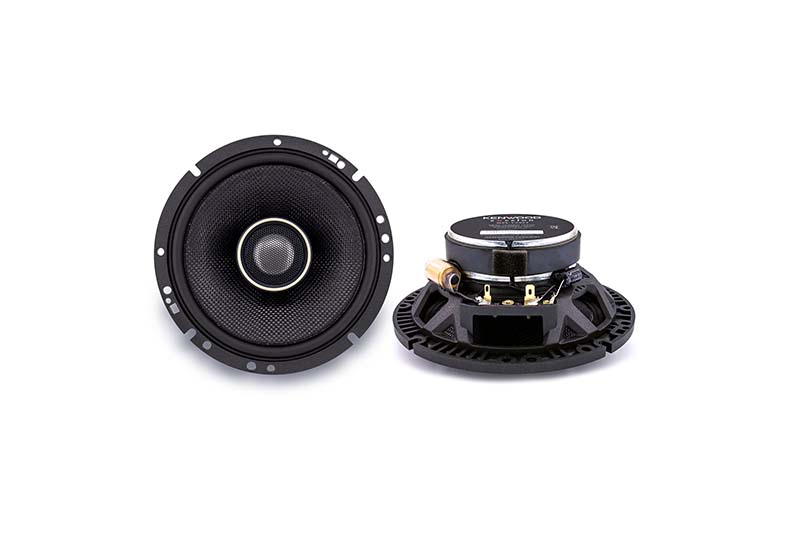

6-1/2" 2-way Speaker
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

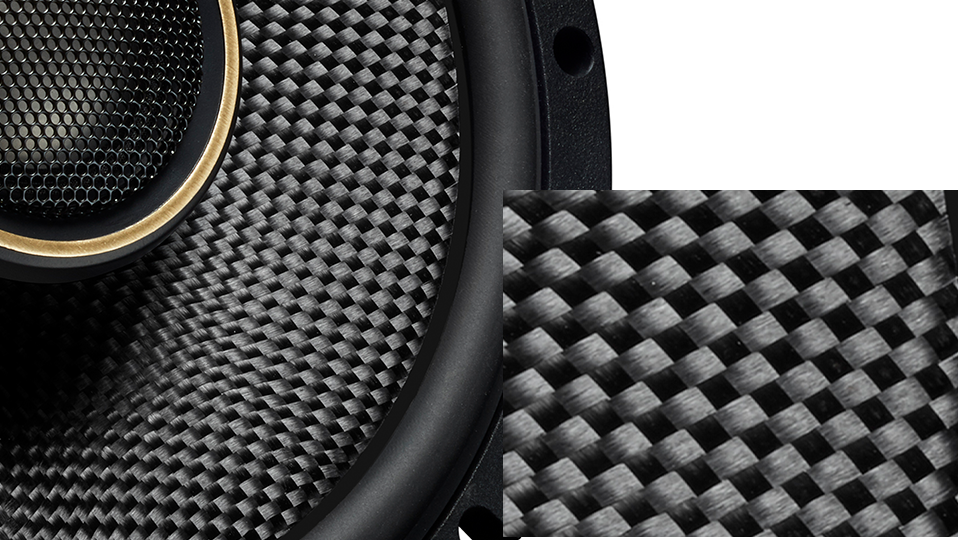

The glass fiber cone combines high-strength with lightweight materials, allowing the speaker to reproduce all sounds from impactful bass notes to delicate tones.

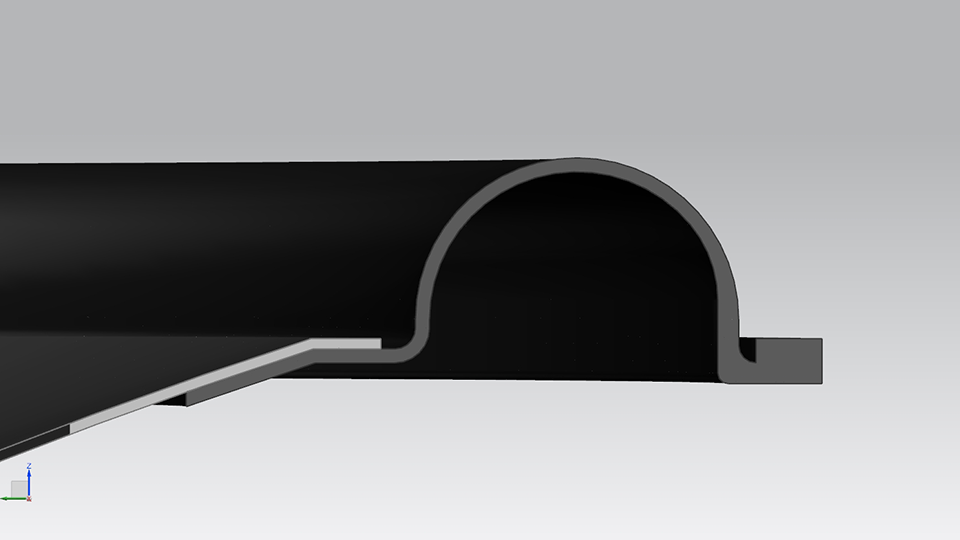

Asymmetrical thickness of the surround roll shape provides better focussed bass.
1-3/16” (30mm) tweeters have a larger surface area than most tweeters which allows clear reproduction of vocal sound up through ultra high frequency range.
With its compound curvature diaphragm, a large 1-3/16” (30mm) titanium hard dome provides the ultimate in high frequency performance.

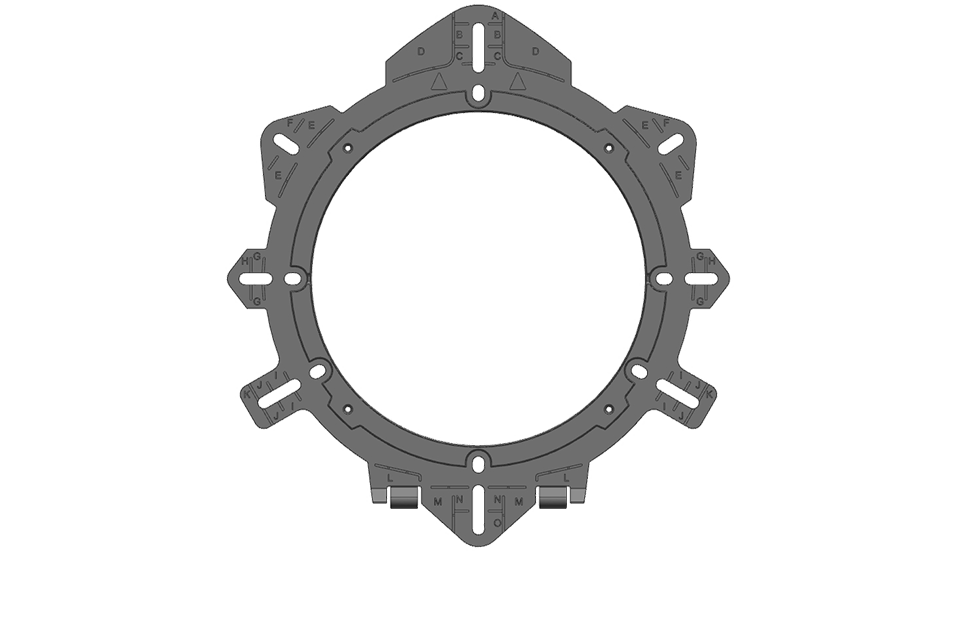

A multi-bracket is included to make installation easier in a varierty of vehicle types.
|Peak Input Power||300W|
|Rated Input Power||100W|
|Woofer Features||6-1/2 inch Glass Fiber Cone|
|Tweeter Features||1-3/16inch Hard Dome|
|Sensitivity||87 dB/ W / m|
|Frequency Response||45Hz-40kHz (-10dB)|
|Cutout Diameter||5-1/2 inch|
|Mounting Depth||2-5/16 inch|
|Power Handling||Power Handling||Peak Input Power||300W|
|Frequency Response||45 Hz~40,000 Hz (-10dB)|
|CTA Standards||RMS Power||100Watts RMS|
|Sensitivity||87dB/ W at 1 m|
|Frequency Response||64 Hz~35,000 Hz (-3dB)|
|Size||165 mm||6-1/2 inch|
|Magnet||Ferrite||φ90 x t15|
|Dimension||Width||180 mm||7-1/16 inch|
|Height||180 mm||7-1/16 inch|
|Depth||83.5 mm||3-5/16 inch|
|Cut-out Diameter||140 mm||5-1/2 inch|
|Height from the mounting surface with Grille||24.5 mm||15/16 inch|
|Height from the mounting surface without Grille||21 mm||13/16 inch|
|Mounting Depth||59 mm||2-5/16 inch|
|Weight||Net Weight with Grille||1,130ｇ||2.5 lb|
|Net Weight without Grille||1,050g||2.3 lb|
|Gross Weight||3.4 kg||7.5 lb|
|Accessory||Grille Assy 2pcs|
|Bracket (WF) 2pcs|
|Adhesive Tape 1set|
|Tapping Screw (φ4x25mm) 12pcs|
|Tapping Screw (φ4x18mm) 8pcs|
|Speed Nut (φ4) 16pcs|
