P-HD5SG-98

P-HD5SG-981998-2013 Harley Davidson® Street Glide® / Ultra Classic®
2-Amplifier/3-Speaker Front & Rear Tour-Pak® Package

TWO 2-CHANNEL POWER AMPLIFIERS, TWO 5.25" SPEAKER PAIRS, 6X9" SPEAKERS, & LID KIT PACKAGE DESIGNED AND ENGINEERED TO BE PLUG AND PLAY FOR SELECT 1998-2013 HARLEY-DAVIDSON® MOTORCYCLES

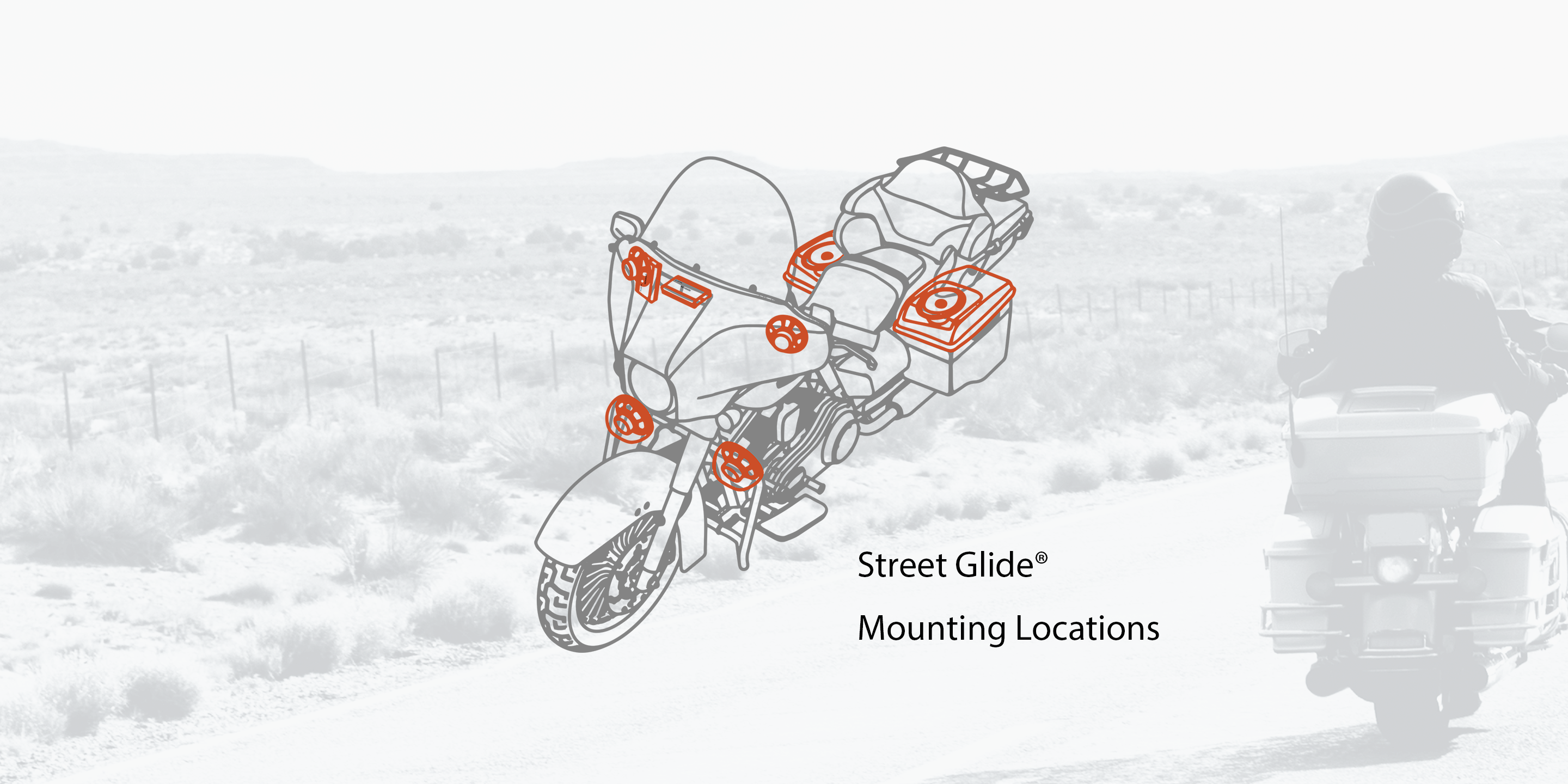

Street Glide® Mounting Locations

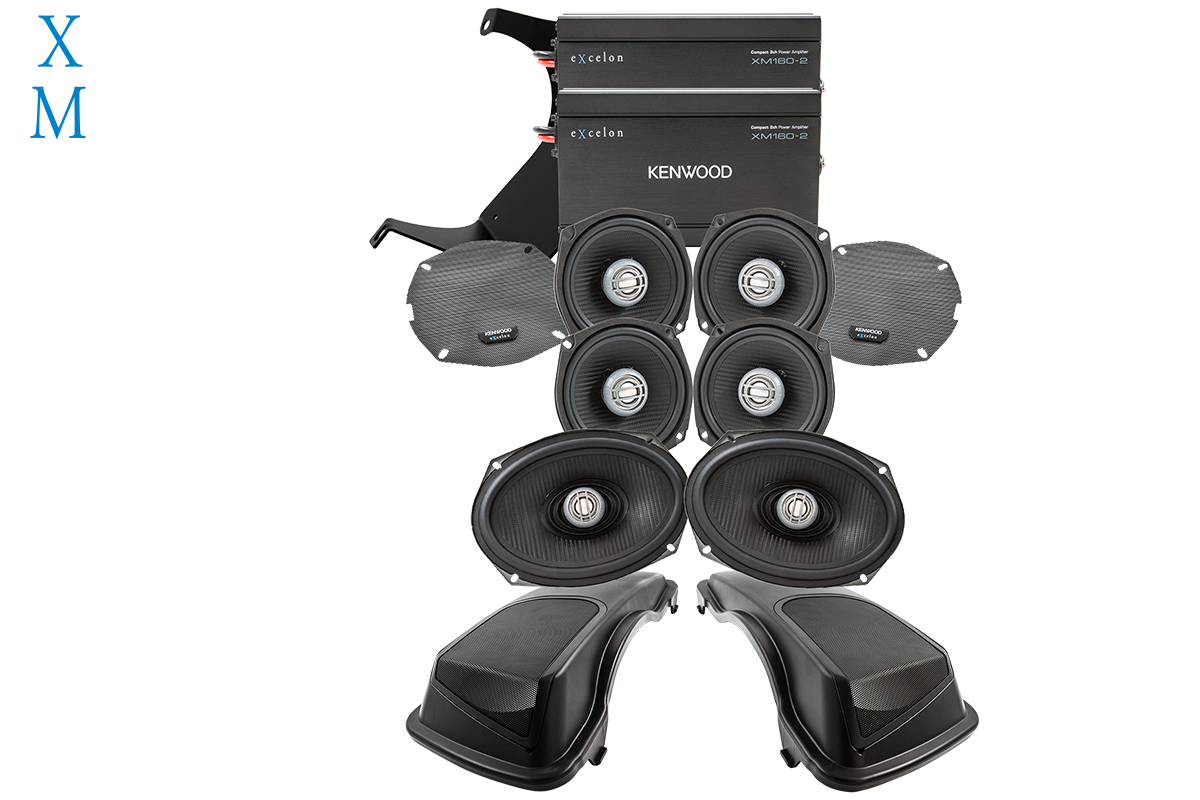

Products Included In Package

XM160-2-98

  • Class D 2-Channel Power Amplifier
  • 80W x 2 @ 2 ohms (RMS)
  • No Radio Flash Required
  • Bypass Port For System Expansion
  • Plug & Play Power, Speaker, & Input Wiring
  • Speaker Level Input For HD OEM Radio or Any Aftermarket Receiver
  • Input Sensitivity Adjustment
  • High Efficiency Design Will Not Overload HD Electrical Systems

Speaker Features

  • IMPP Woofer Cones
  • 1” (PEI) Dome Tweeters
  • Metal Mesh Grilles Included(XM50F)
  • Silicone Gaskets Included (XM69R)
  • Sealed Design Will Not Allow Water To Pass Through Speaker (XM69R)
  • Impedance: 2 Ohm » Mounting Depth: XM50F/XM50R/XM69R 2.45”/2.0"/2.925”
  • Sensitivity: XM50F/XM50R/XM69R 94dB/94dB/94dB
  • Frequency Response: XM50F/XM50R/XM69R 40-25kHz/40-25kHz/ 20-25kHz
  • RMS Power Handling: XM50F/XM50R/XM69R 150W/150W/200W
  • Peak Power Handling: XM50F/XM50R/XM69R 300W/300W/400W

CA-LID98

  • Primed And Ready For Paint
  • Injection Molded Using High Impact ABS
  • Optimal Speaker Positioning Faces Rider
  • Minimal Loss Of Bag Space
  • Built-in Water Drain Channels

CA-PLT98

  • Amplifier Side Mounting Plate for 2nd XM160-2-98 Amplifier

CA-HRN98UT

  • Designed and Engineered for Select 1998-2013 Harley-Davidson® Motorcycles
  • Plug & Play Wiring Harness for Adding Rear Speakers

2-Year Warranty for P-HD5SG-98 Package.
