XR-1701P

XR speakers are precisely designed for High-Resolution audio to create a truly authentic listening experience with every detail and nuance.

XR-1701PHigh-Resolution Audio Certified

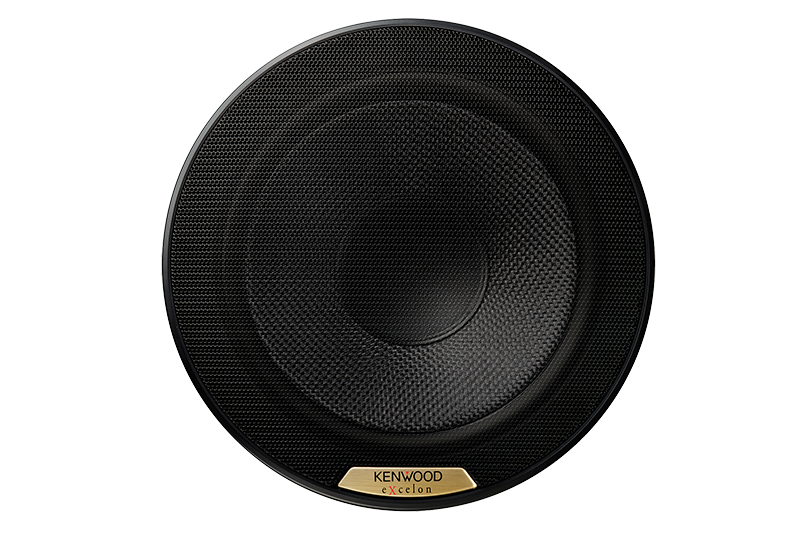

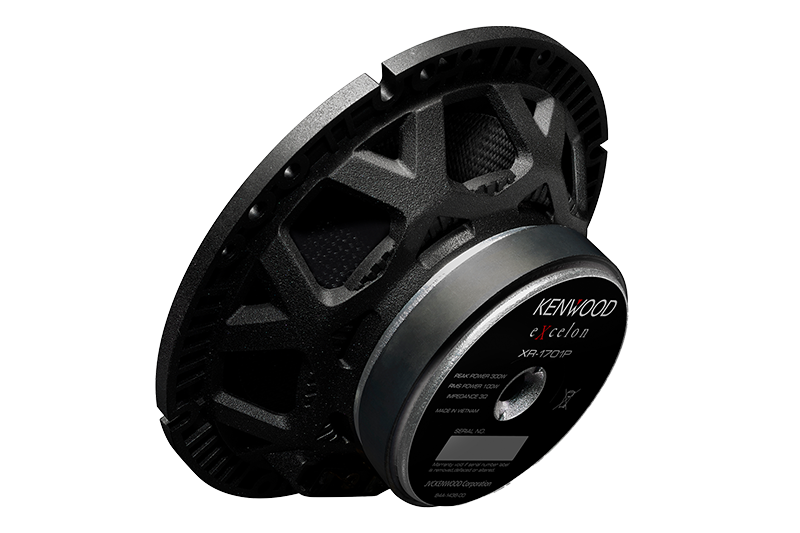

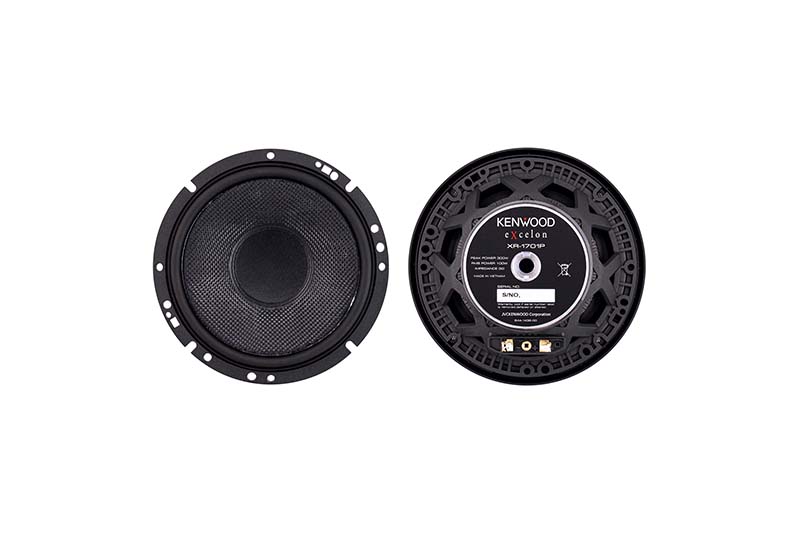

6-1/2" Component Speaker

  • ・Glass Fiber Cone
  • ・1-3/16” Hard Dome Tweeter
  • ・Network Box with Bi-amp Wiring Capability
  • ・6 x 9" Bracket / Multi-use Bracket

RICH AND IMMERSIVE HIGH-RESOLUTION AUDIO

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.


Smooth waveforms

Loss of smoothness

Fine waveforms

* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

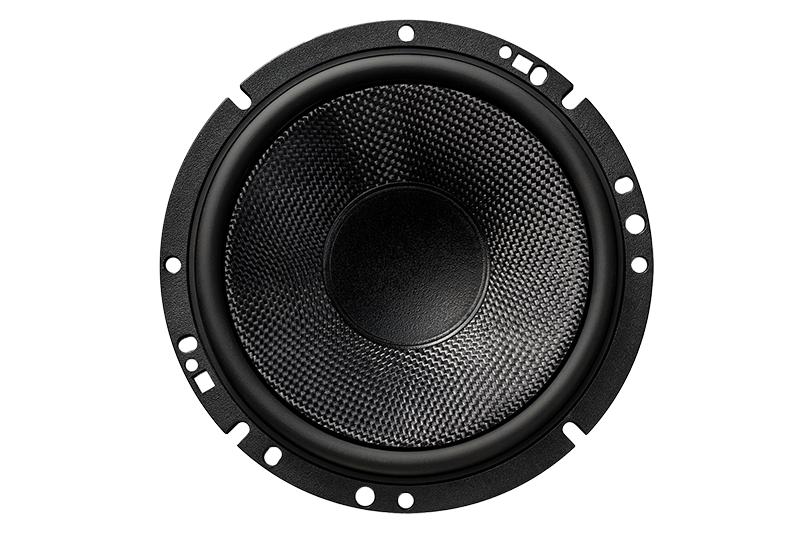

GLASS FIBER CONE

The glass fiber cone combines high-strength with lightweight materials, allowing the speaker to reproduce all sounds from impactful bass notes to delicate tones.

WOOFER CAP WITH CIRCLE RIB

The circle rib provides enahnced woofer stability, ensuring bass is deep and clear.

SURROUND ROLL SHAPE

Asymmetrical thickness of the surround roll shape provides better focussed bass.

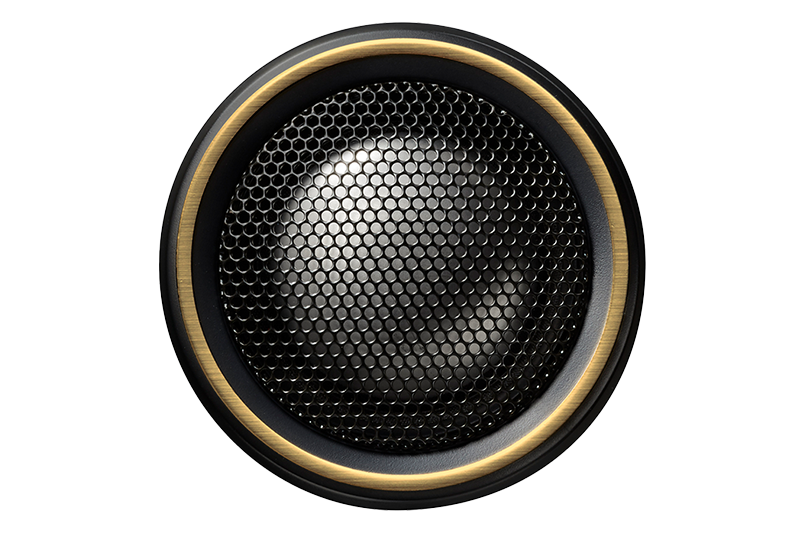

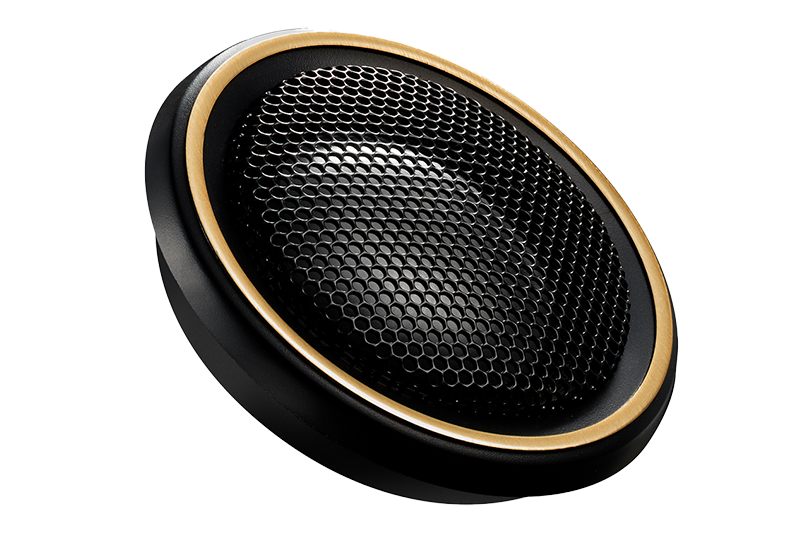

1-3/16” LARGE TWEETER DESIGNED FOR HIGH RESOLUTION

1-3/16” (30mm) tweeters have a larger surface area than most tweeters which allows clear reproduction of vocal sound up through ultra high frequency range. Both flush and surface mountng options are included.

With its compound curvature diaphragm, a large 1-3/16” (30mm) titanium hard dome provides the ultimate in high frequency performance.

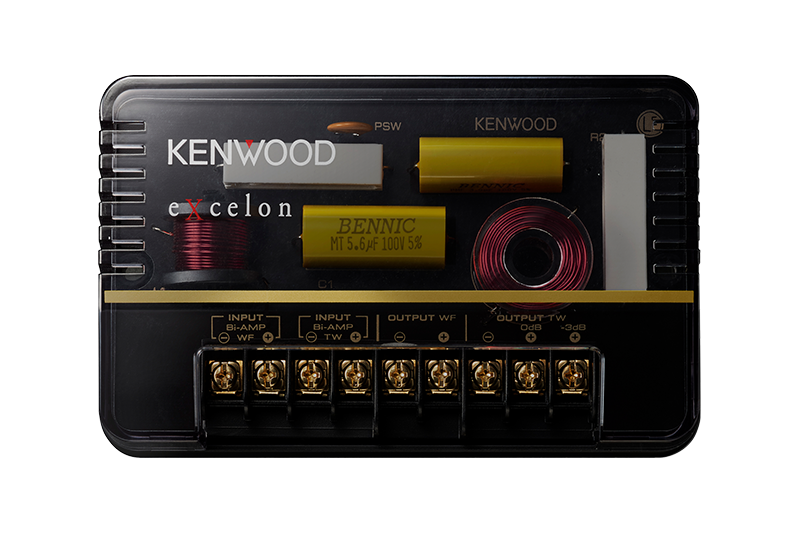

NEW BI-AMP CONNECTION

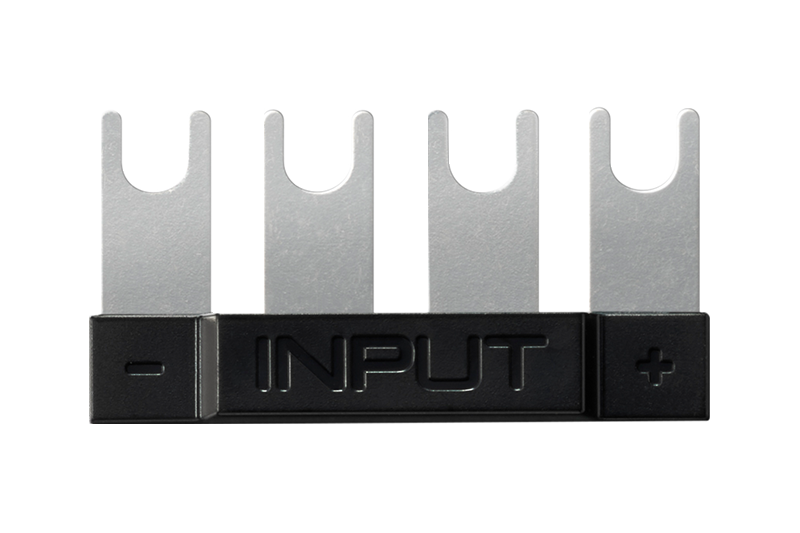

The XR-1701P's include bi-ampable crossover network box, allowing you to power the tweeter and woofer individually from the XR401-4 or other combinations of individual amplifier channels. The network box is further optimized with a high-reliability polyswitch and resistor to protect the tweeter from being overdriven.

Connecting using the Bi-Amp system Regular Connection

FLUSH OR ANGLE MOUNT TWEETER

Mounting hardware is provided to enable both angled and flush mounting options.

Angle Mount Flush Mount

WOOFER MULTI-BRACKET

A multi-bracket is included to make installation easier in a varierty of vehicle types.

GM Bracket

General Features

Peak Input Power 300W
Rated Input Power 100W
Impedance
Woofer Features 6-1/2 inch Glass Fiber Cone
Tweeter Features 1-3/16inch Hard Dome
Specifications
Sensitivity 87 dB/ W / m
Frequency Response 43Hz-40kHz (-10dB)
Cutout Diameter 5-1/2 inch
Mounting Depth 2-5/16 inch
« scroll
Power Handling Power Handling Peak Input Power 300W
Frequency Response 43 Hz~40,000 Hz (-10dB)
CTA Standards RMS Power 100Watts RMS
Impedance
Sensitivity 87dB/ W at 1 m
Frequency Response 60 Hz~35,000 Hz (-3dB)
Woofer Diaphragm Glass Fiber
Size 165 mm 6-1/2 inch
Surround Rubber
Magnet Ferrite φ90 x t15
Tweeter Diaphragm Titanium Dome
Size 30mm 1-3/16inch
Magnet Neodymium
Network Tweeter HPF -12dB/oct
Woofer LPF -12dB/oct
Bi-amp connection
Dimension Woofer Width 180 mm 7-1/16 inch
Height 180 mm 7-1/16 inch
Depth 83.5 mm 3-5/16 inch
Cut-out Diameter 140 mm 5-1/2 inch
Height from the mounting surface with Grille 24.5 mm 15/16 inch
Height from the mounting surface without Grille 11 mm 7/16 inch
Mounting Depth 59 mm 2-5/16 inch
Tweeter (Separate) Width 53 mm 2-1/16 inch
Height 53 mm 2-1/16 inch
Depth 23.8 mm 15/16 inch
Cut-out Diameter 45.5 mm 1-13/16 inch
Weight Net Weight with Grille (Woofer) 1,010 g 2.2 lb
Net Weight without Grille (Woofer) 930 g 2.1 lb
Net Weight (Tweeter) 70 g 2.5 oz
Gross Weight 3.9 kg 8.6 lb

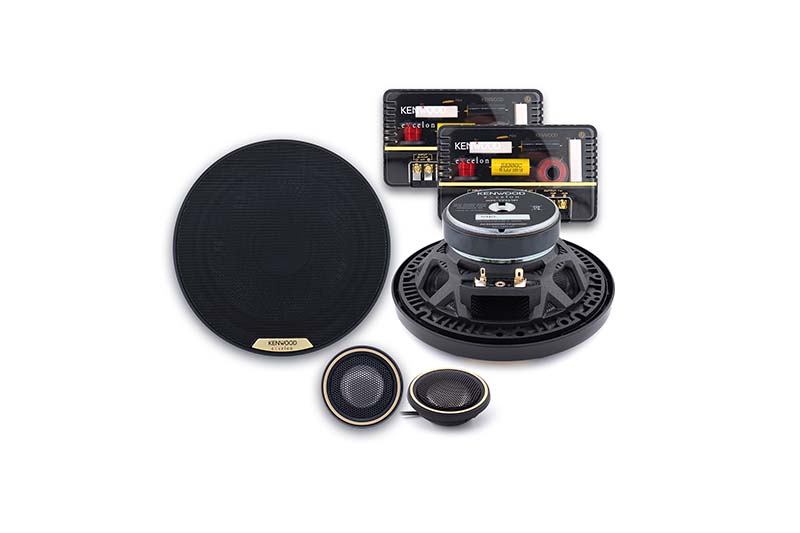

Accessory External Network Box 2pcs
Grille Assy 2pcs
Bracket (WF) 2pcs
Bracket (TW) 2pcs
Mounting HardWare (TW) 2pcs
Adhesive Tape 1set
Tapping Screw (φ4x25mm) 12pcs
Tapping Screw (φ4x18mm) 8pcs
Tapping Screw (φ4x16mm) 4pcs
Machine Screw (M4x6mm) 2pcs
Speed Nut (φ4) 16pcs
Manual
Warranty Card
