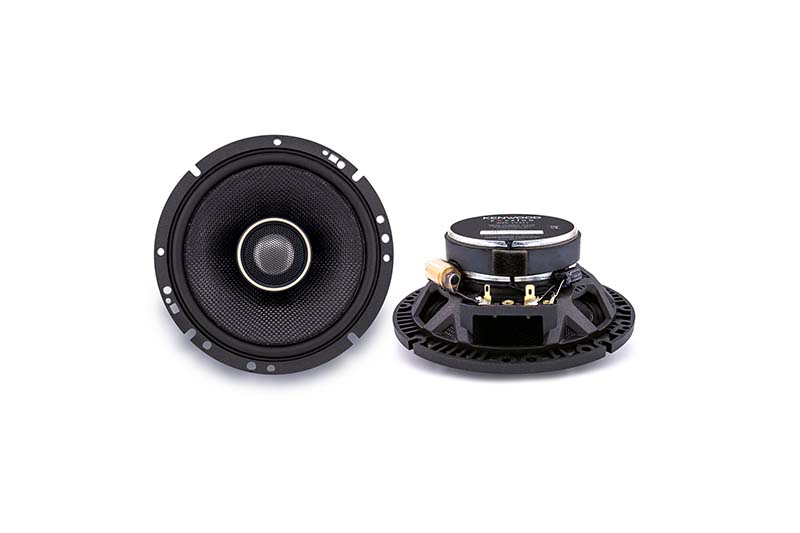

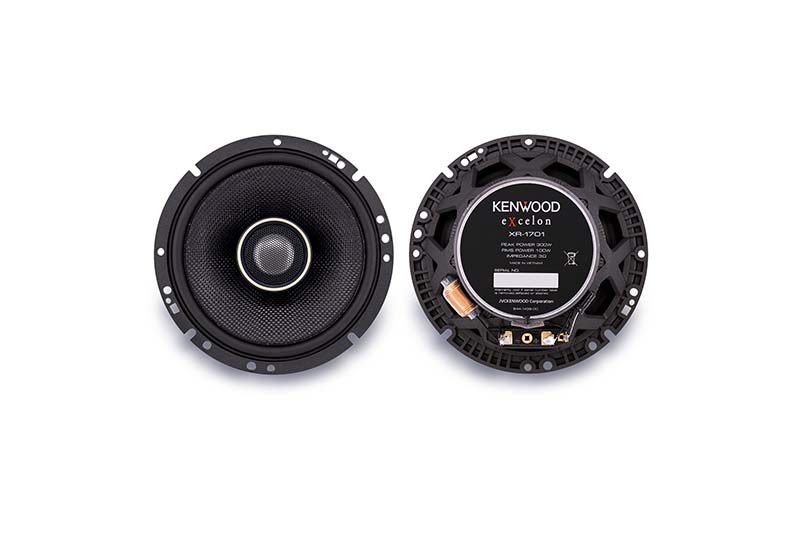

XR-1701

XR speakers are precisely designed for High-Resolution audio to create a truly authenic listening experience with every detail and nuance.

XR-1701High-Resolution Audio Certified
6-1/2" 2-way Speaker

  • ・Glass Fiber Cone
  • ・1-3/16” Hard Dome Tweeter
  • ・GM Bracket

Buy Now

RICH AND IMMERSIVE HIGH-RESOLUTION AUDIO

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.


Smooth waveforms

Loss of smoothness

Fine waveforms

* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

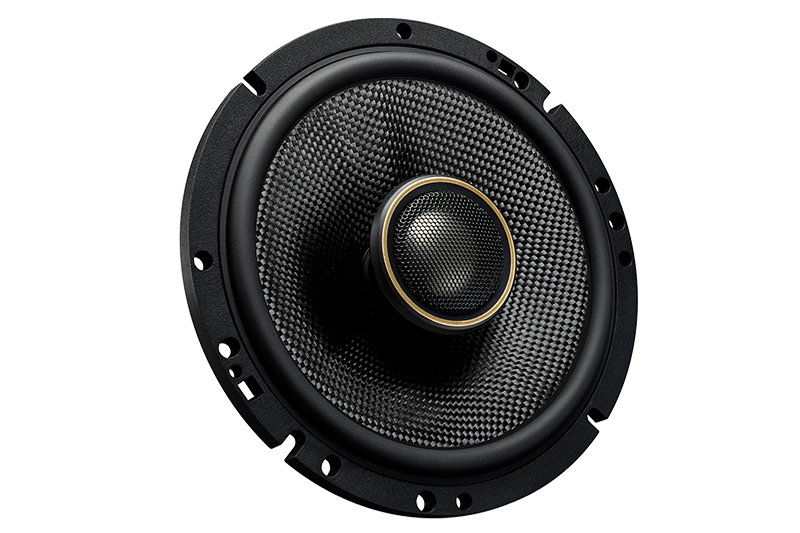

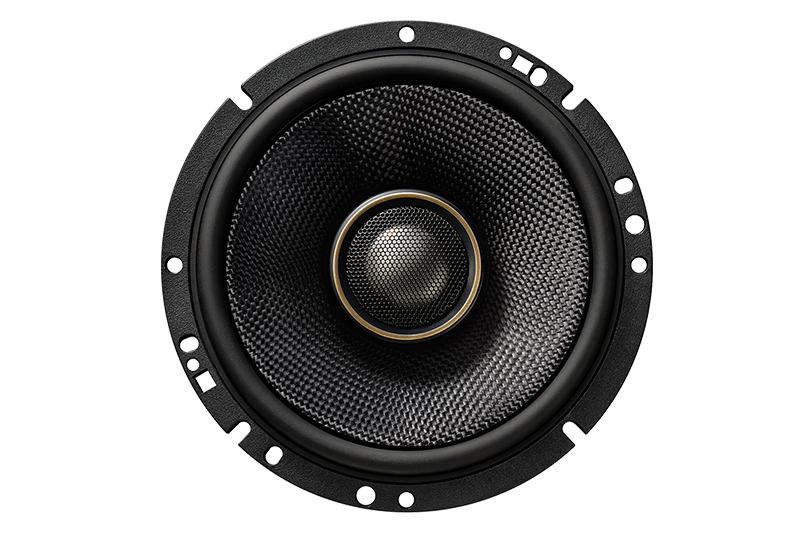

GLASS FIBER CONE

The glass fiber cone combines high-strength with lightweight materials, allowing the speaker to reproduce all sounds from impactful bass notes to delicate tones.

SURROUND ROLL SHAPE

Asymmetrical thickness of the surround roll shape provides better focussed bass.

1-3/16” LARGE TWEETER DESIGNED FOR HIGH RESOLUTION

1-3/16” (30mm) tweeters have a larger surface area than most tweeters which allows clear reproduction of vocal sound up through ultra high frequency range.

With its compound curvature diaphragm, a large 1-3/16” (30mm) titanium hard dome provides the ultimate in high frequency performance.

WOOFER MULTI-BRACKET

A multi-bracket is included to make installation easier in a varierty of vehicle types.

GM Bracket

General Features

Peak Input Power 300W
Rated Input Power 100W
Impedance
Woofer Features 6-1/2 inch Glass Fiber Cone
Tweeter Features 1-3/16inch Hard Dome
Specifications
Sensitivity 87 dB/ W / m
Frequency Response 45Hz-40kHz (-10dB)
Cutout Diameter 5-1/2 inch
Mounting Depth 2-5/16 inch
Power Handling Power Handling Peak Input Power 300W
Frequency Response 45 Hz~40,000 Hz (-10dB)
CTA Standards RMS Power 100Watts RMS
Impedance
Sensitivity 87dB/ W at 1 m
Frequency Response 64 Hz~35,000 Hz (-3dB)
Woofer Diaphragm Glass Fiber
Size 165 mm 6-1/2 inch
Surround Rubber
Magnet Ferrite φ90 x t15
Tweeter Diaphragm Titanium Dome
Size 30mm 1-3/16inch
Magnet Neodymium
Network Tweeter HPF -12dB/oct
Dimension Width 180 mm 7-1/16 inch
Height 180 mm 7-1/16 inch
Depth 83.5 mm 3-5/16 inch
Cut-out Diameter 140 mm 5-1/2 inch
Height from the mounting surface with Grille 24.5 mm 15/16 inch
Height from the mounting surface without Grille 21 mm 13/16 inch
Mounting Depth 59 mm 2-5/16 inch
Weight Net Weight with Grille 1,130g 2.5 lb
Net Weight without Grille 1,050g 2.3 lb
Gross Weight 3.4 kg 7.5 lb

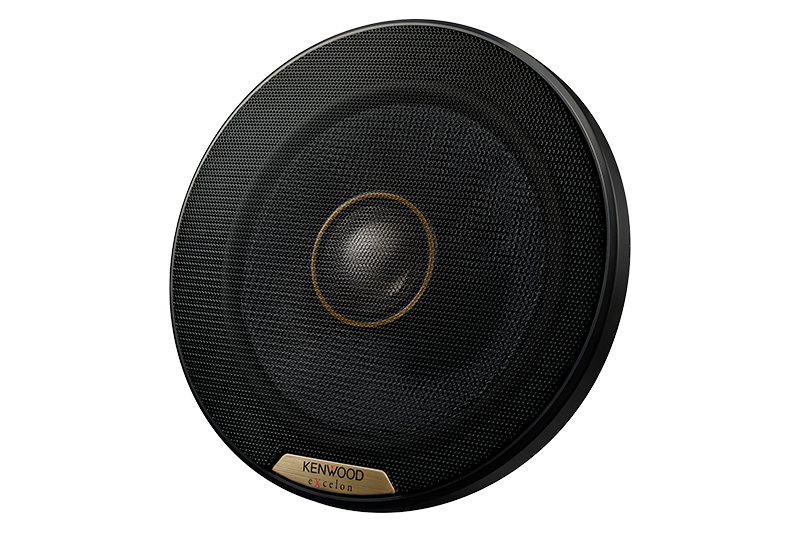

Accessory Grille Assy 2pcs
Bracket (WF) 2pcs
Adhesive Tape 1set
Tapping Screw (φ4x25mm) 12pcs
Tapping Screw (φ4x18mm) 8pcs
Speed Nut (φ4) 16pcs
Manual
Warranty Card
