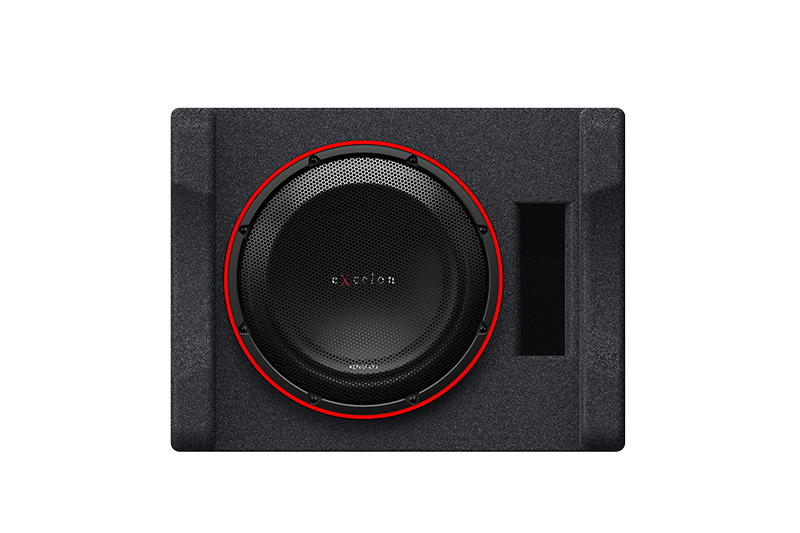

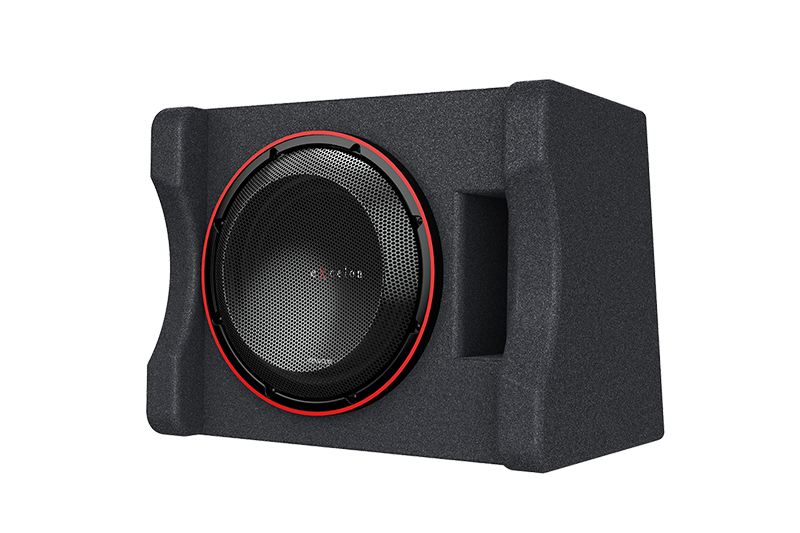

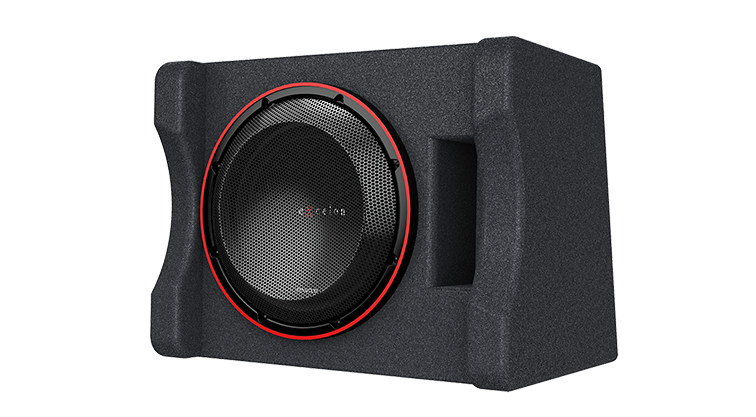

P-XW1221SHP

P-XW1221SHP12" Preloaded High Power
Subwoofer Enclosure

  • ・Peak Power 2000W
  • ・RMS Power 500W
  • ・PP Cone with Dual Area Cap
  • ・Stress Controlled Spider
  • ・2Ω Impedance
  • ・Steel Mesh Grille Included

Buy Now

PP Dual Area Cap

This gives its diaphragm the rigidity required for higher power handling and delivers more accurate bass.

Closed Yoke with Advanced Airflow Control

Subwoofer has a robust thermal management system, implemented with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control.

Stress Controlled Spider

Computer-optimized damper controls stress and increases mechanical durability.

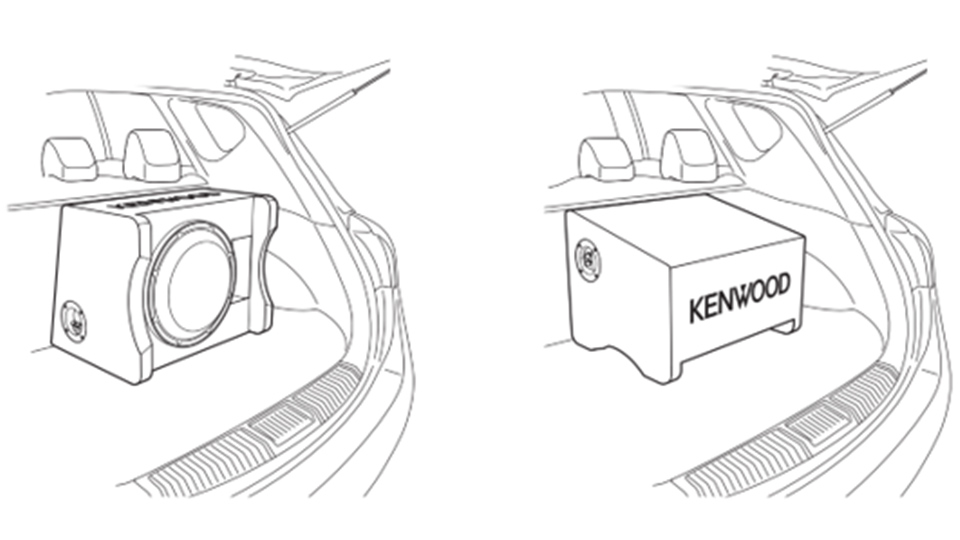

Multiple Position Options

Forward, Rear, or Down-Firing installation available.

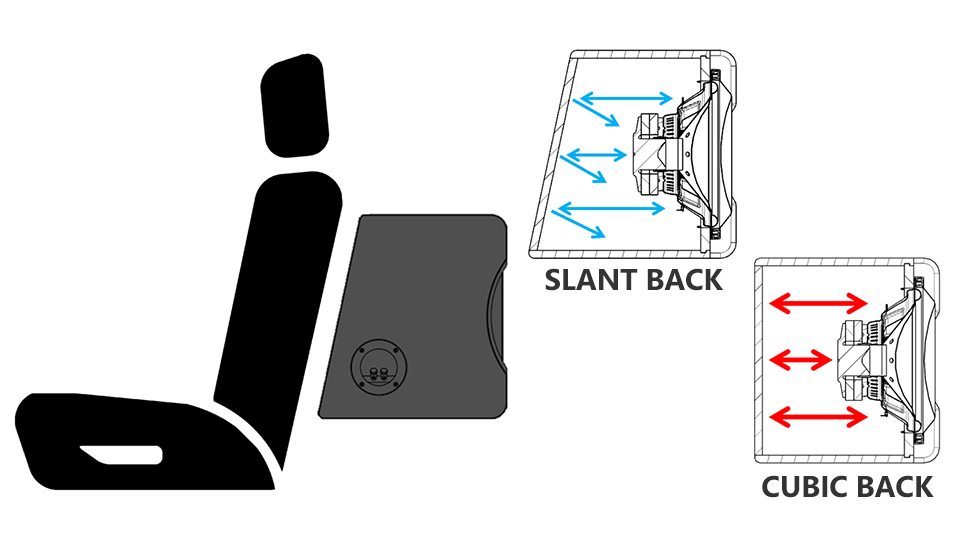

Slant Back Design

Easily fits behind the rear seat of an SUV and is more effective in suppressing standing waves that typically occur in a standard square enclosure.

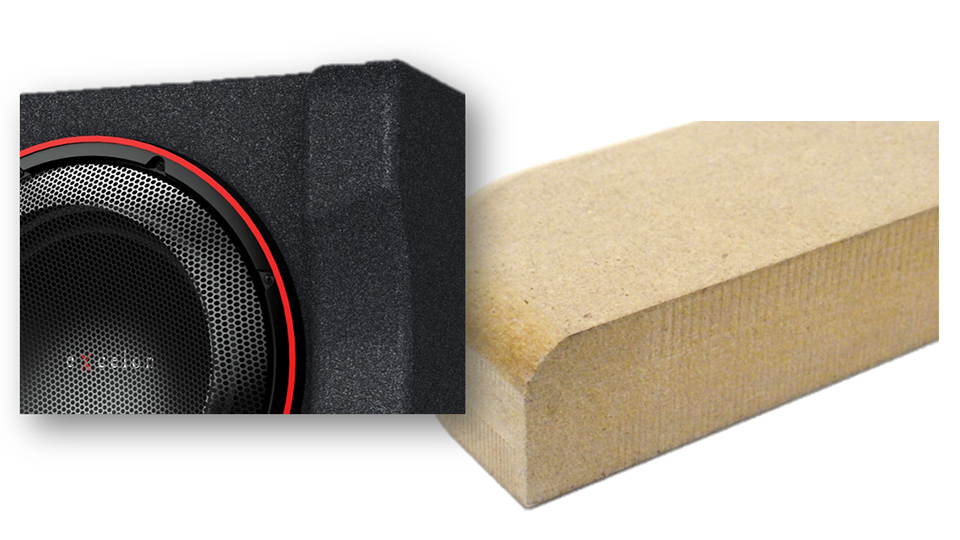

3/4" THICK MDF Baffle

5/8” MDF construction with 3/4” THICK Baffle provides more strength and durability, ensuring accurate bass even at high volume.

INCLUDED Steel Mesh Grille

Valued at $30 when sold separately, enclosure includes a protective grille for further enhanced durability.

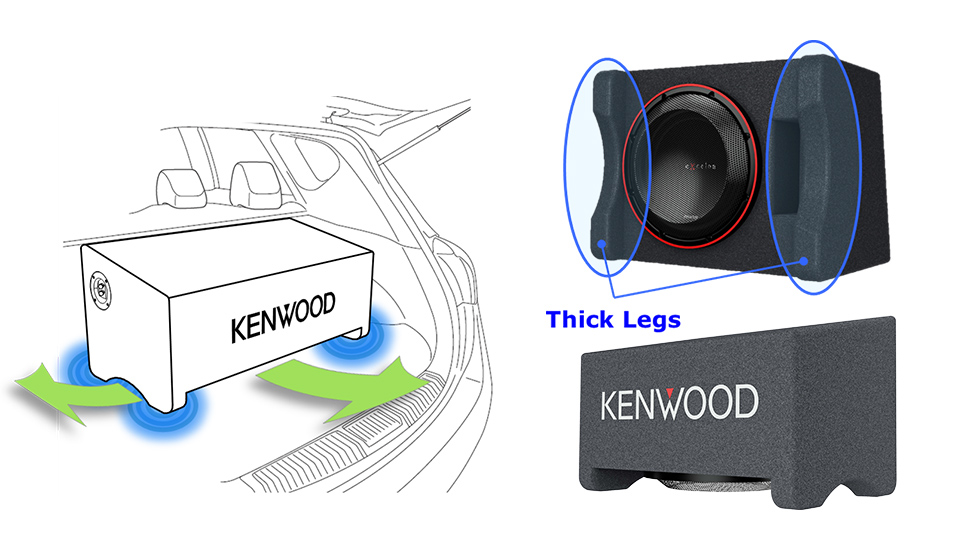

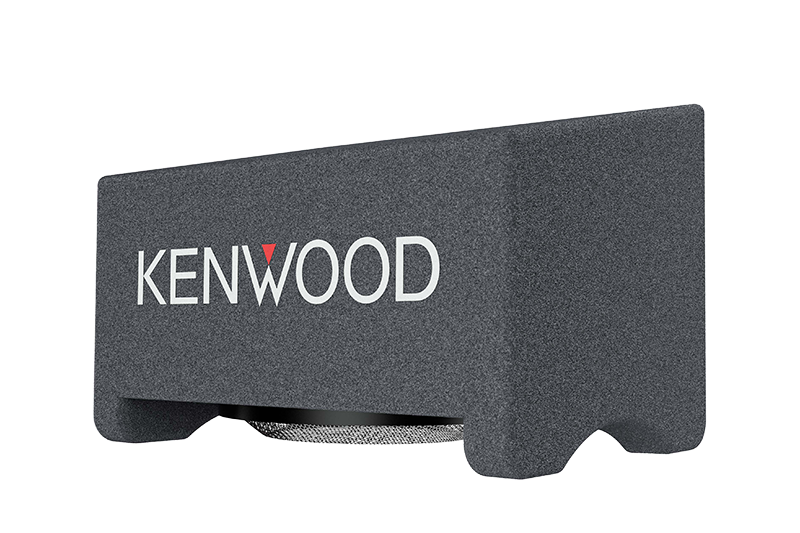

Enhanced Down-Firing Structural Support

Extra thick legs support the weight of the system when installed in a down-firing application. This ensures the low frequency energy is transmitted without loss, resulting in powerful, impactful bass.

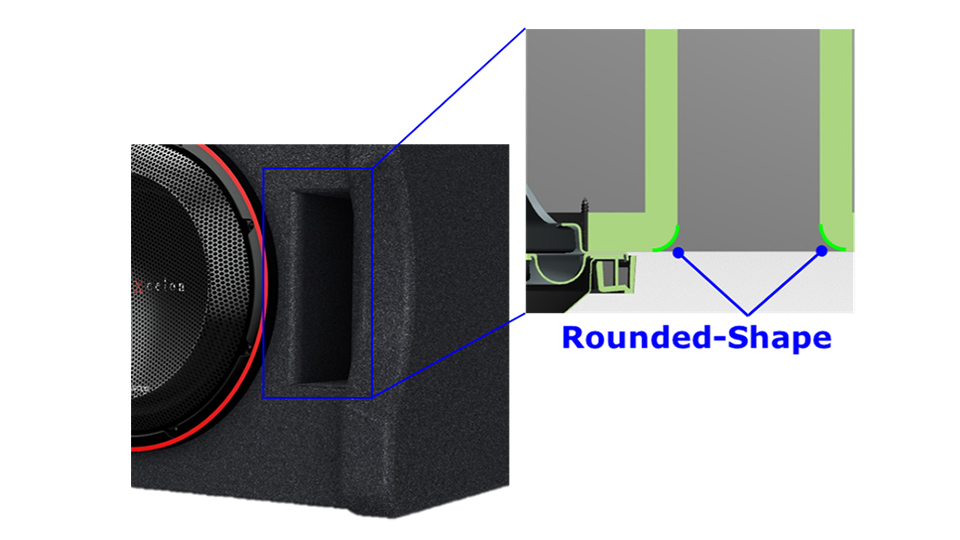

Reduced Port Noise

The port’s rounded shape reduces airflow resistance and noise generation.

Precisely Power Matched

P-XW1221SHP "High Performance" Class Subwoofer enclosure is precisely power matched with the eXcelon X502-1 amplifier.

Dimensions

General Features

« scroll
Model P-XW1221SHP
Subwoofer Specification 12” Subwoofer
Peak Power 2000W
RMS Power 500W
Impedance
Frequency Response 30Hz-300Hz
Features Injection Polypropylene
Dual Area Cone
Closed Yoke with Advanced Airflow Control
Aluminum Bobbin
Enclosure Specifications Slant Back Design with Flared Port & Down Firing Capability
5/8"MDF Construction with 3/4" MDF Baffle Board
8AWG-ready Nickel-plated Spring Posts
Dimensions: 20-7/8"(W) x 15-13/16"(H) x 14-5/8"(D)
« scroll
ELECTRICAL
Impedance (Ω) 2
Peak Input / Maximum Power (W) 2000
Maximum Input Power (W) 1000
Rated/RMS Power (W) 500
Sensitivity (dB at 1m) 79
Frequency Response (Hz) 30 ~ 300
MOUNTED SPEAKER
Woofer Size 30cm 12inch
# of Woofer 1
Base Unit KFC-XW1221HP
Cone Injection Polypropylene
Surround Rubber
Basket Steel
Gasket ABS
Magnet Ferrite φ155-φ75-t32
ENCLOSURE
Type Ported
Material Medium Density Fiberboard
Terminal Push Terminal
Down Firing Capable
DIMENSION / WEIGHT
Width 530mm 20-7/8inch
Height 402mm 15-13/16inch
Depth 372mm 14-5/8inch
Gross Weight 19.3kg 42.5lb
ACCESSORY Tapping Screw Φ5 x 25, 8pcs
Mounting Plate, 2pcs
Warranty Card
SPECIAL FEATURE Steel Mesh Grille Attached
Slant Back Design with Flared Port
Down Firing Capable
2-ohm Impedance
5/8" MDF Construction with 3/4" Baffle Board
8AWG-ready Nickel-plated Spring Posts
Injection Polypropylene
Dual Area Cone
Closed Yoke with Advanced Airflow Control
Aluminum Bobbin
