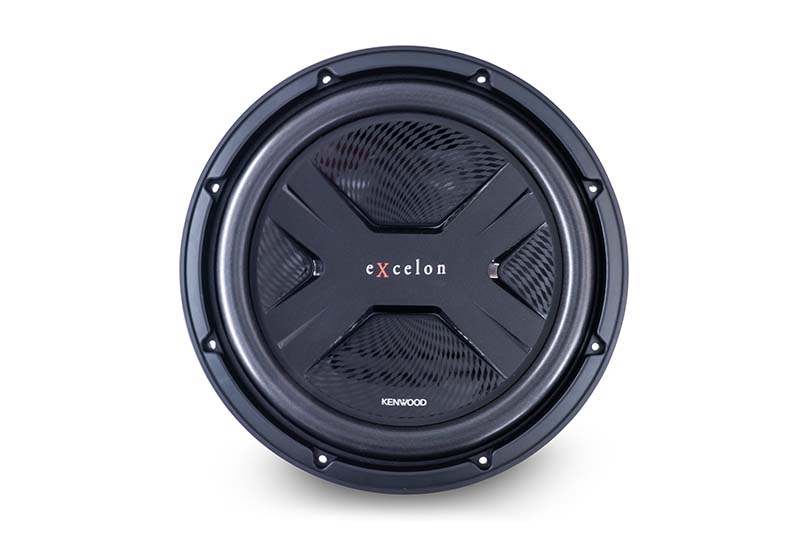

KFC-XW1241

KFC-XW124112" Subwoofer

  • ・Peak Power 2000W
  • ・PP X-motif Cone with Diamond Array Pattern
  • ・Closed Yoke with Advanced Airflow Control
  • ・Stress Controlled Spider
  • ・Robust Thermal Management System

Buy Now

X-Motif Cone with Diamond Array Pattern

X-Motif Cone controls resonance frequency and cuts unnecessary frequency, delivering powerful and solid bass response.

Closed Yoke with Advanced Airflow Control

The KFC-XW1241 has a robust thermal management system implemented. with an Aluminum Bobbin,Closed Yoke Design, and Advanced Airflow Control.

Stress Controlled Spider

Computer-optimized damper controls stress and increases mechanical durability.

The Best Match

KFC-XW1241 subwoofer is precisely power matched with the eXcelon X502-1 amplifier.

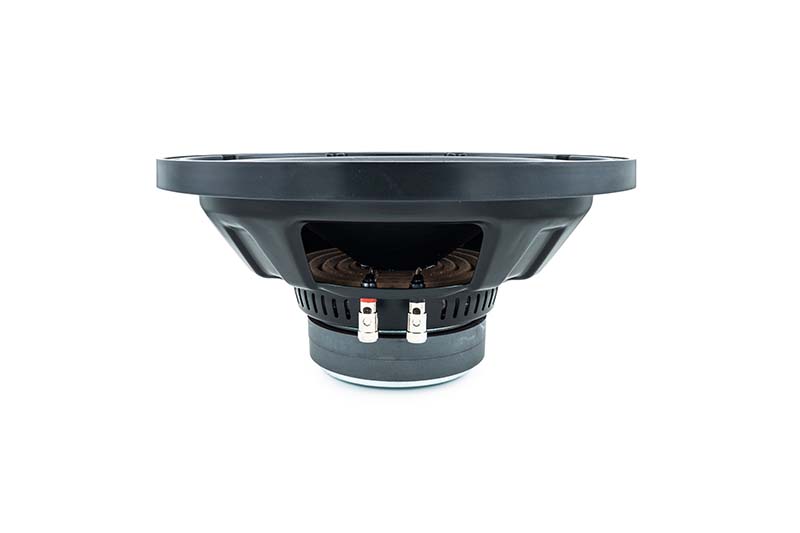

Optional CA-121G Subwoofer Grille Ready

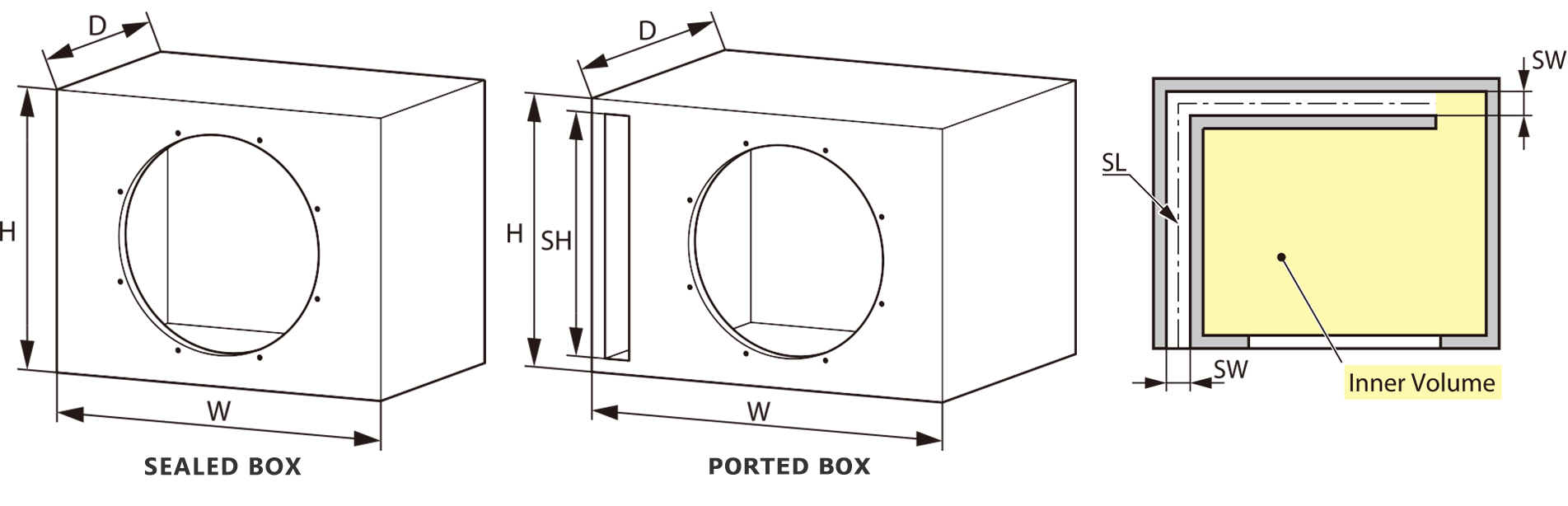

Recommended Enclosures

« scroll
Model Type Inner Volume W H D Mounting Hole SW SH SL
KFC-XW1241 Sealed 1.25 cft (35.4 liter) 18" (457mm) 14-1/4" (362mm) 11-3/4" (299mm) 11-1/8" (282mm)
Ported 1.50 cft (42.5 liter) 20" (508mm) 14-1/4" (362mm) 15-1/2" (394mm) 1-3/8" (35mm) 12-3/4" (324mm) 29" (736mm)

General Features

ELECTRICAL
Impedance (Ω) 4
Peak Input Power (W) 2000
RMS Power (W) 300
Sensitivity (dB at 1m) 85
Frequency Response (Hz) 29 ~ 300
MOUNTED SPEAKER
Size 300mm 12 inch
Diaphragm Paper
Cap Injection PP
Surround Urethane
Basket Steel
Gasket ABS
Magnet Ferrite φ134-φ70-t30
DIMENSION
Width 326mm 12 - 13/16 inch
Height 326mm 12 - 13/16 inch
Cut-out Diameter 279mm 11 inch
Depth 155.4mm 6 - 1/8 inch
Mounting Depth 137mm 5 - 3/8 inch
WEIGHT
Woofer without Gasket 4.2 kg 9.3 lb
Gross Weight 5.0 kg 11.0 lb
Weight of Magnet 1560 g 54.9 oz
ACCESSORY Instruction Manual
Warranty Card
SPECIAL FEATURE Injection PP X-motif Cone with
Diamond Array Pattern
Closed Yoke with Advanced
Airflow Control
Aluminum Bobbin
« scroll
ELECTRICAL
Impedance (Ω) 4
Peak Input Power (W) 2000
RMS Power (W) 300
Sensitivity (dB at 1m) 85
Frequency Response (Hz) 29 ~ 300
MOUNTED SPEAKER
Size 300mm 12 inch
Diaphragm Paper
Cap Injection PP
Surround Urethane
Basket Steel
Gasket ABS
Magnet Ferrite φ134-φ70-t30
DIMENSION
Width 326mm 12 - 13/16 inch
Height 326mm 12 - 13/16 inch
Cut-out Diameter 279mm 11 inch
Depth 155.4mm 6 - 1/8 inch
Mounting Depth 137mm 5 - 3/8 inch
WEIGHT
Woofer without Gasket 4.2 kg 9.3 lb
Gross Weight 5.0 kg 11.0 lb
Weight of Magnet 1560 g 54.9 oz
ACCESSORY Instruction Manual
Warranty Card
SPECIAL FEATURE Injection PP X-motif Cone with
Diamond Array Pattern
Closed Yoke with Advanced
Airflow Control
Aluminum Bobbin
