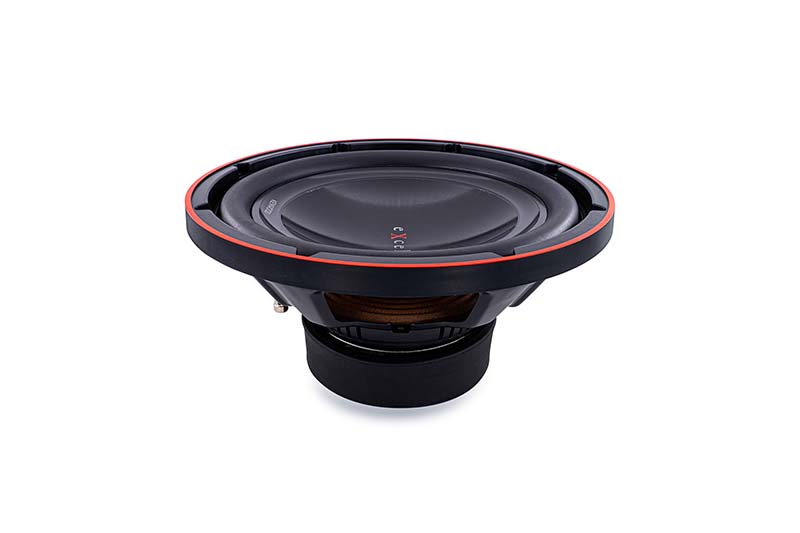

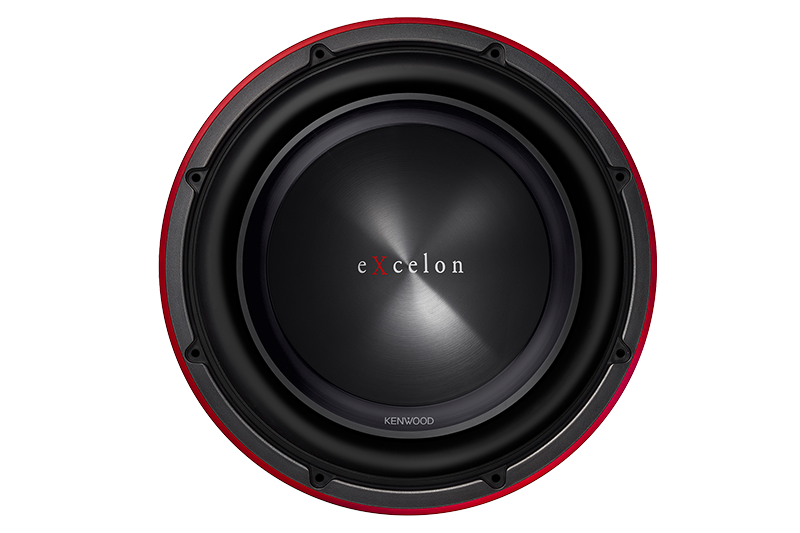

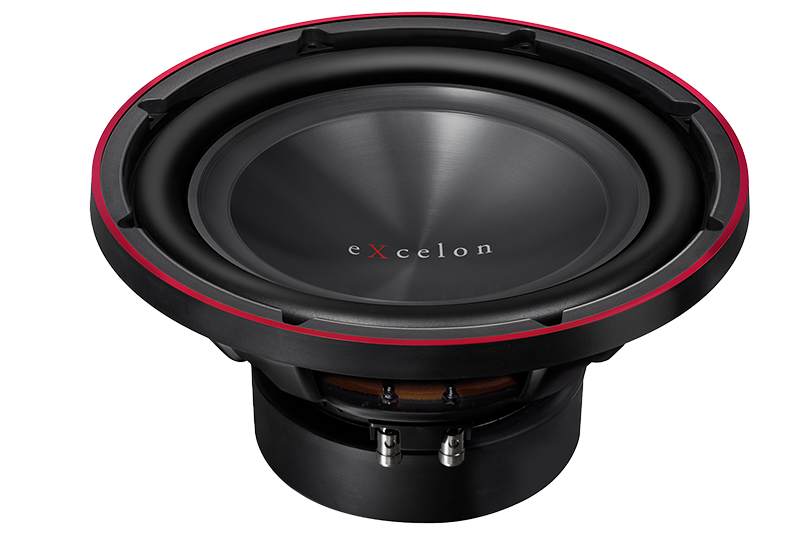

KFC-XW1221HP

KFC-XW1221HP12" Subwoofer (2Ω)

  • ・Peak Power 2000W
  • ・PP Dual Area Cone
  • ・Closed Yoke with Advanced Airflow Control
  • ・Stress Control Spider
  • ・Robust Thermal Management System

Buy Now

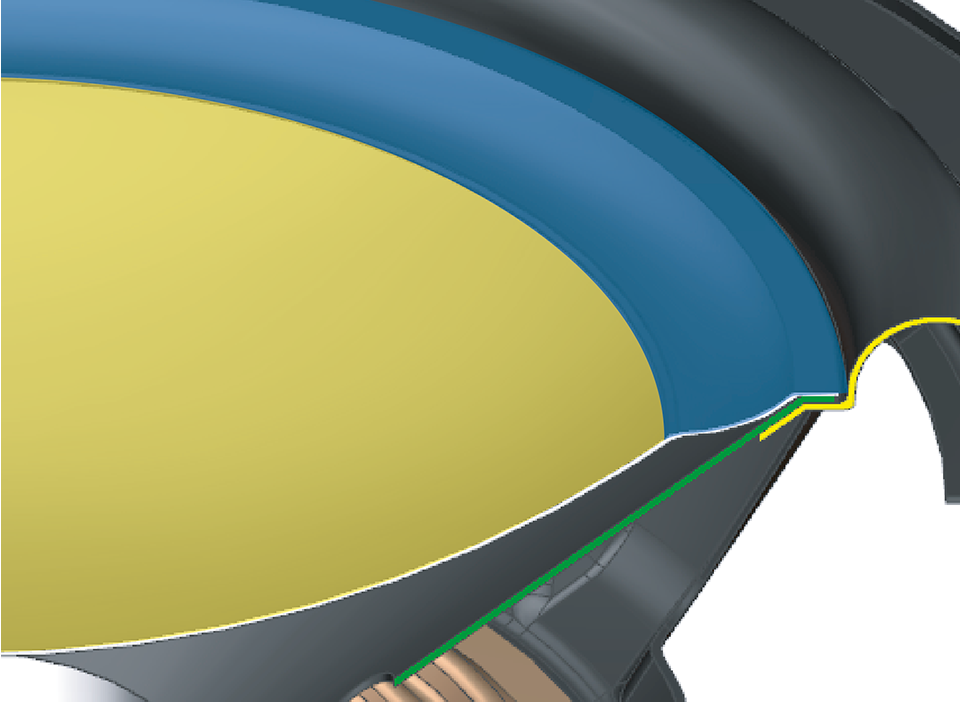

PP Dual Area Cone

for HP Class gives its diaphragm the rigidity requires for higher power handling and delivers more accurate bass.

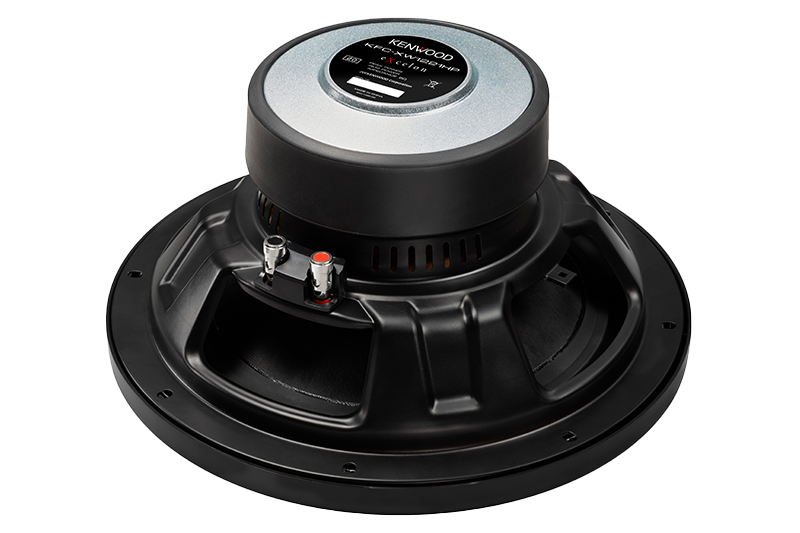

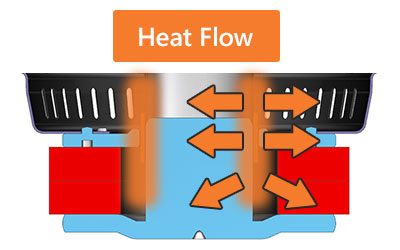

Closed Yoke with Advanced Airflow Control

KFC-XW1221HP have a robust thermal management system, implemented with an Aluminum Bobbin,Closed Yoke Design, and Advanced Airflow Control.

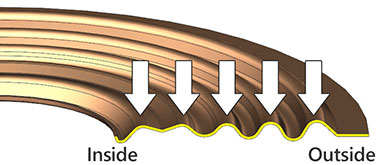

Stress Controlled Spider

Computer-optimized Dumper Control stress and increase mechanical durability.

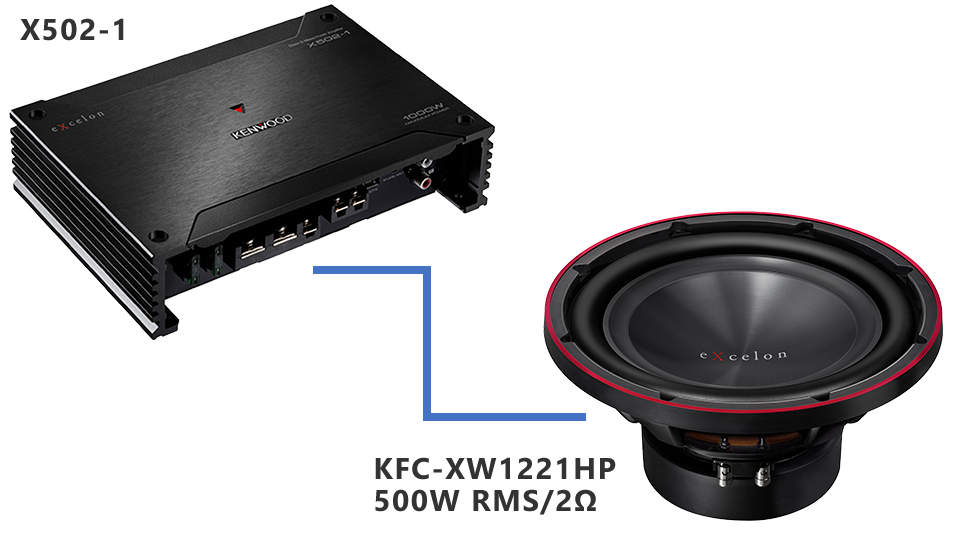

The Best Match

KFC-XR1221HP "High Performance" Class Subwoofer is precisely power matched with the eXcelon X502-1 amplifier.

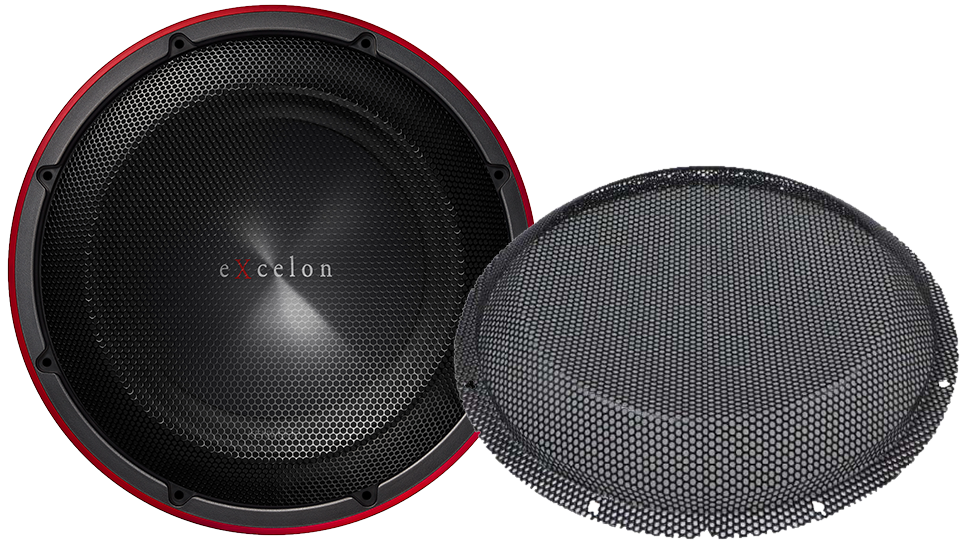

Optional CA-121G Subwoofer Grille Ready

Recommended Enclosures

« scroll
Model Type Inner Volume W H D Mounting Hole SW SH SL
KFC-XW1221HP Sealed 1.25 cft (35.4 liter) 18" (457mm) 14-1/4" (362mm) 11-3/4" (299mm) 11-1/8" (282mm)
Ported 1.50 cft (42.5 liter) 20" (508mm) 14-1/4" (362mm) 15-1/2" (394mm) 1-3/8" (35mm) 12-3/4" (324mm) 29" (736mm)

General Features

Subwoofer Type 12inch PP Cone
Peak Power 2000 W
RMS Power 500 W
Frequency Response 25Hz-300Hz
Impedance 2 Ω
Mounting Depth 5-13/16 inch
« scroll
Subwoofer Type 12inch PP Cone
Peak Power 2000 W
RMS Power 500 W
Frequency Response 25Hz-300Hz
Impedance 2 Ω
Mounting Depth 5-13/16 inch
